Products
Capture I/O
Capture I/O is YUAN's historic core: more than 180 capture cards and modules spanning ProAV raw capture, Pro H.26X hardware compression, USB capture boxes, Holoscan sensor bridges, and legacy bus support — 1 to 16 channels, SD to 8K60, with one SDK across the whole line.
Capture I/O
ProAV

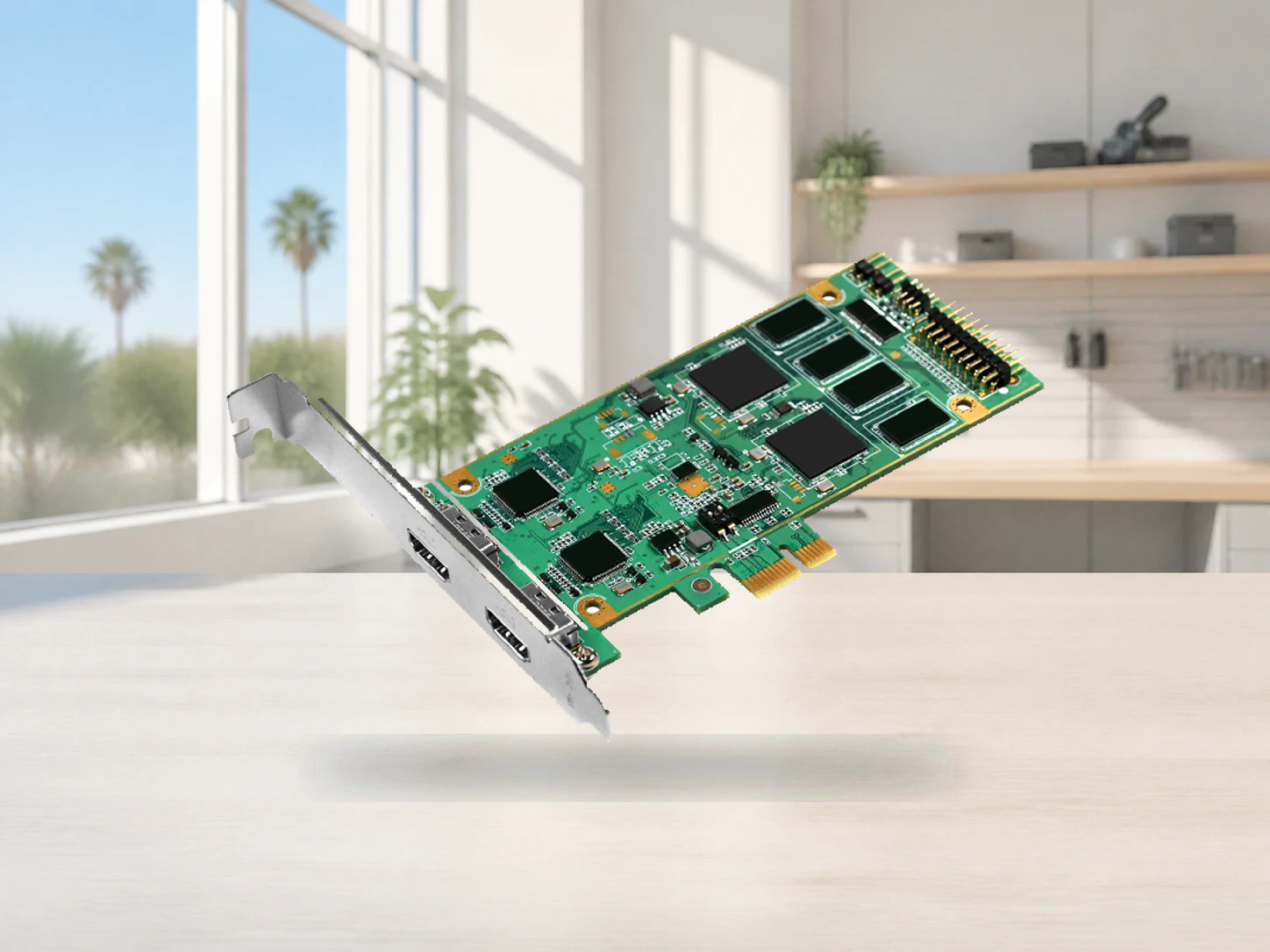

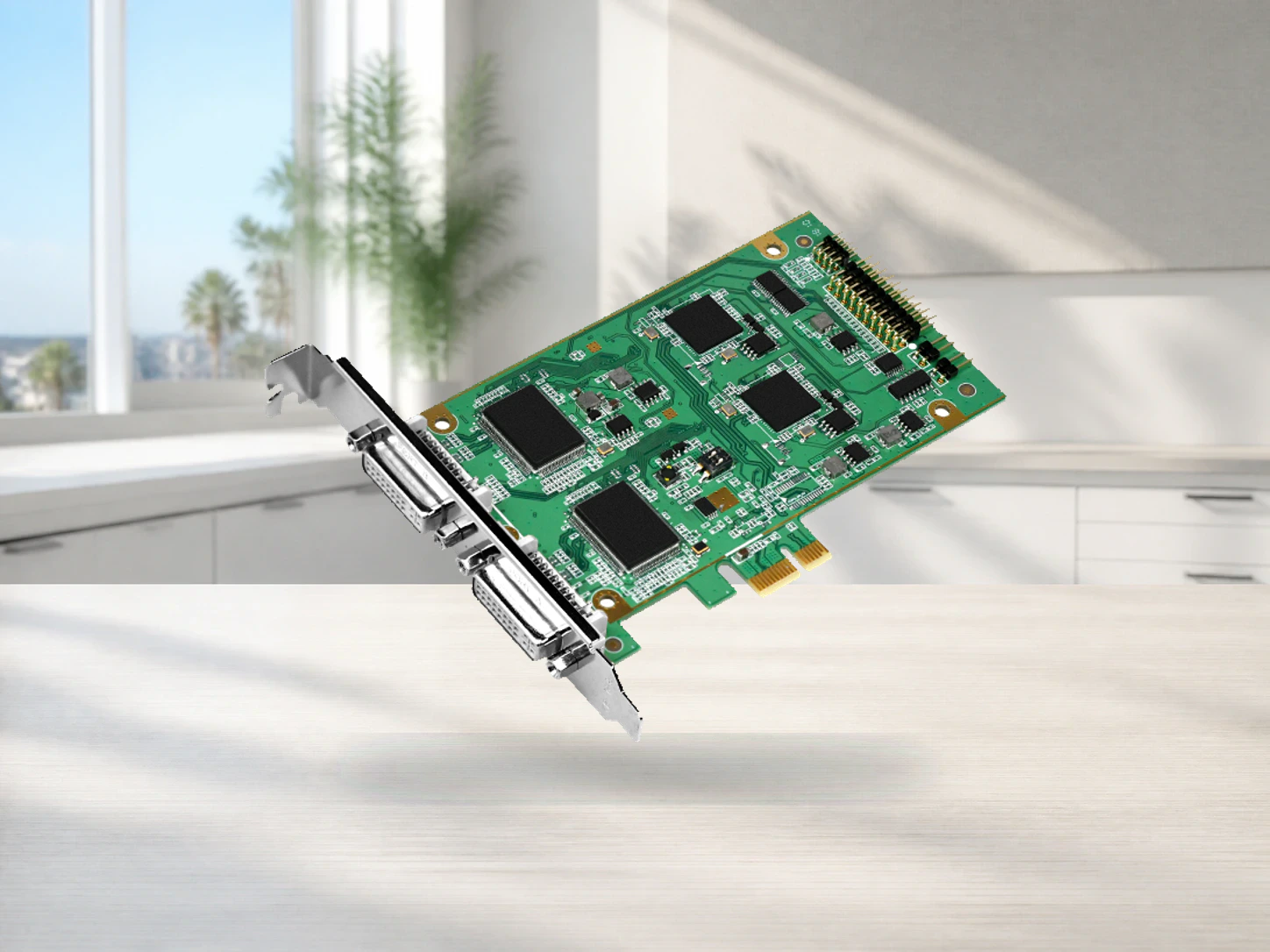

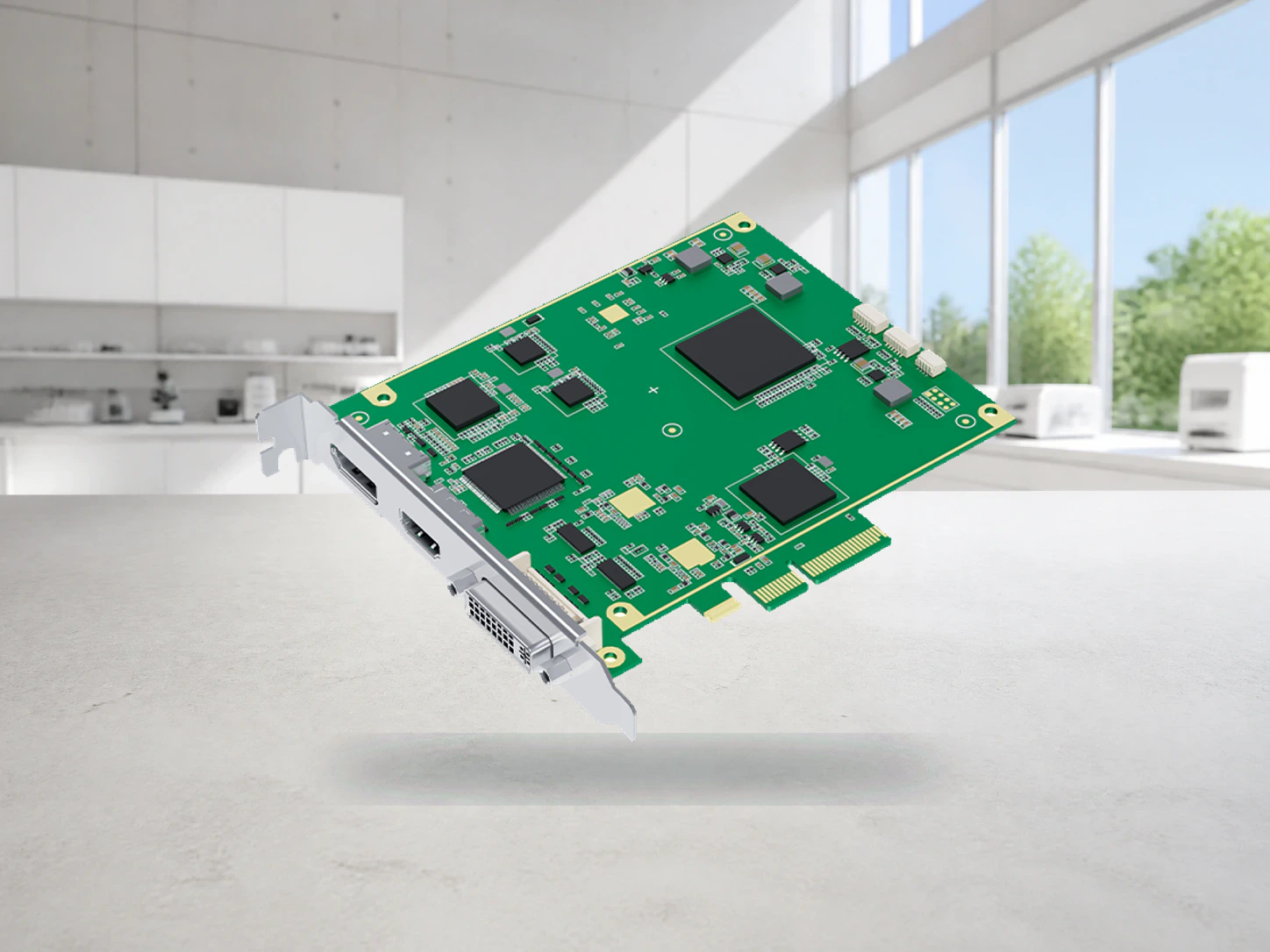

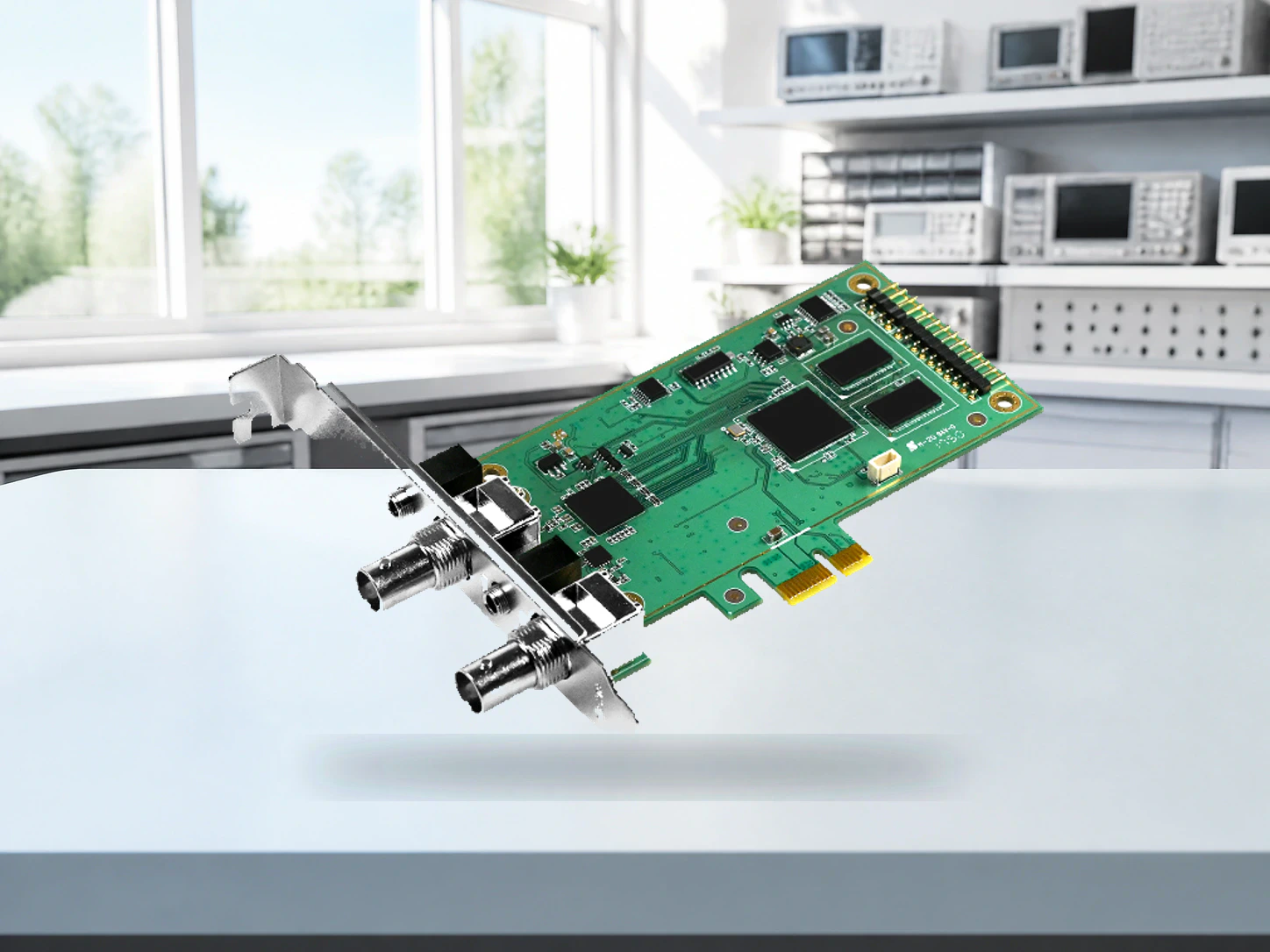

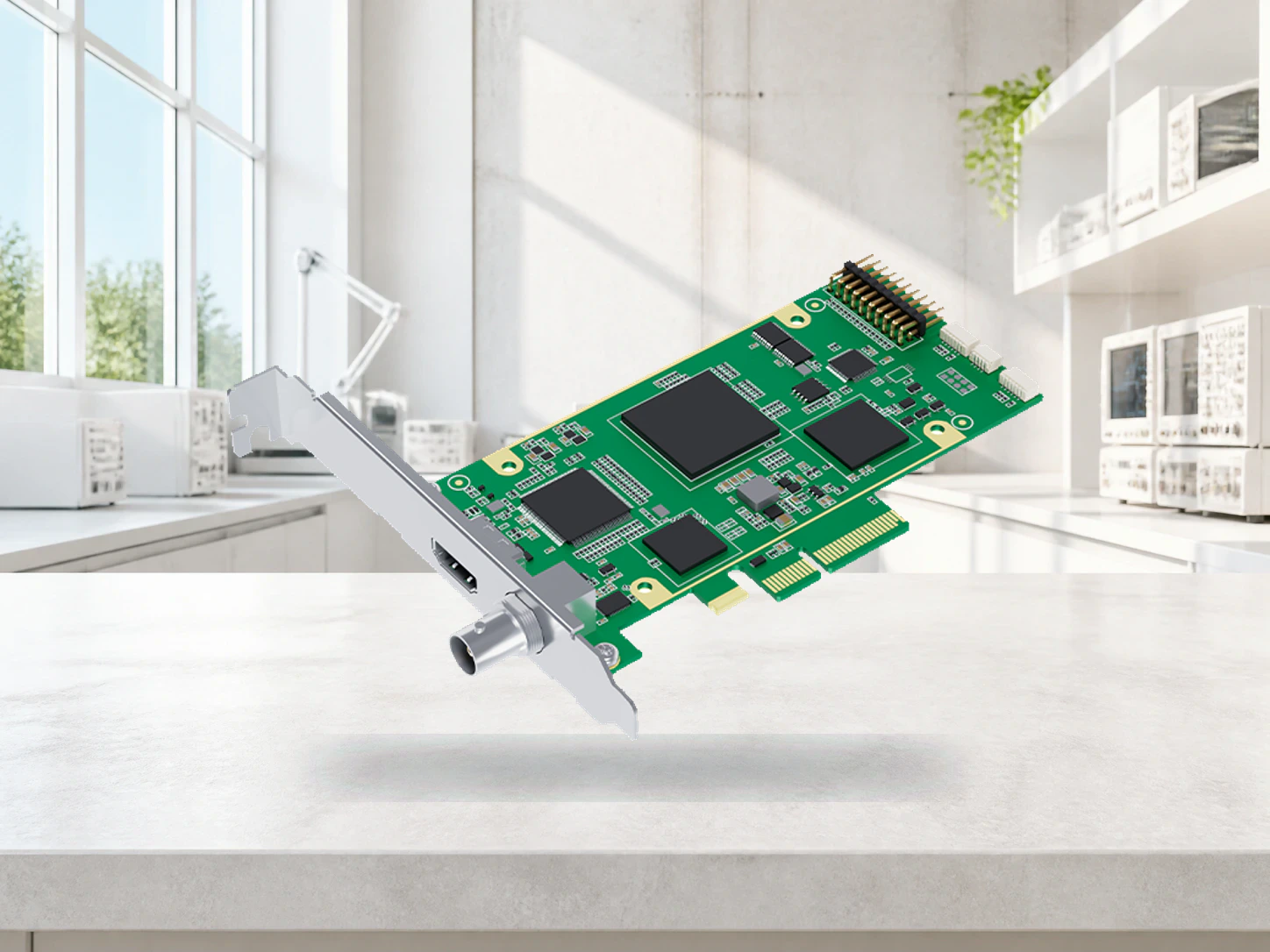

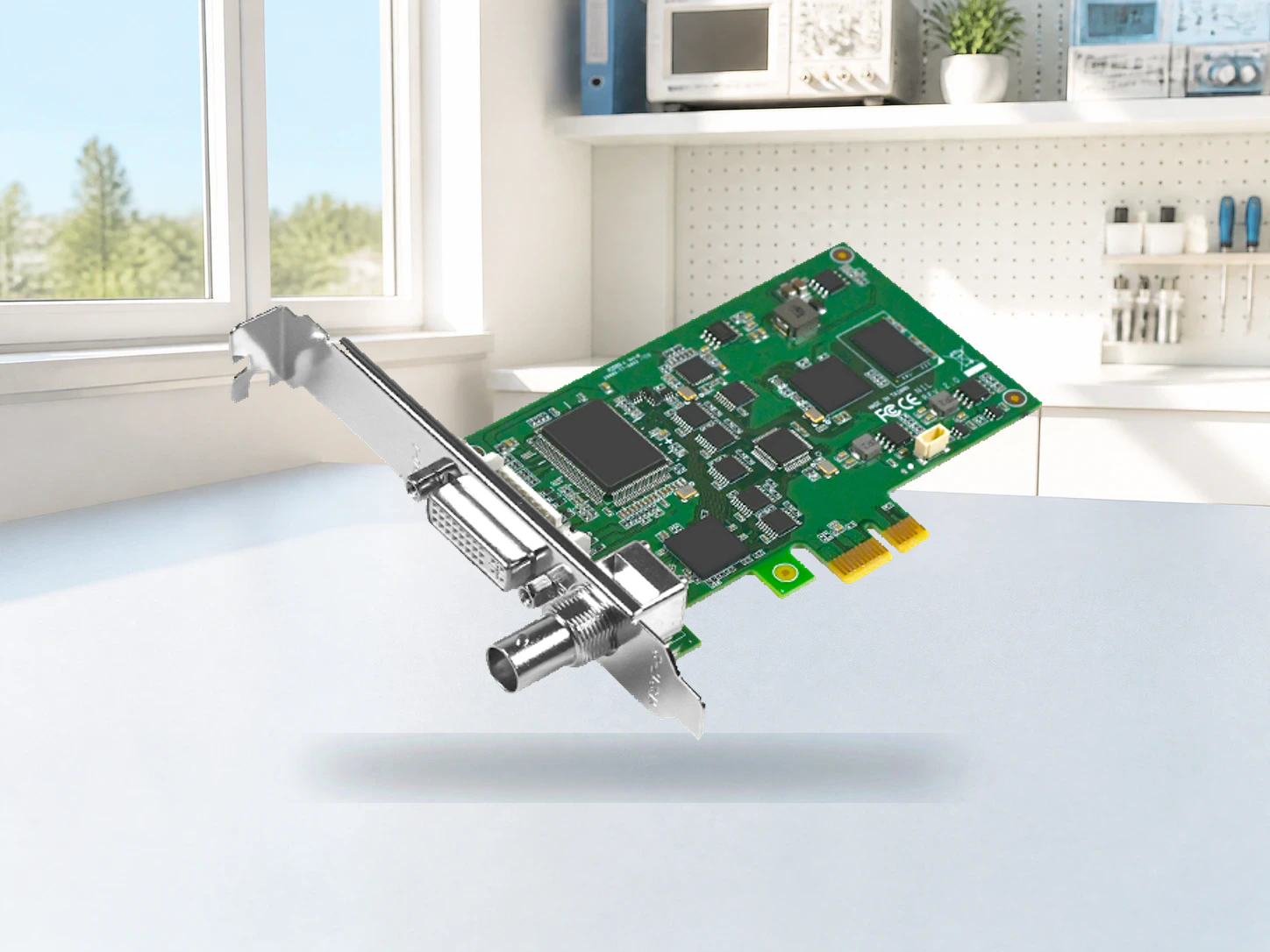

PCIe

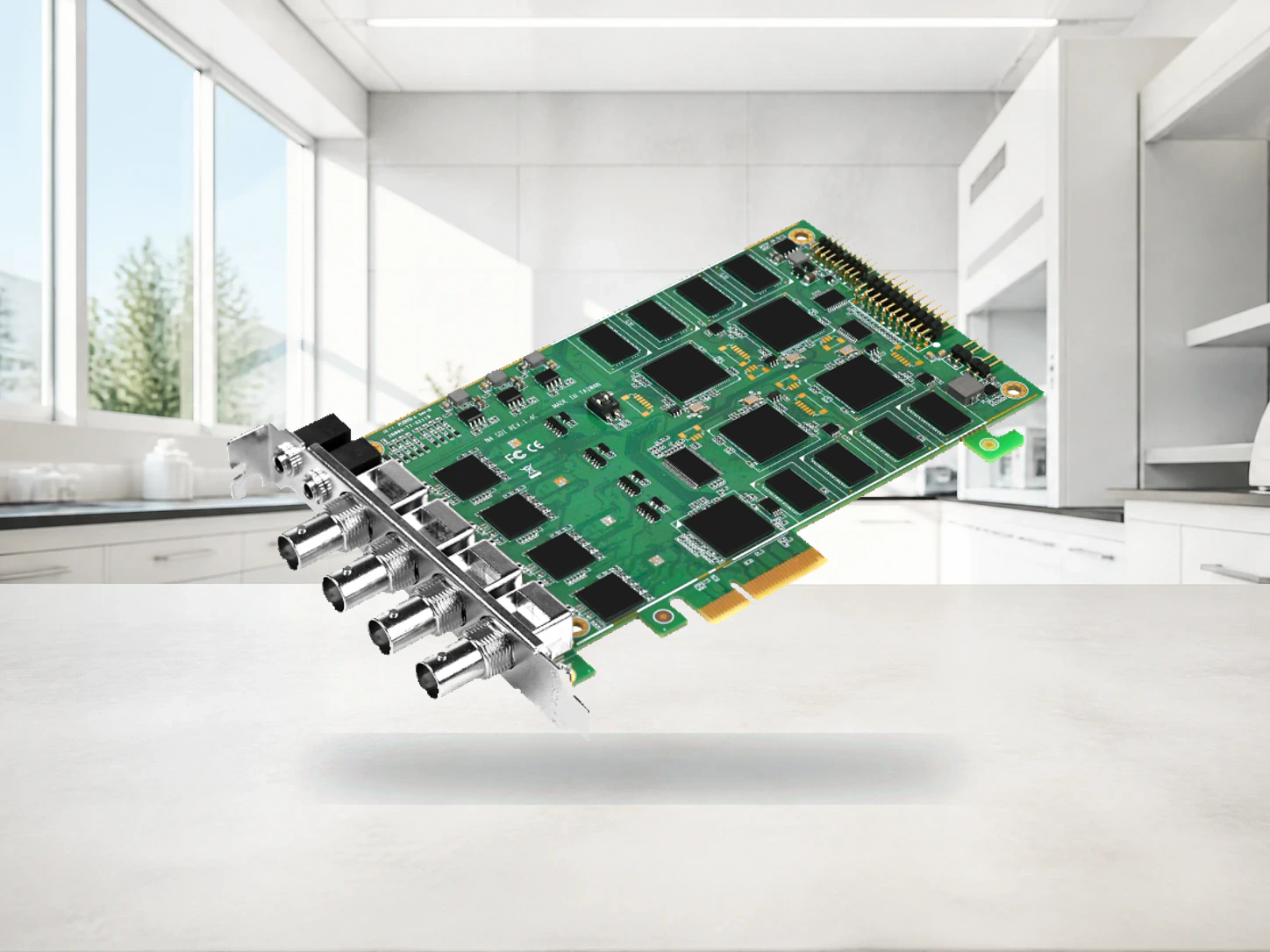

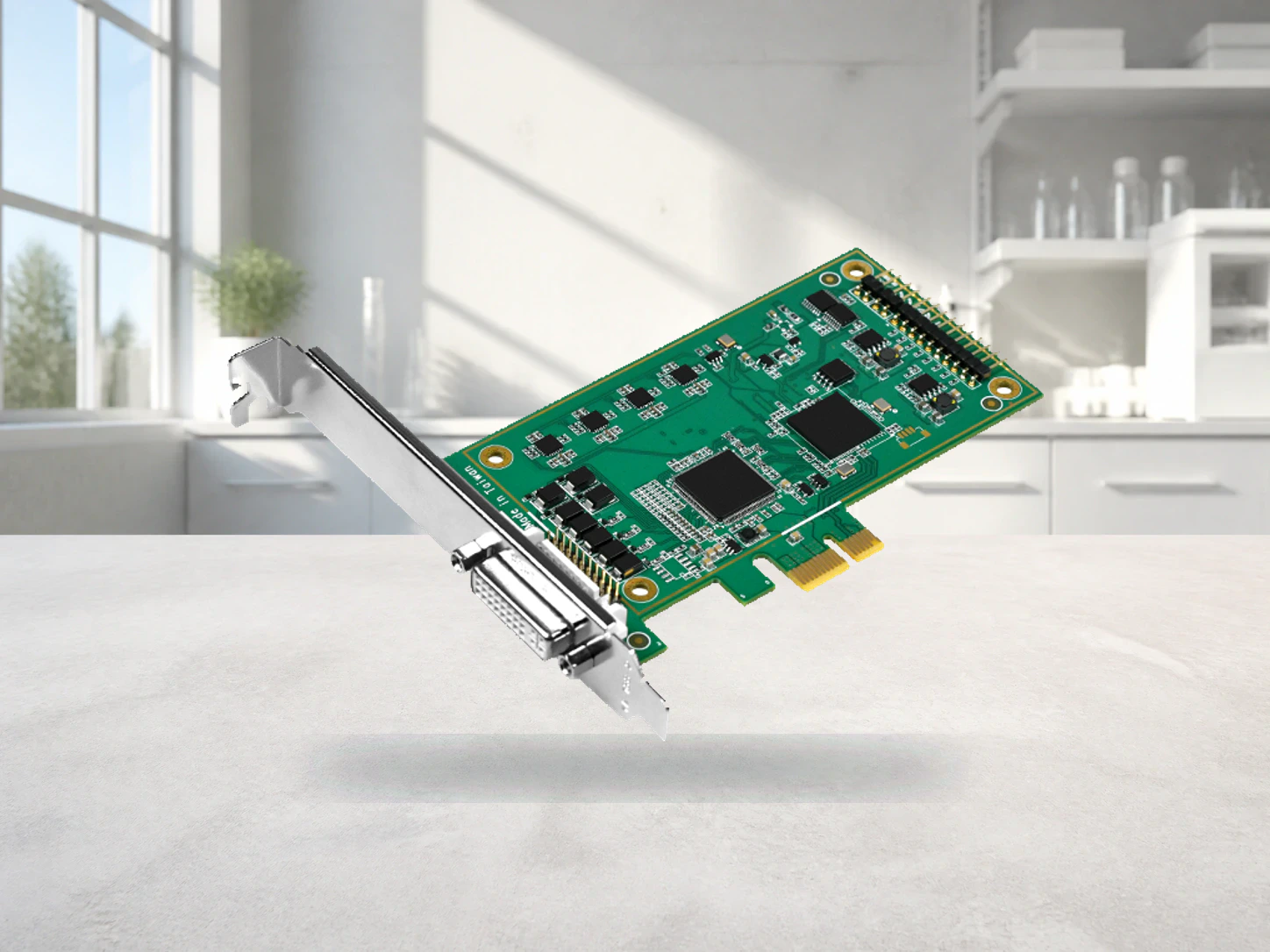

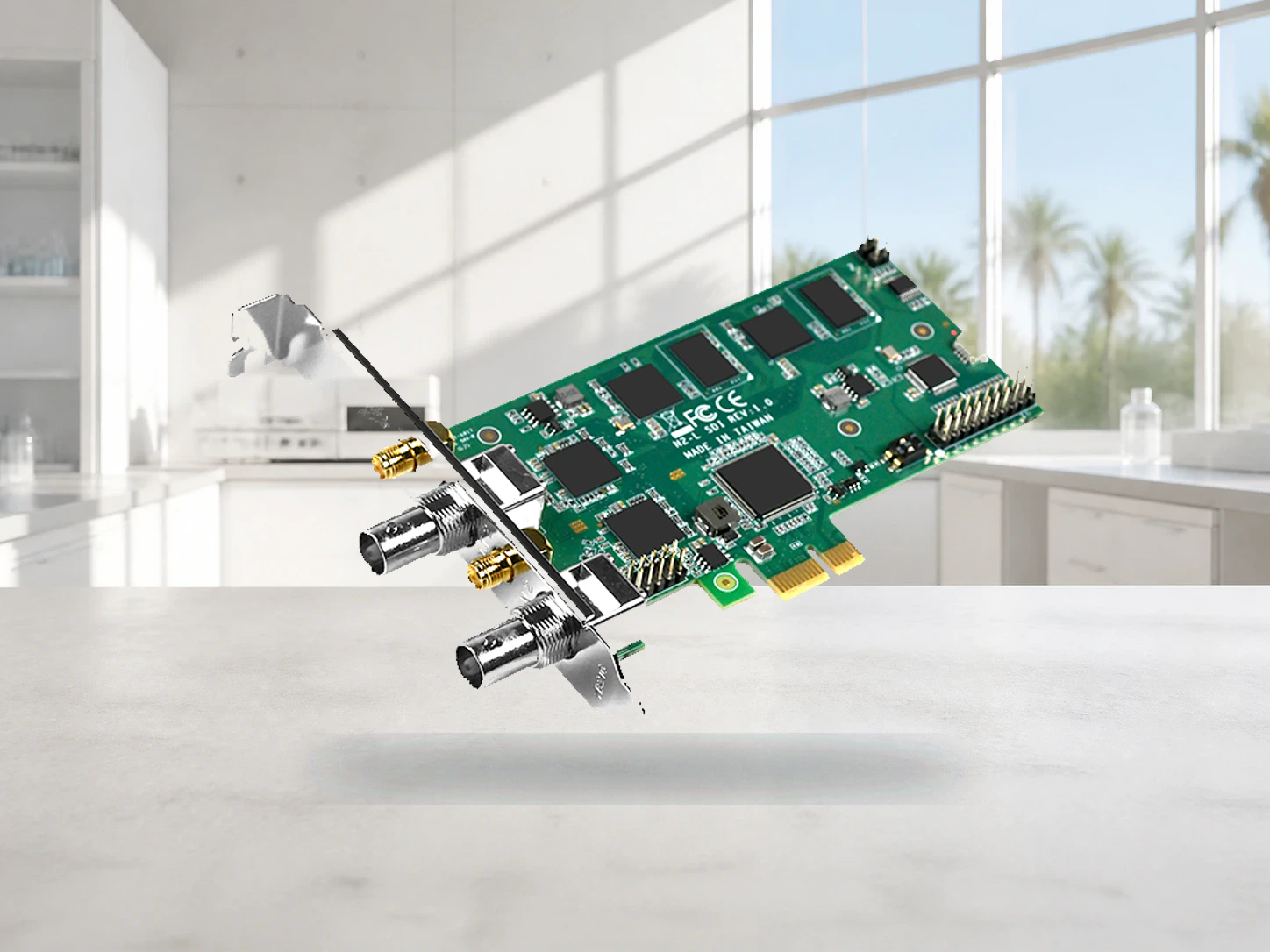

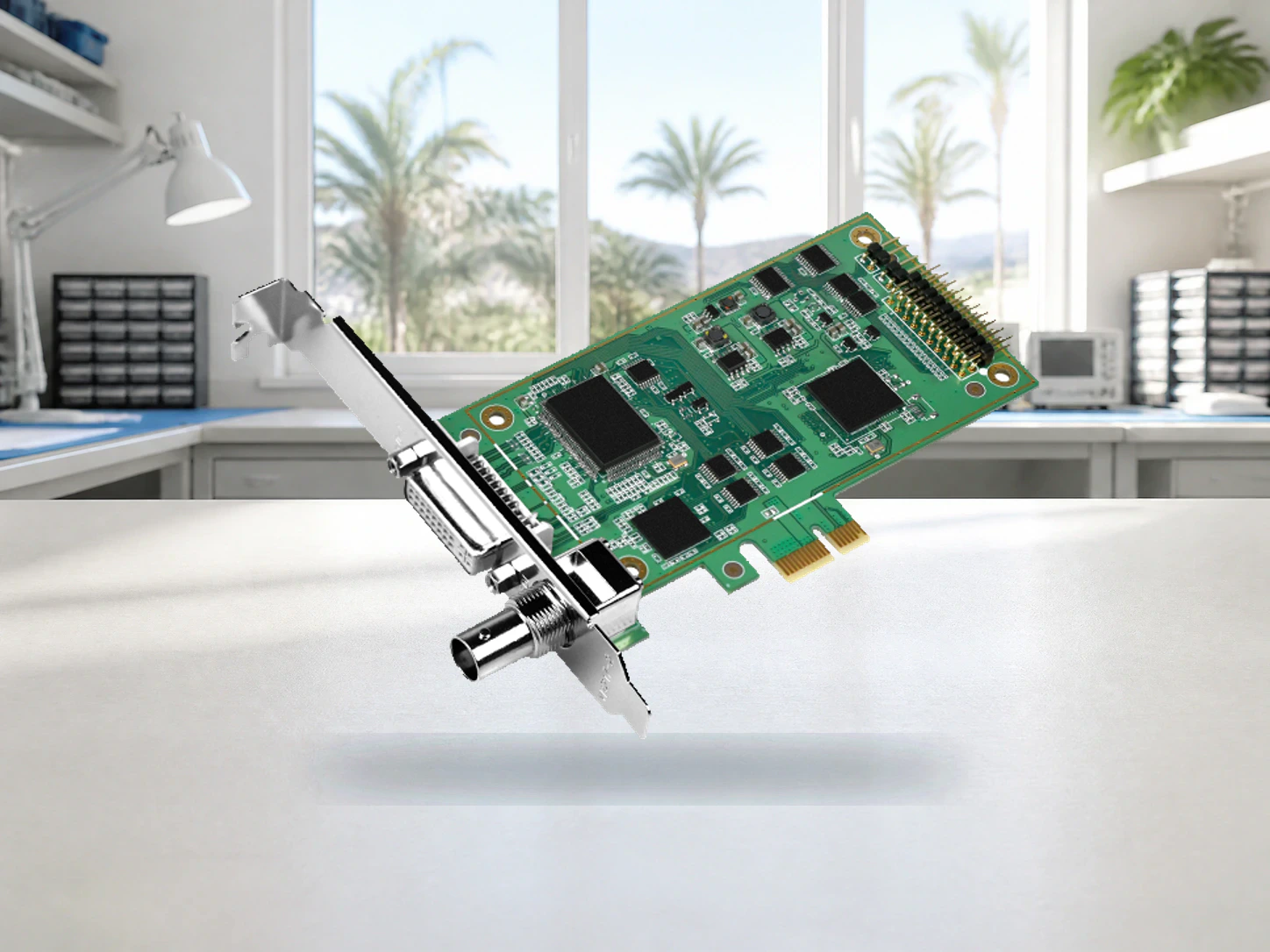

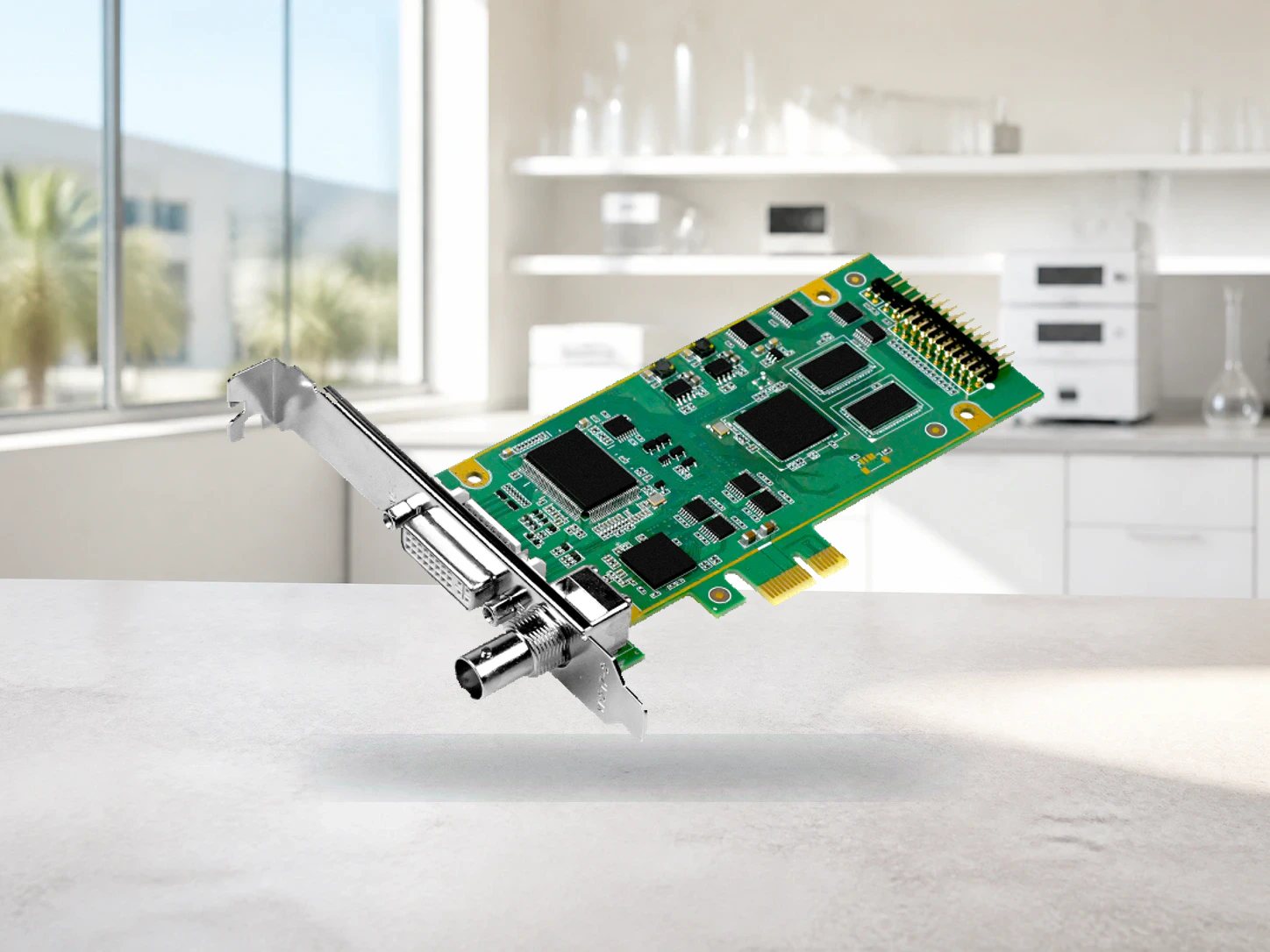

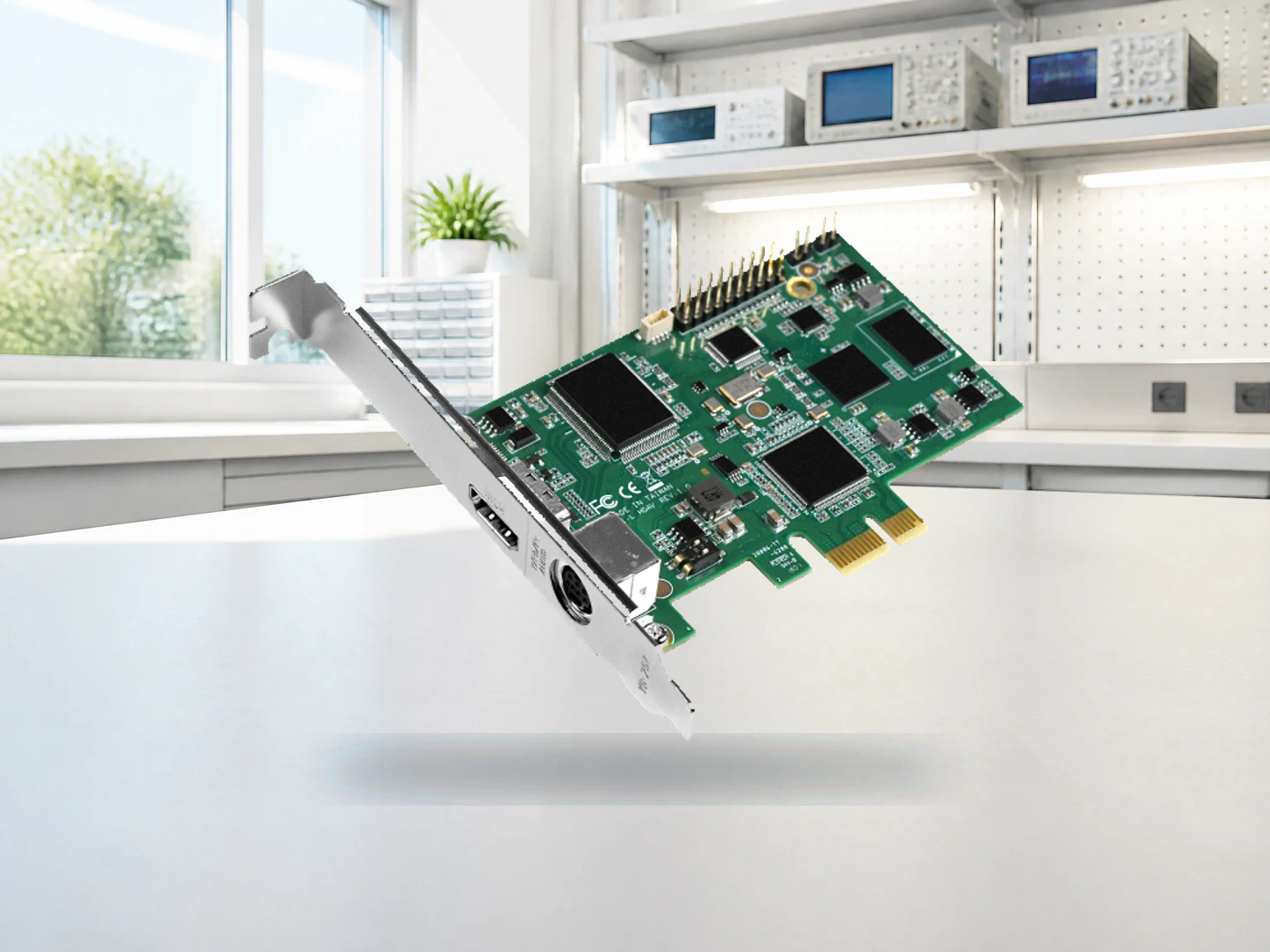

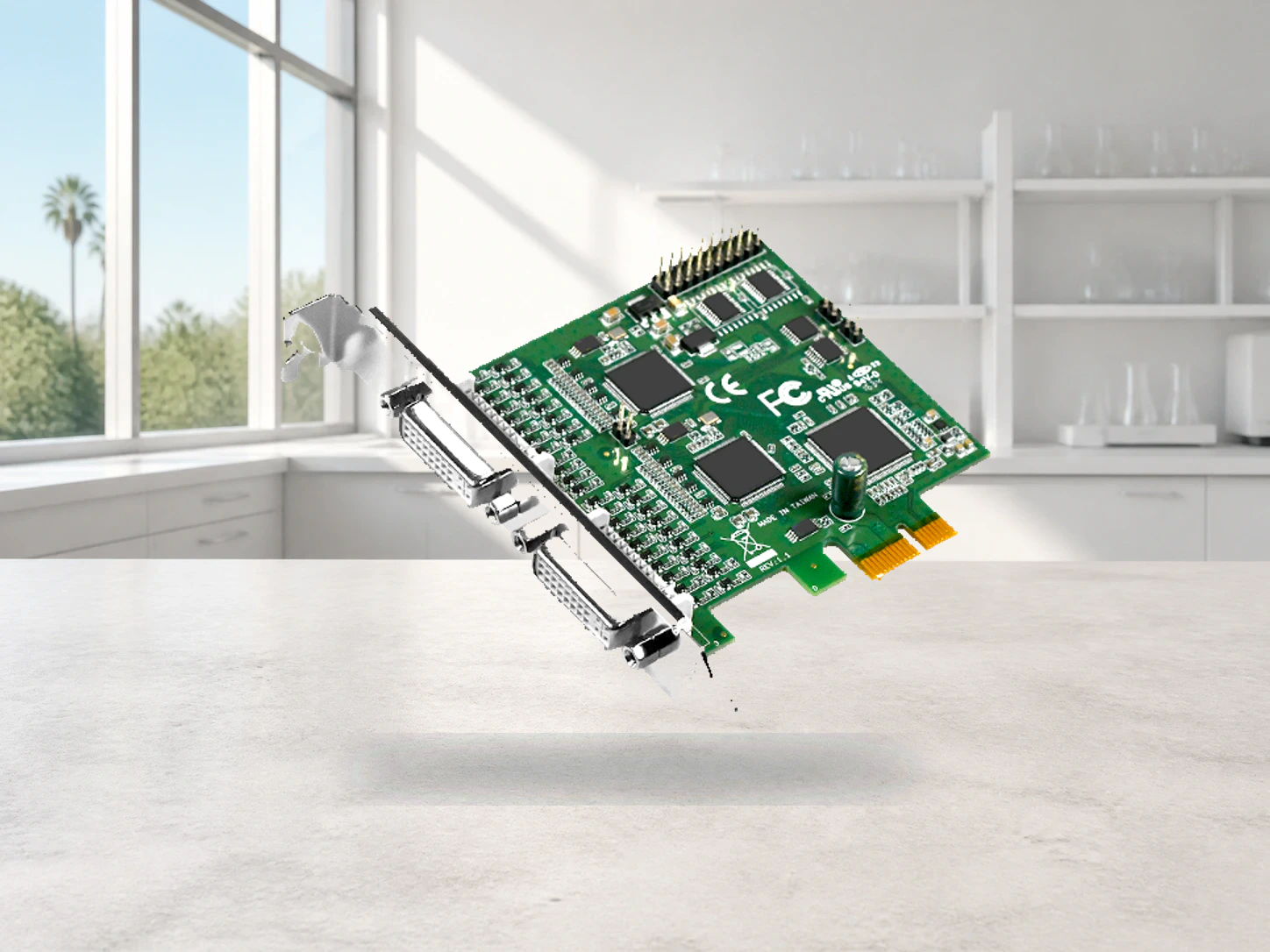

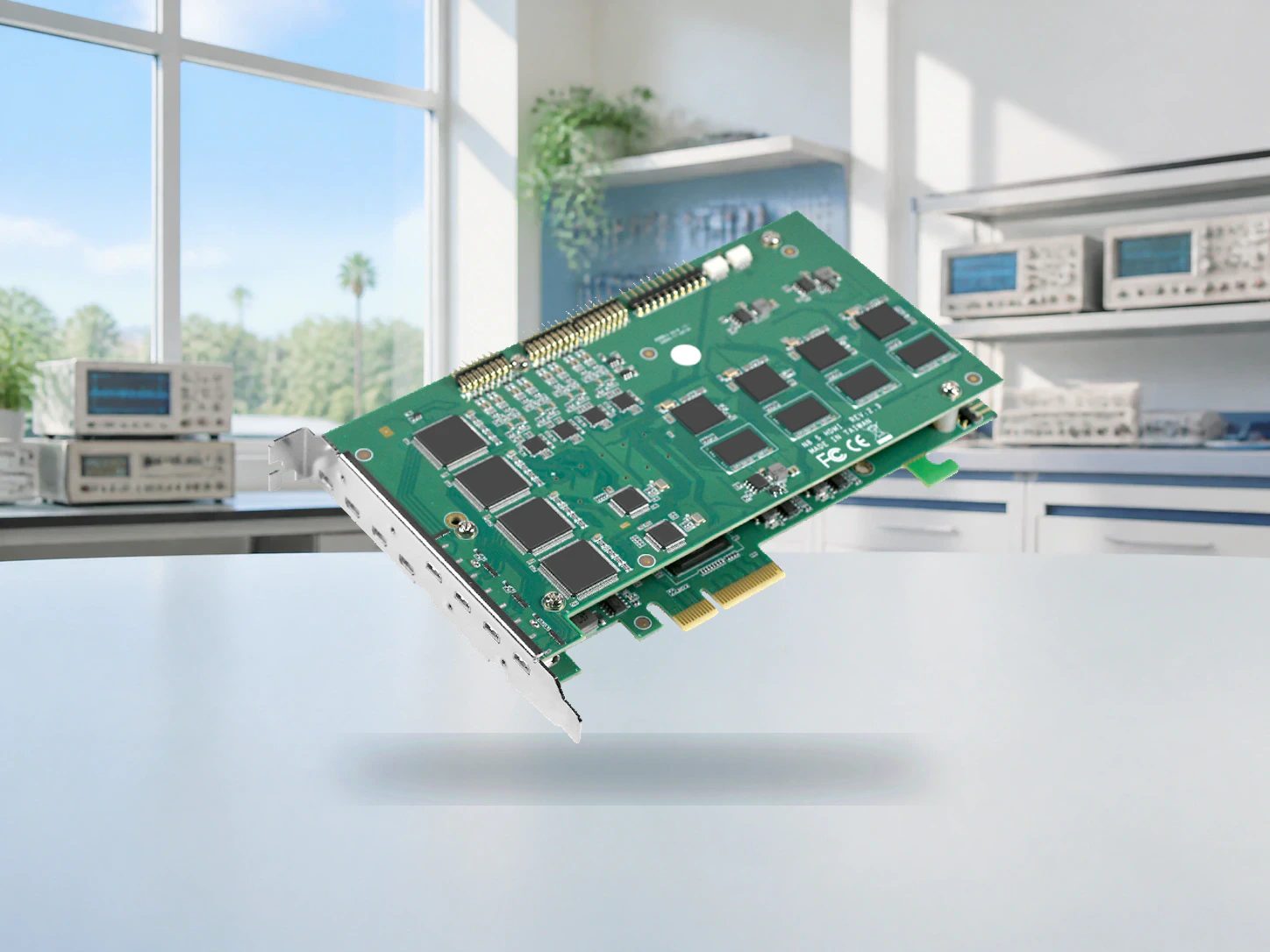

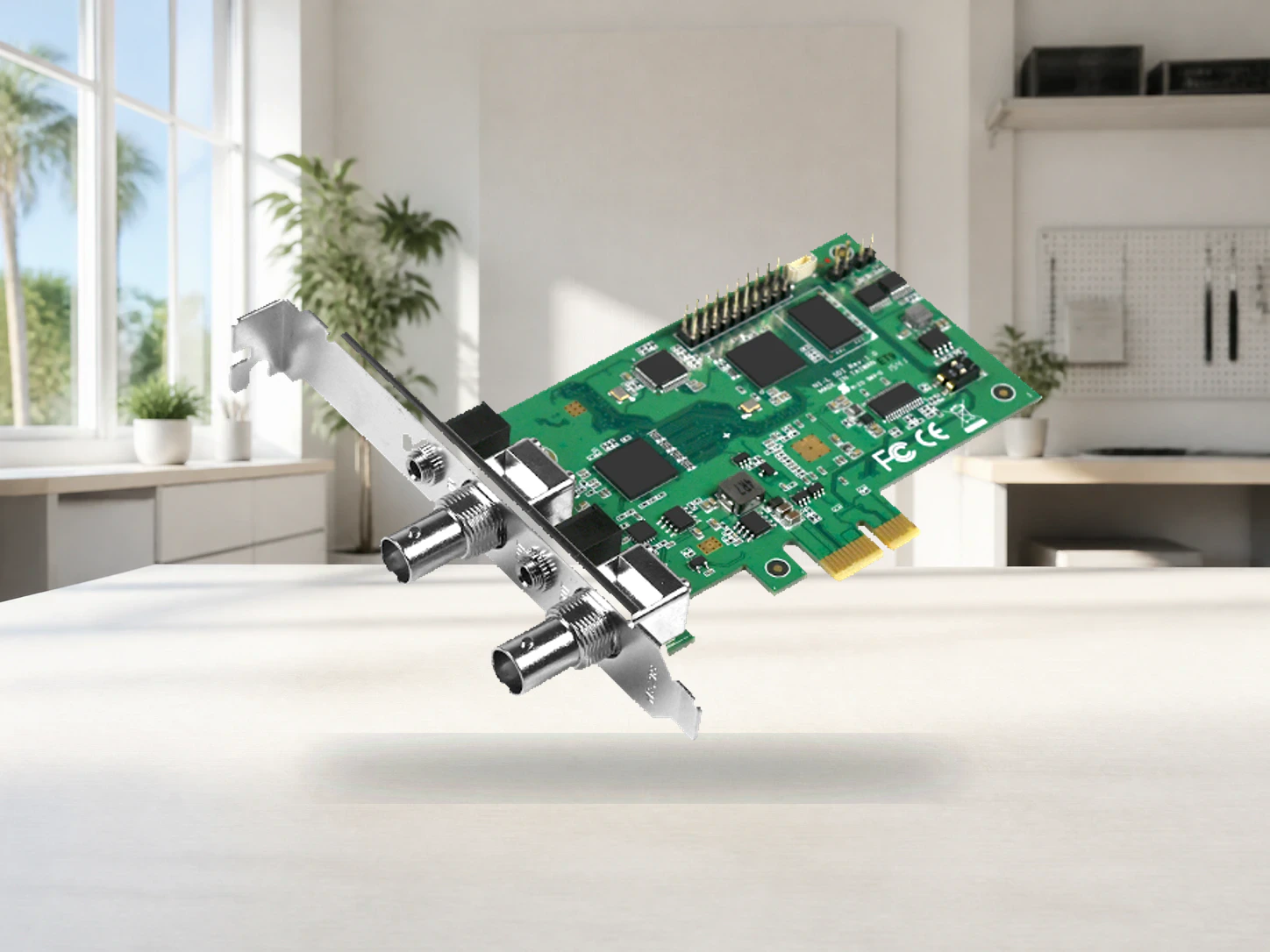

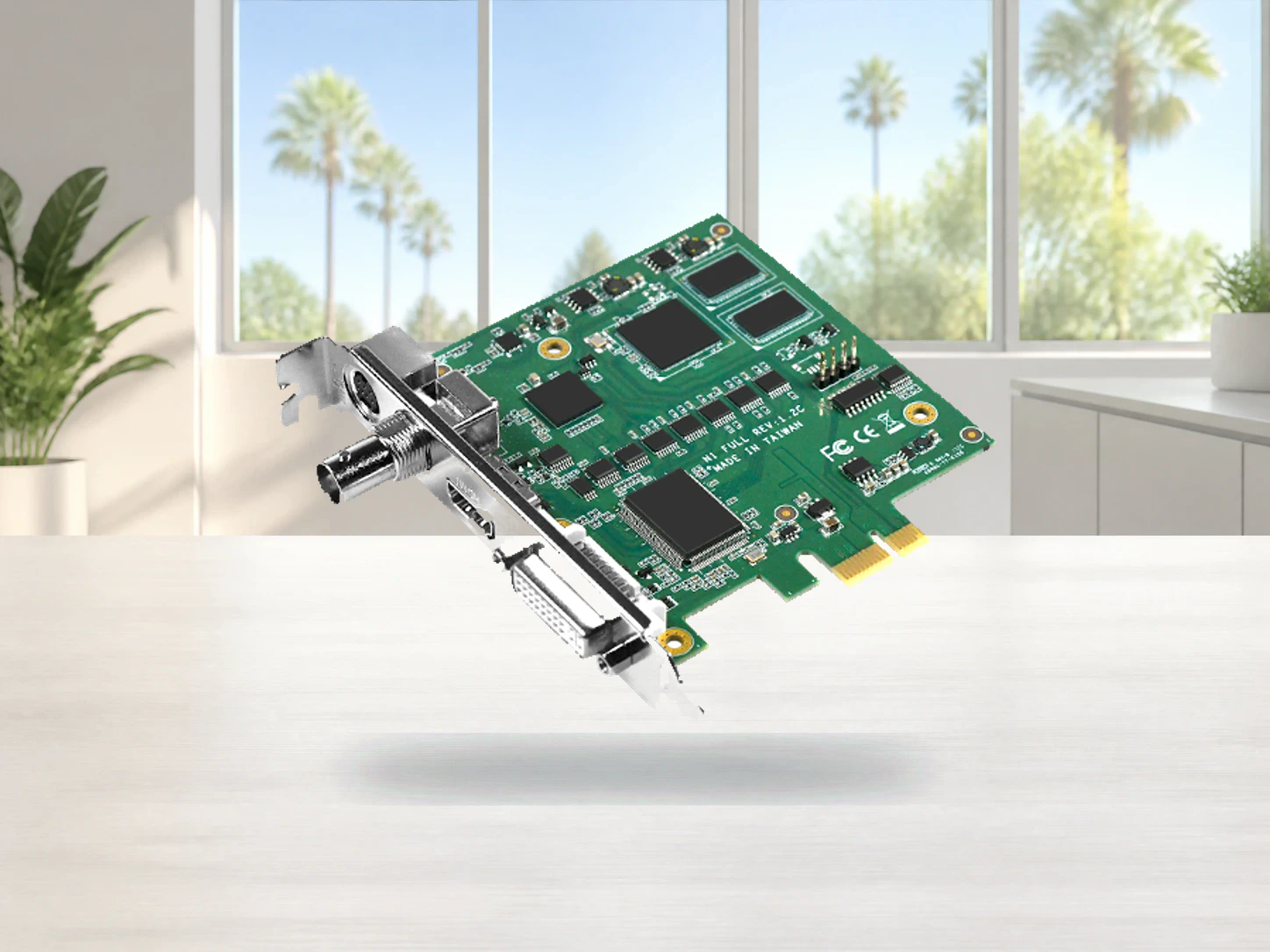

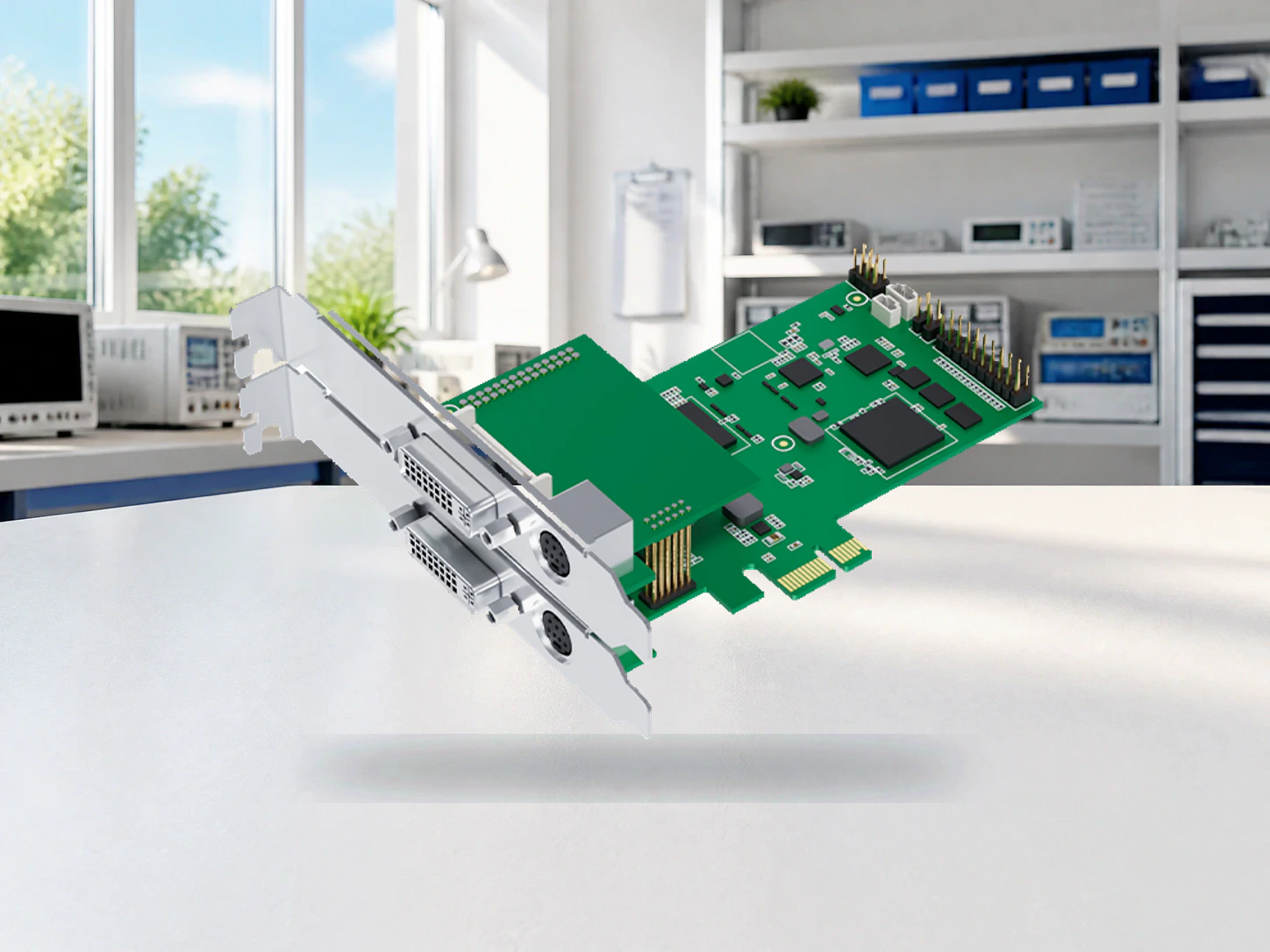

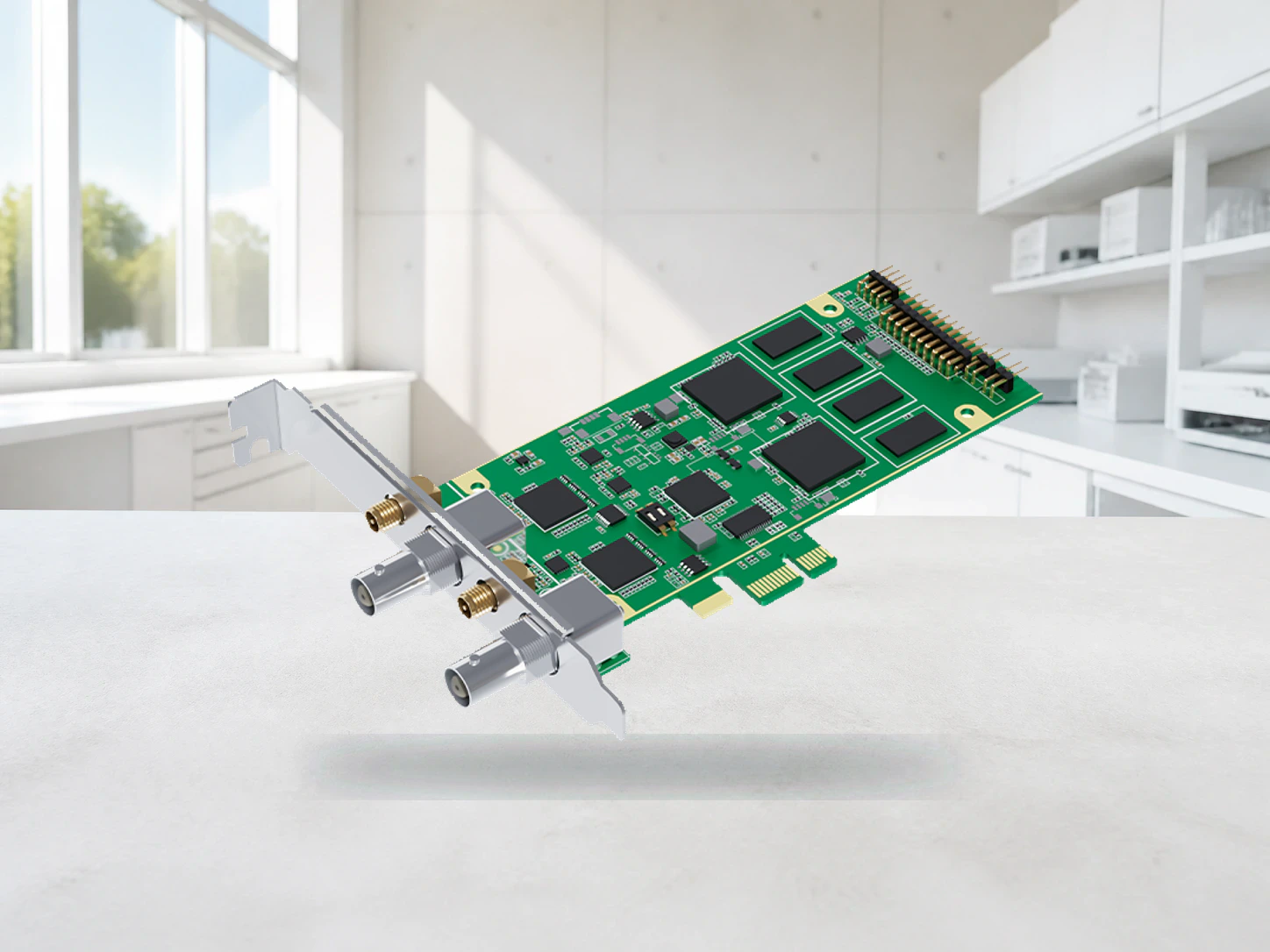

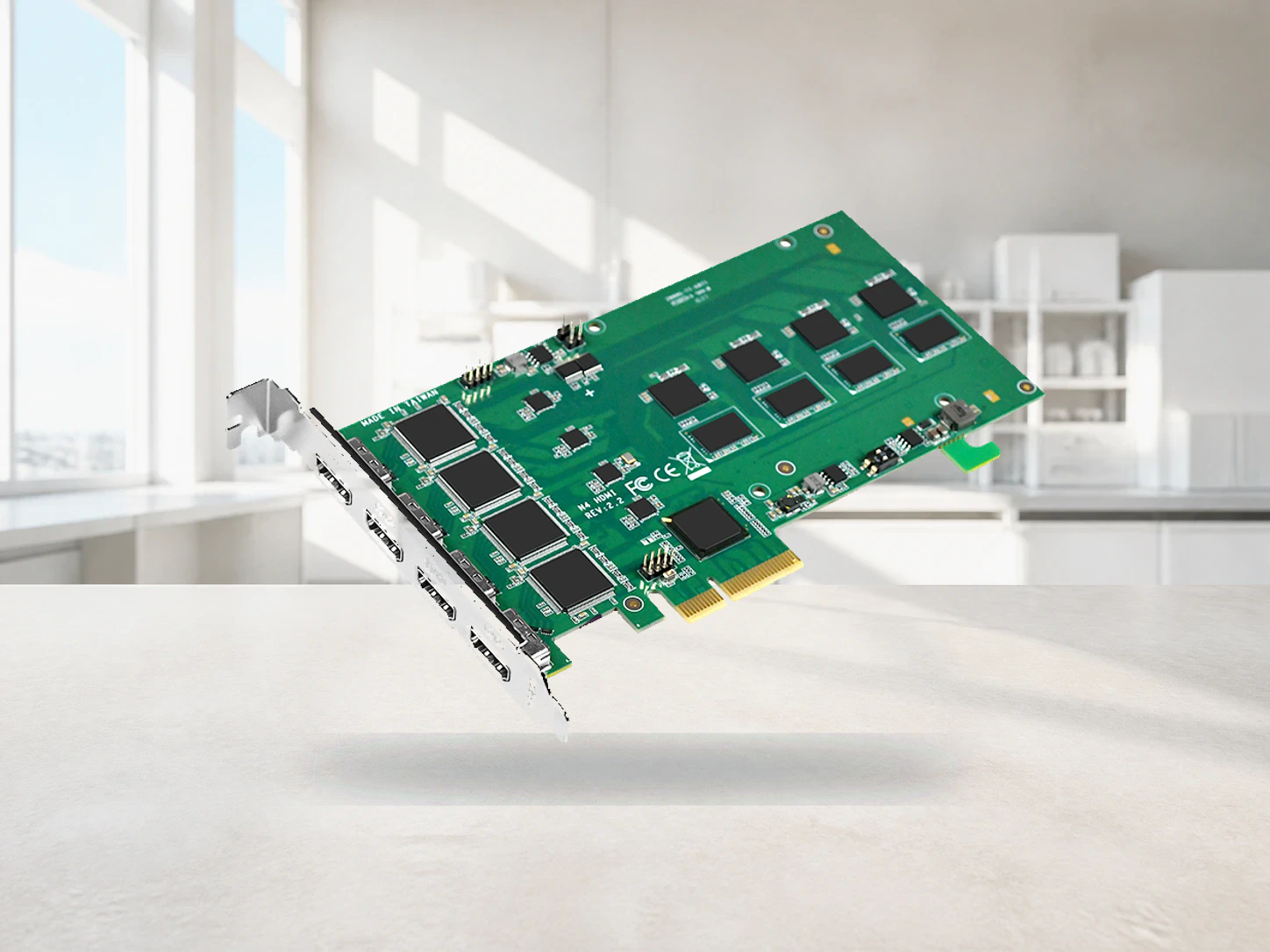

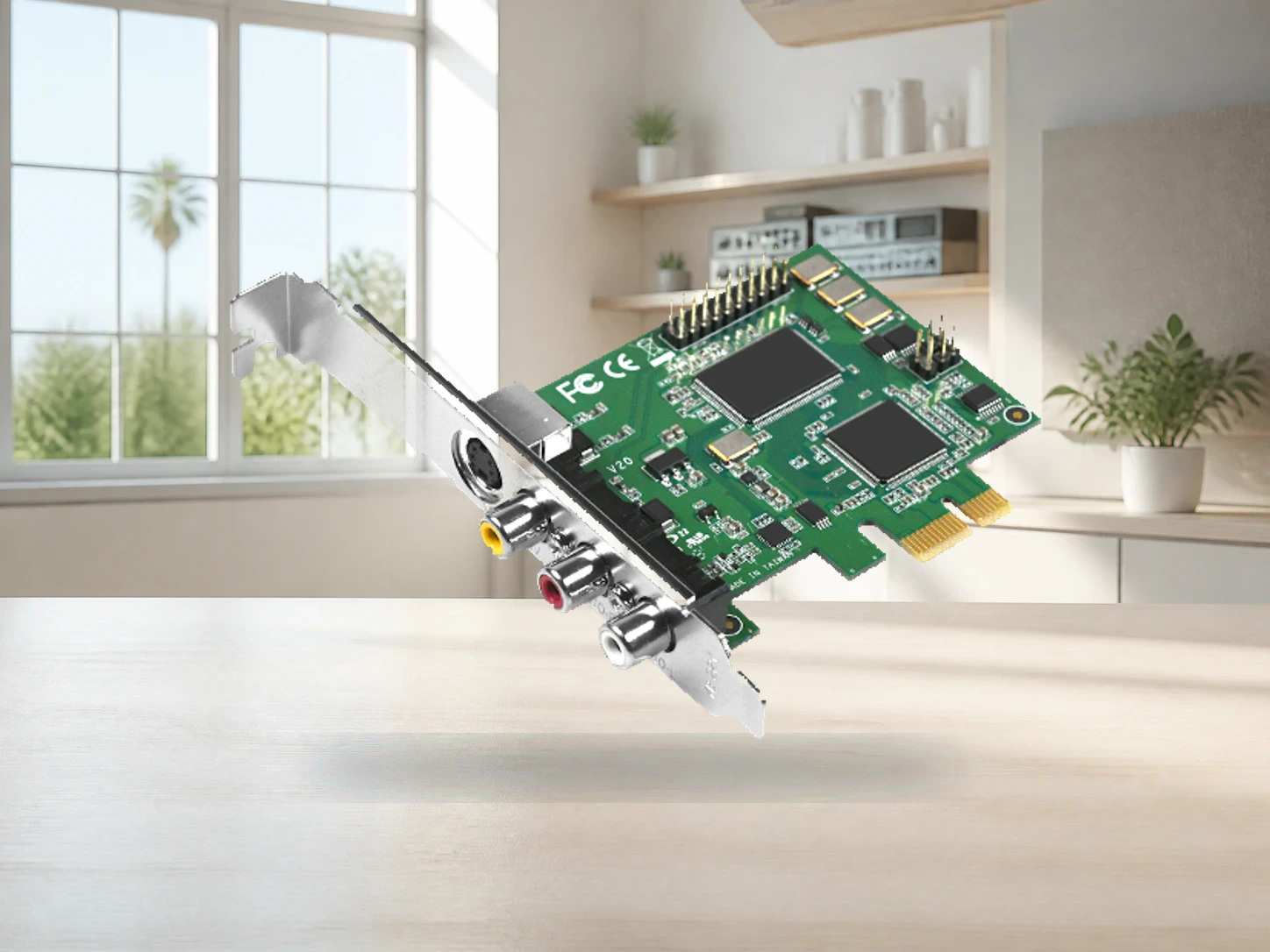

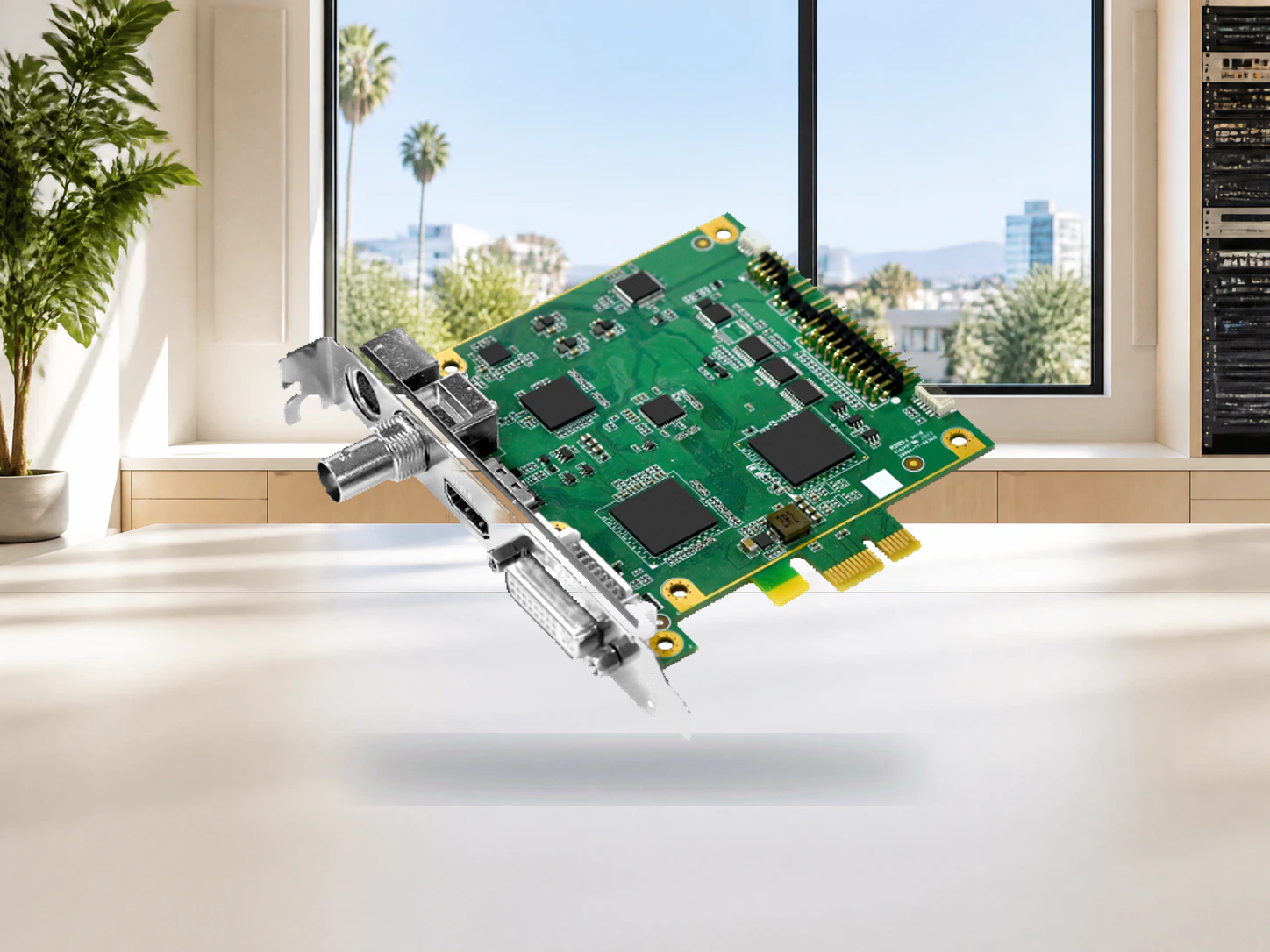

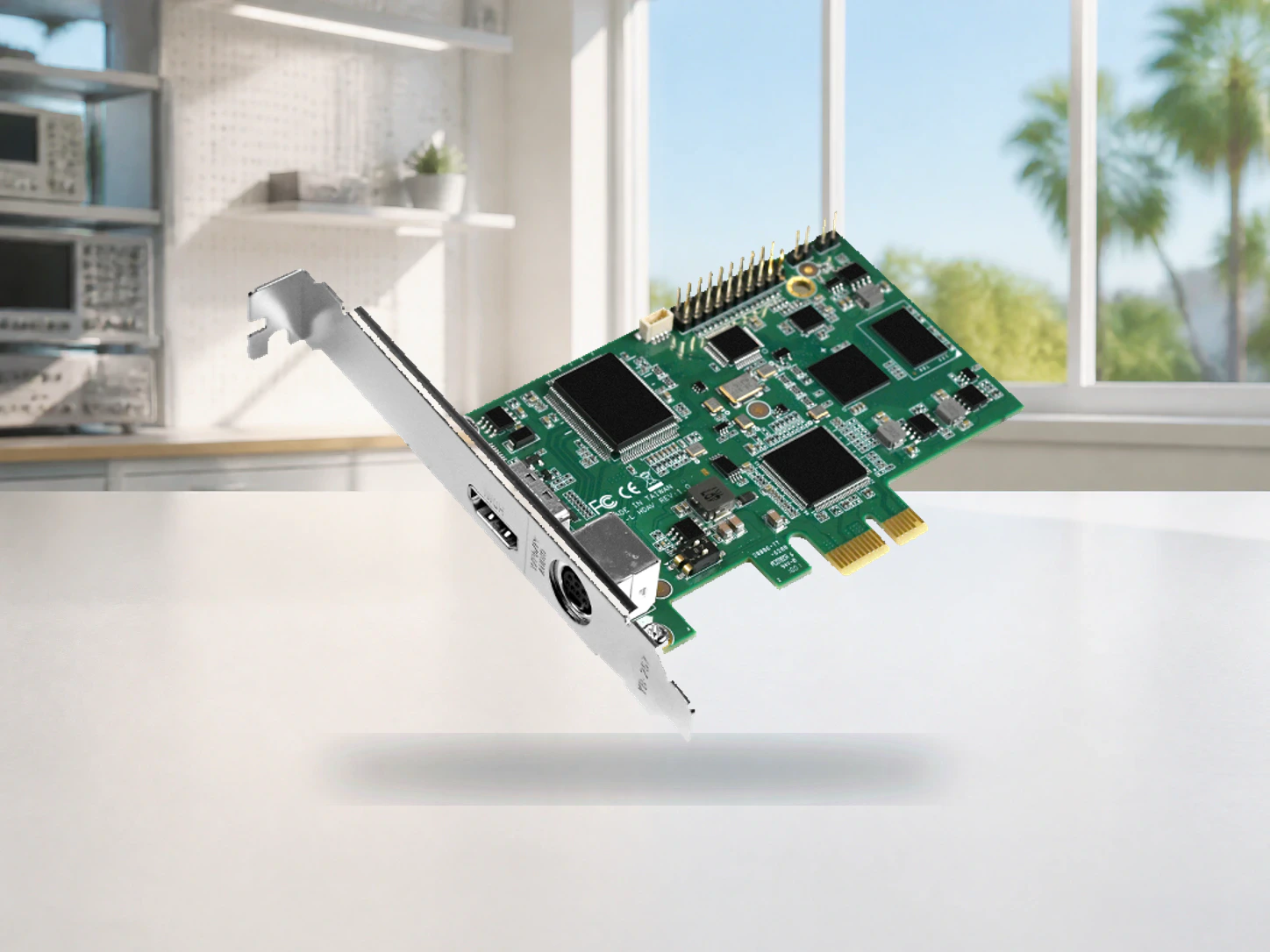

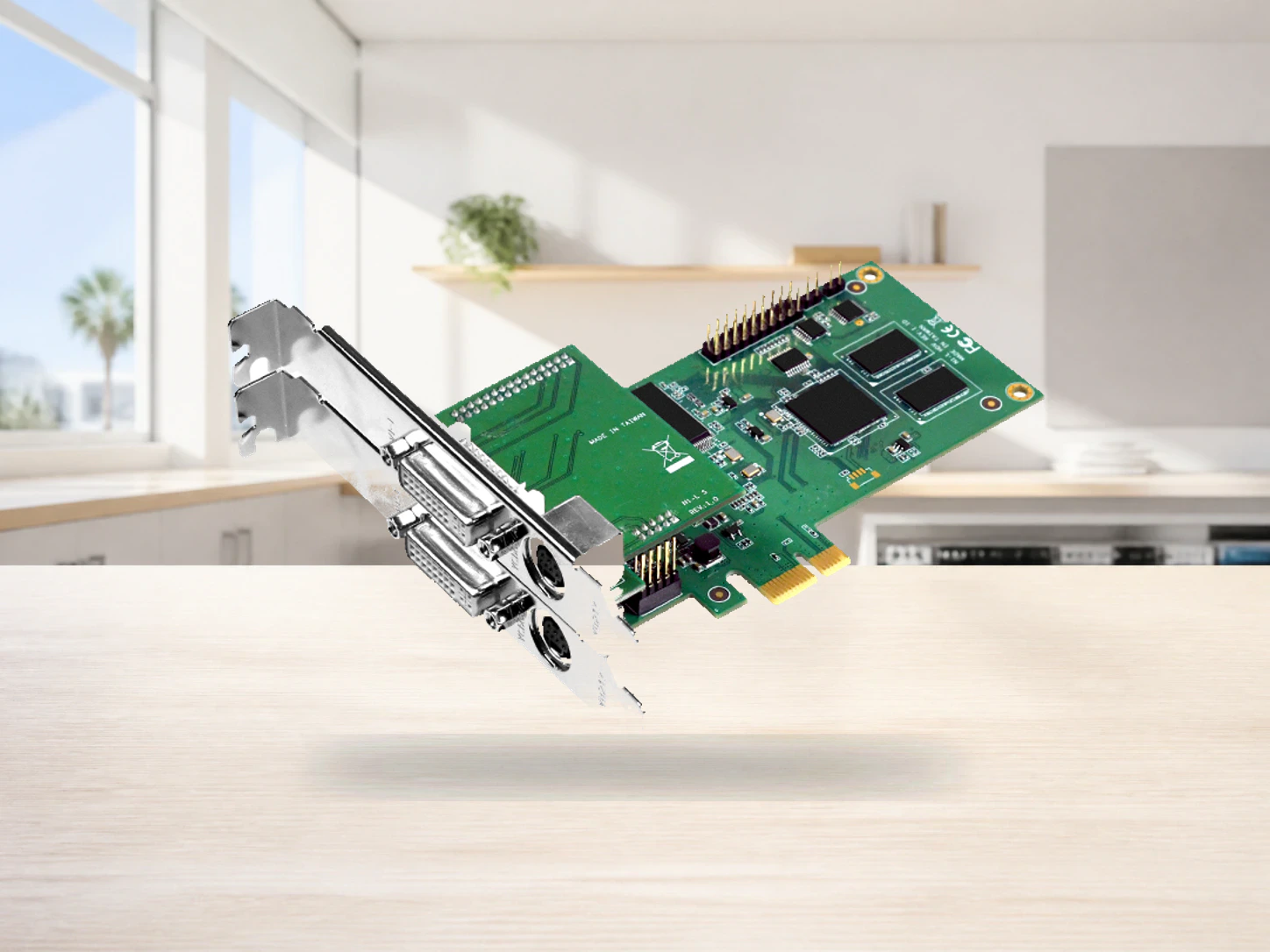

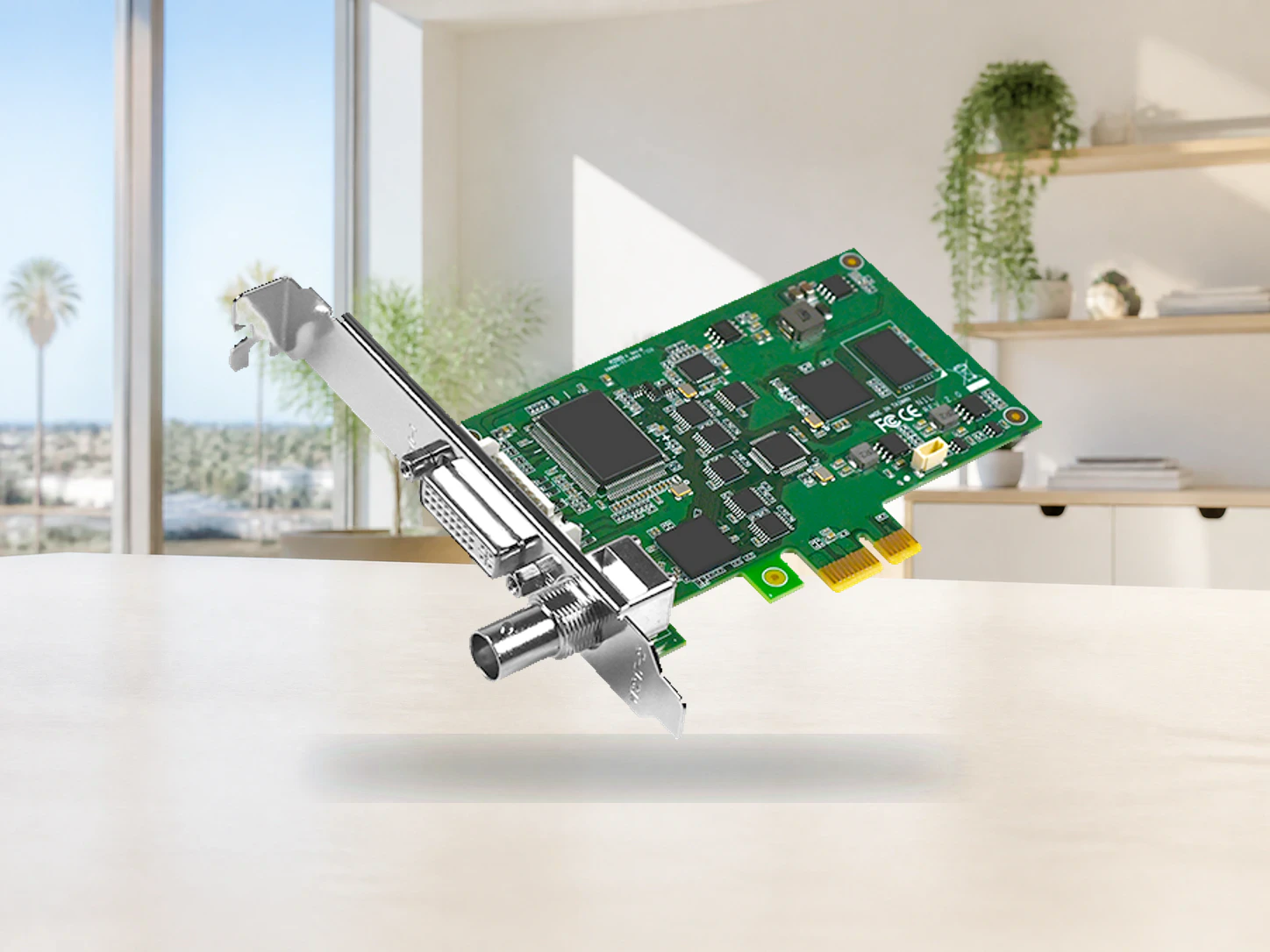

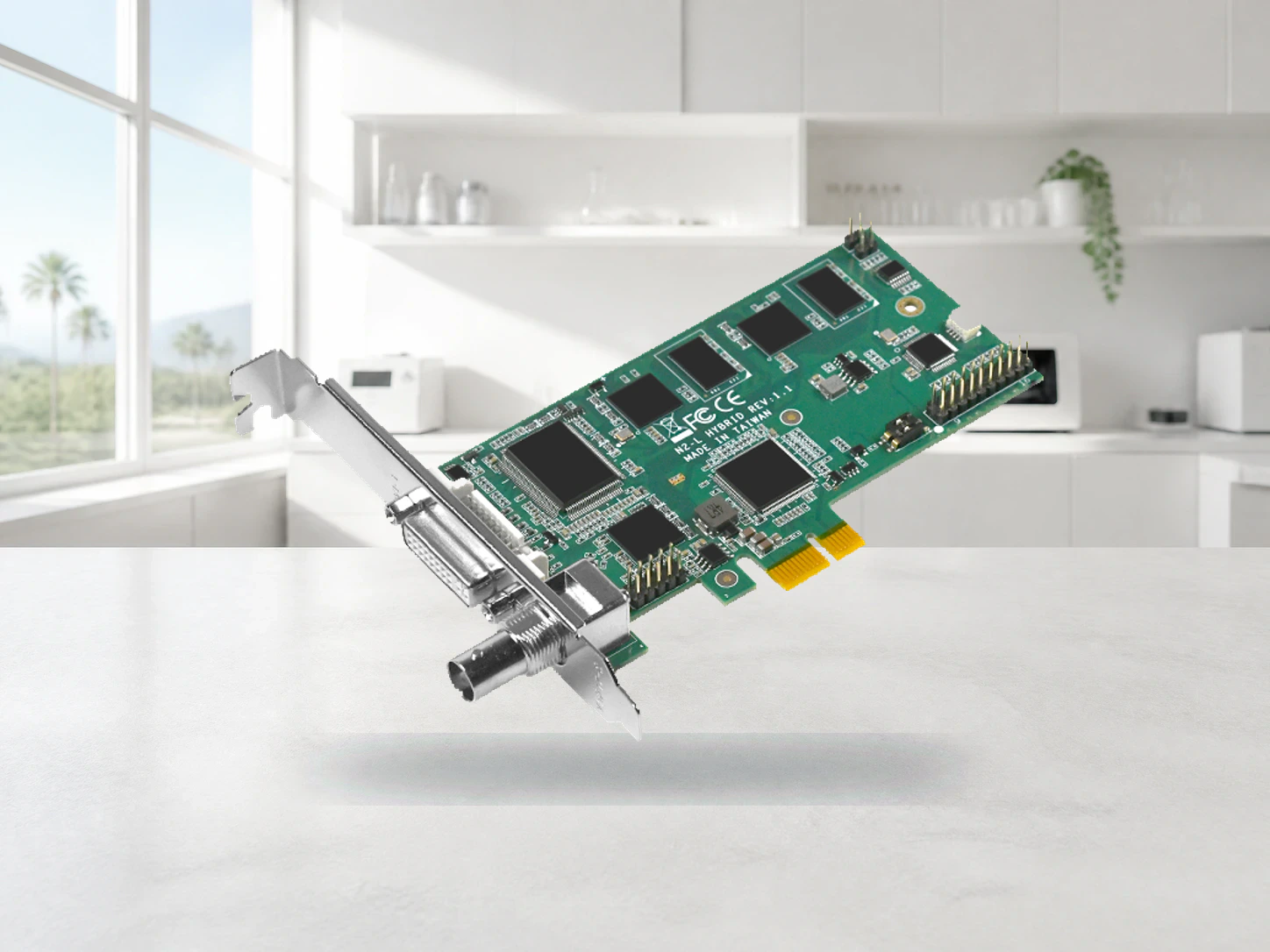

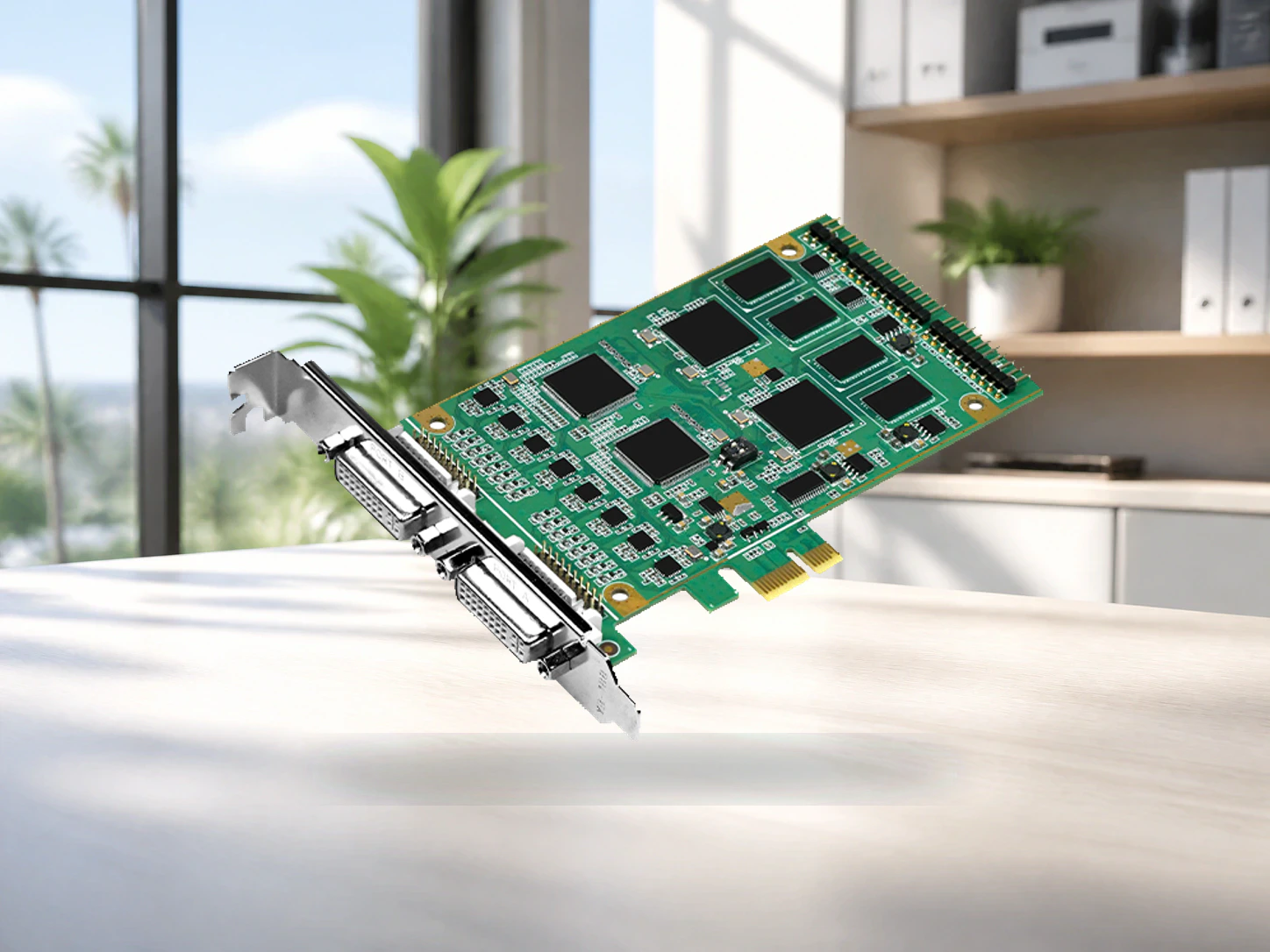

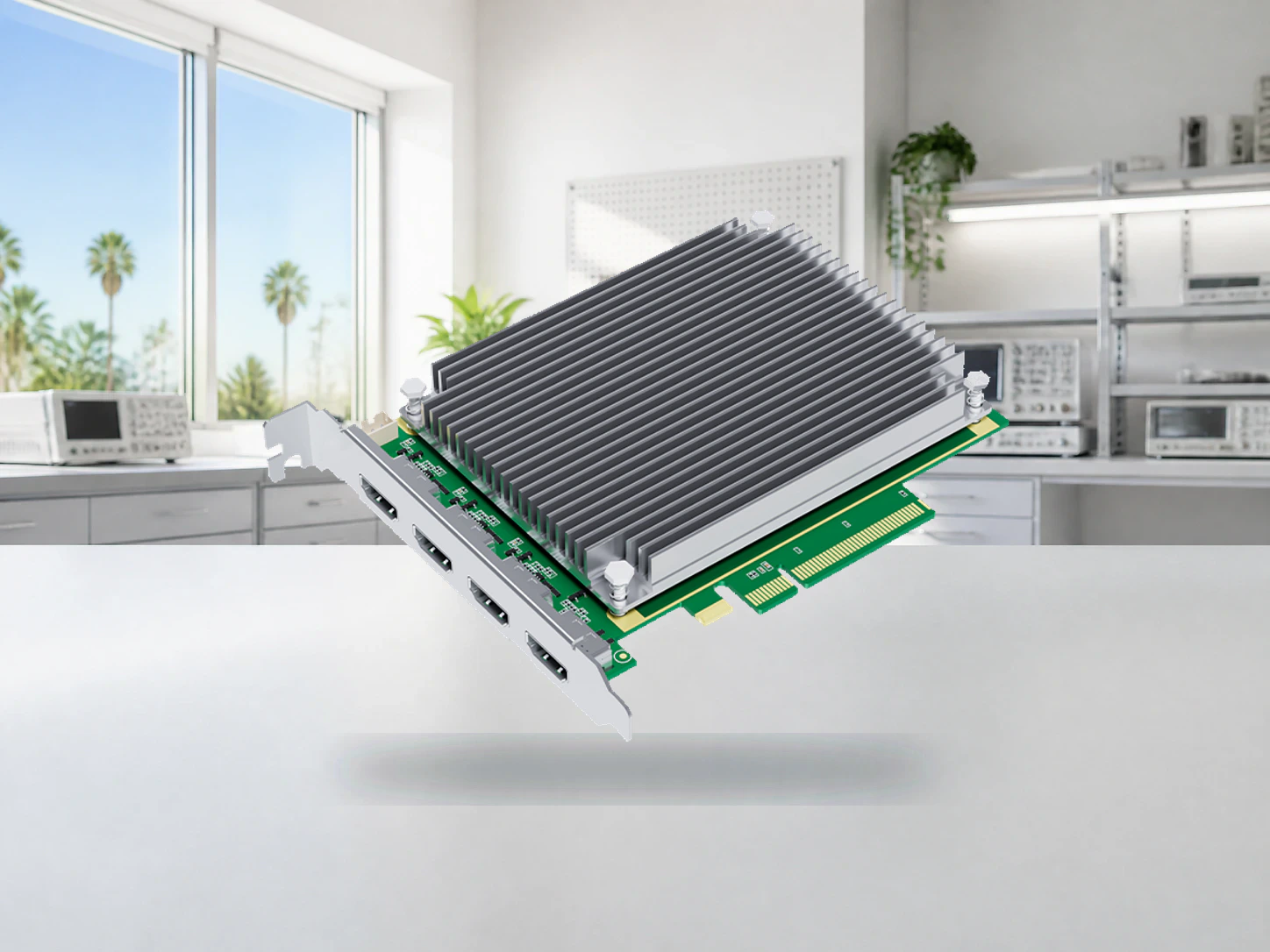

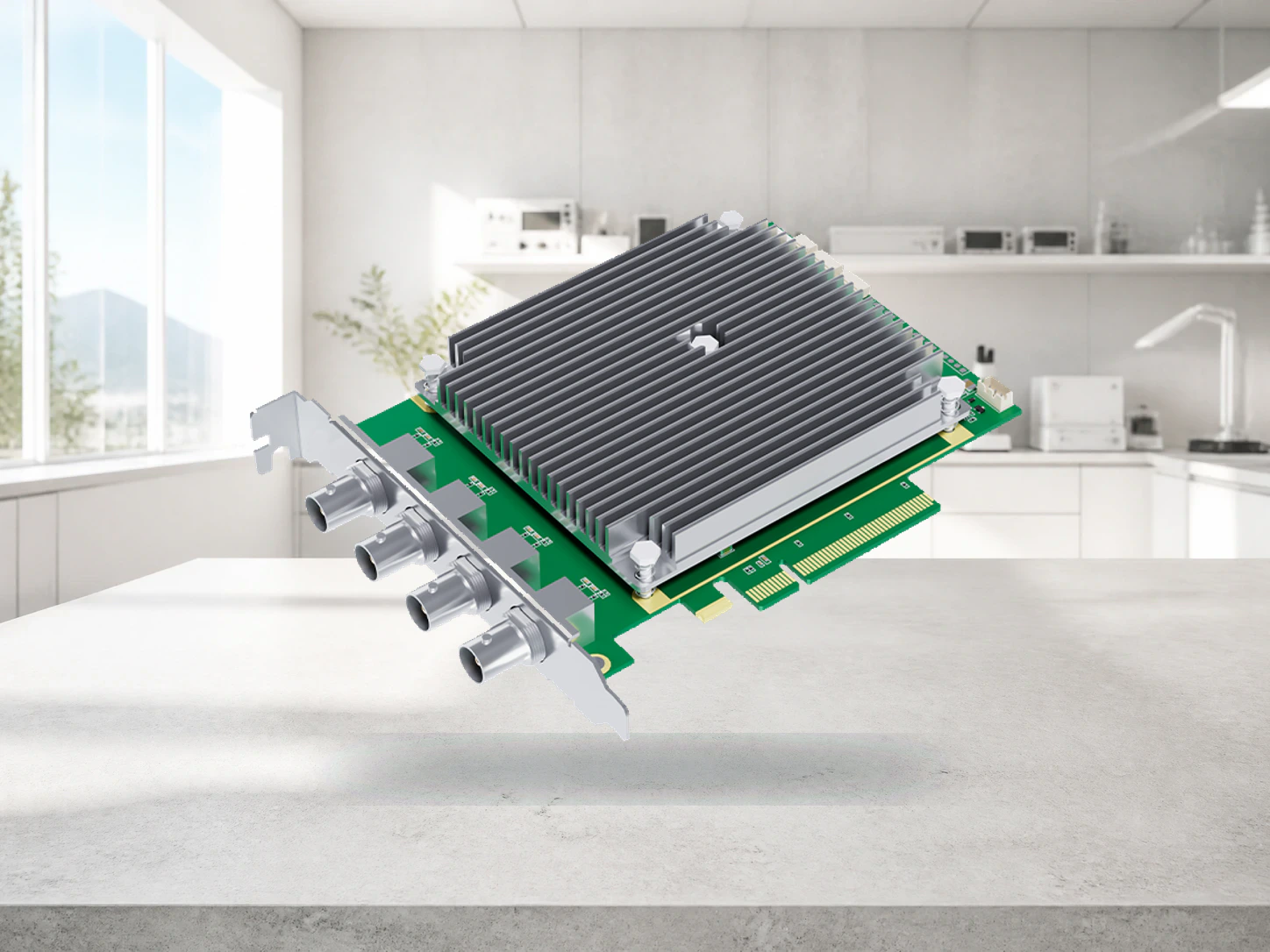

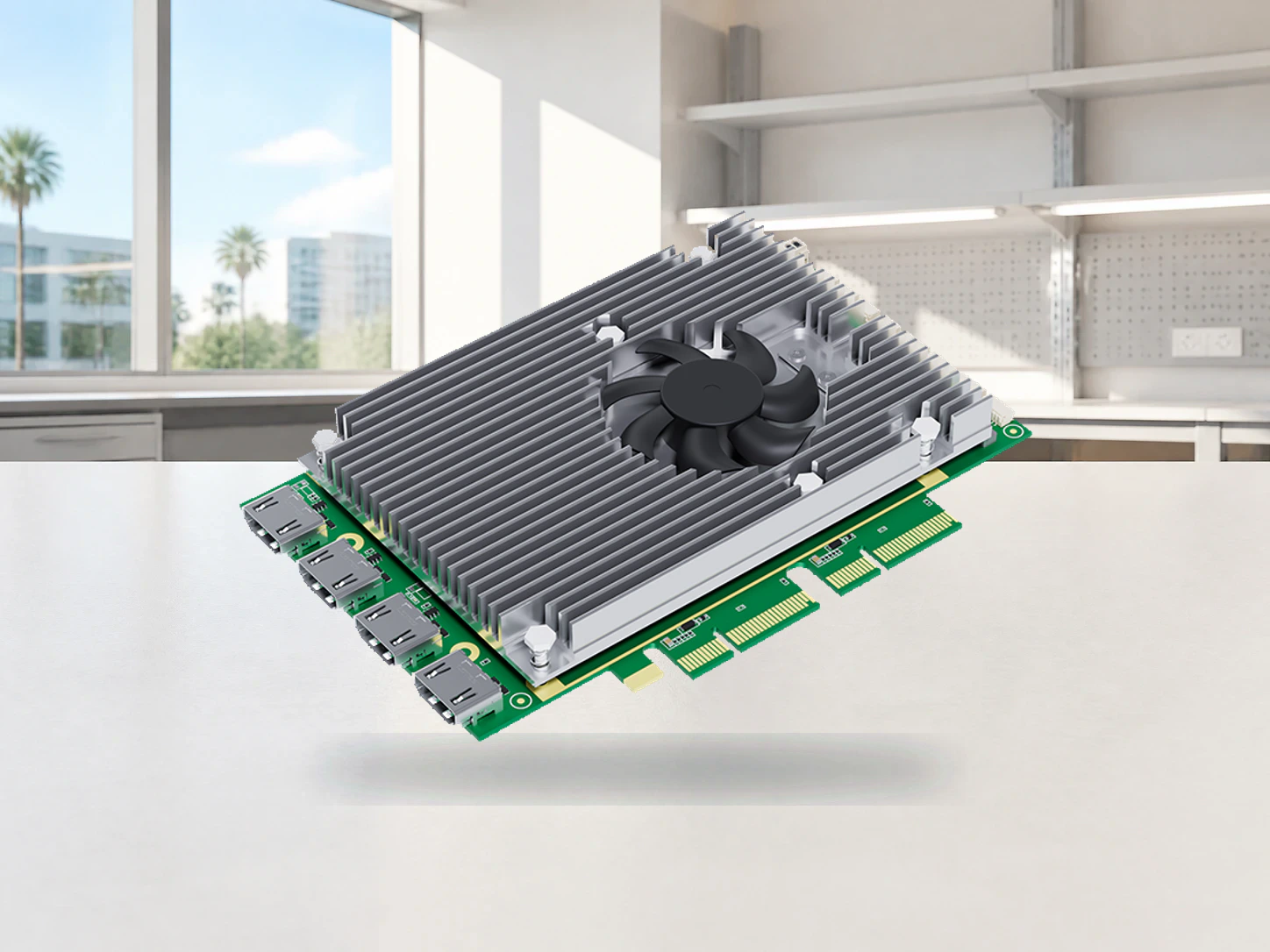

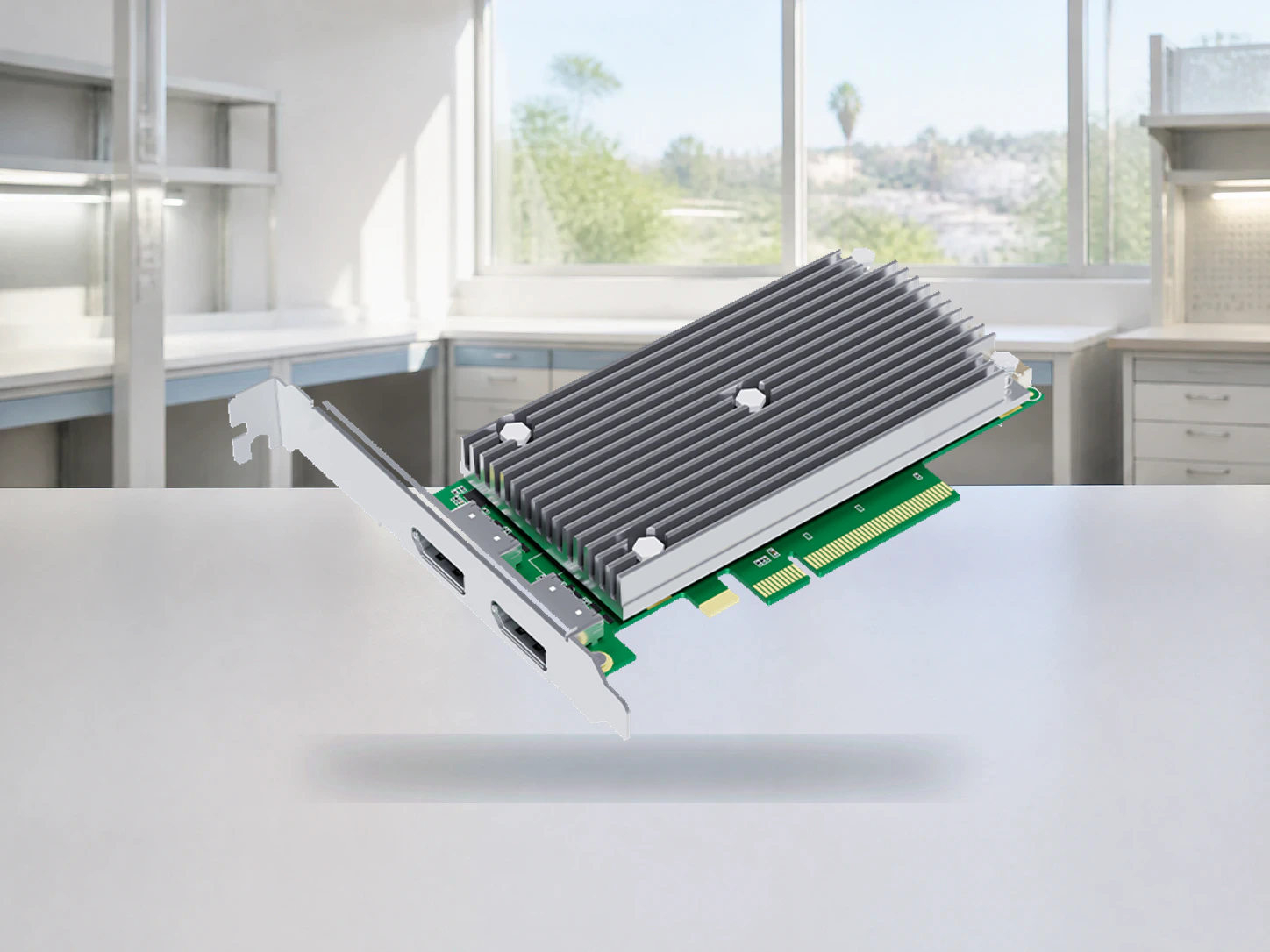

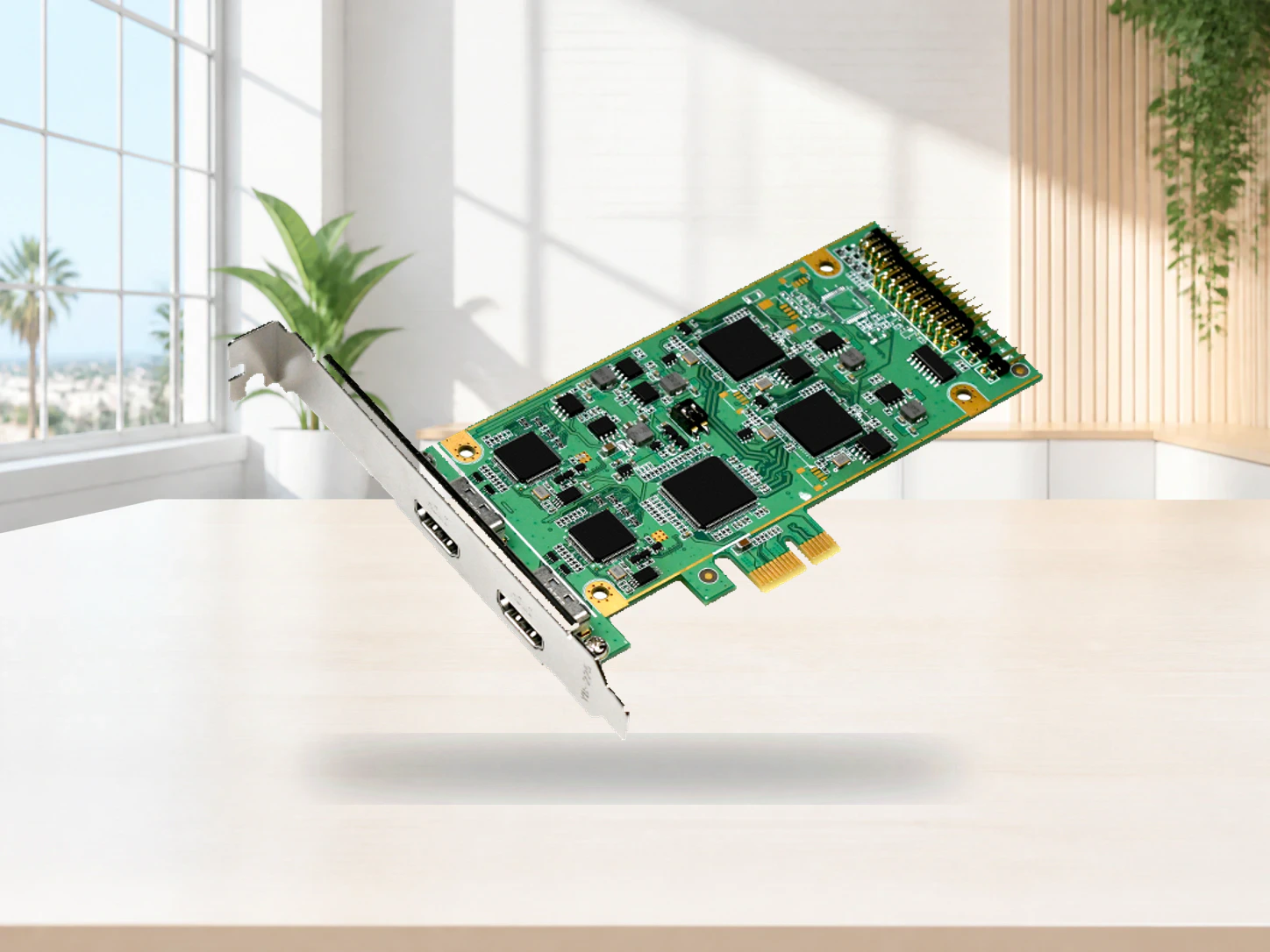

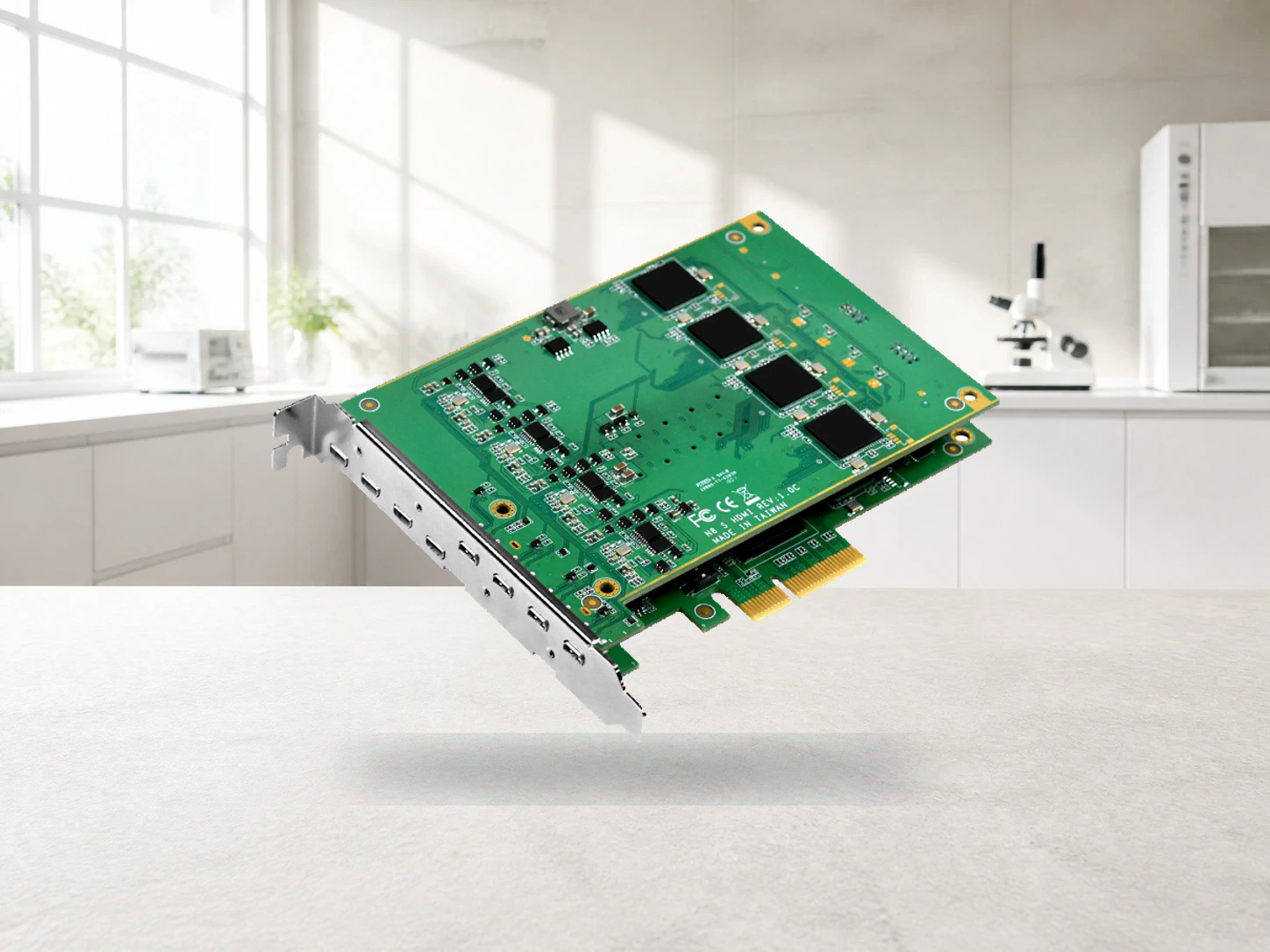

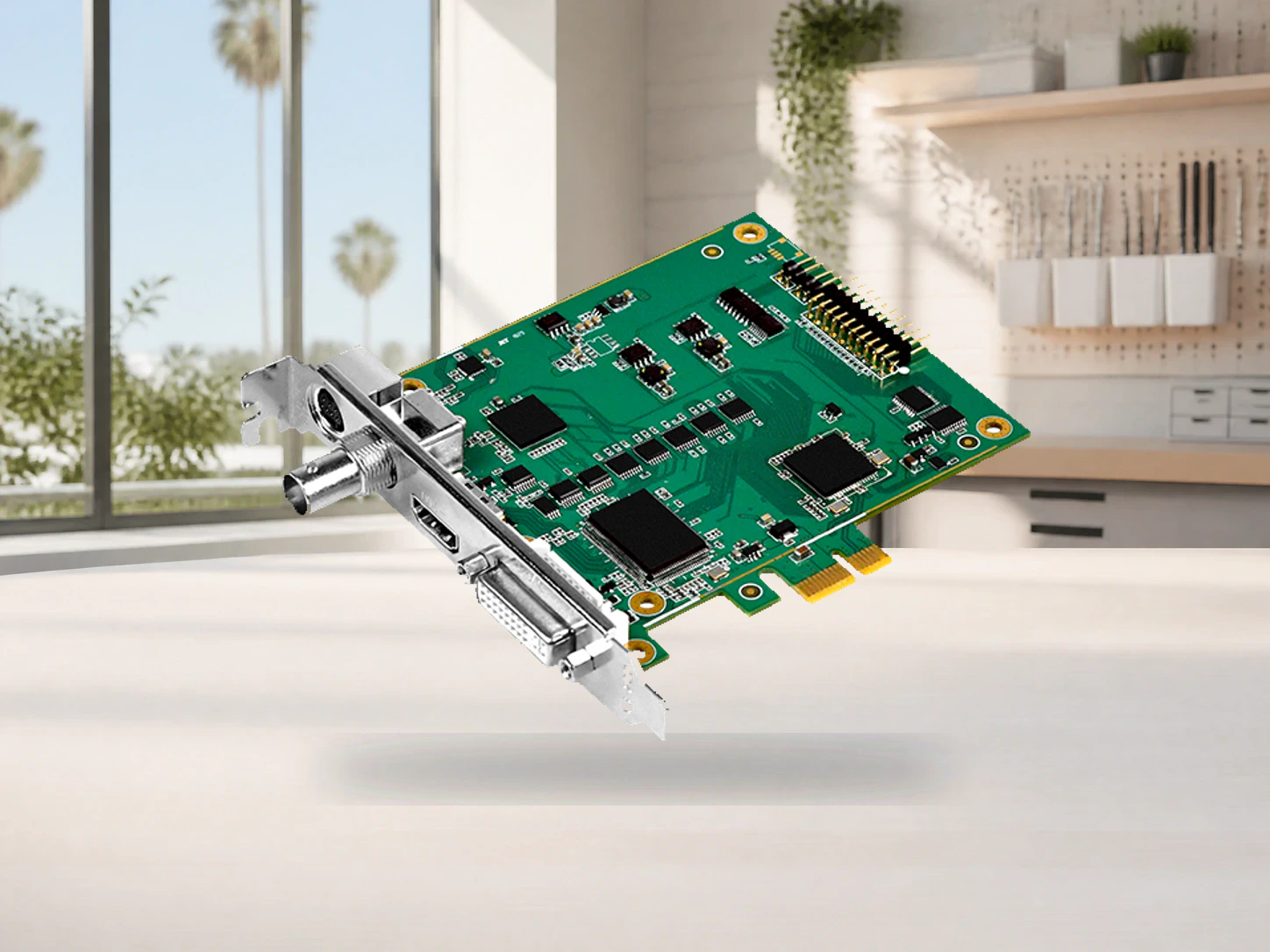

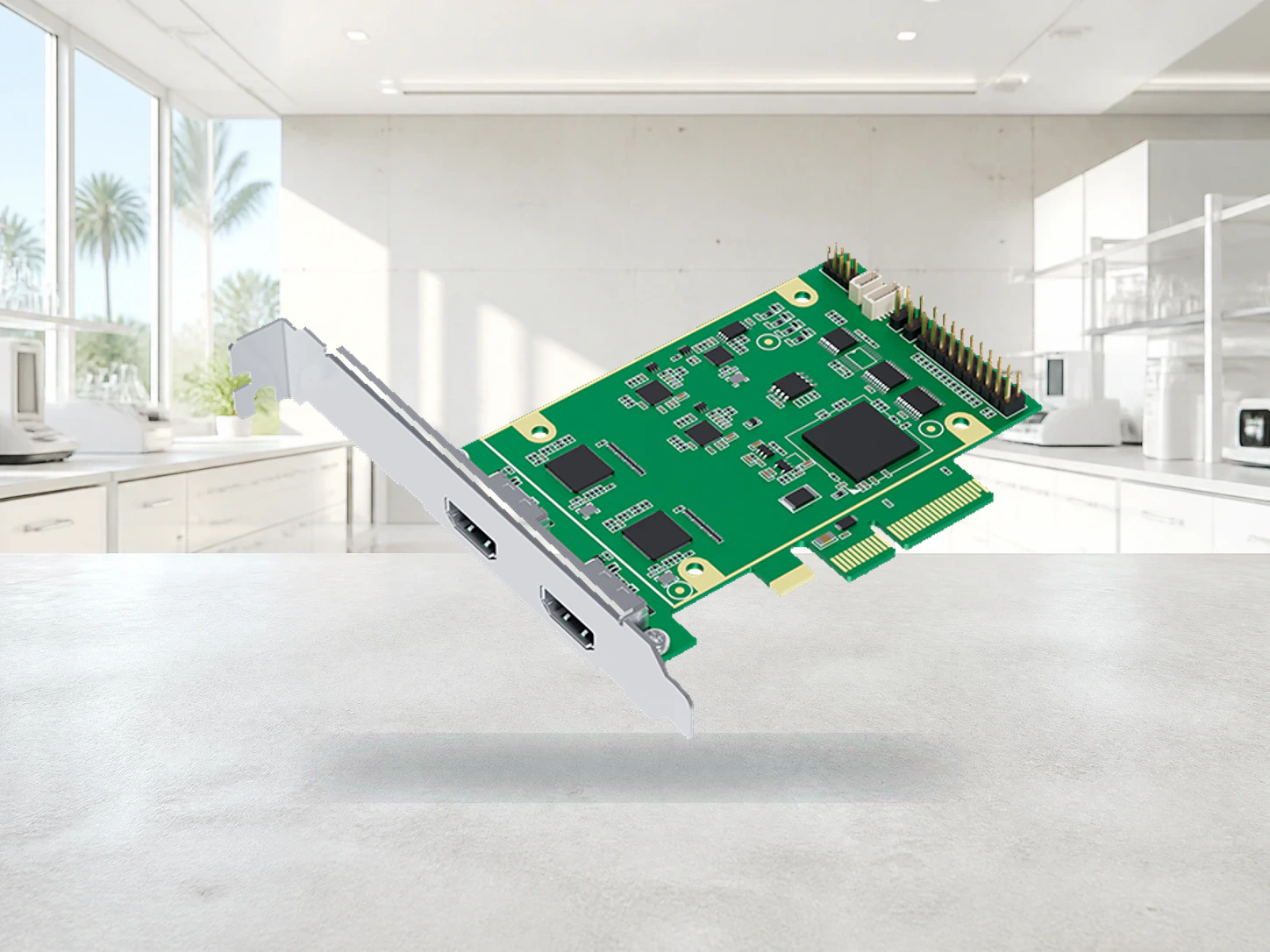

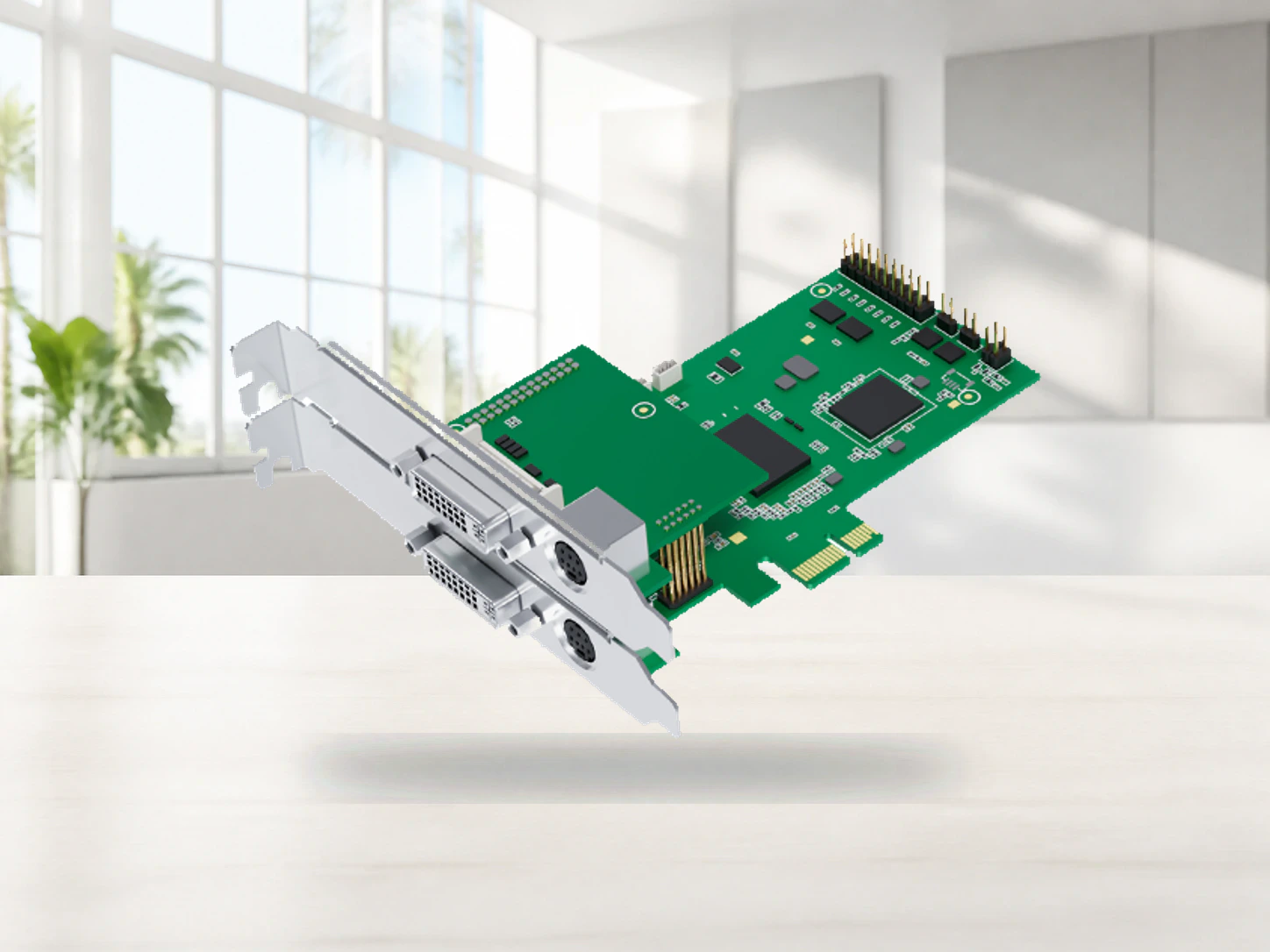

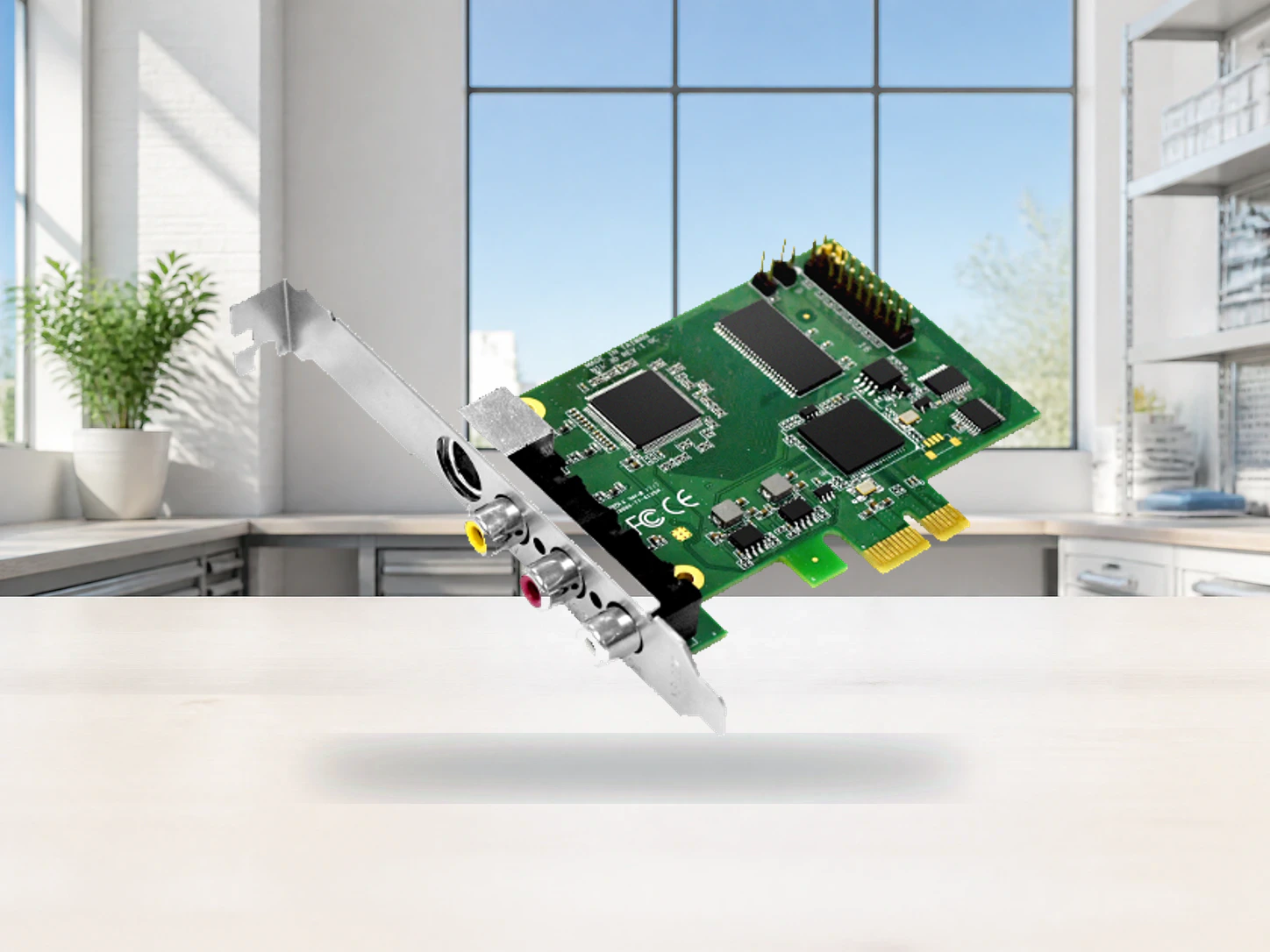

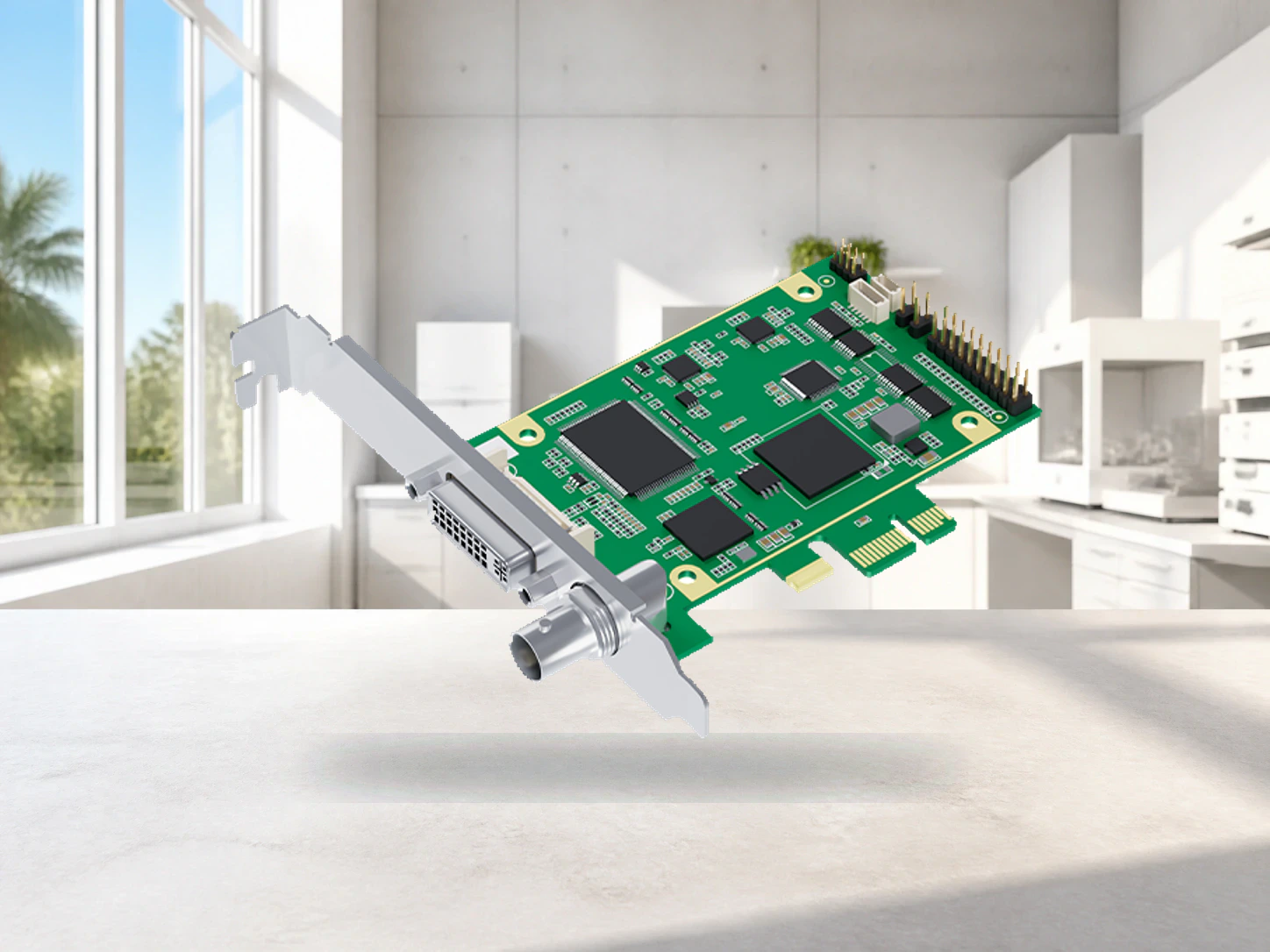

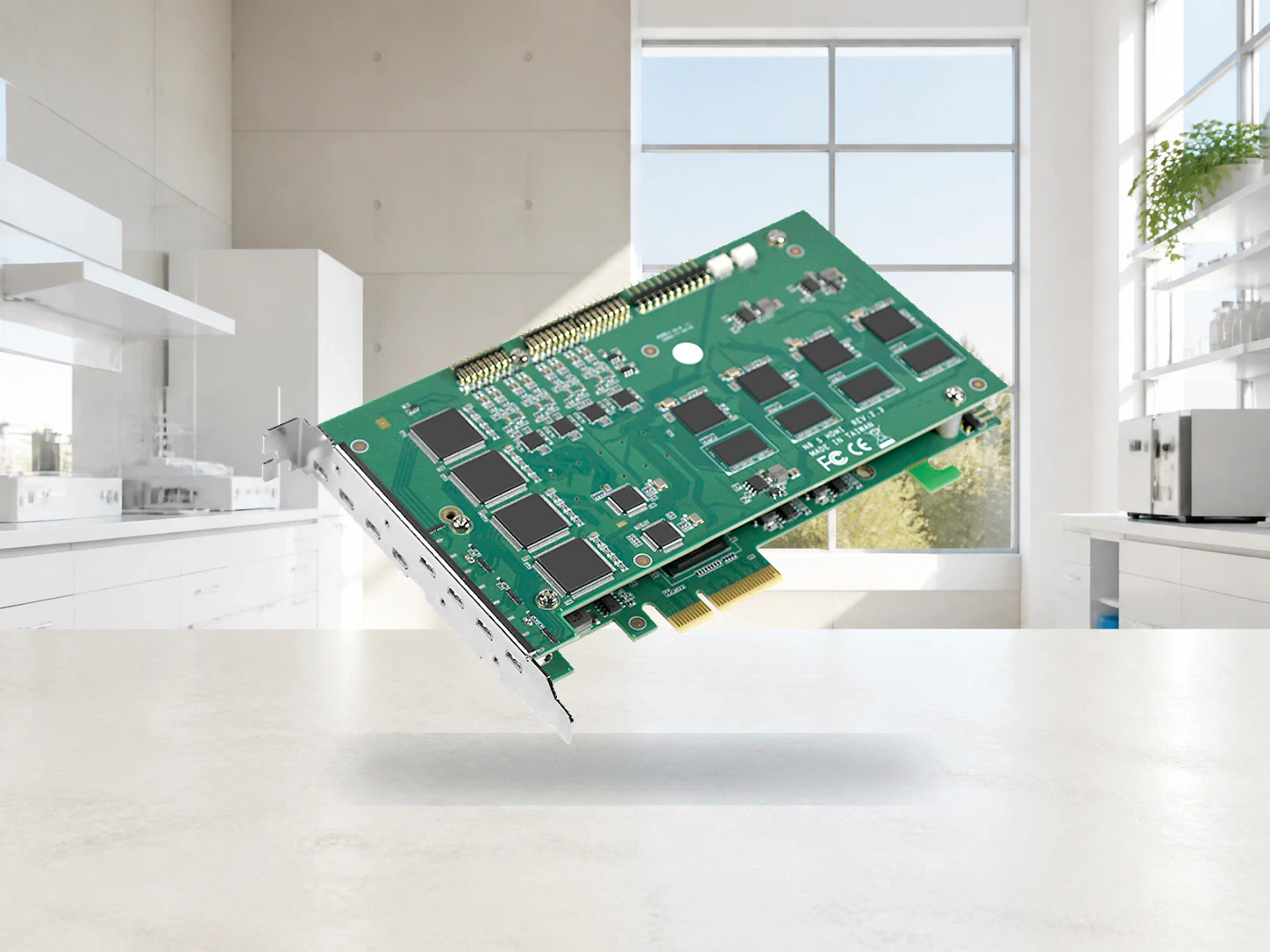

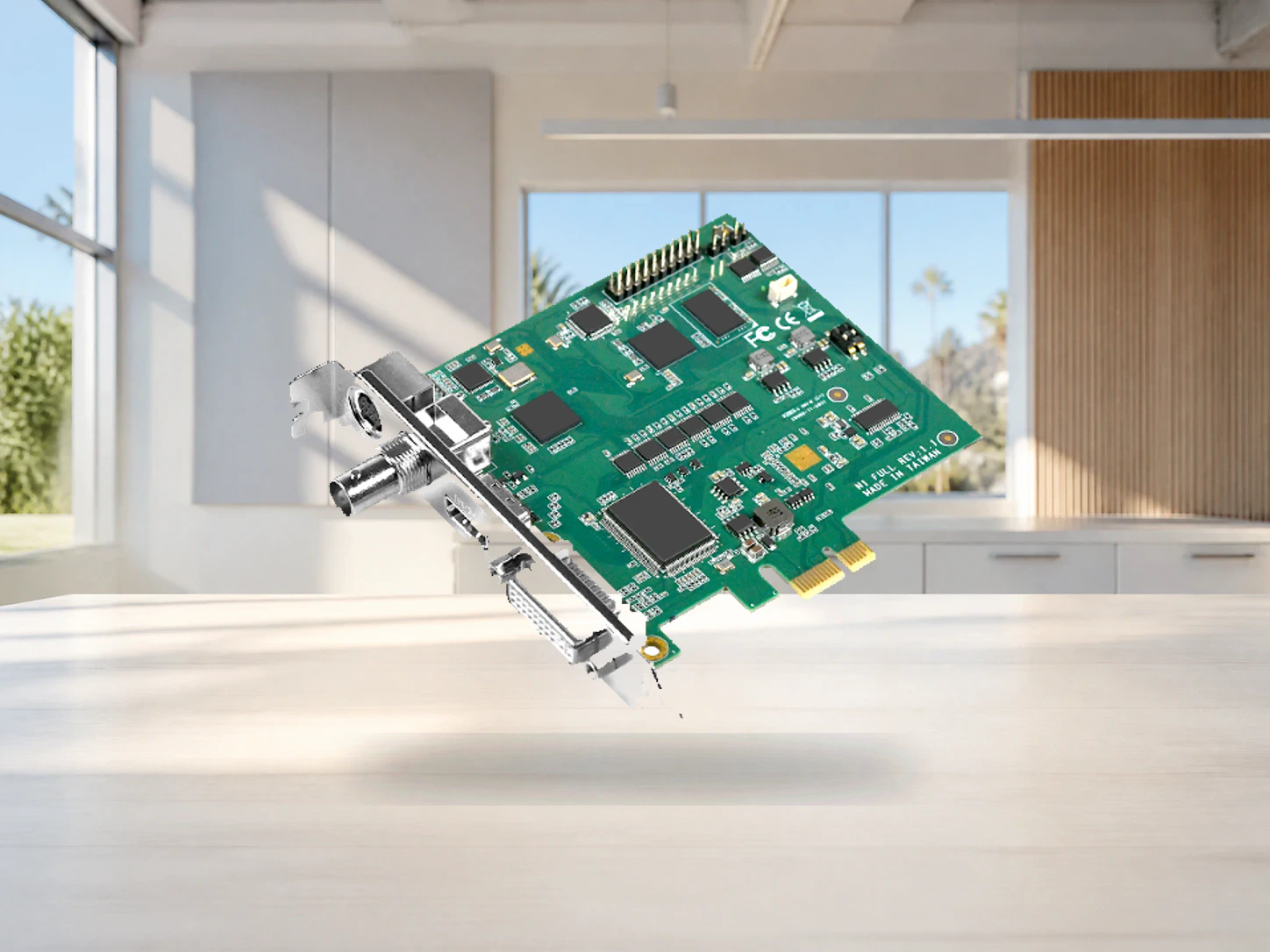

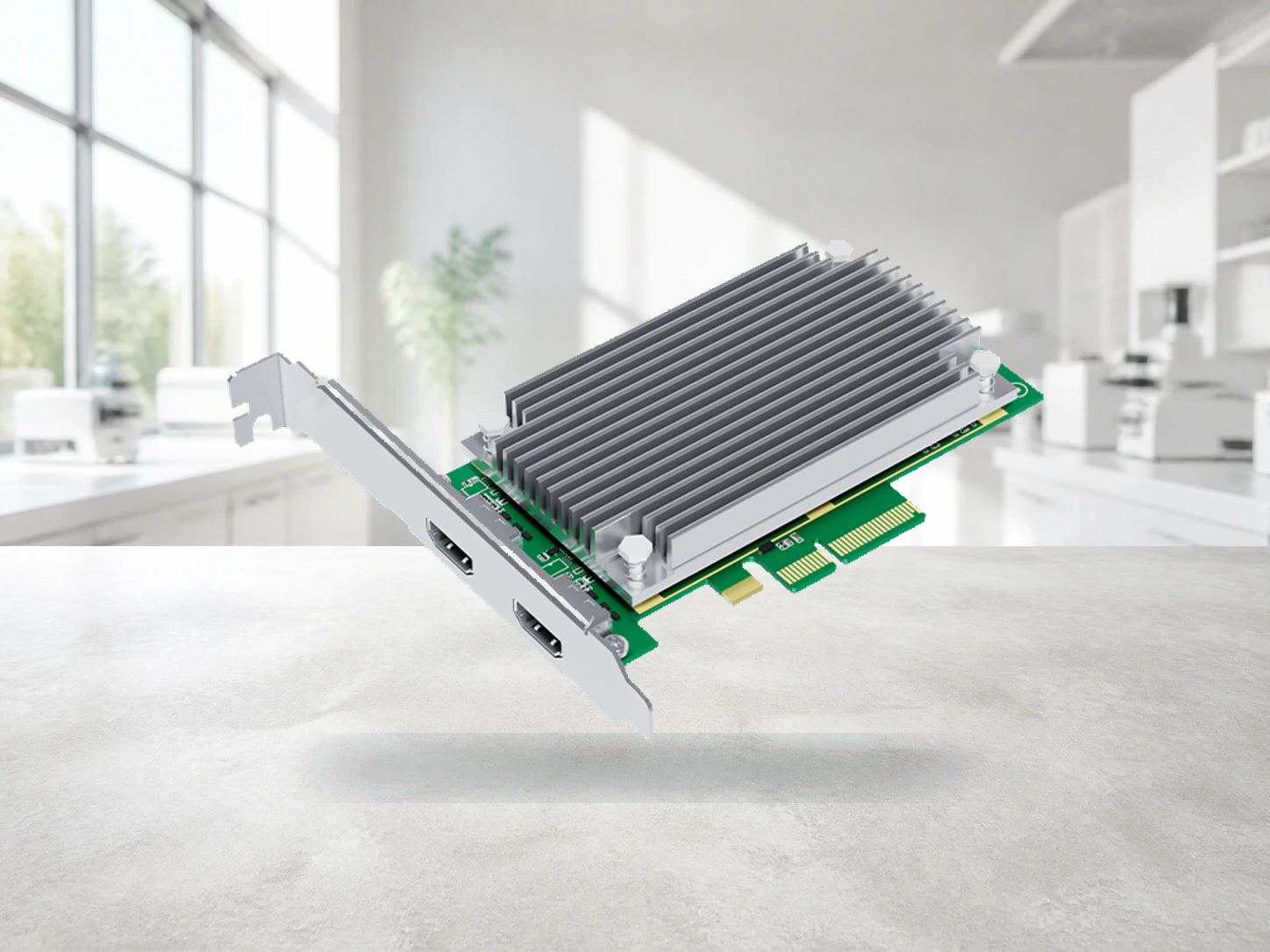

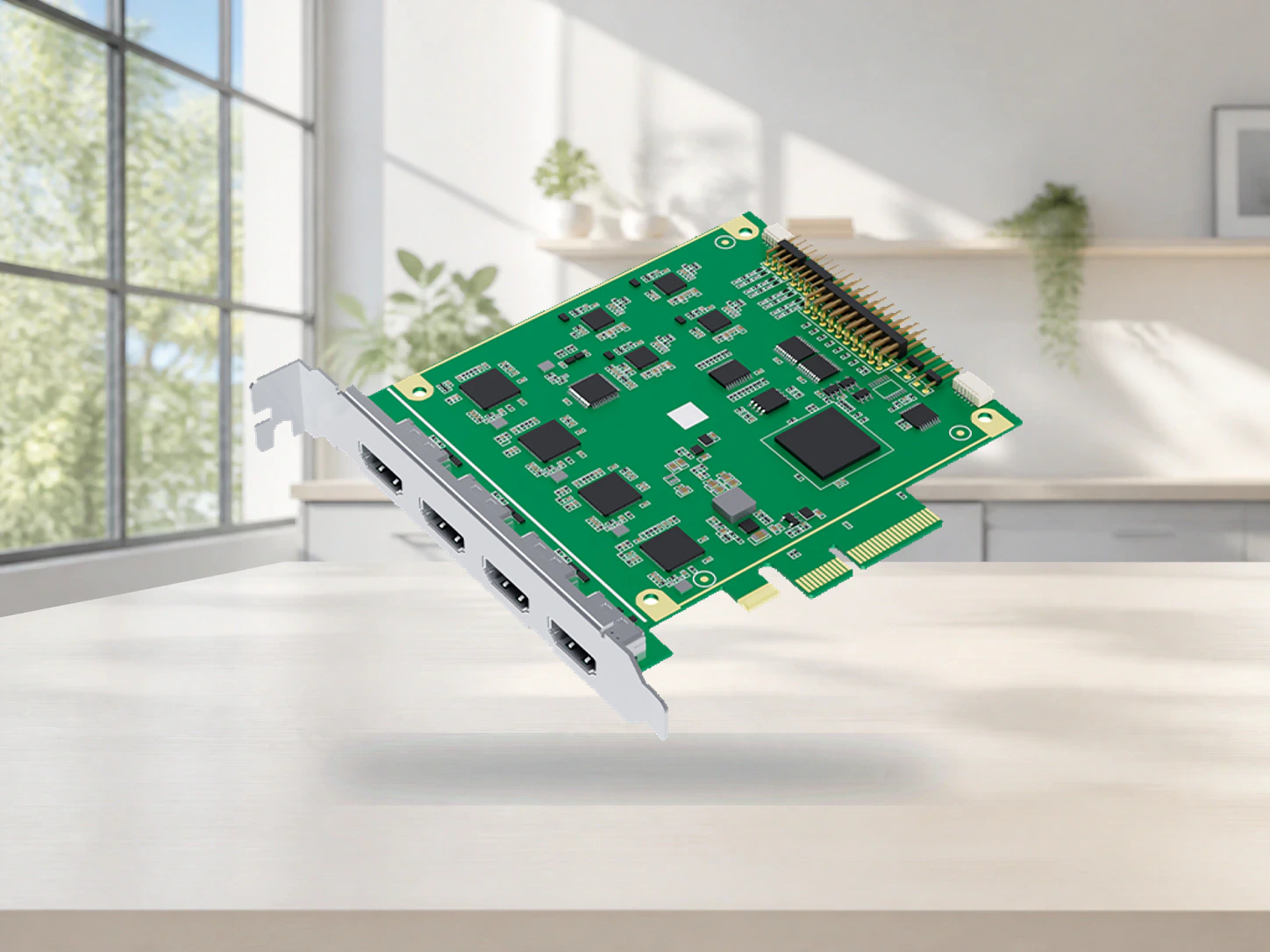

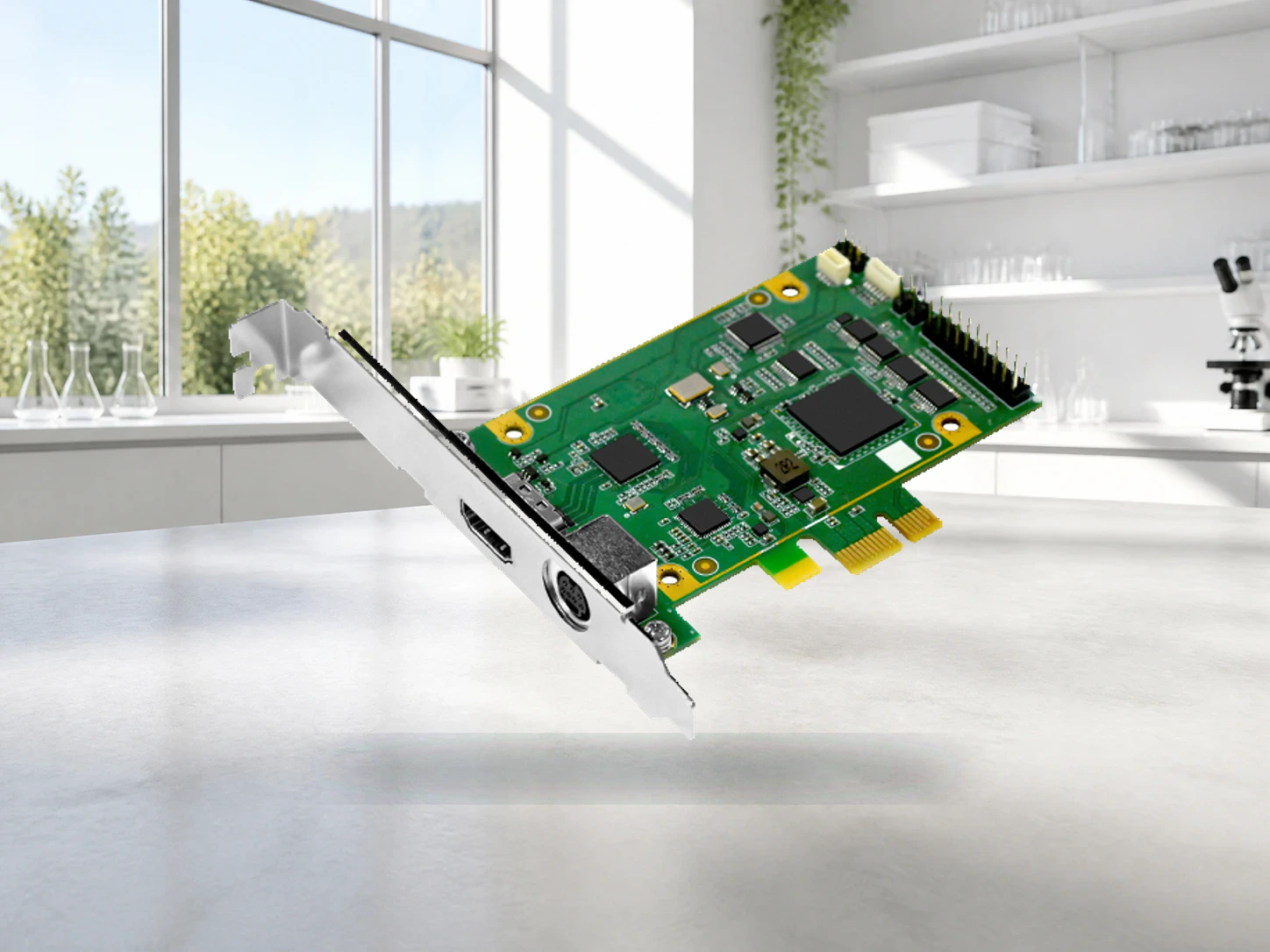

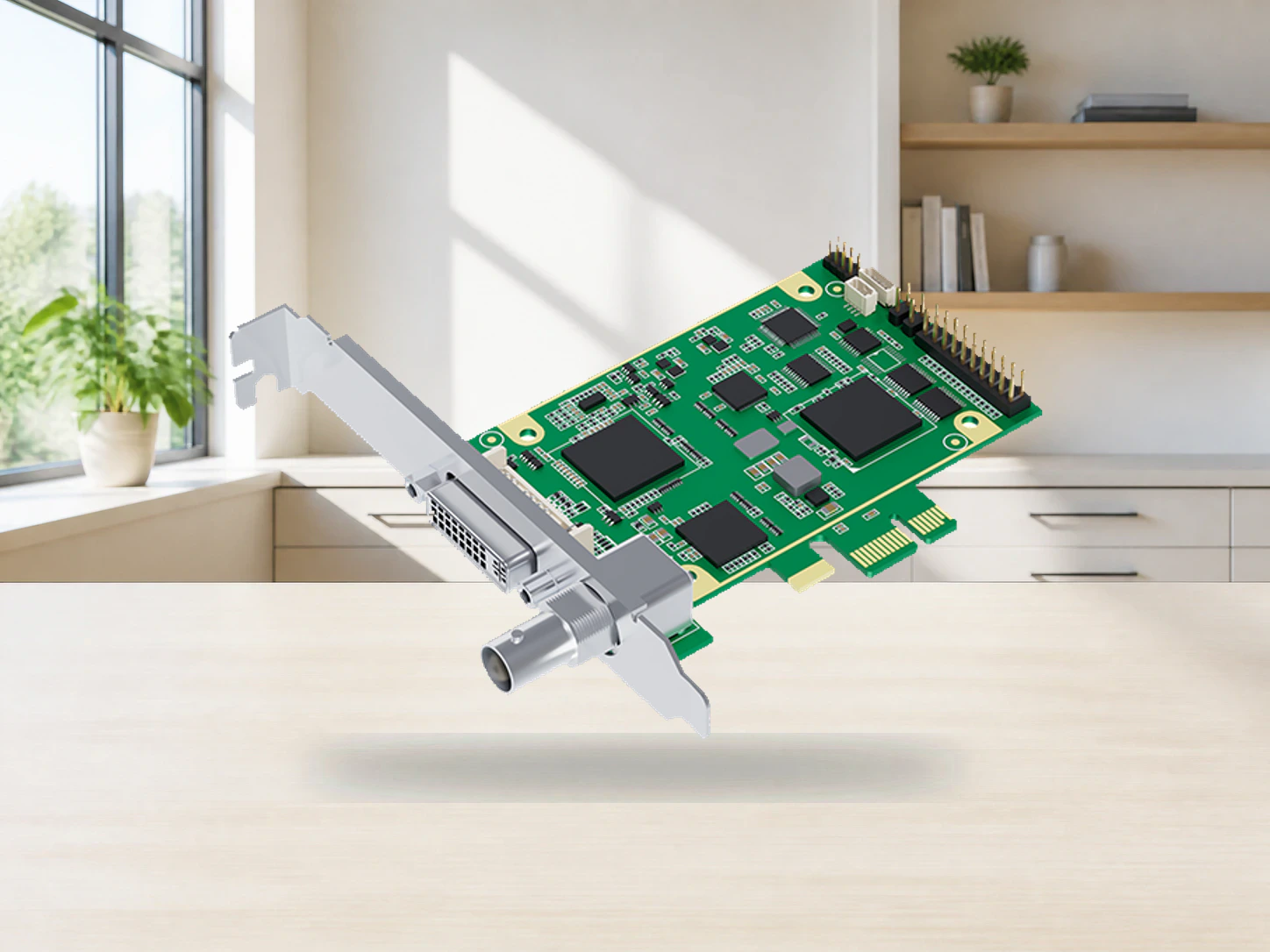

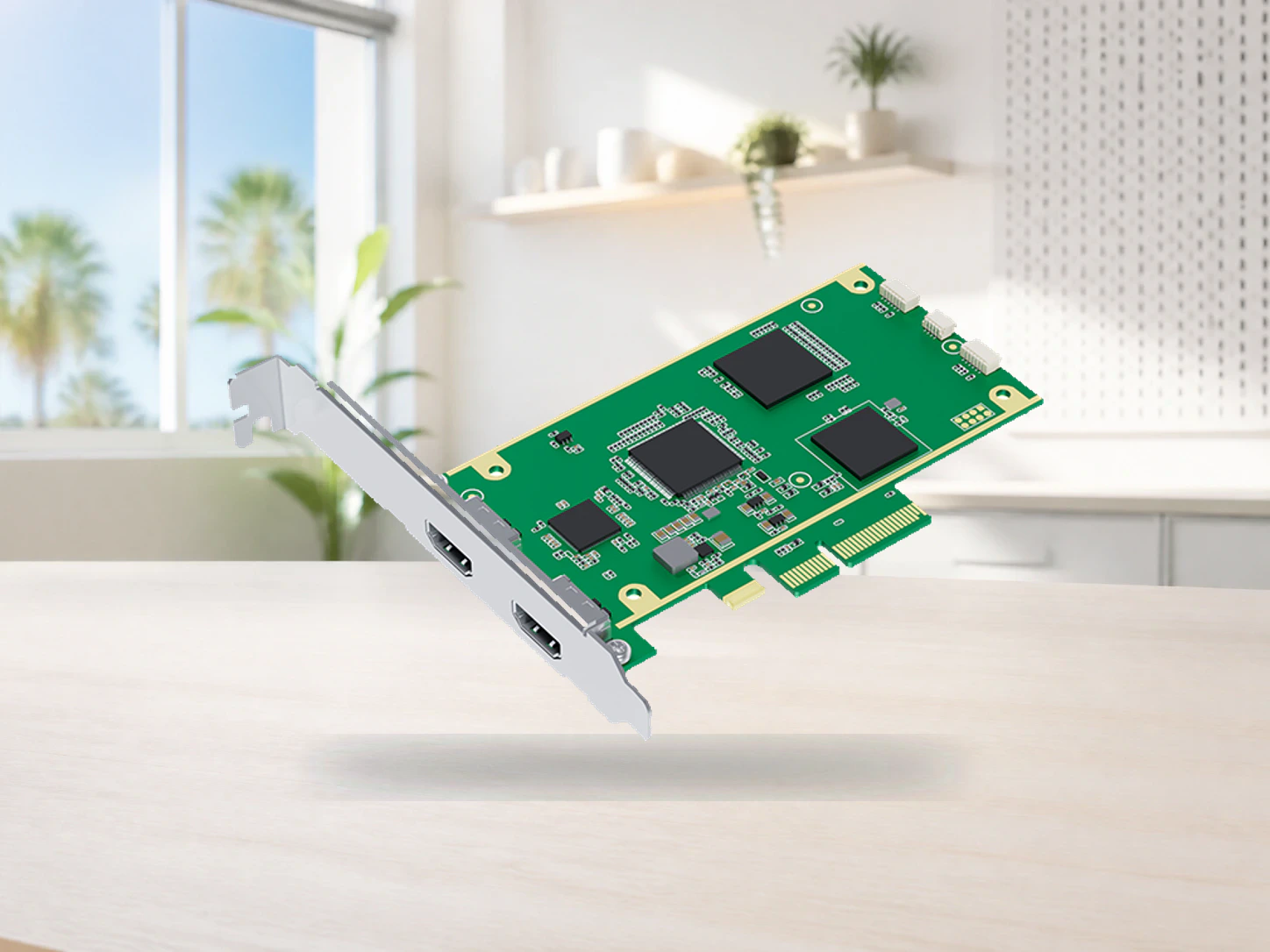

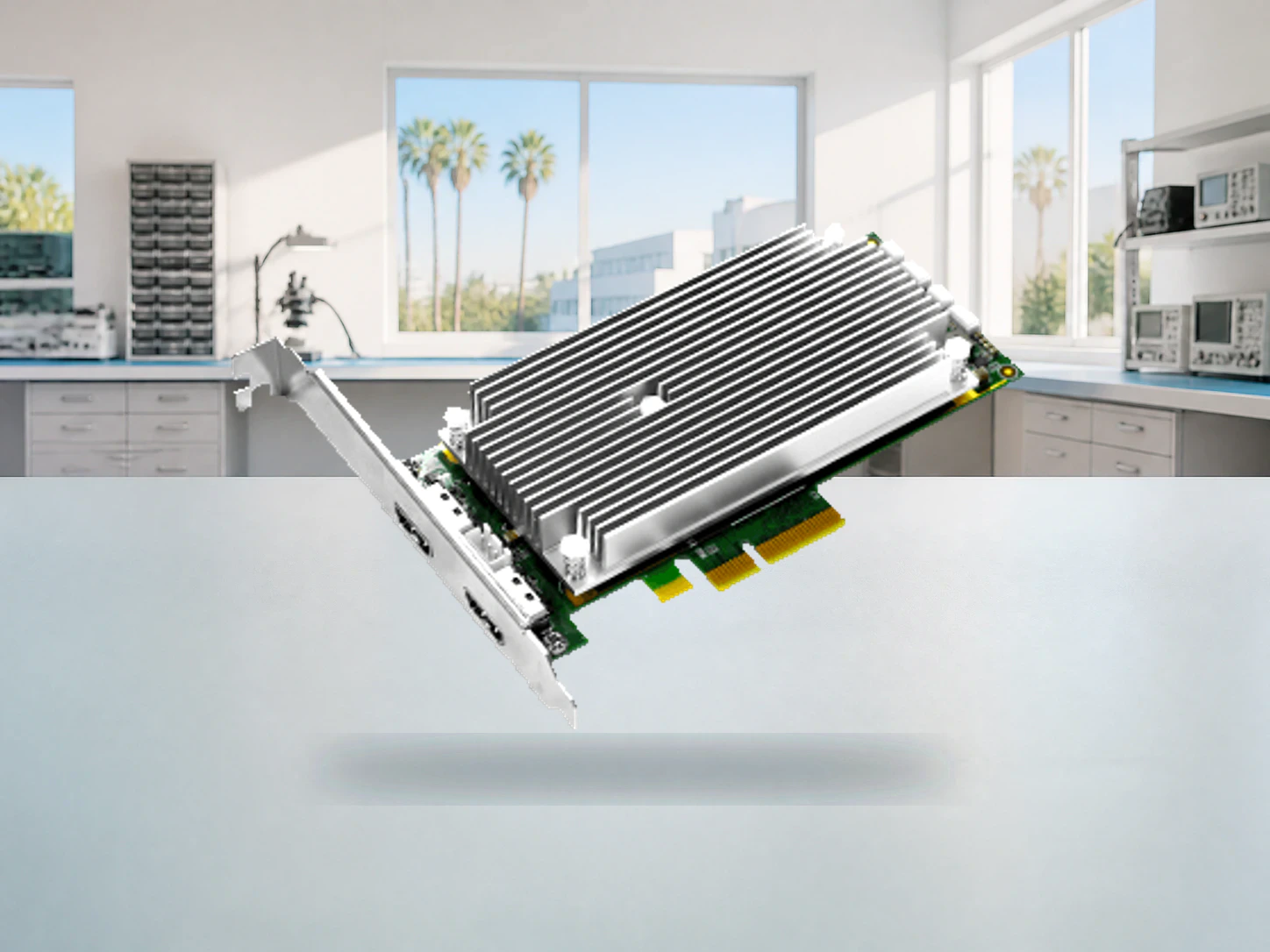

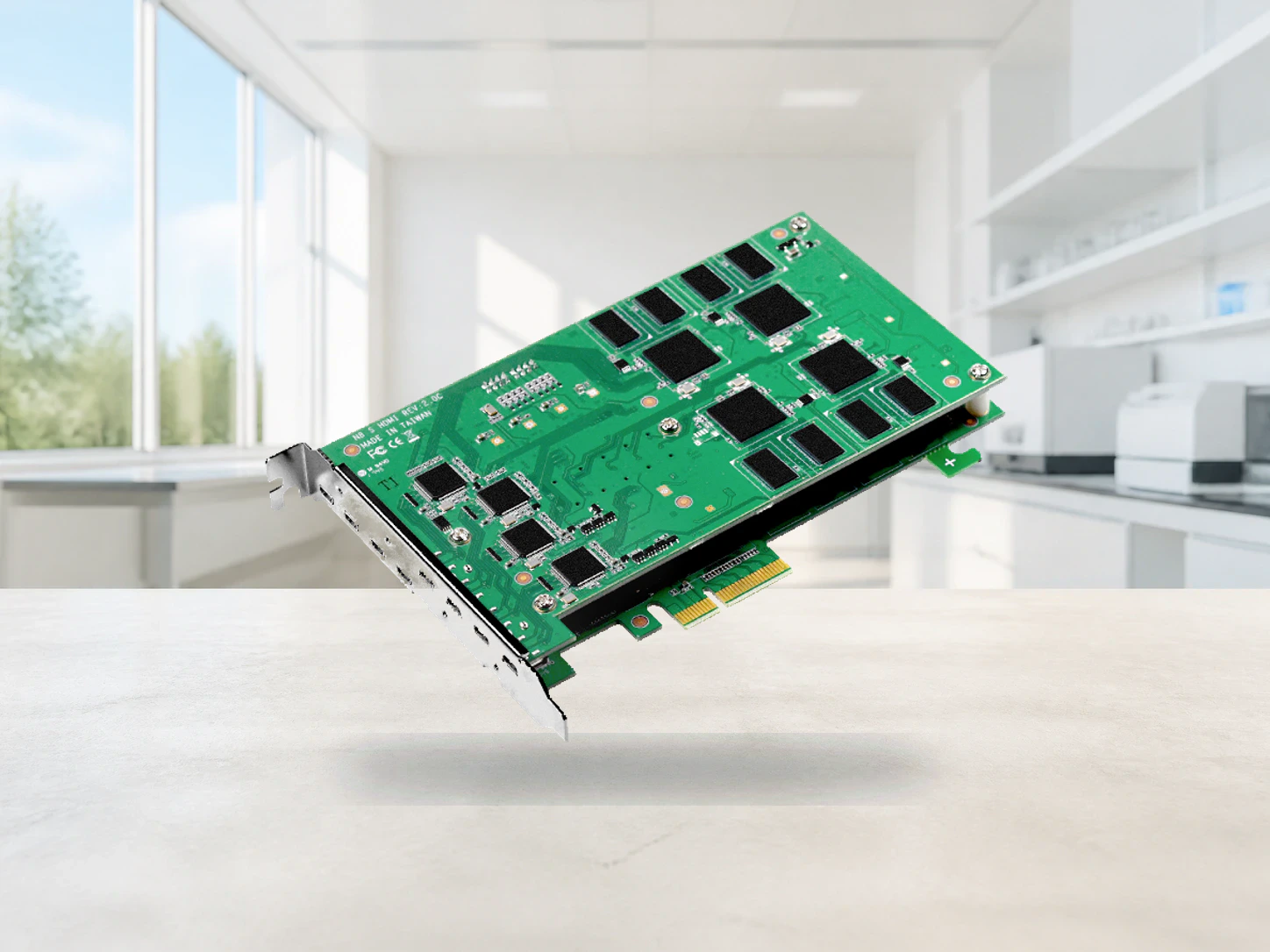

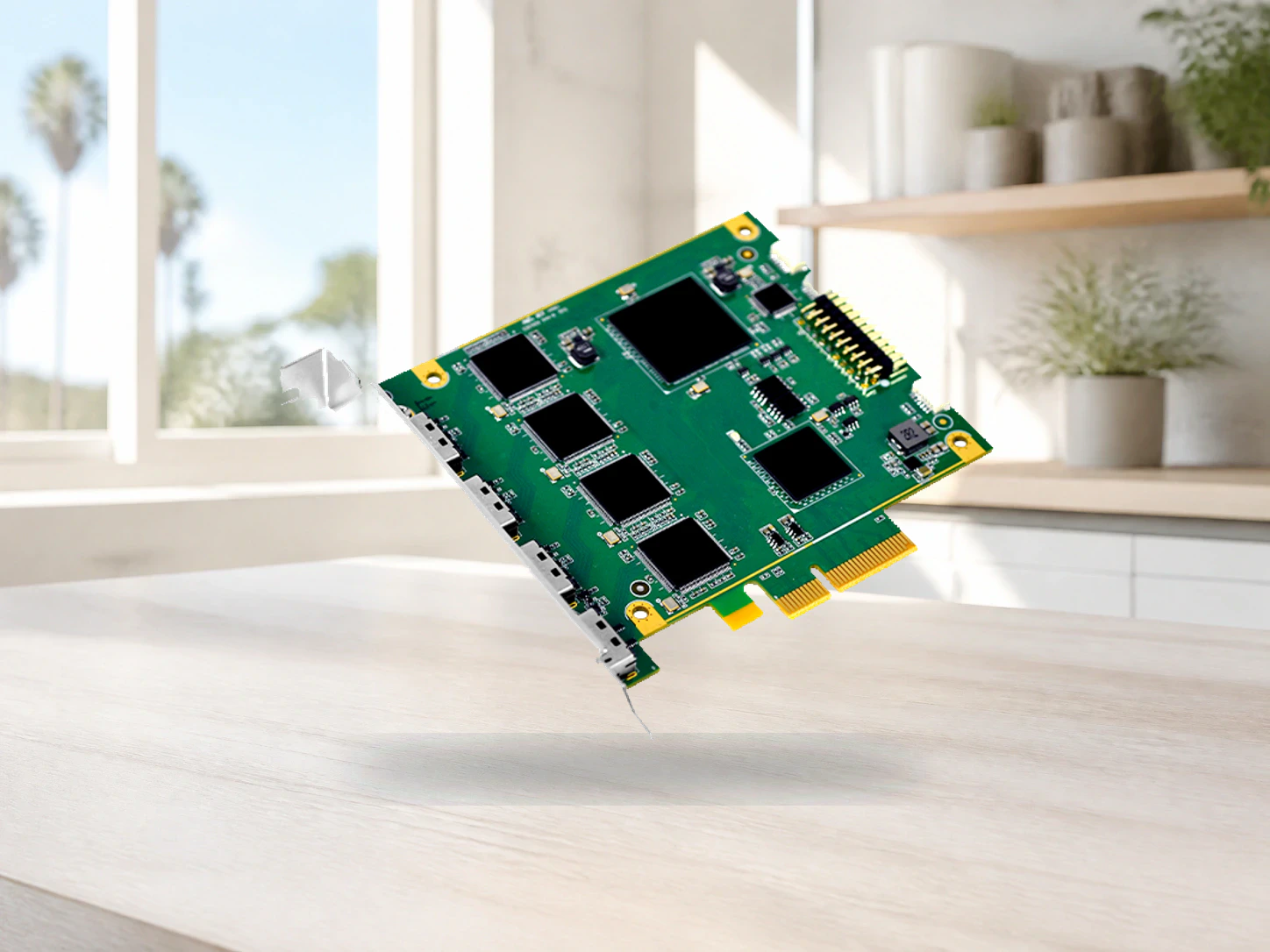

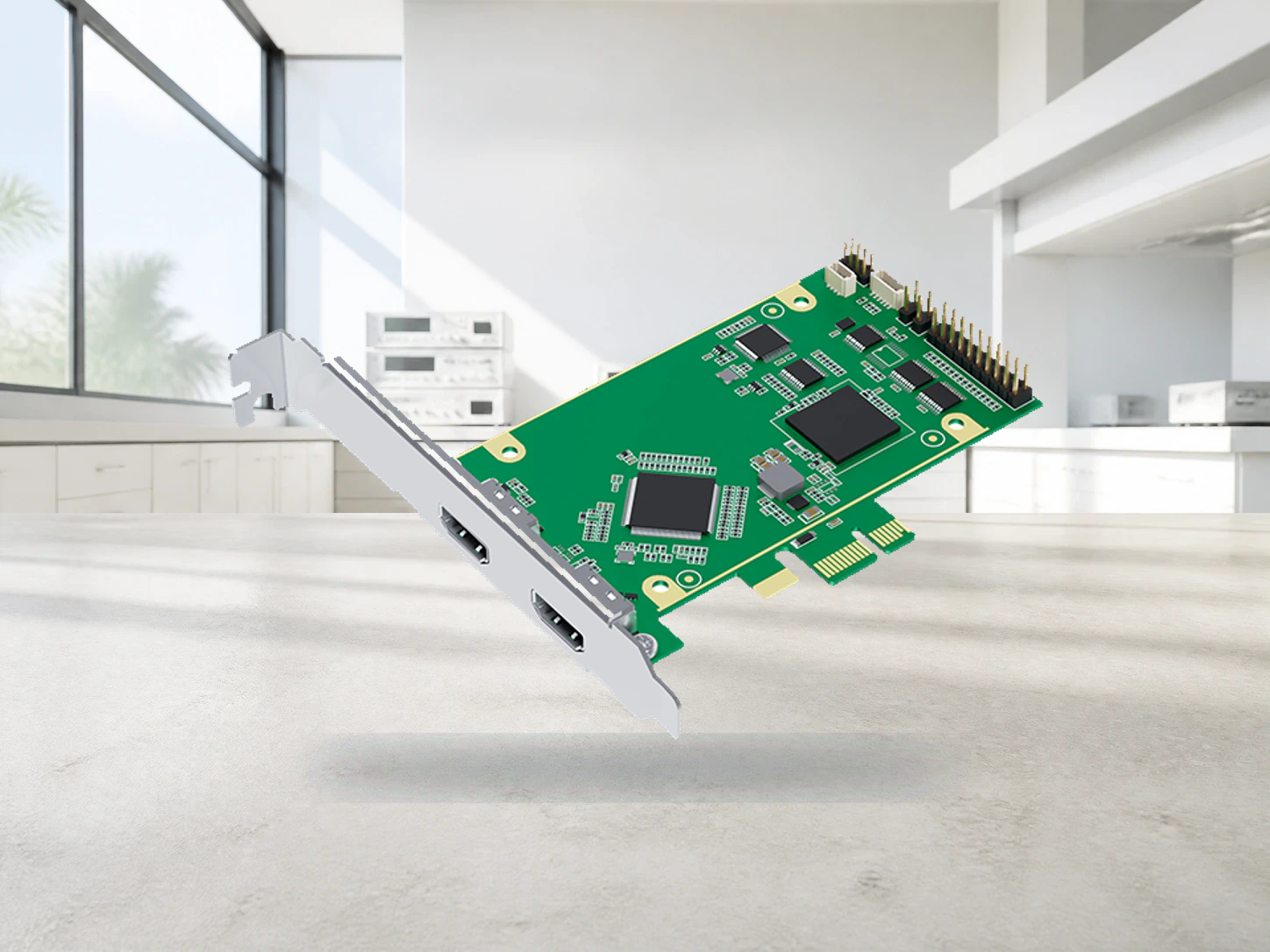

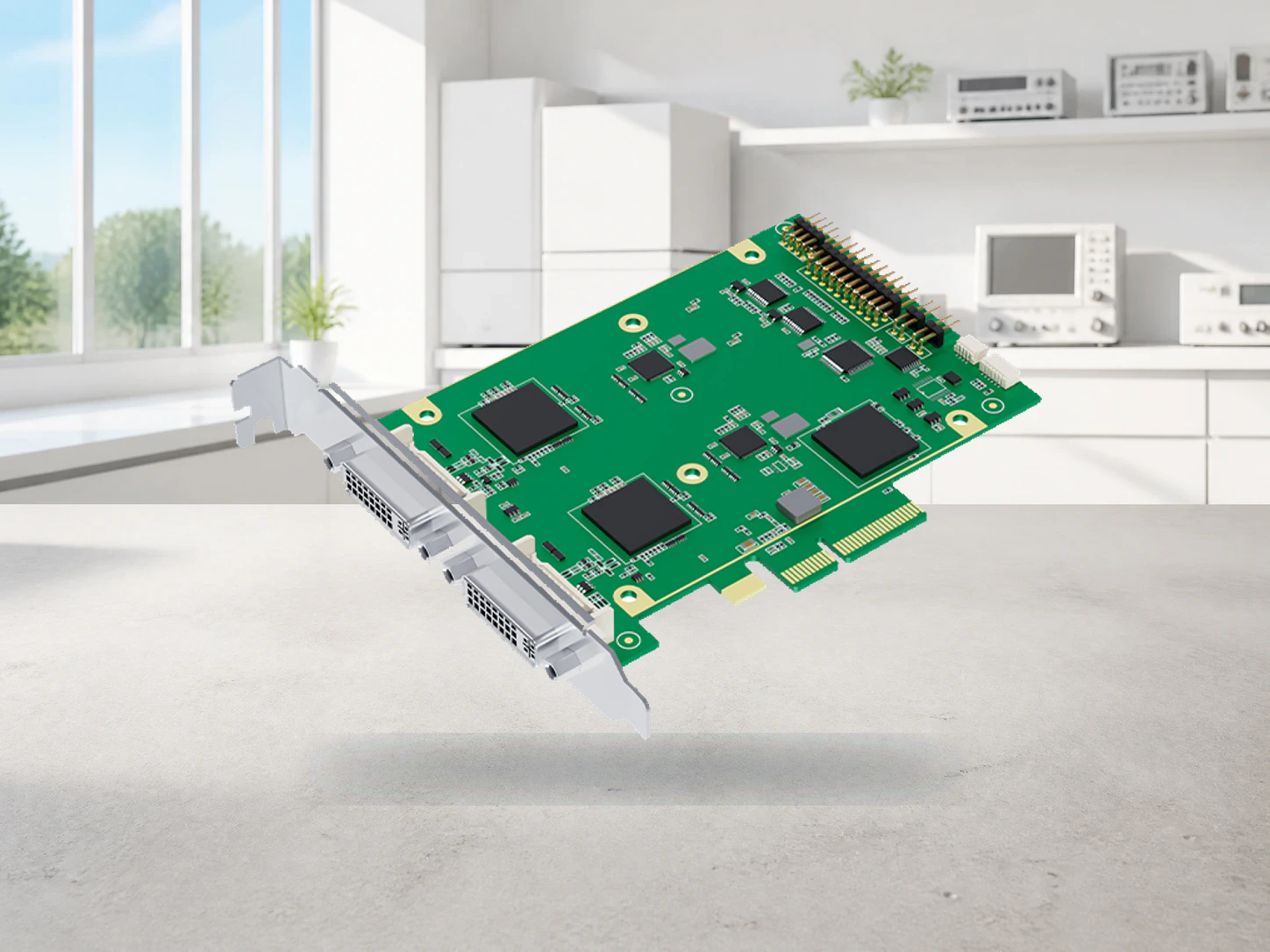

The ProAV PCIe series is purpose-built for high-channel, multi-resolution video capture, offering PCIe ×1 to ×8 configurations with reliable power delivery and standard chassis compatibility for workstation and multi-card deployments. YUAN's in-house video processing architecture and Direct-to-GPU design keep latency ultra-low — ideal for broadcast switching, AI vision, and high-precision medical imaging.
- PCIe×4 ( Gen2 )
- PCIe×1 ( Gen2 )
- 1920×1080p@60/50fps
- PCIe×1
- Single-Link HDMI 2.0
- 4096×2160p@60/50fps

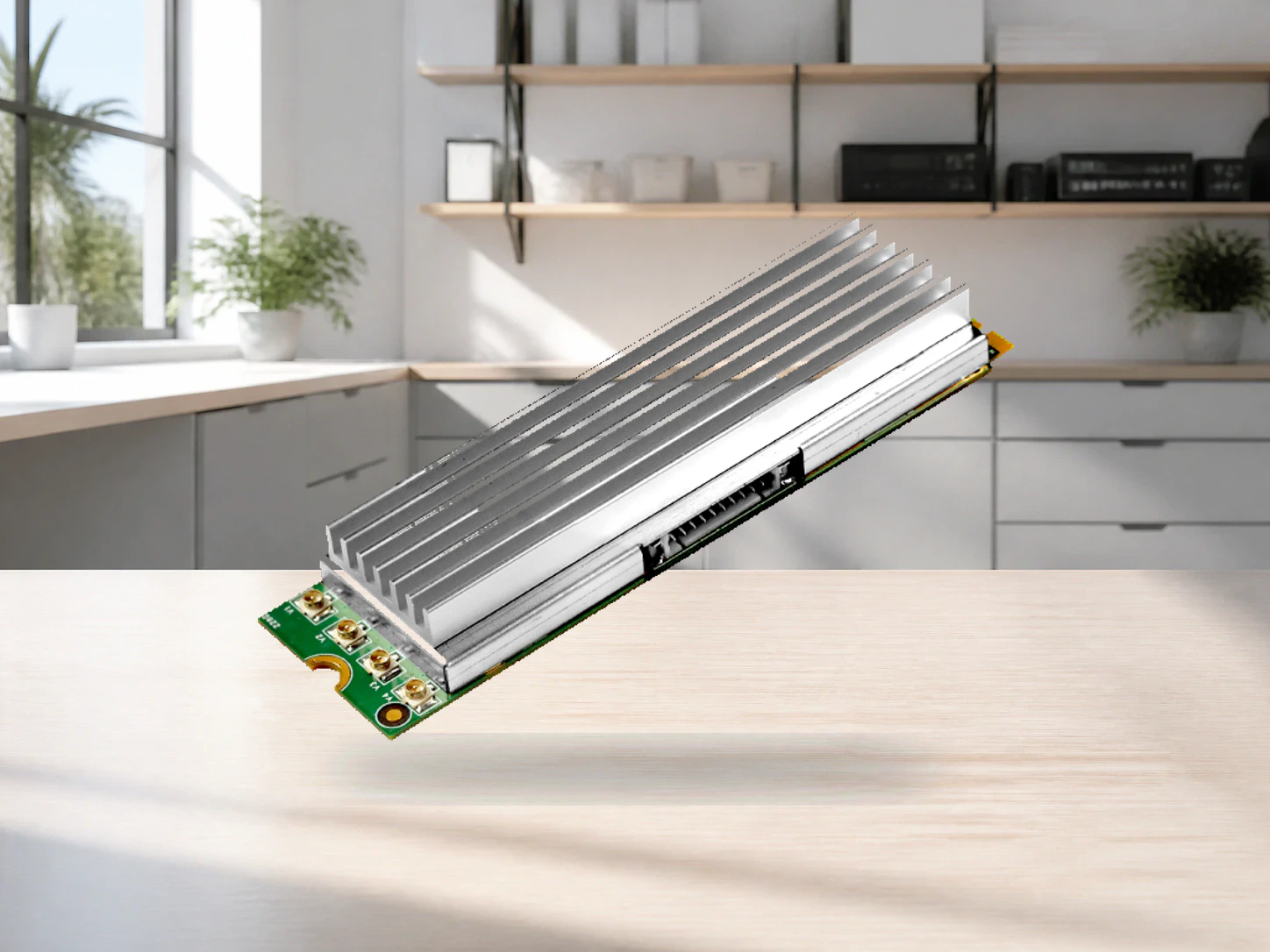

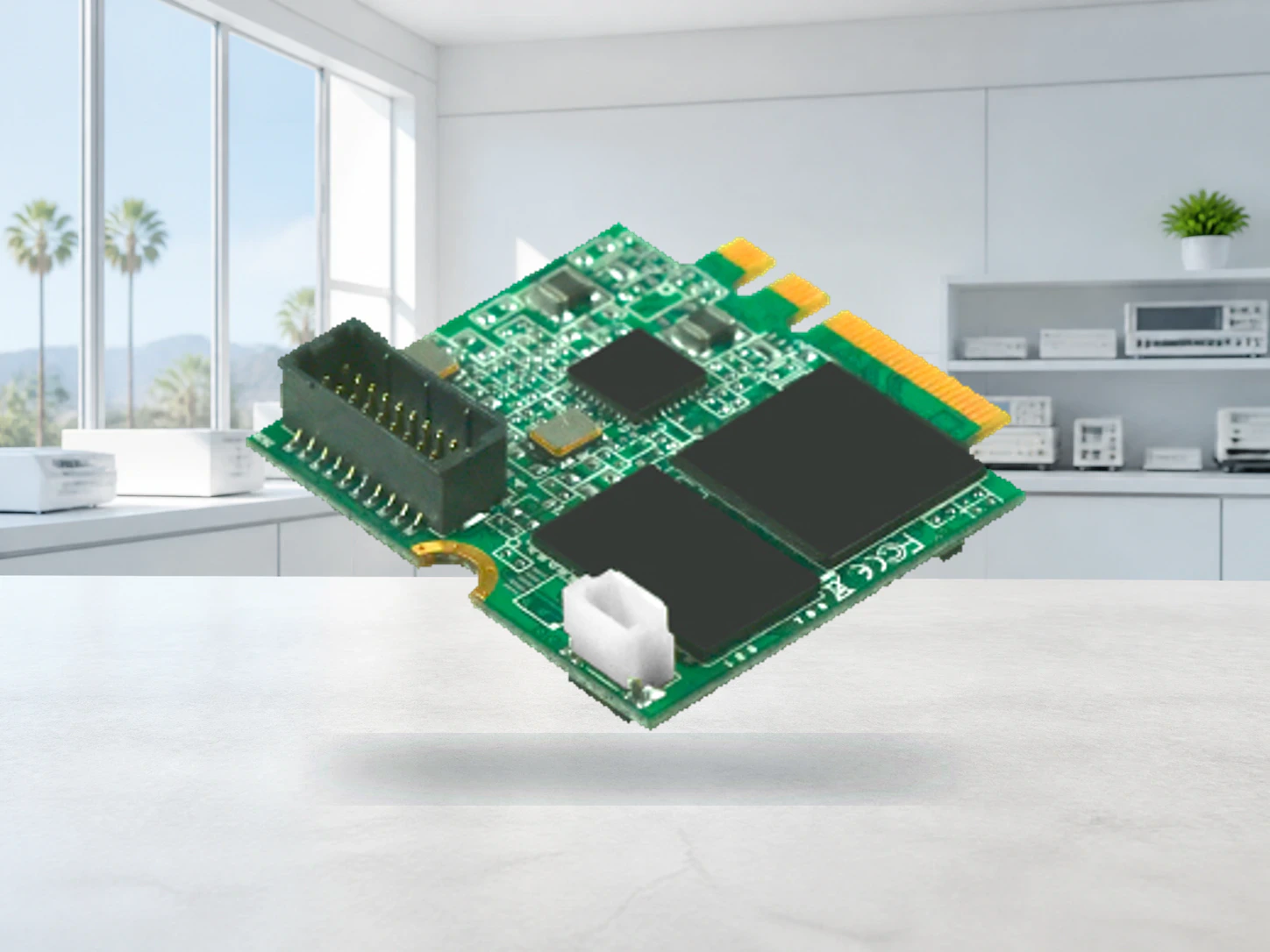

M.2

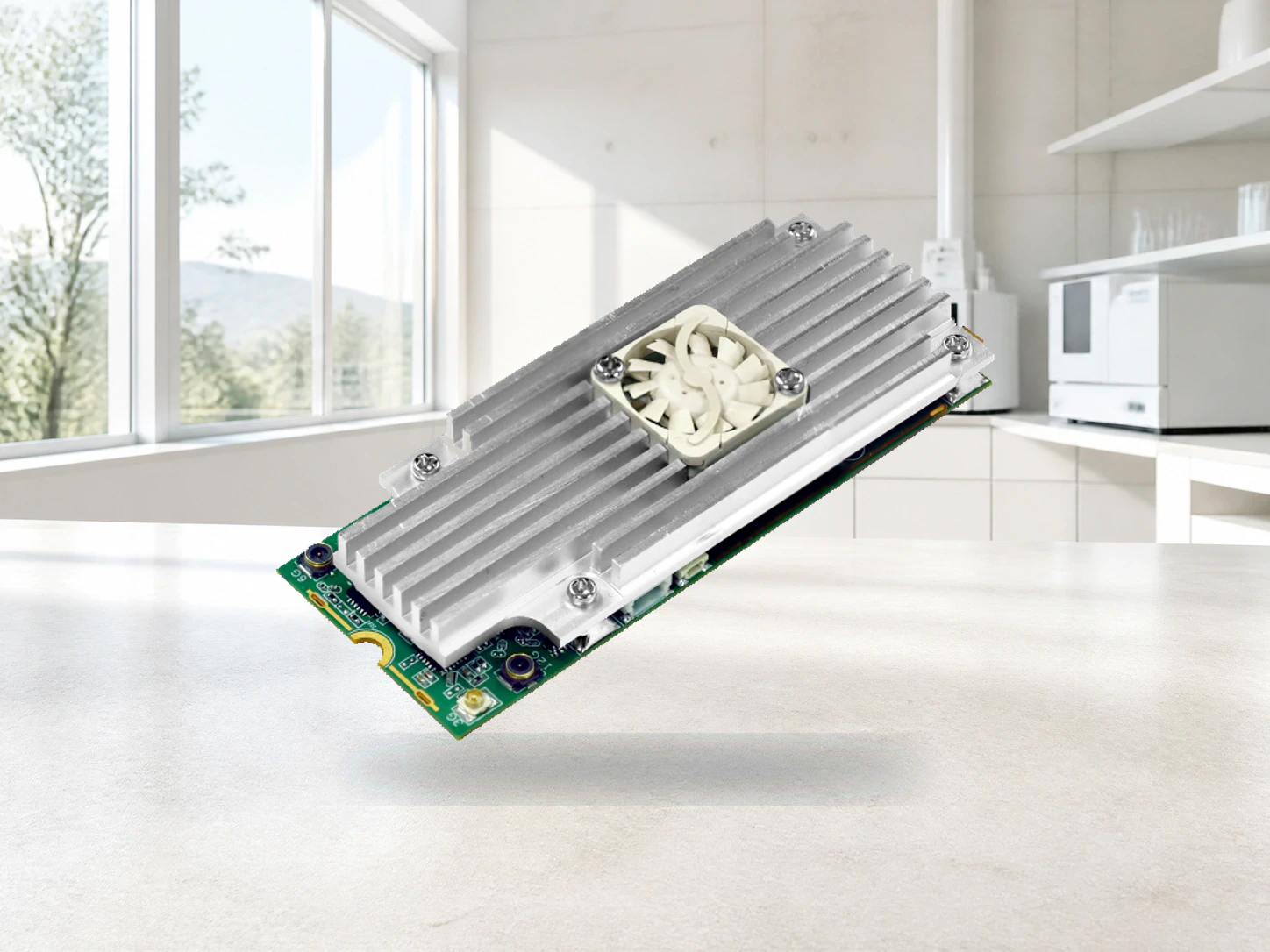

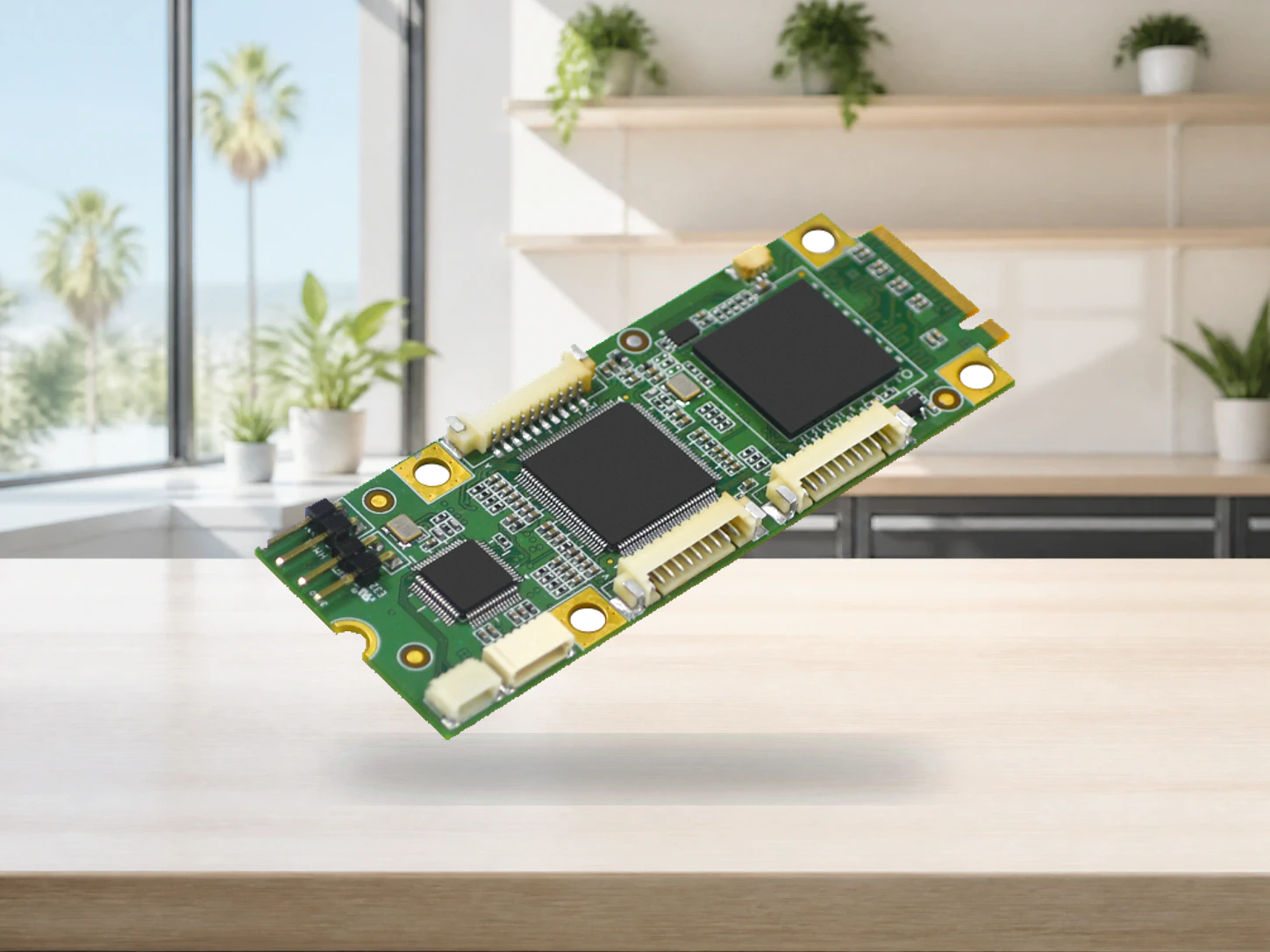

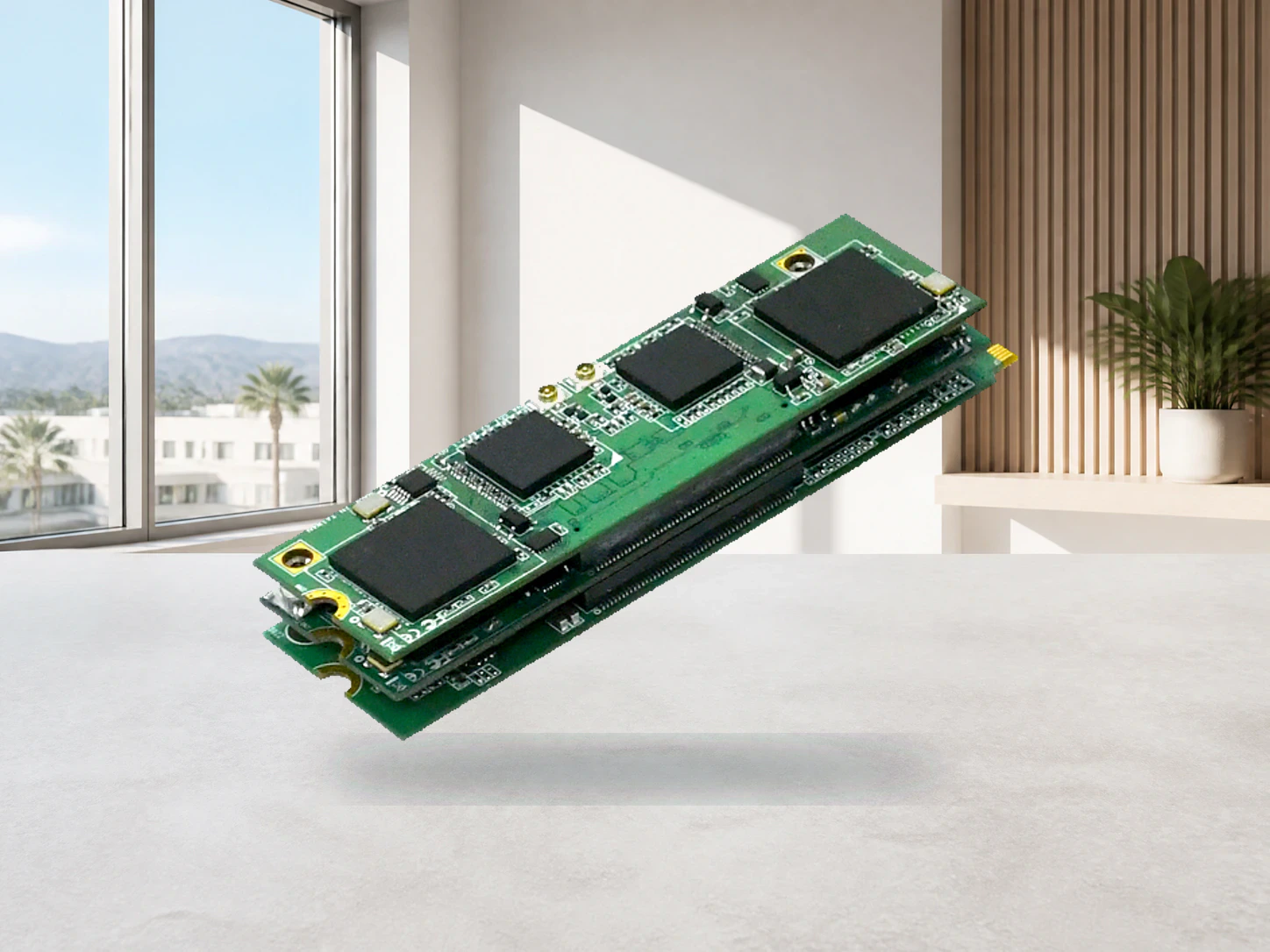

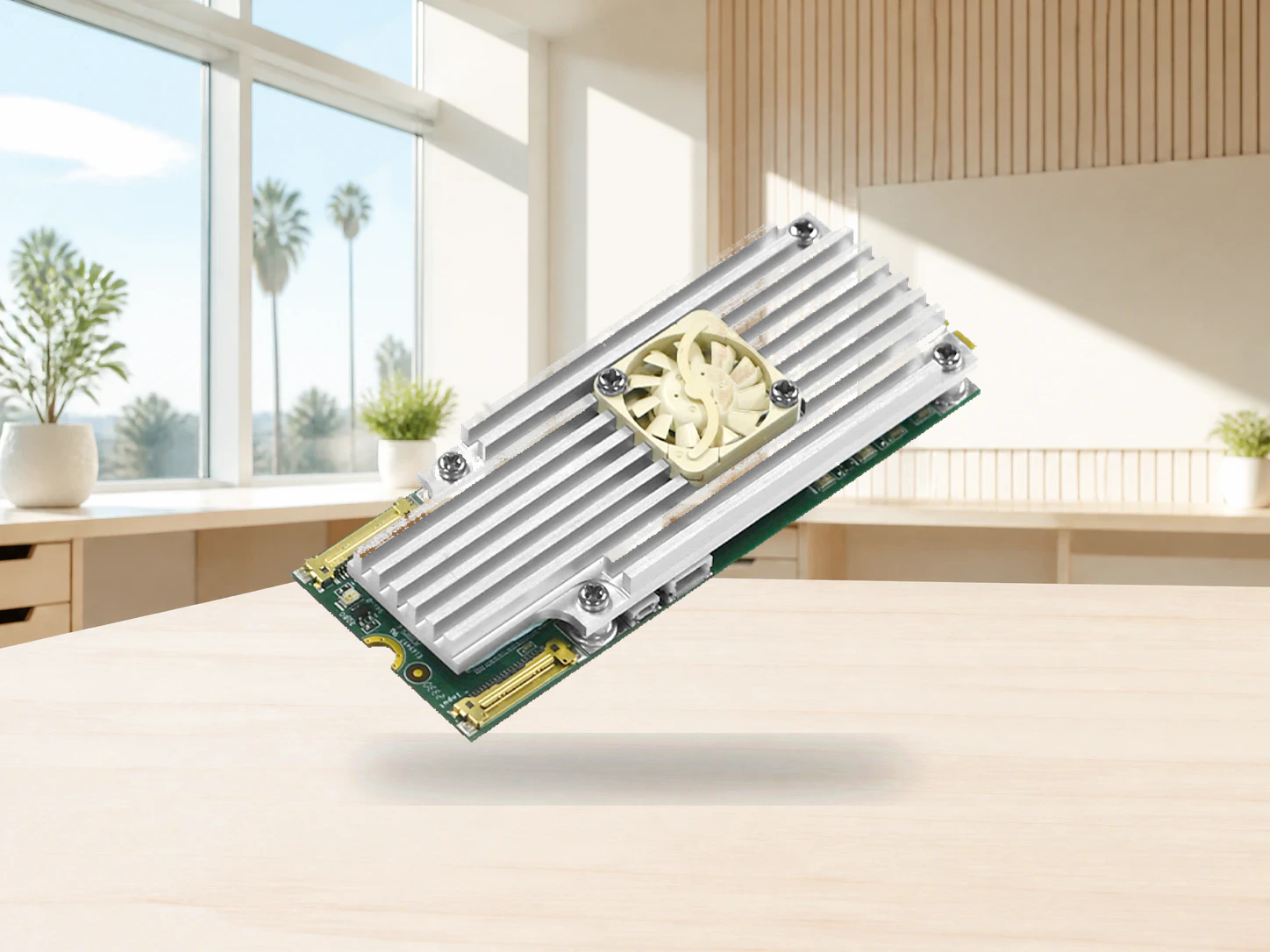

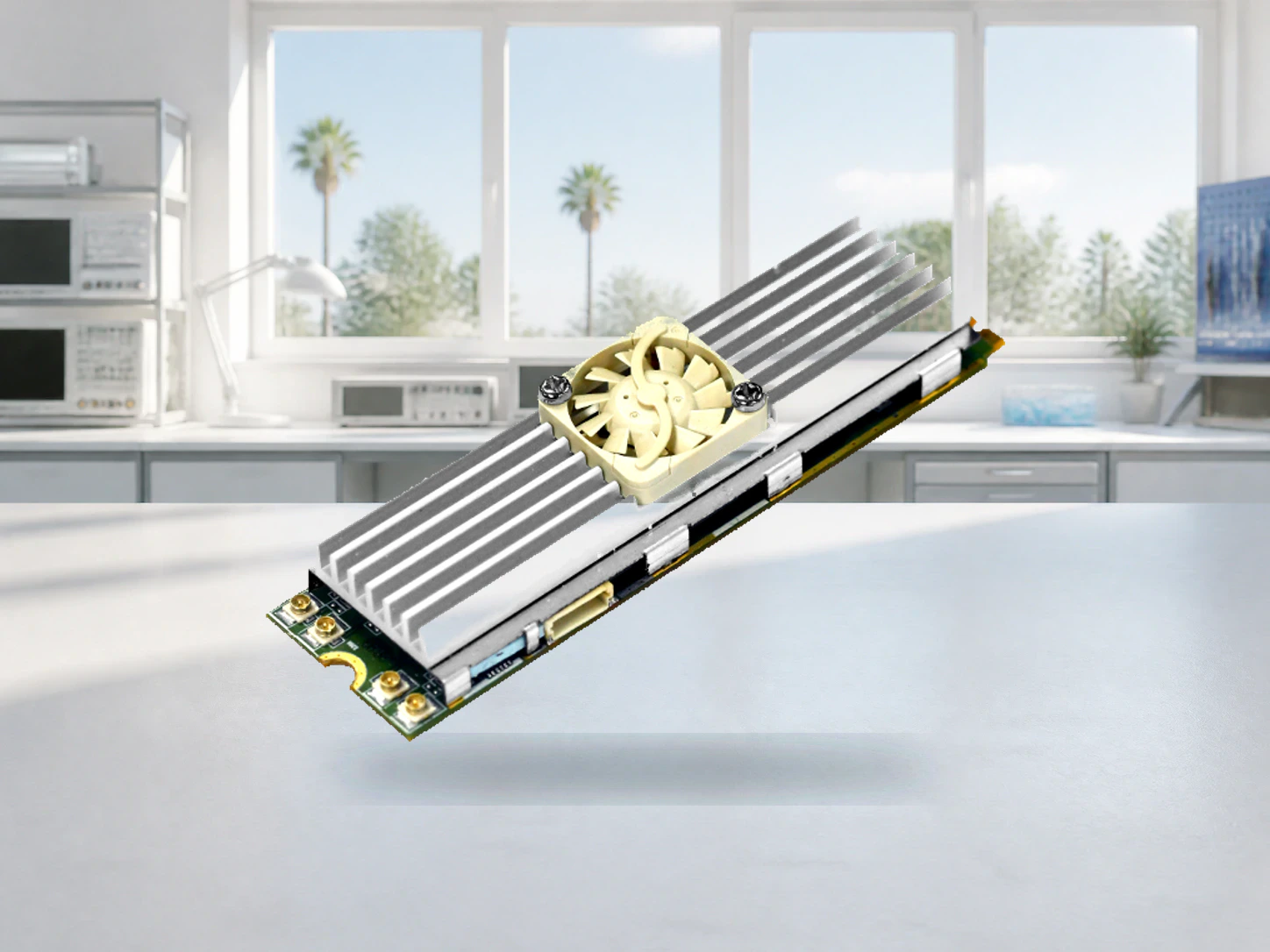

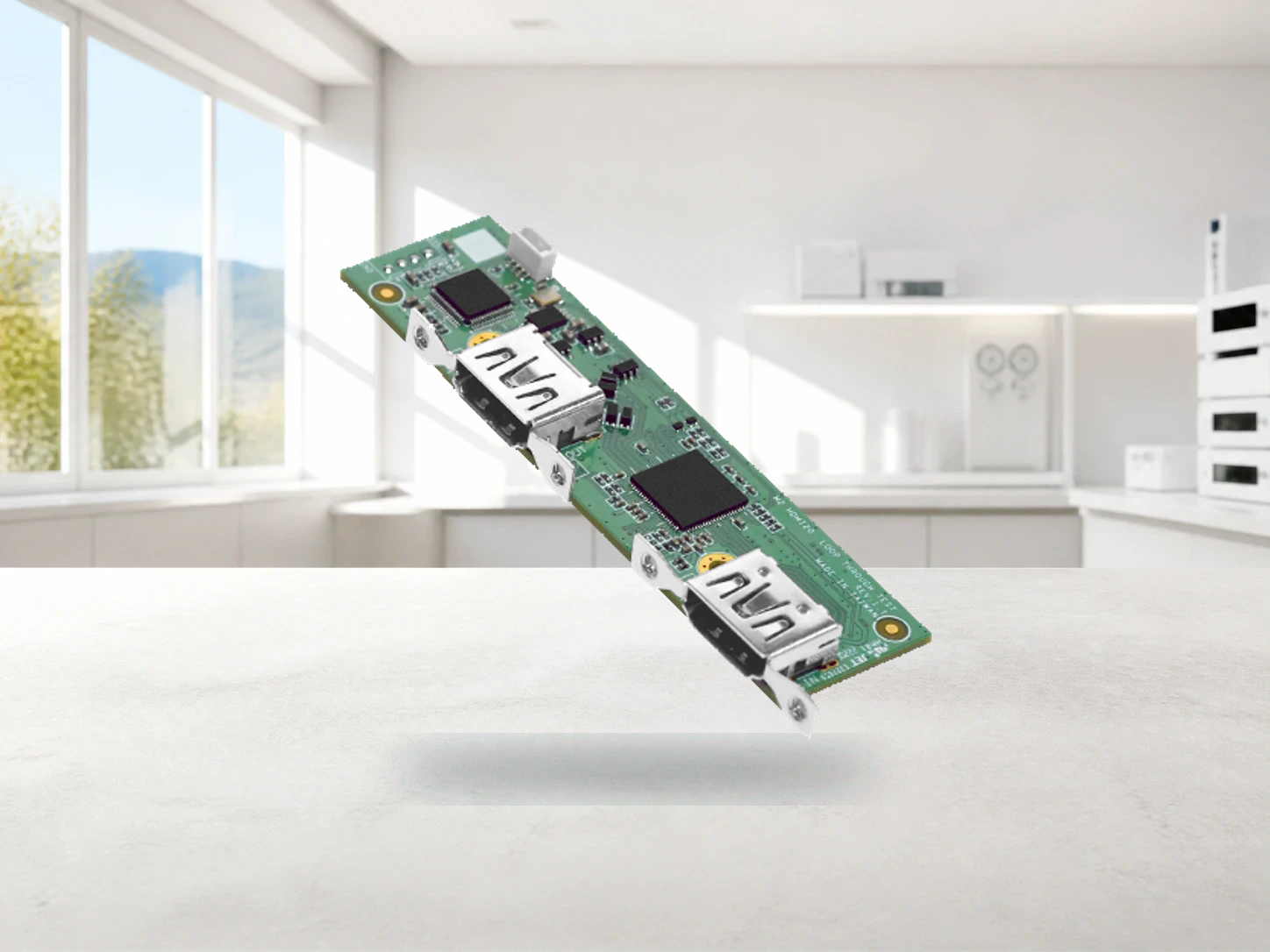

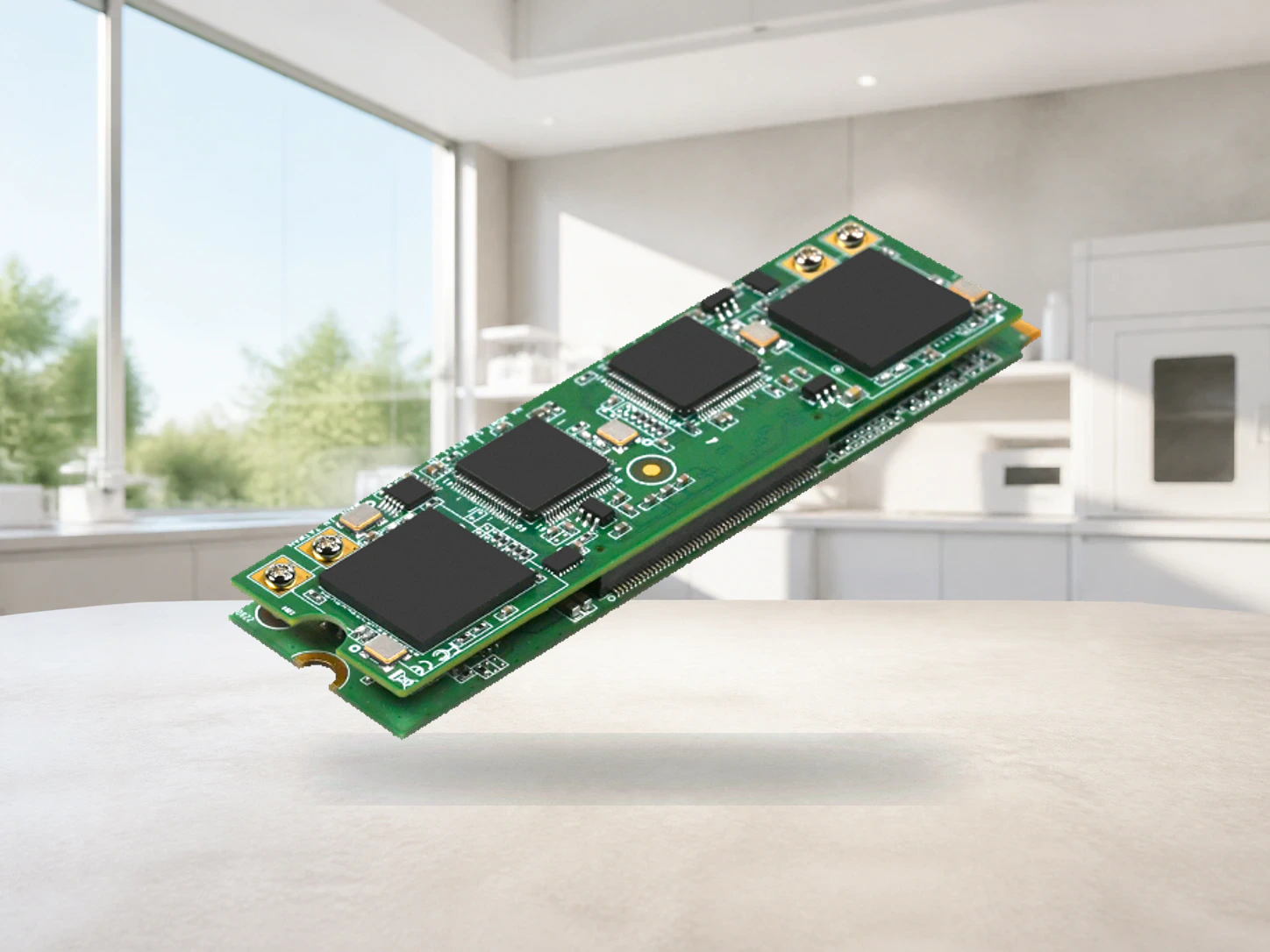

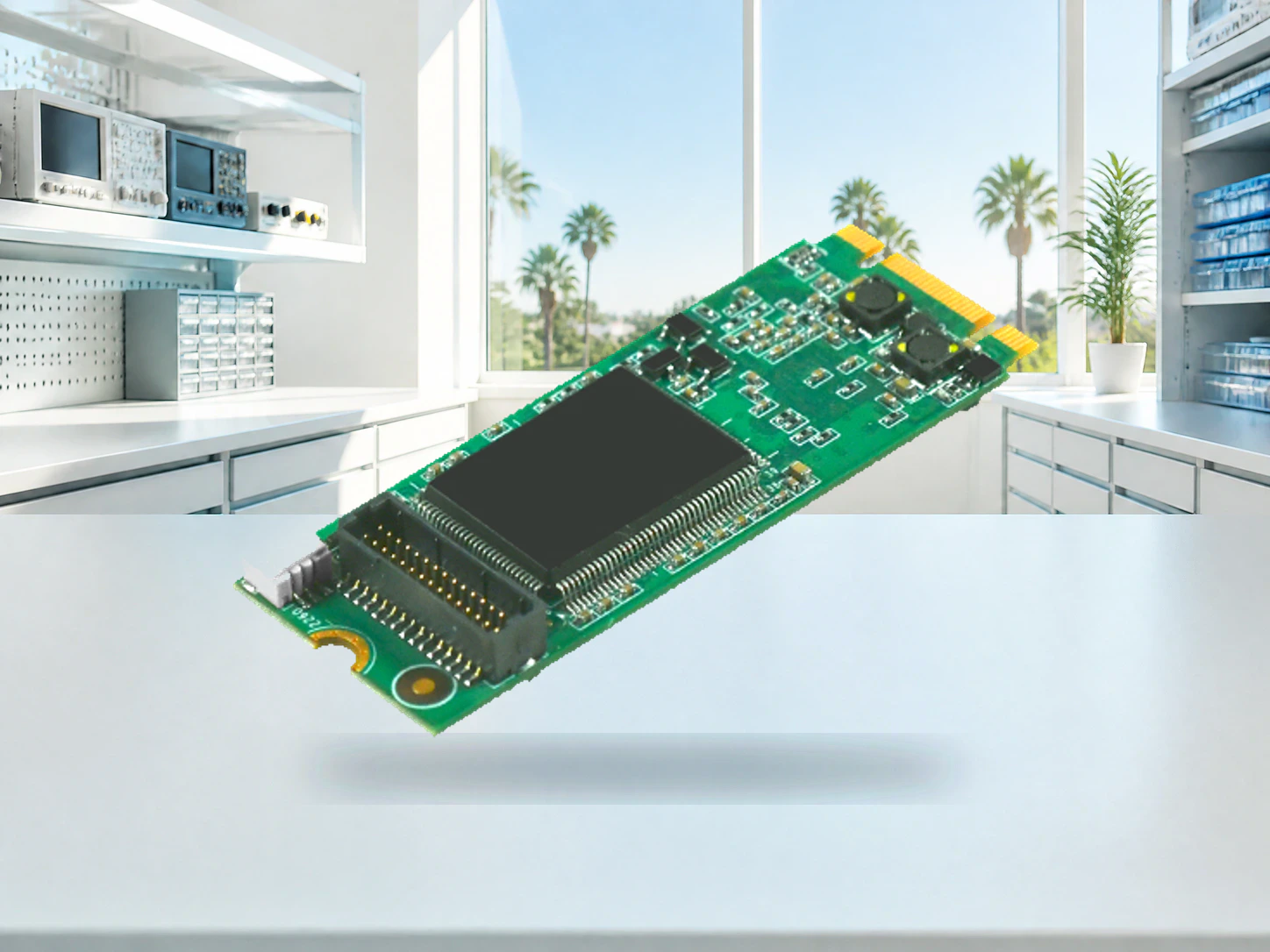

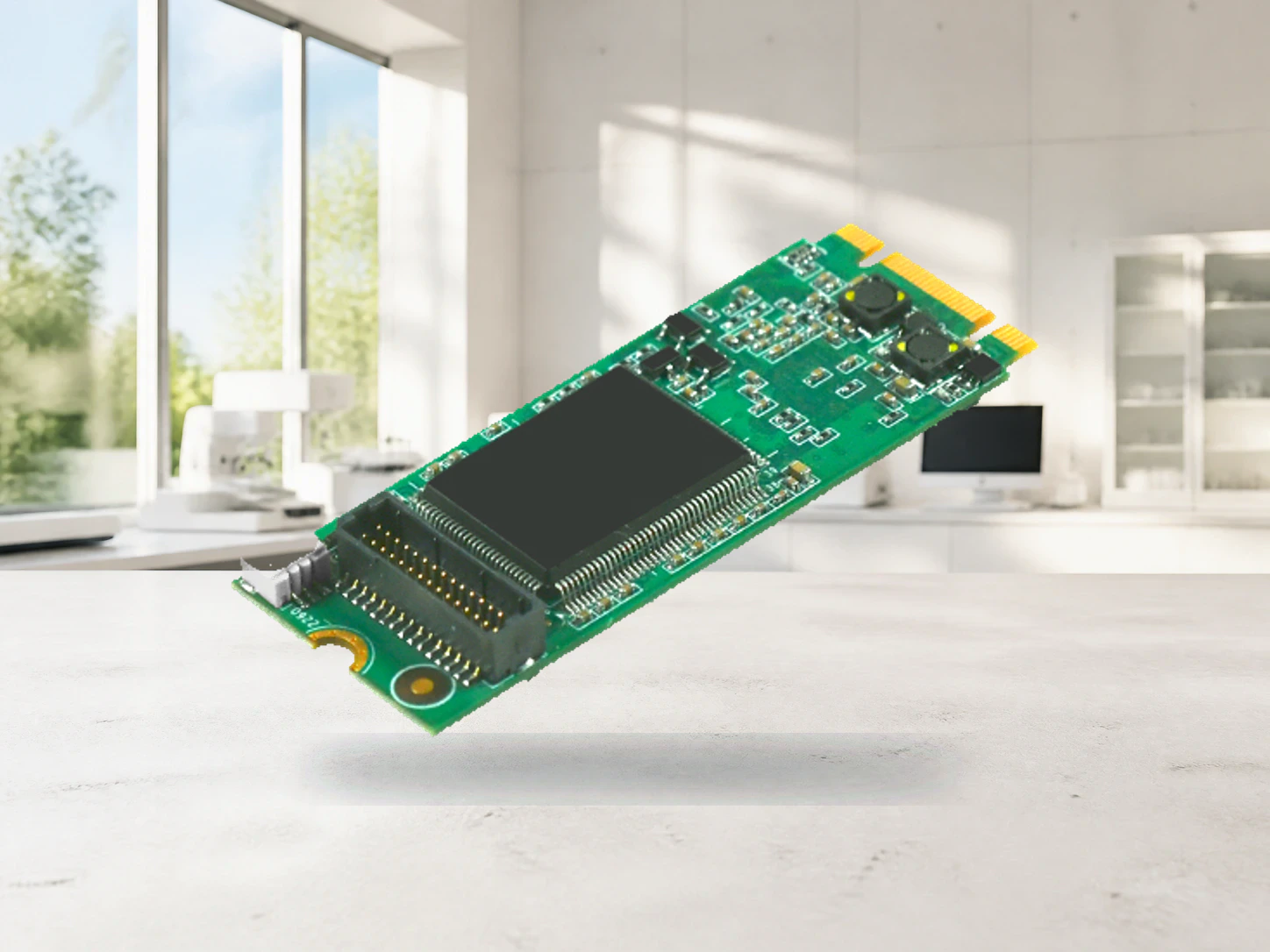

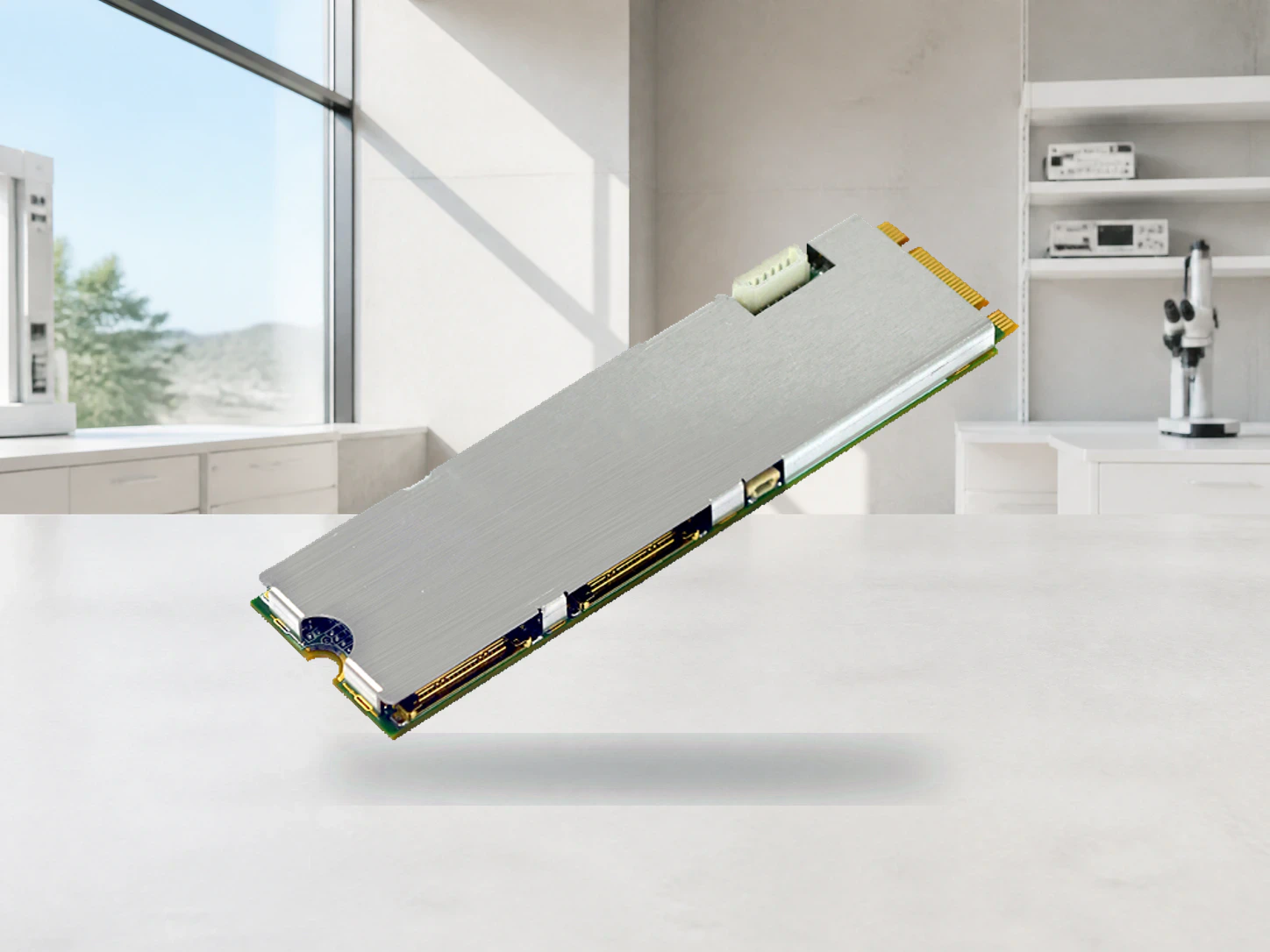

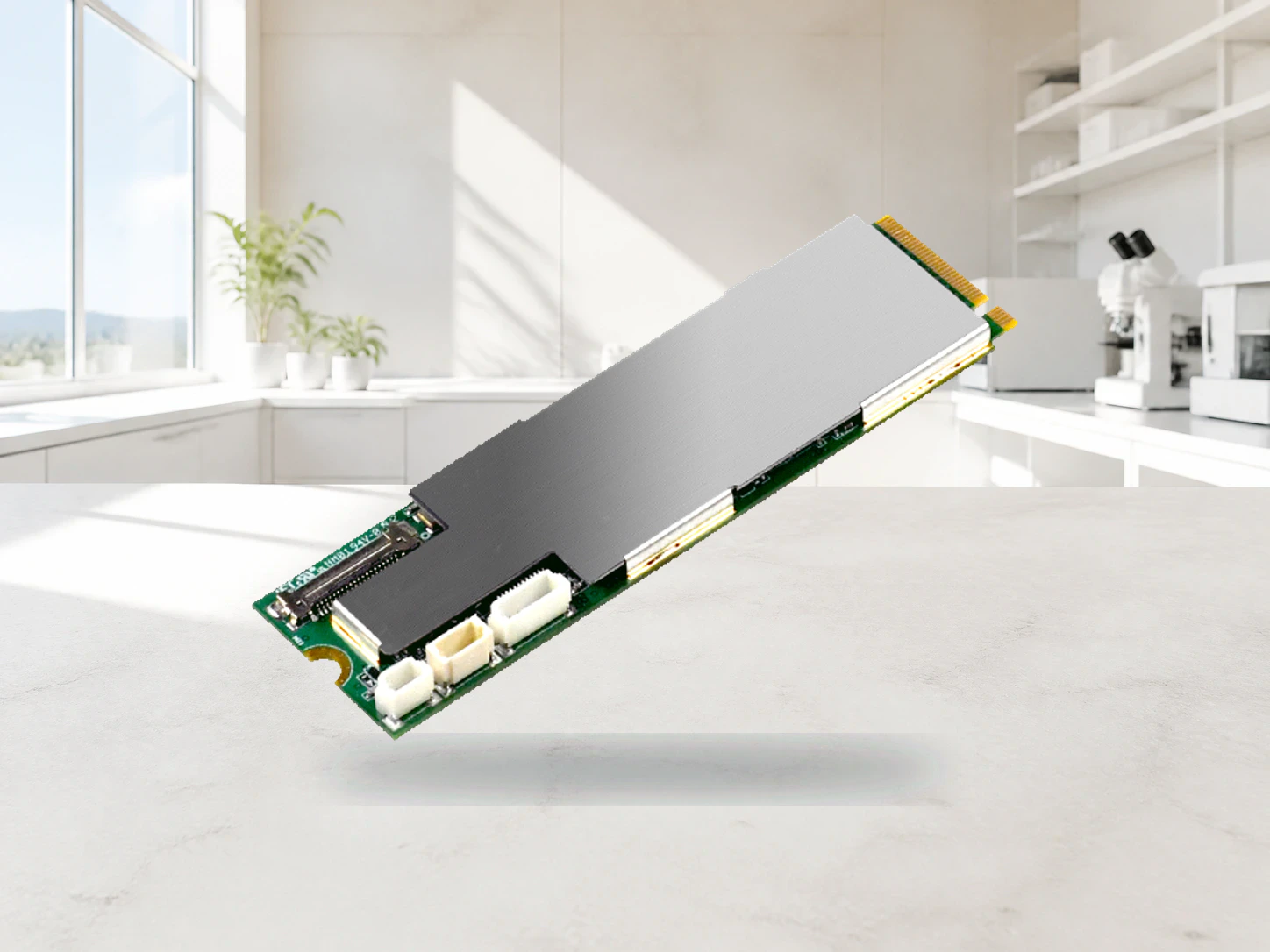

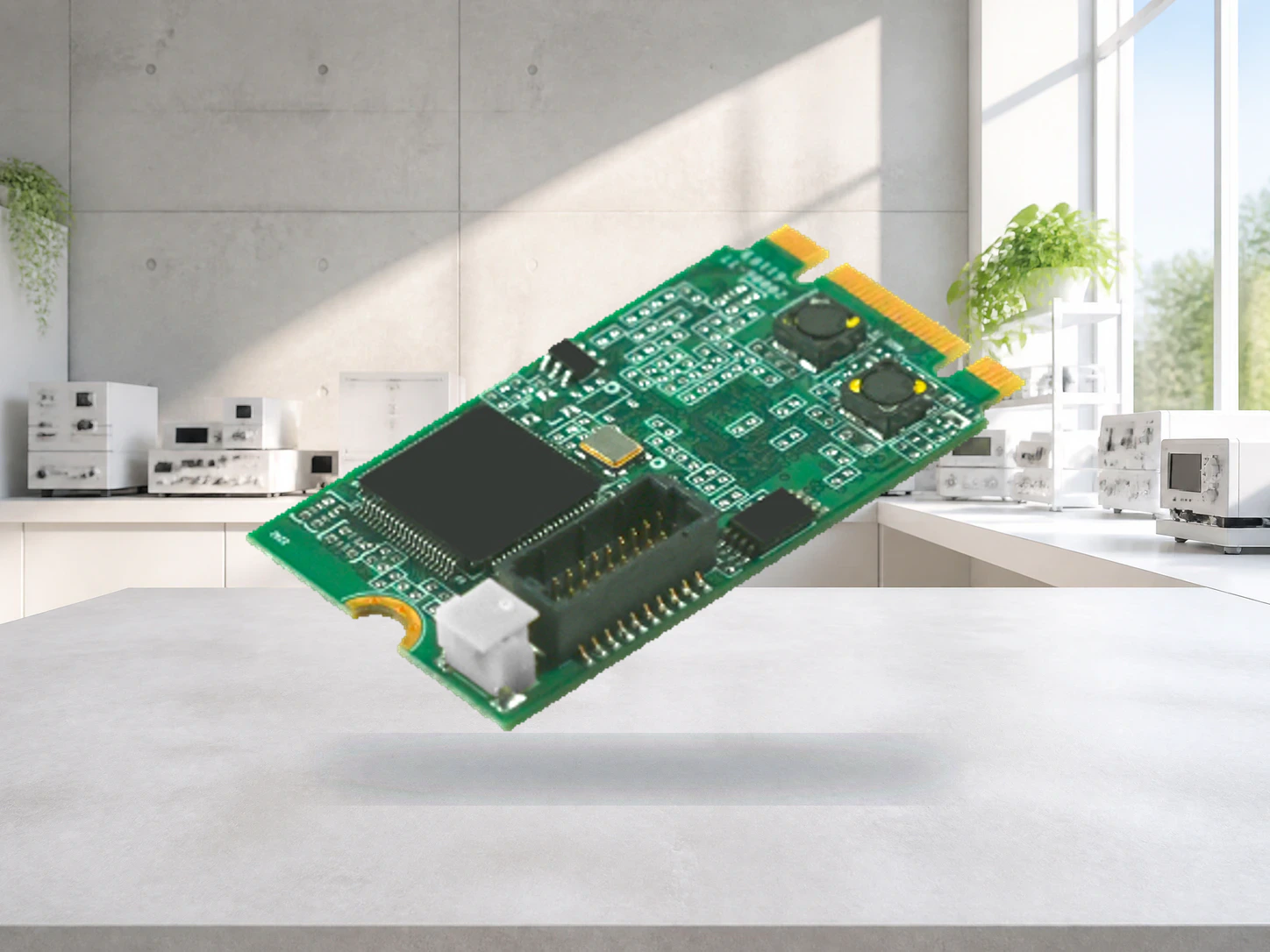

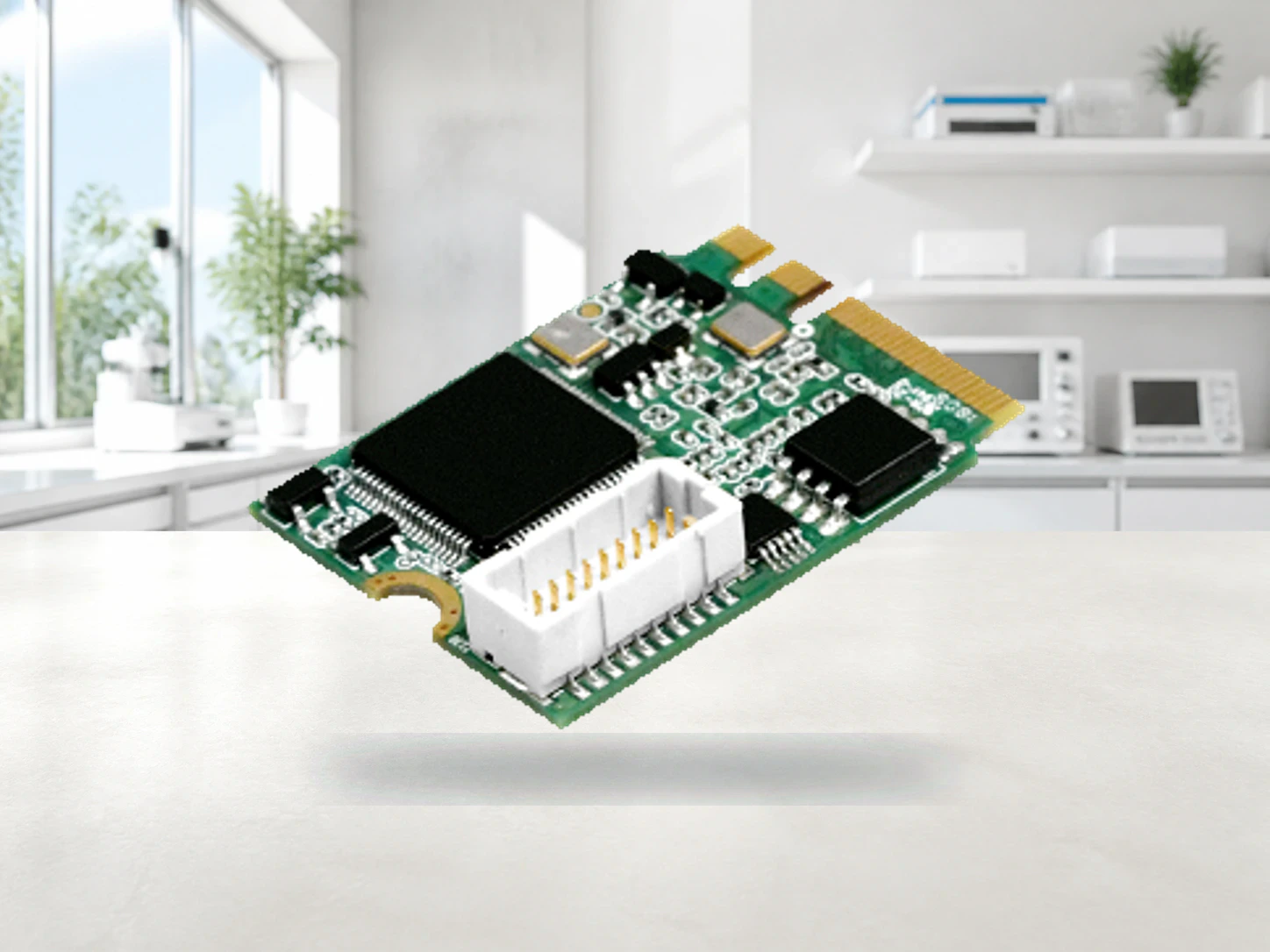

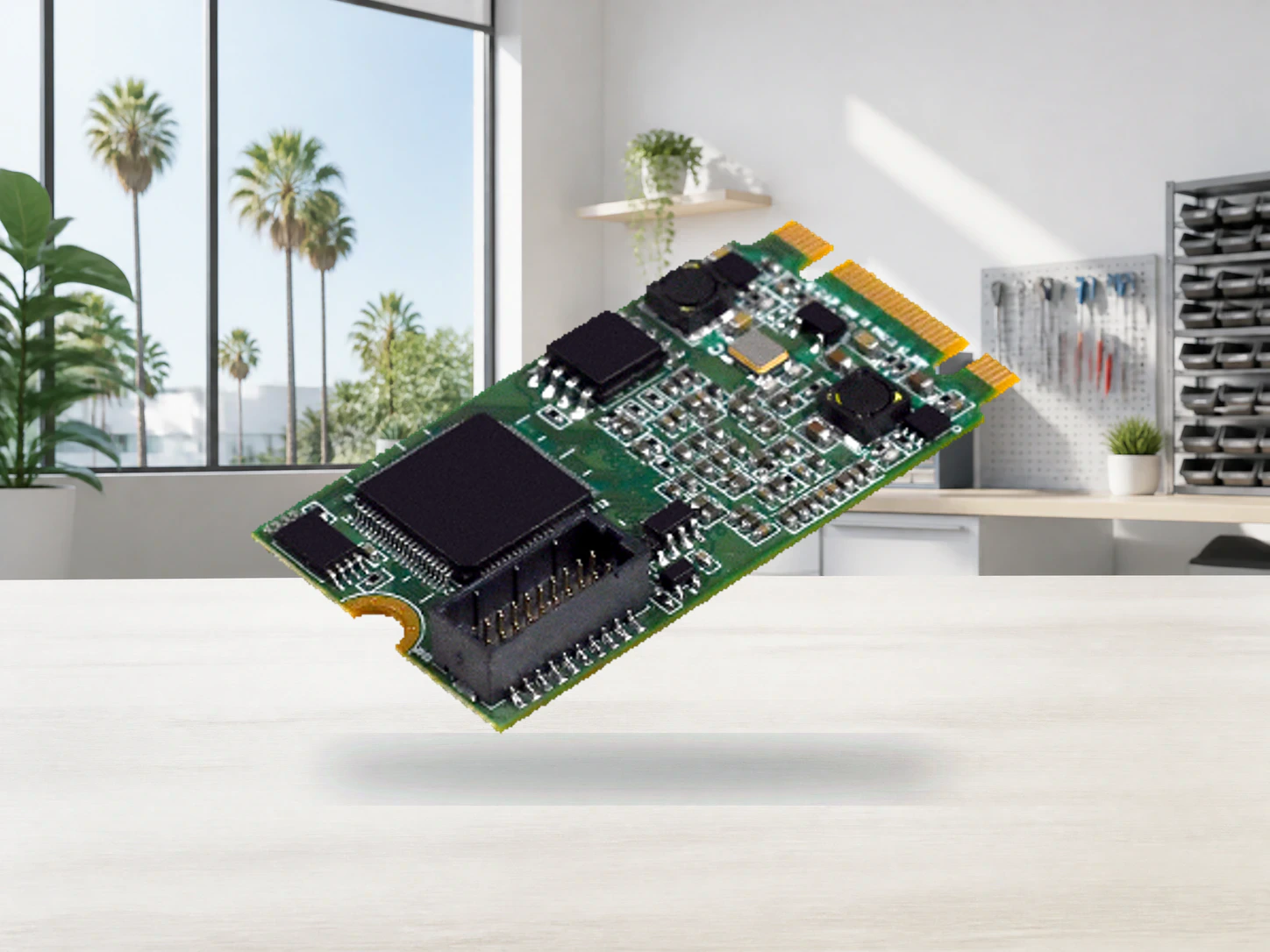

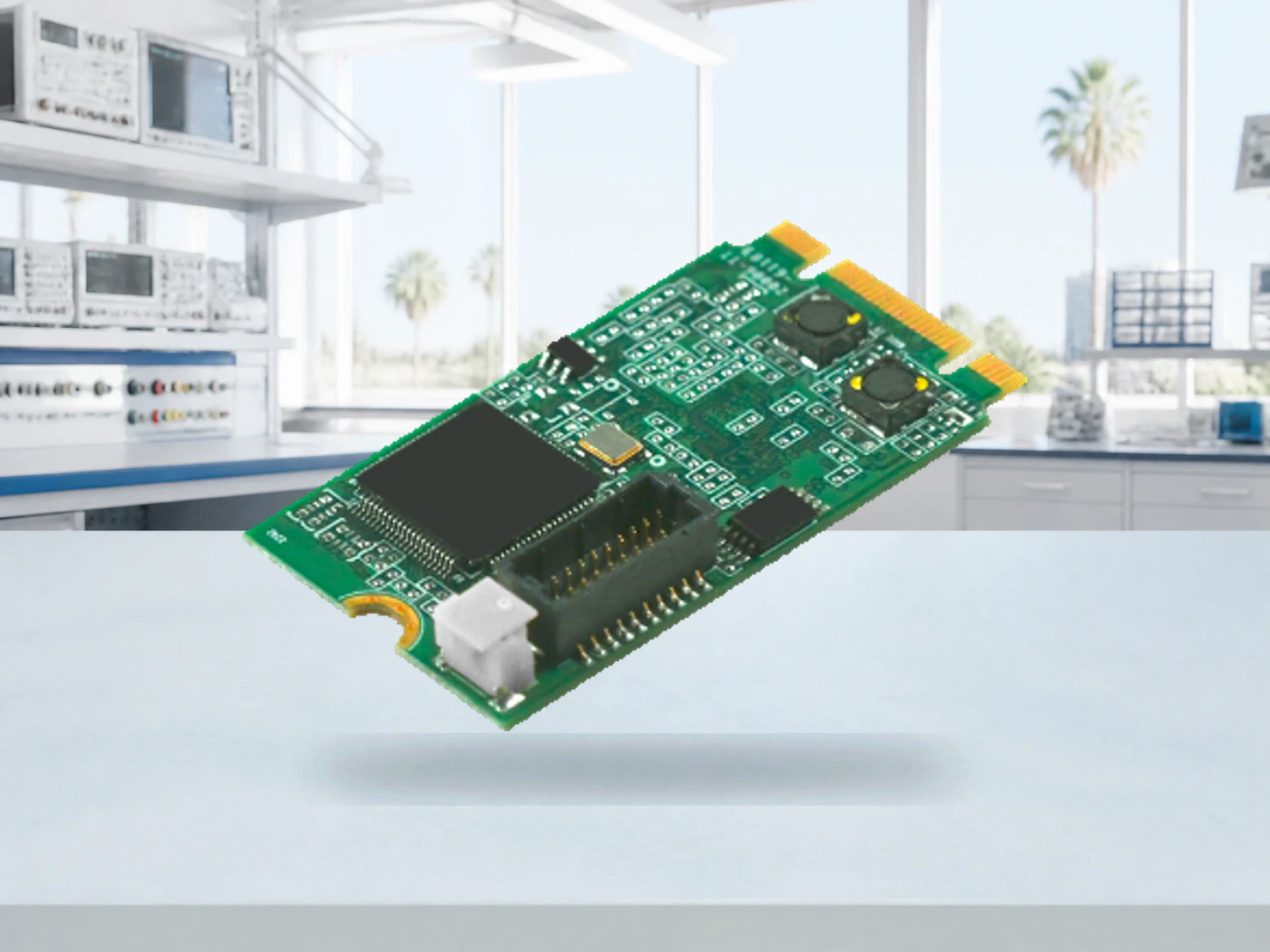

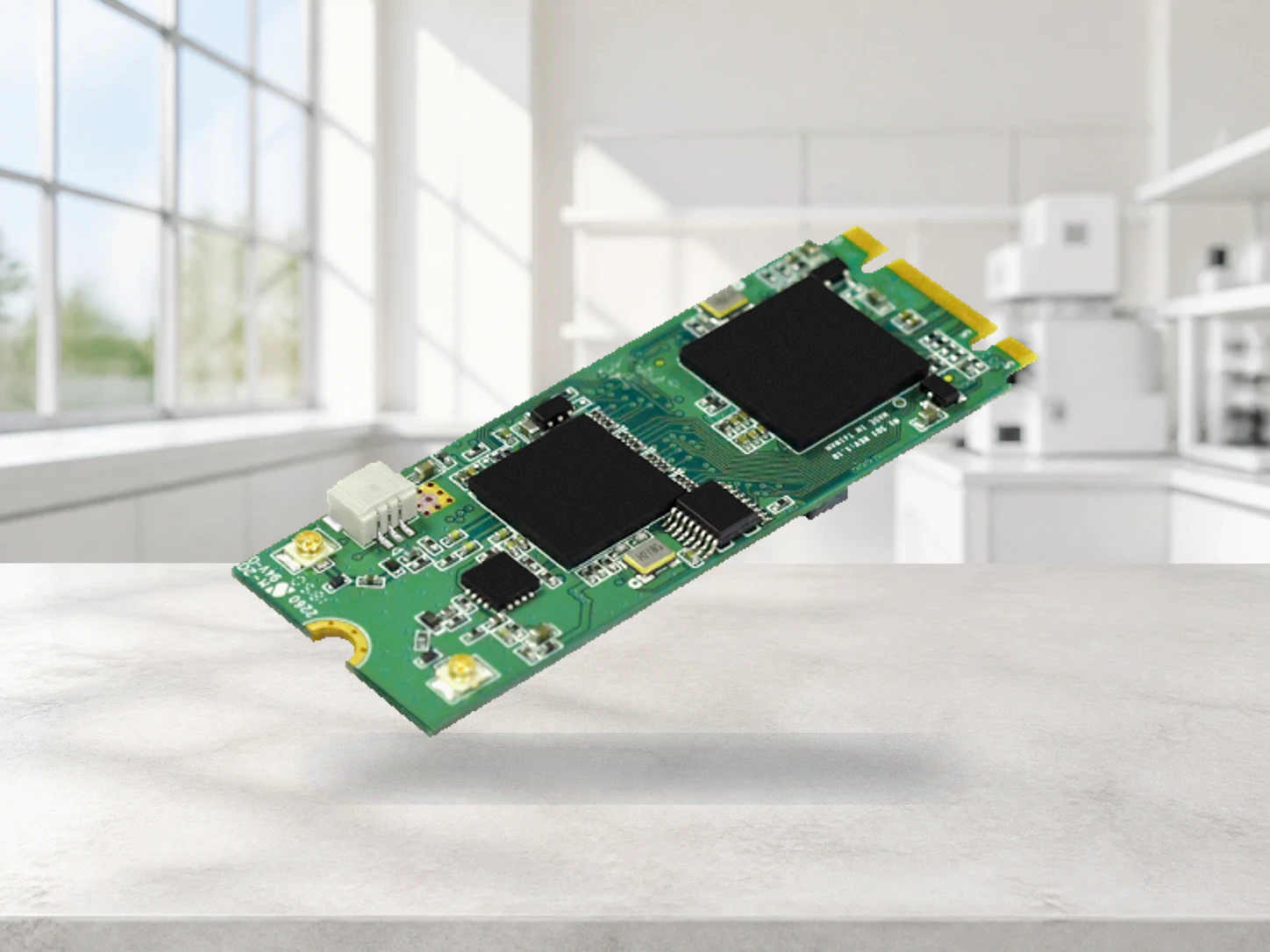

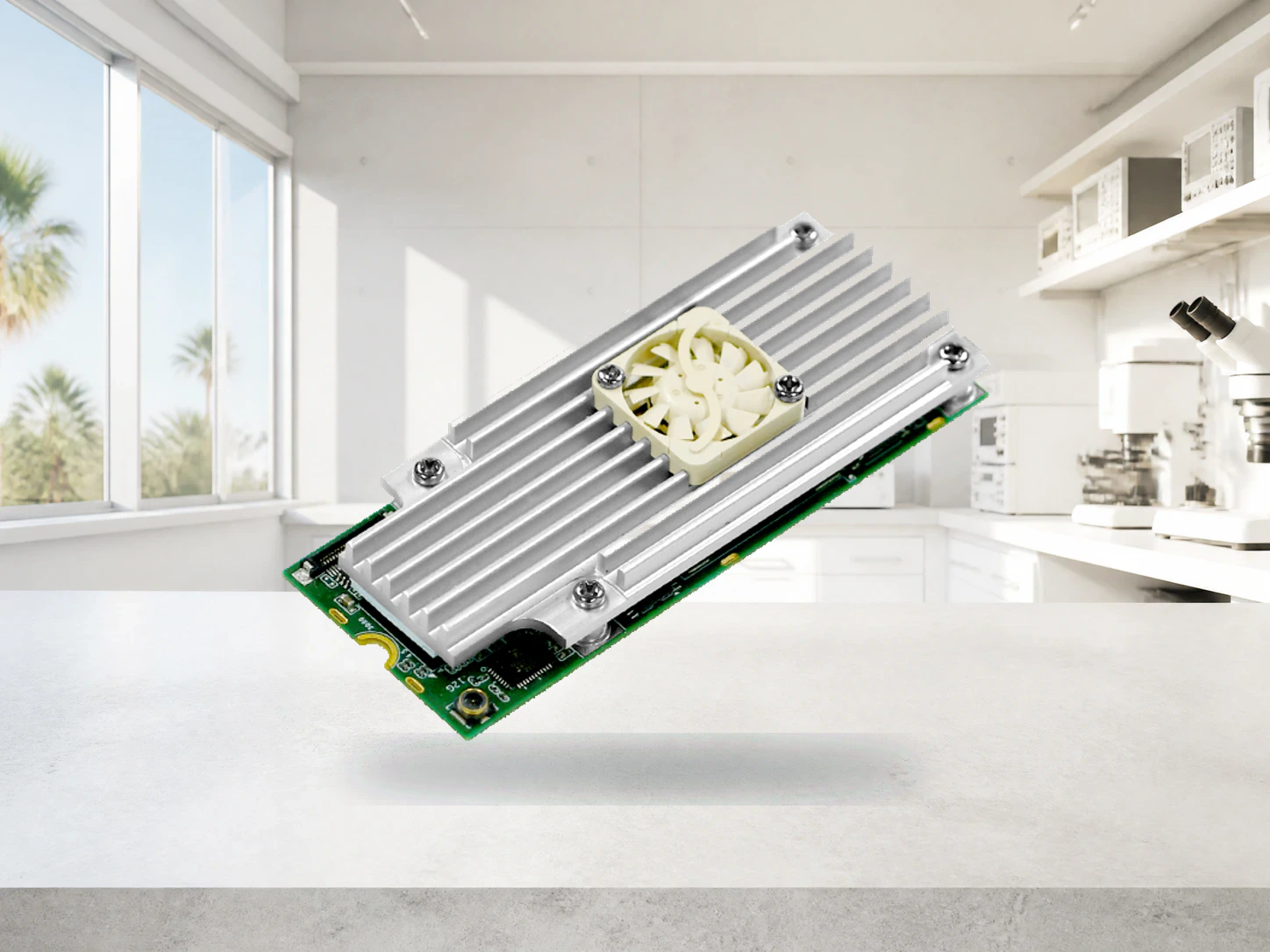

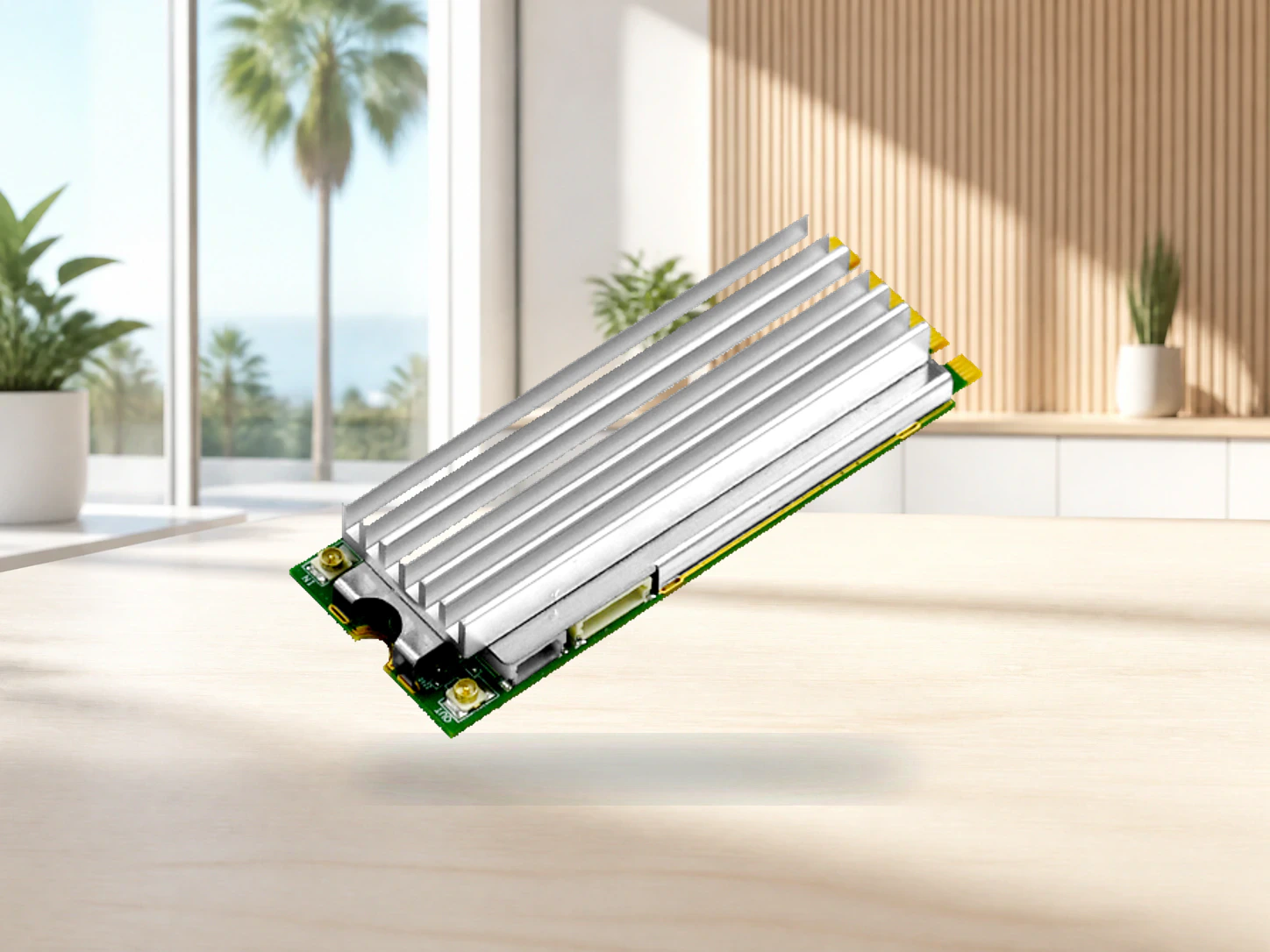

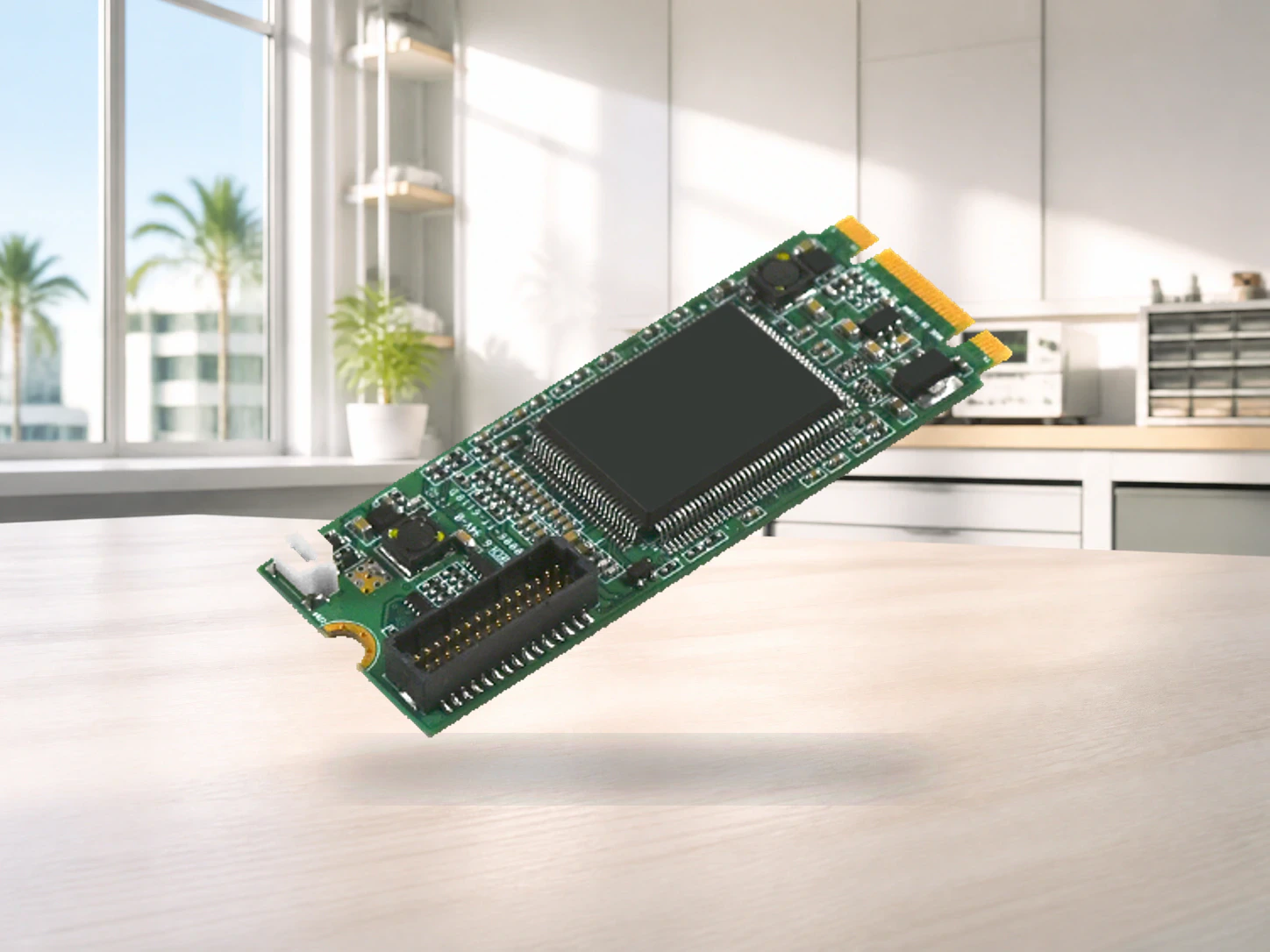

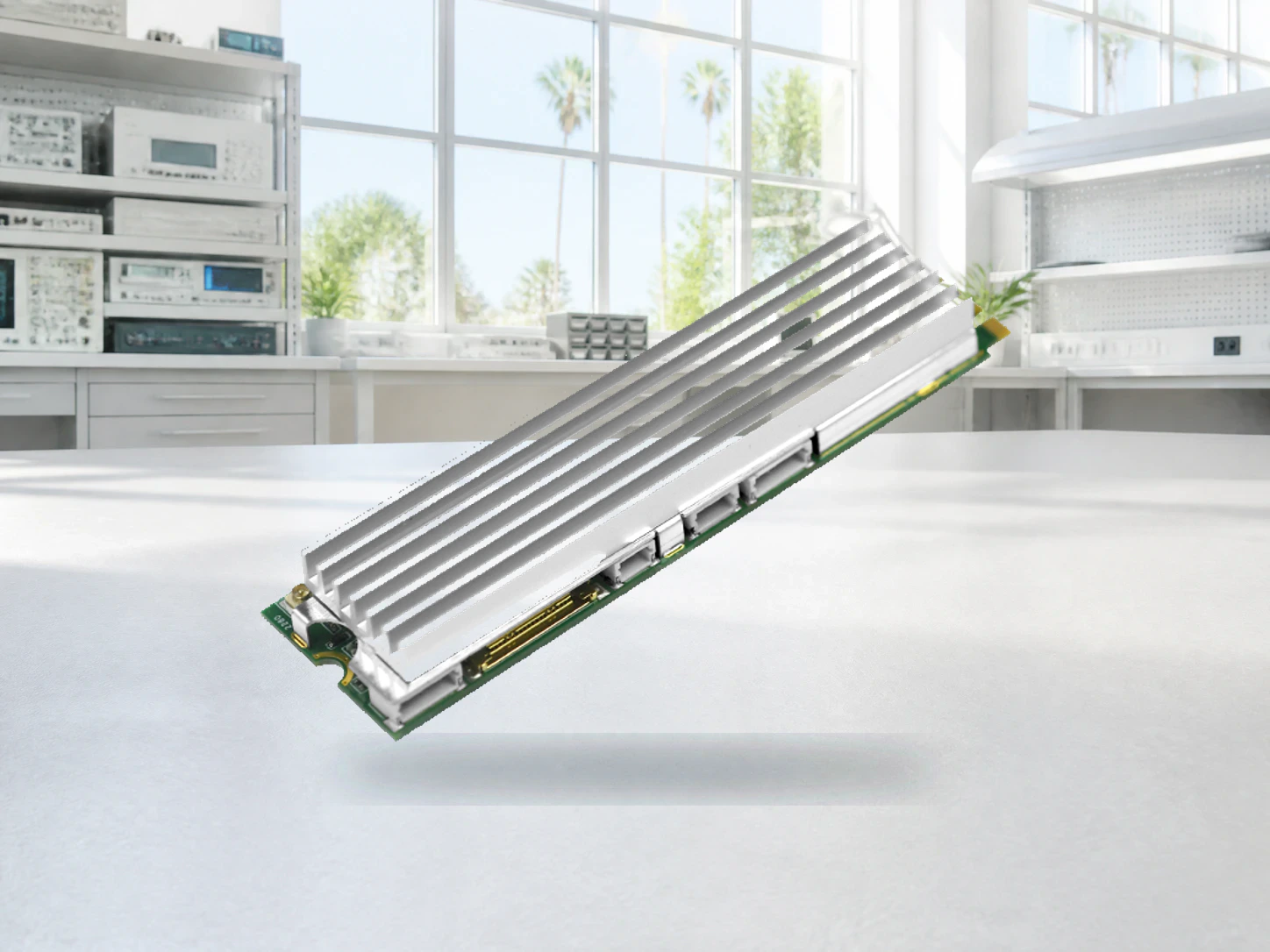

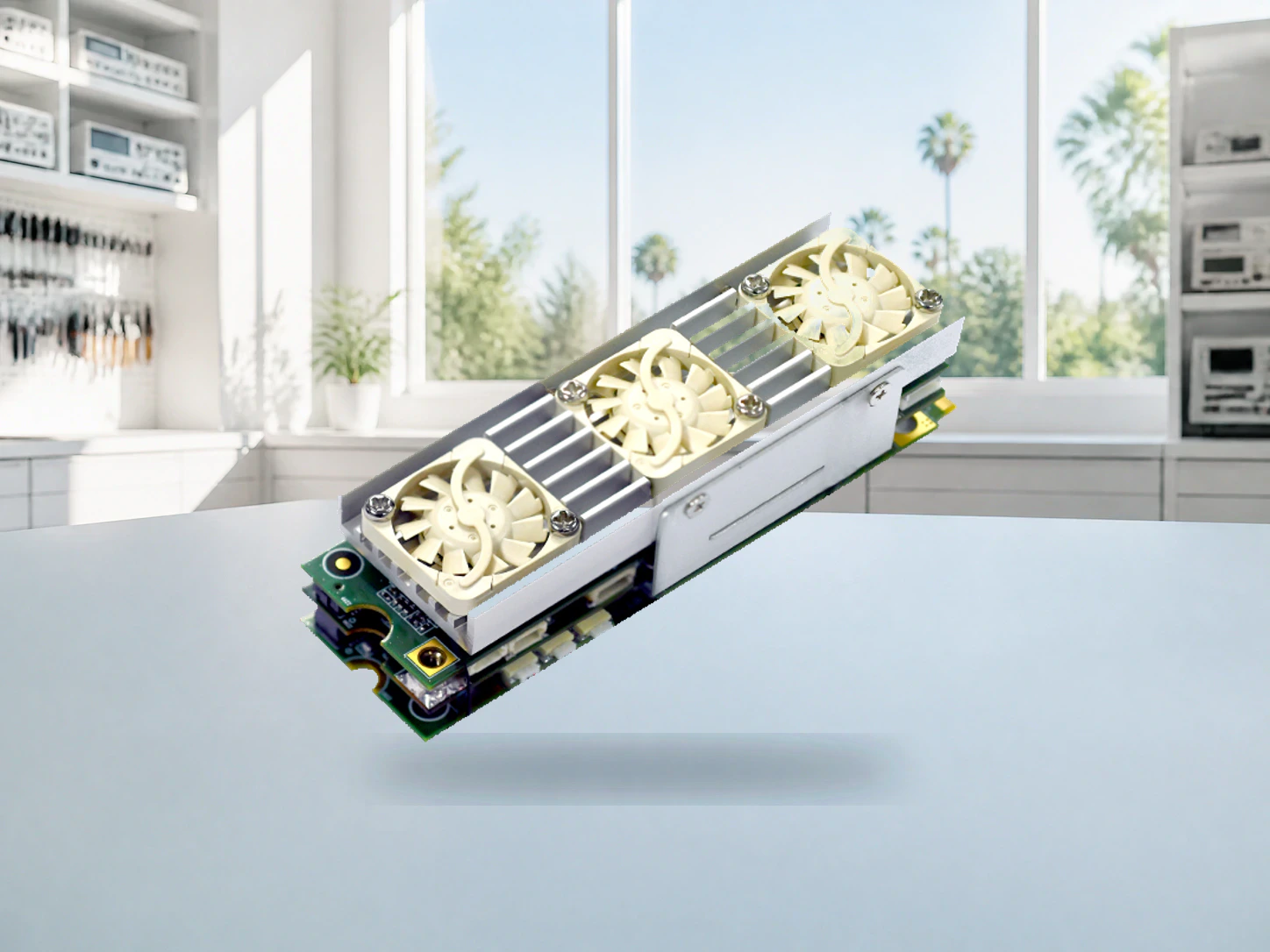

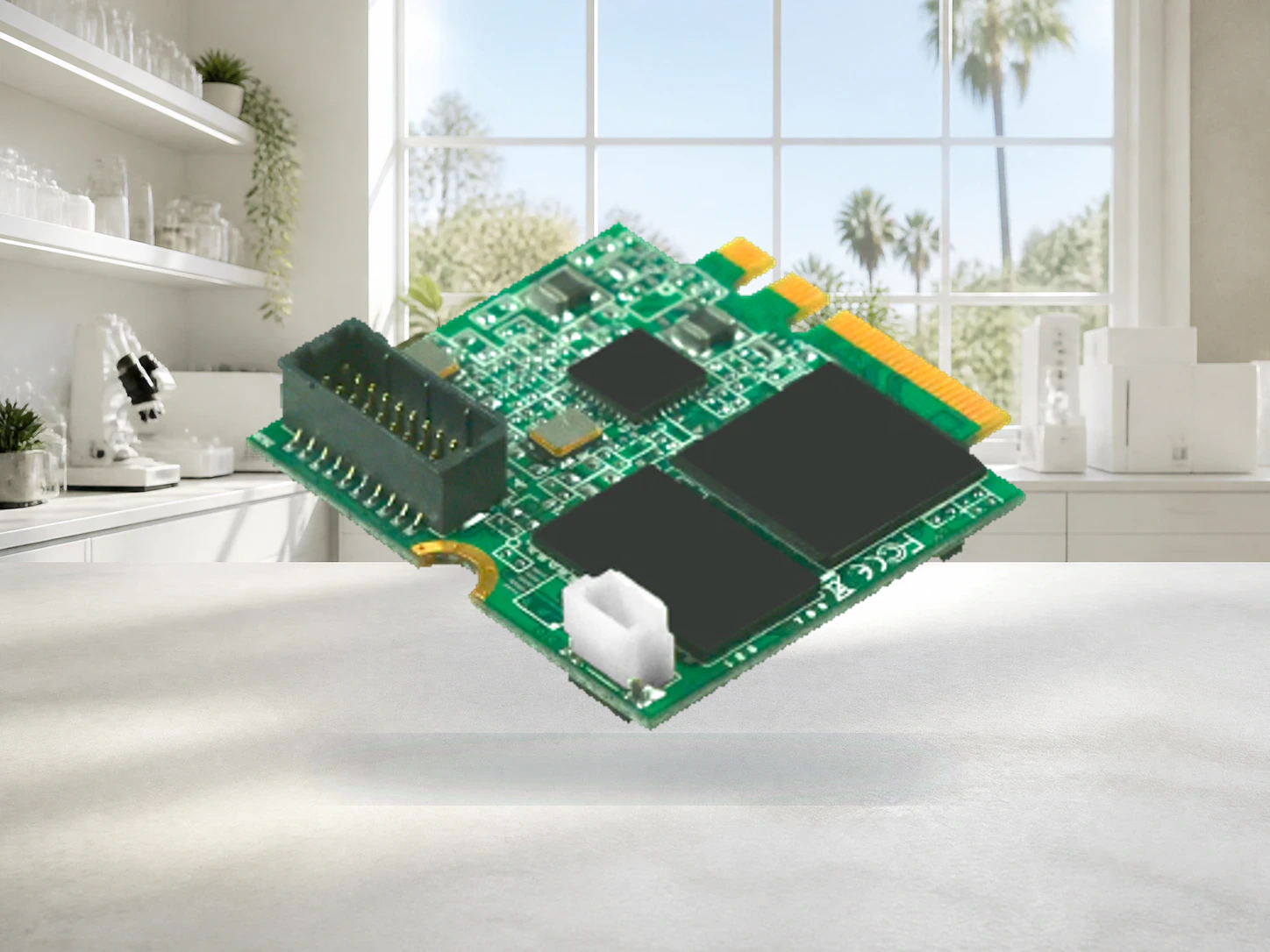

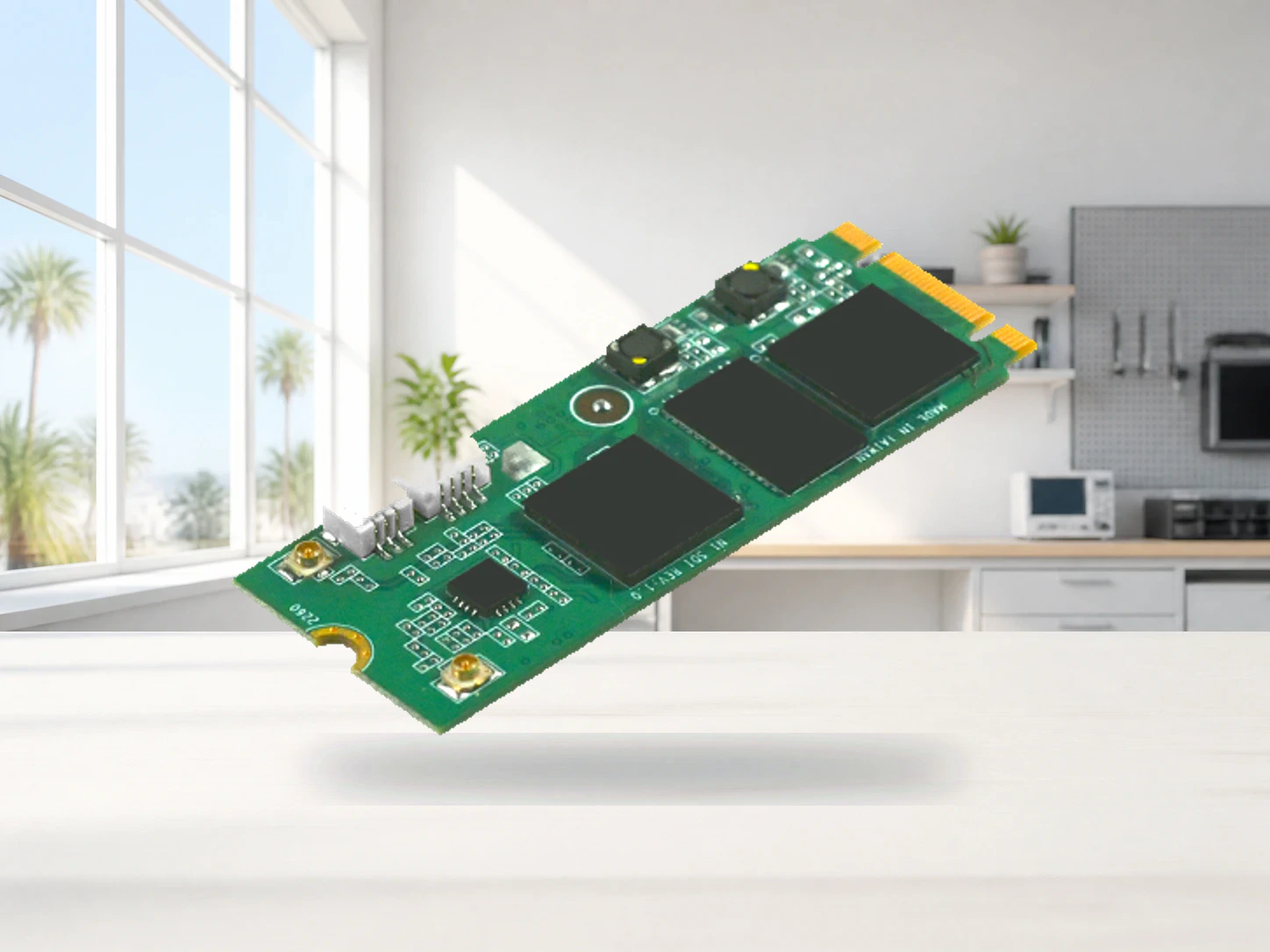

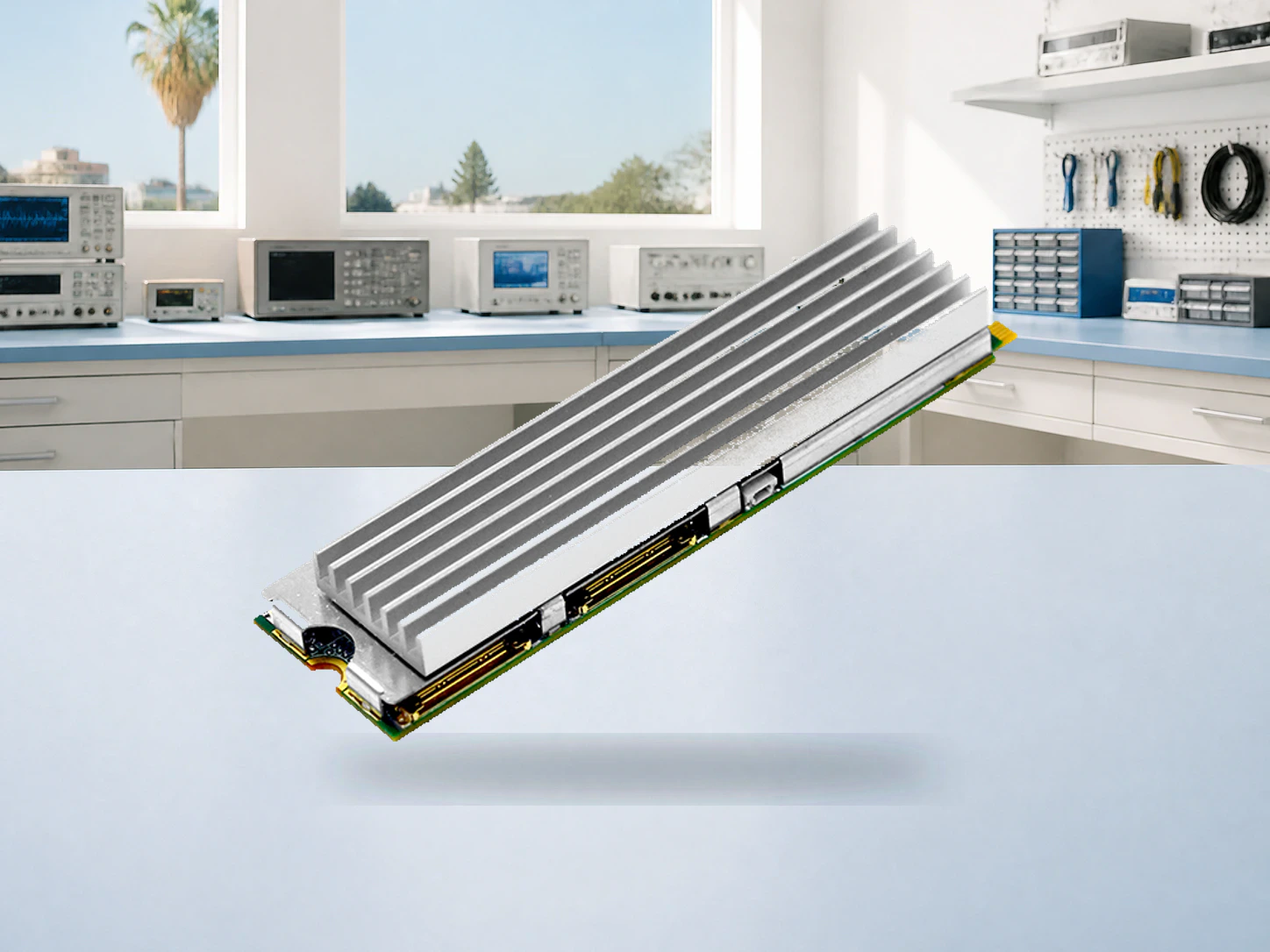

The ProAV M.2 series brings full capture performance to a compact, low-power form factor, ideal for space-constrained, highly integrated designs such as in-vehicle systems, drones, and smart-space devices. Cards ship in both A+E and B+M key configurations, with standard and wide-temperature (−40°C to 85°C) variants.
- M.2 ( PCIe×1 )
- M.2 ( PCIe×4 )
- 1920×1080p@60/50fps
- M.2 ( PCIe×2 )
- 4096×2160p@60/50fps
- 1×HDMI

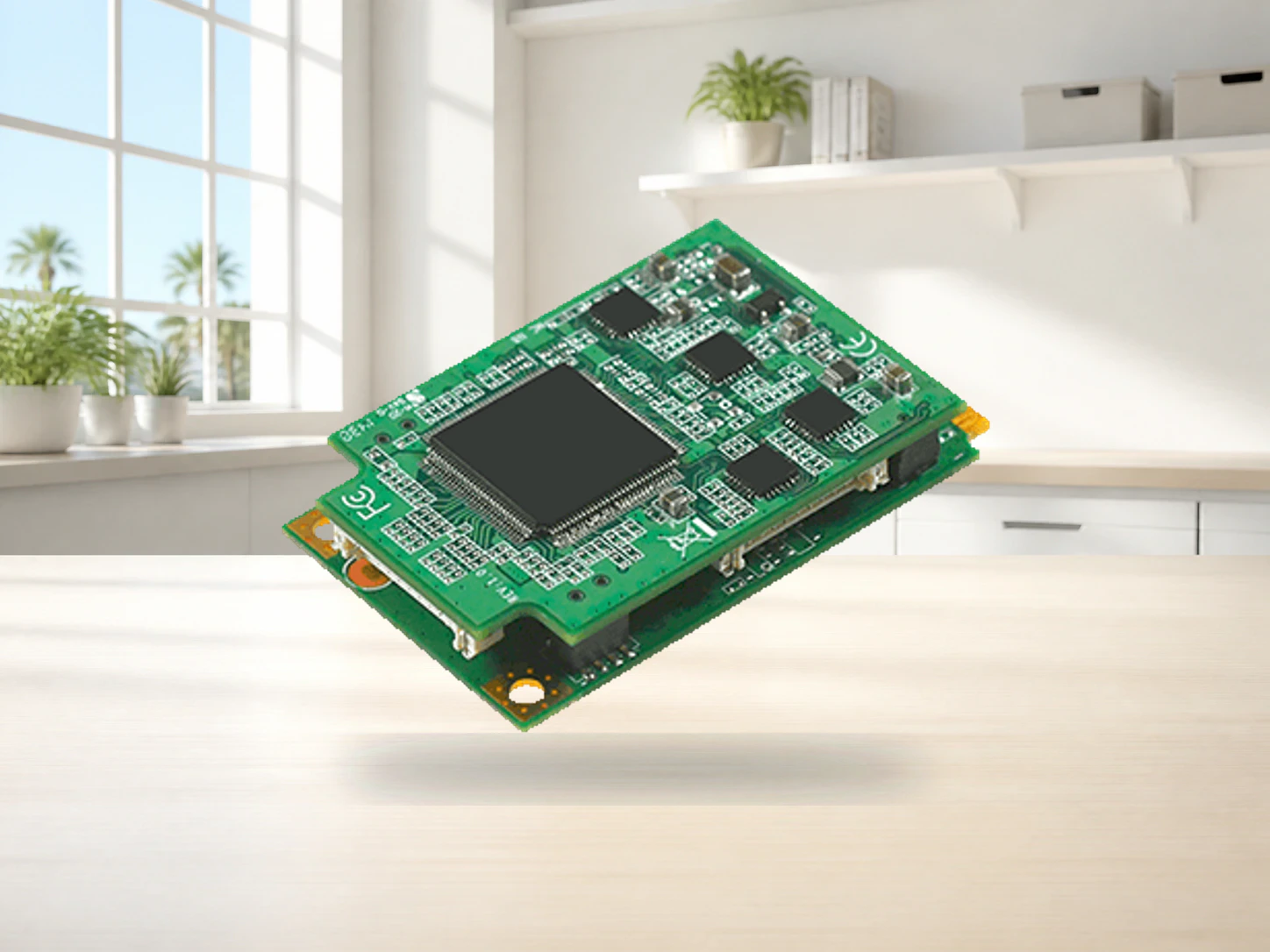

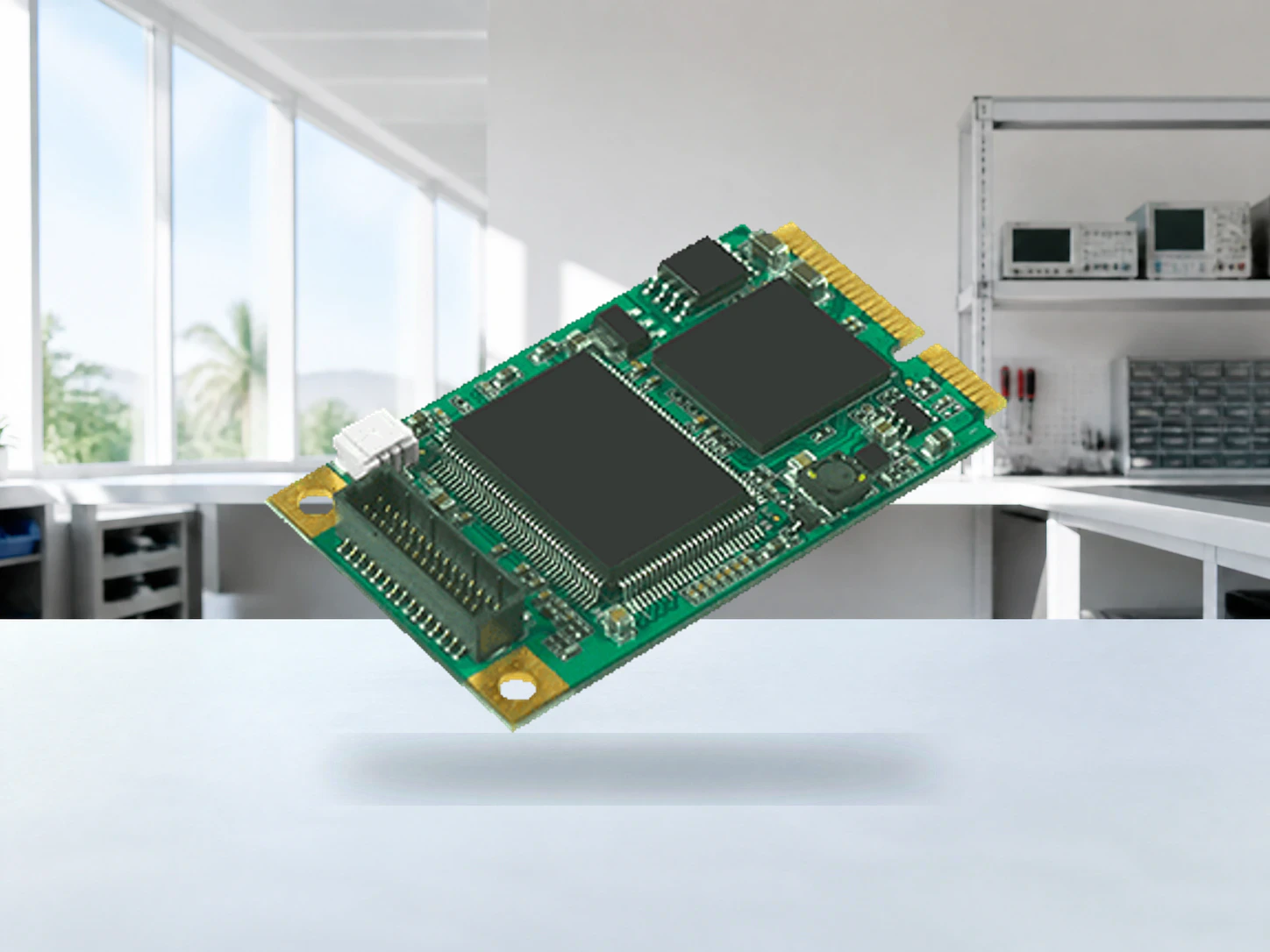

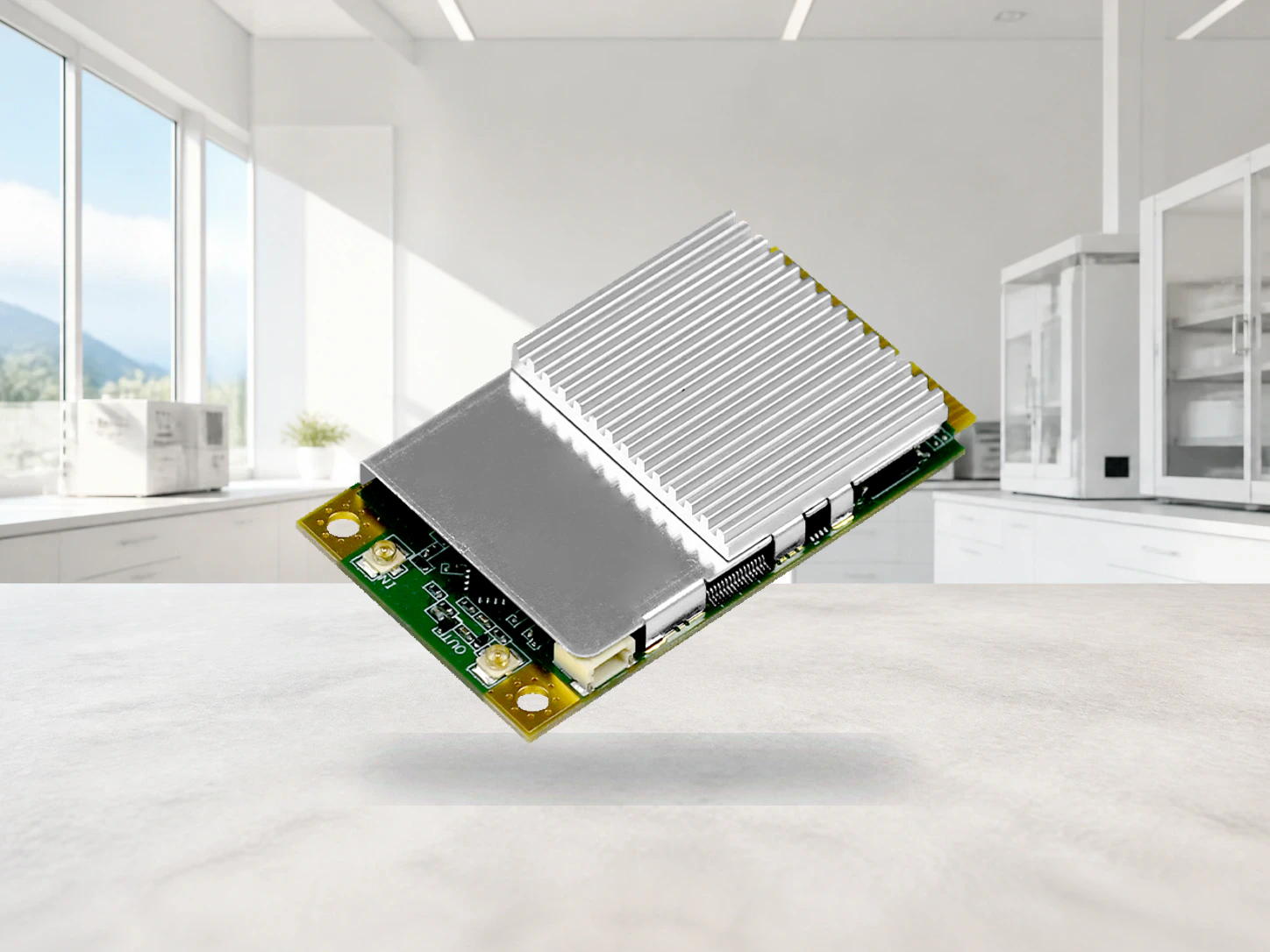

MiniPCIe

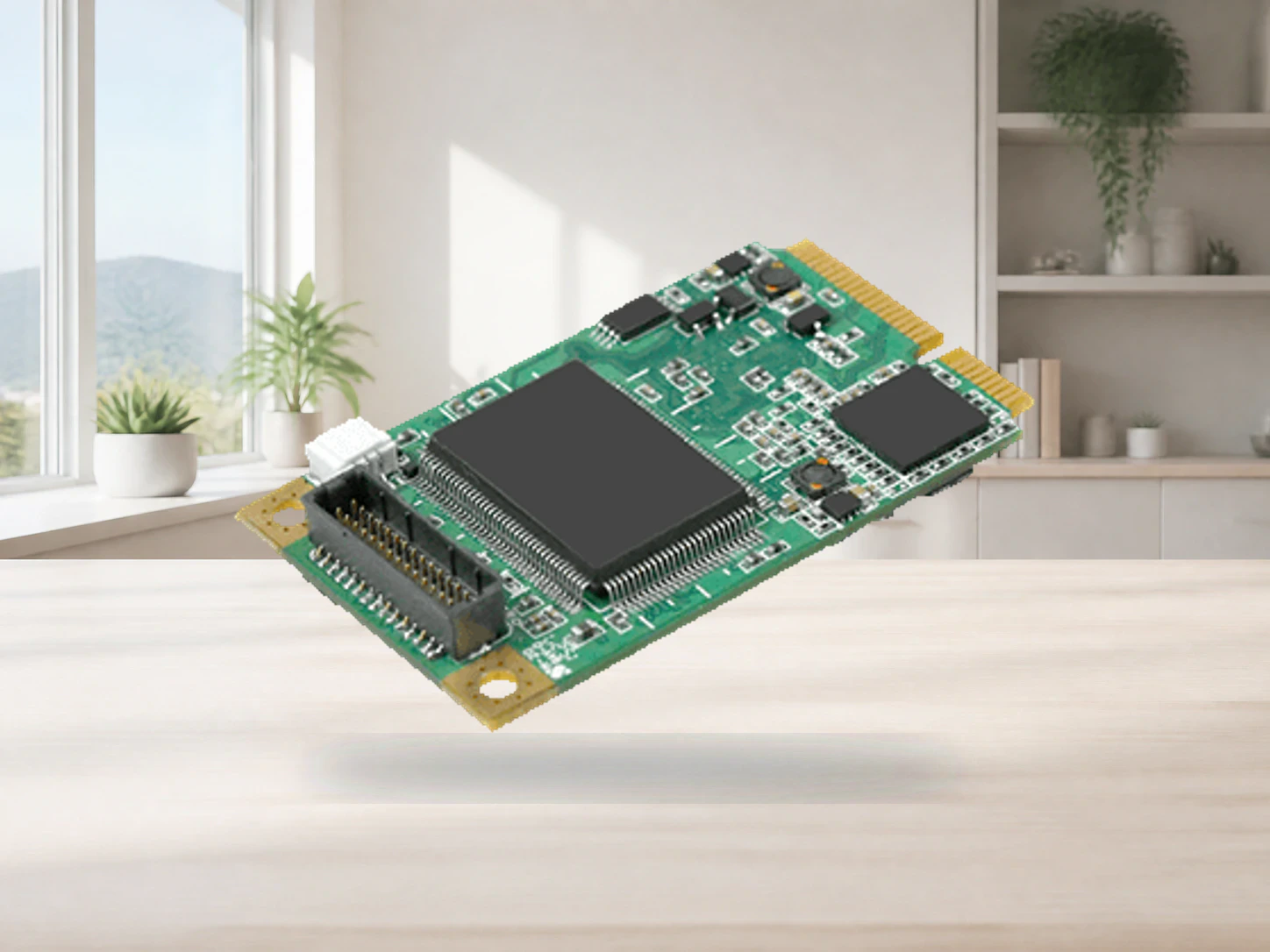

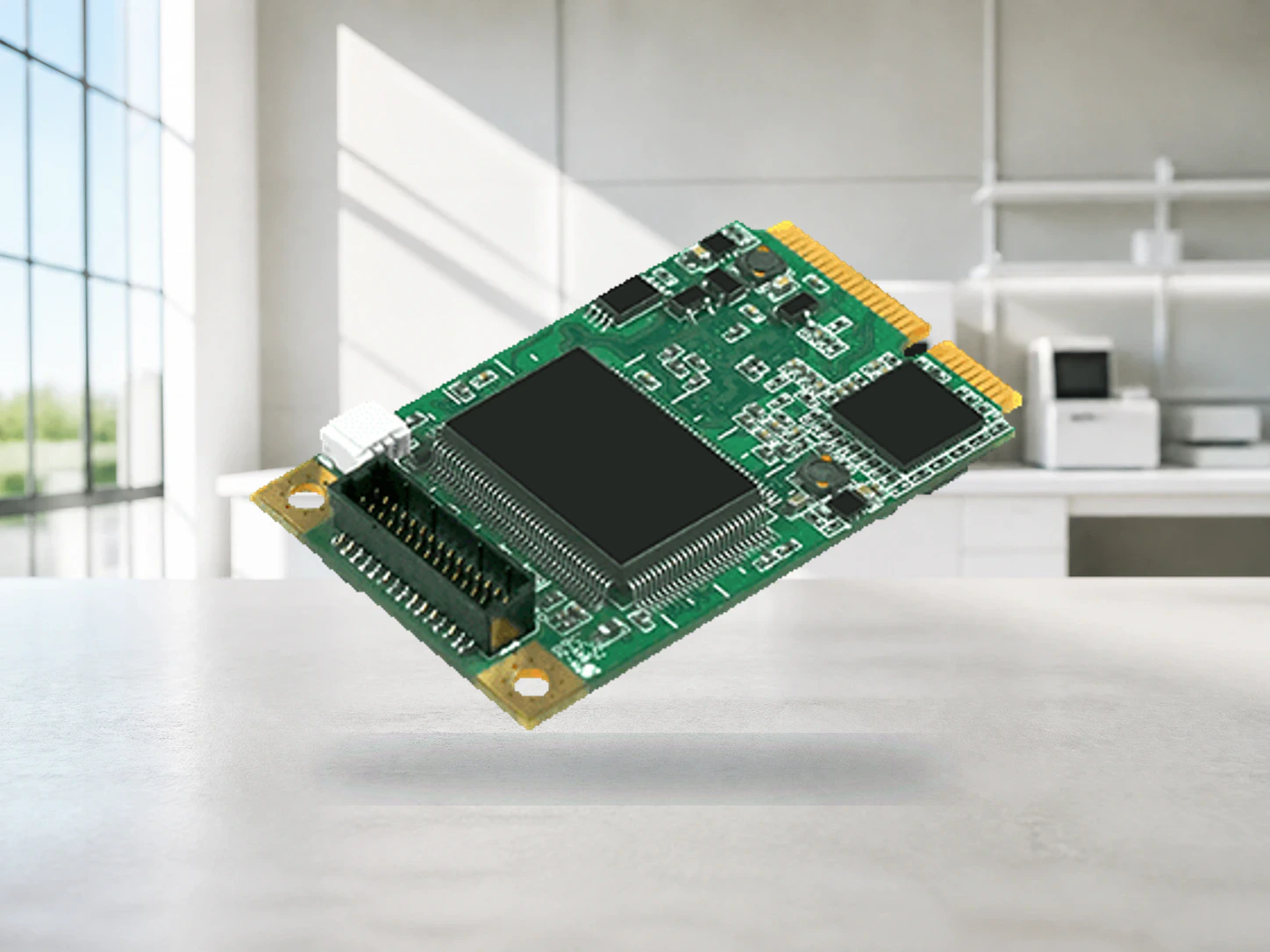

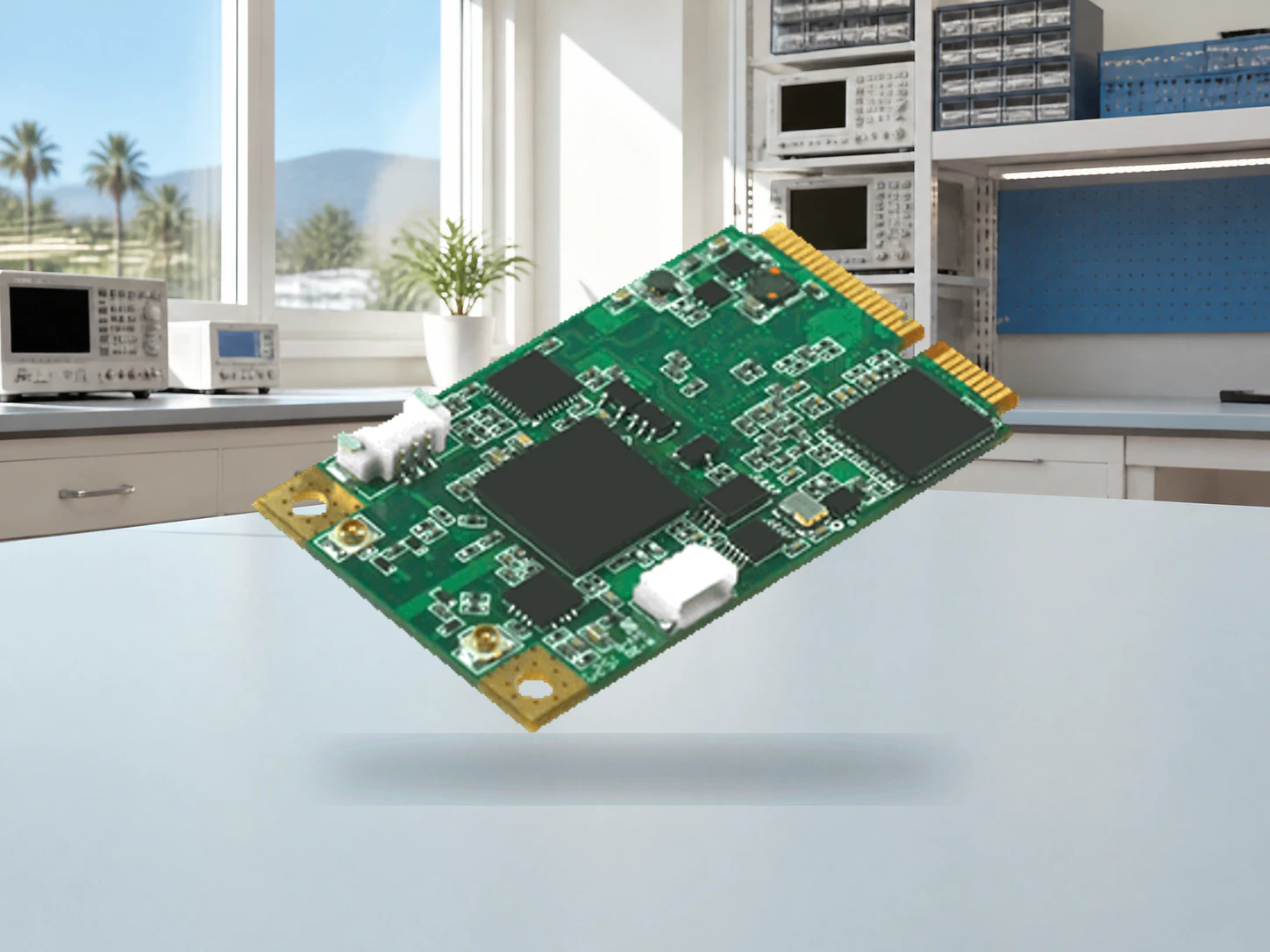

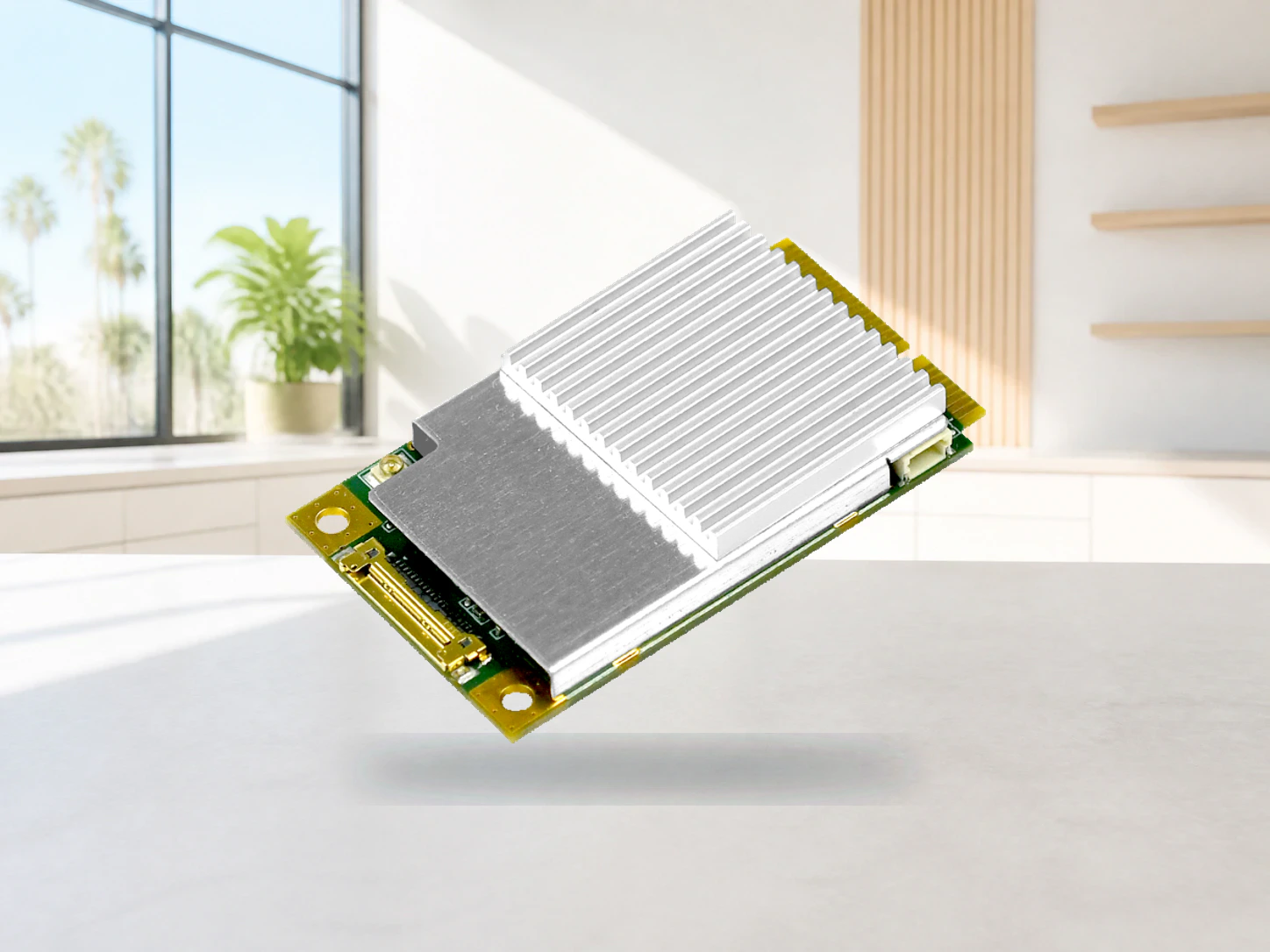

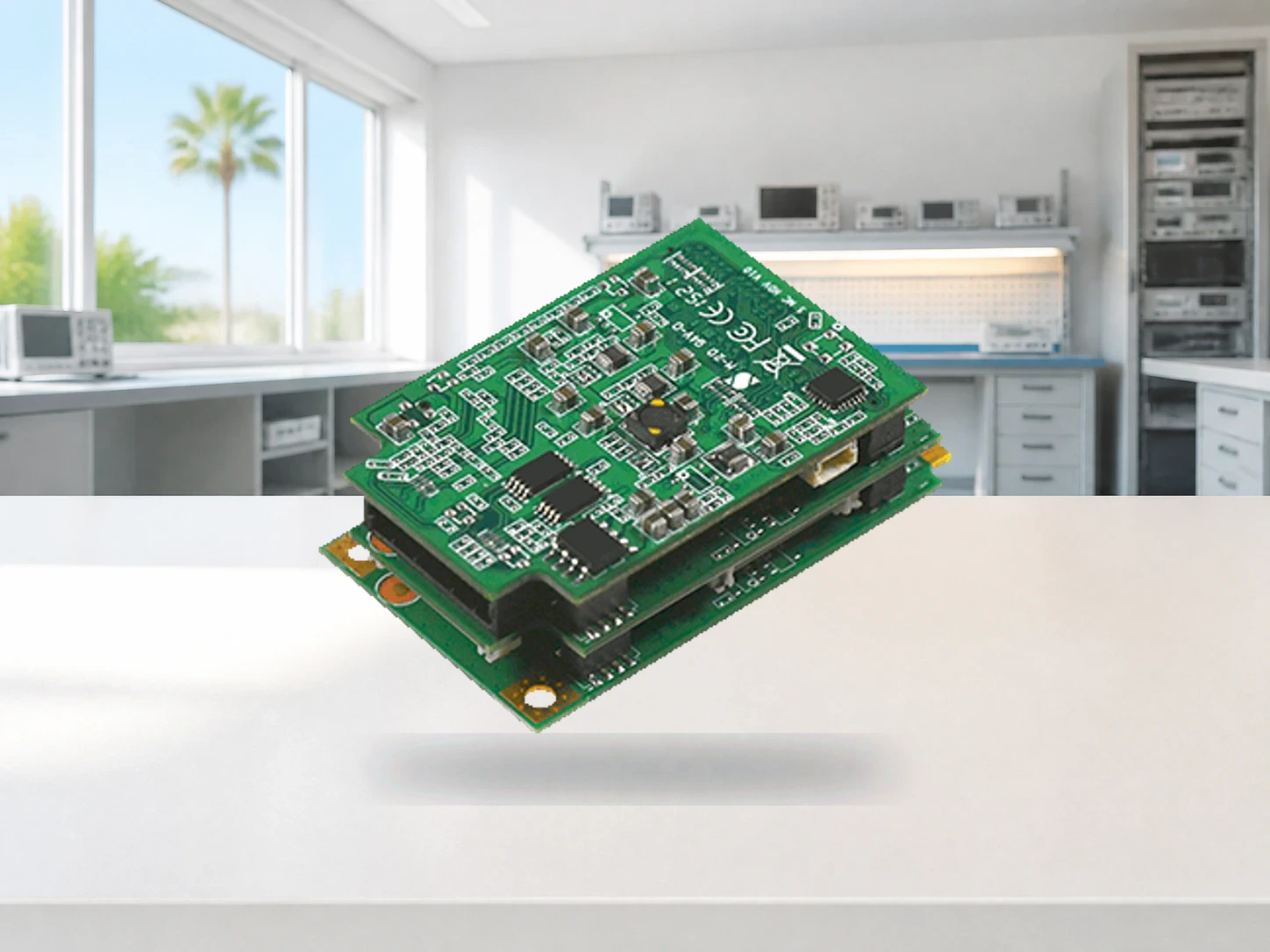

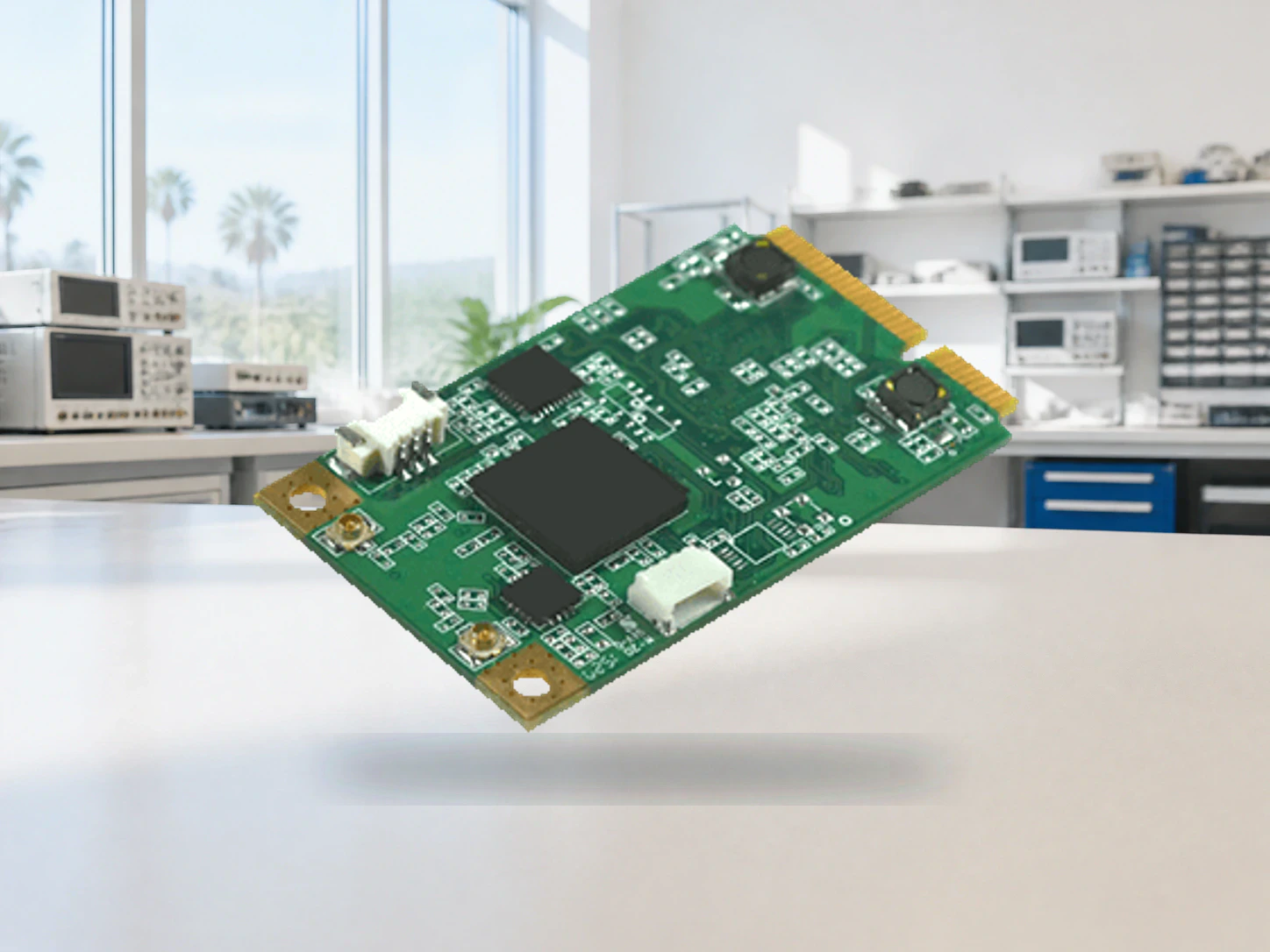

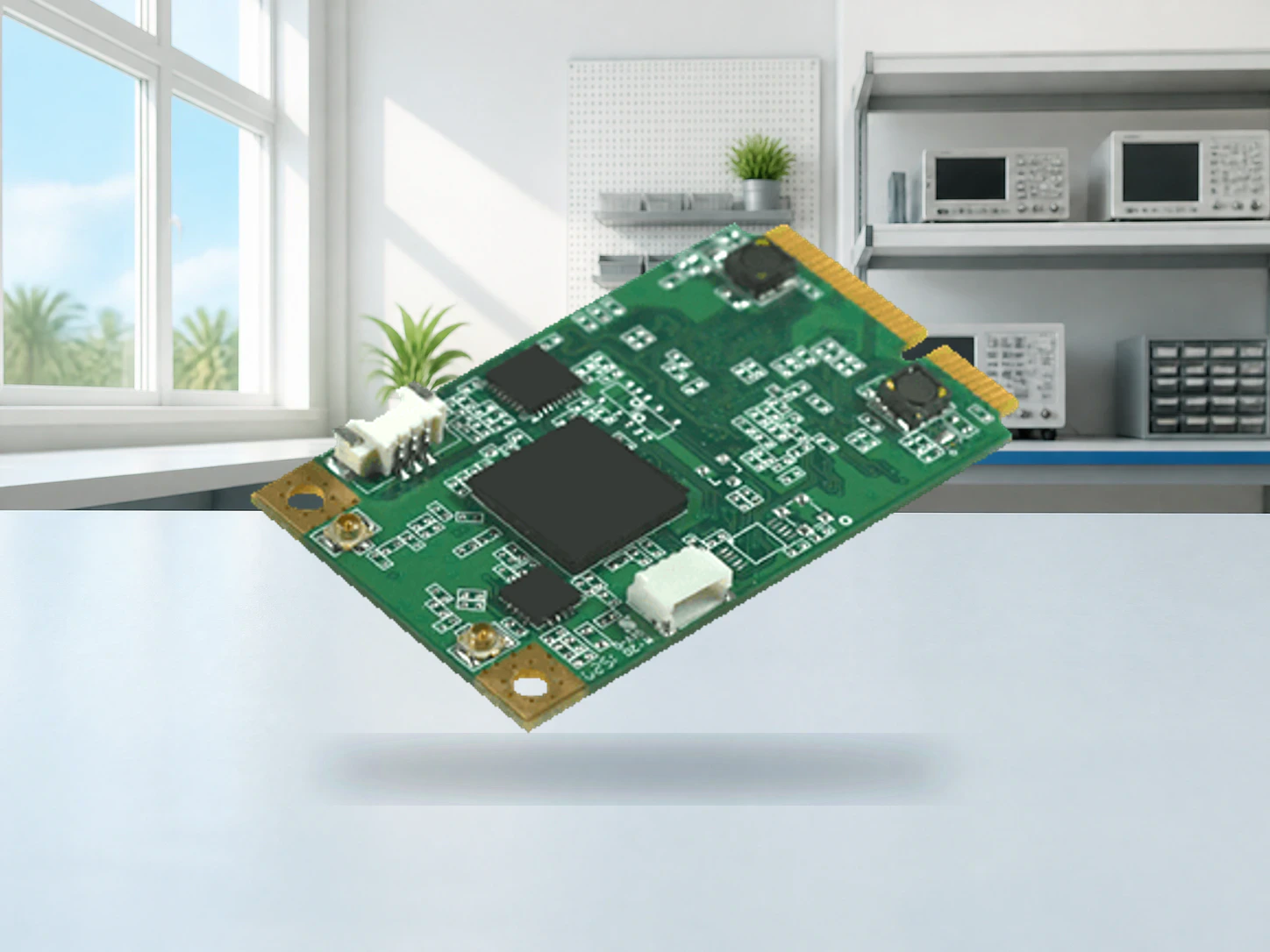

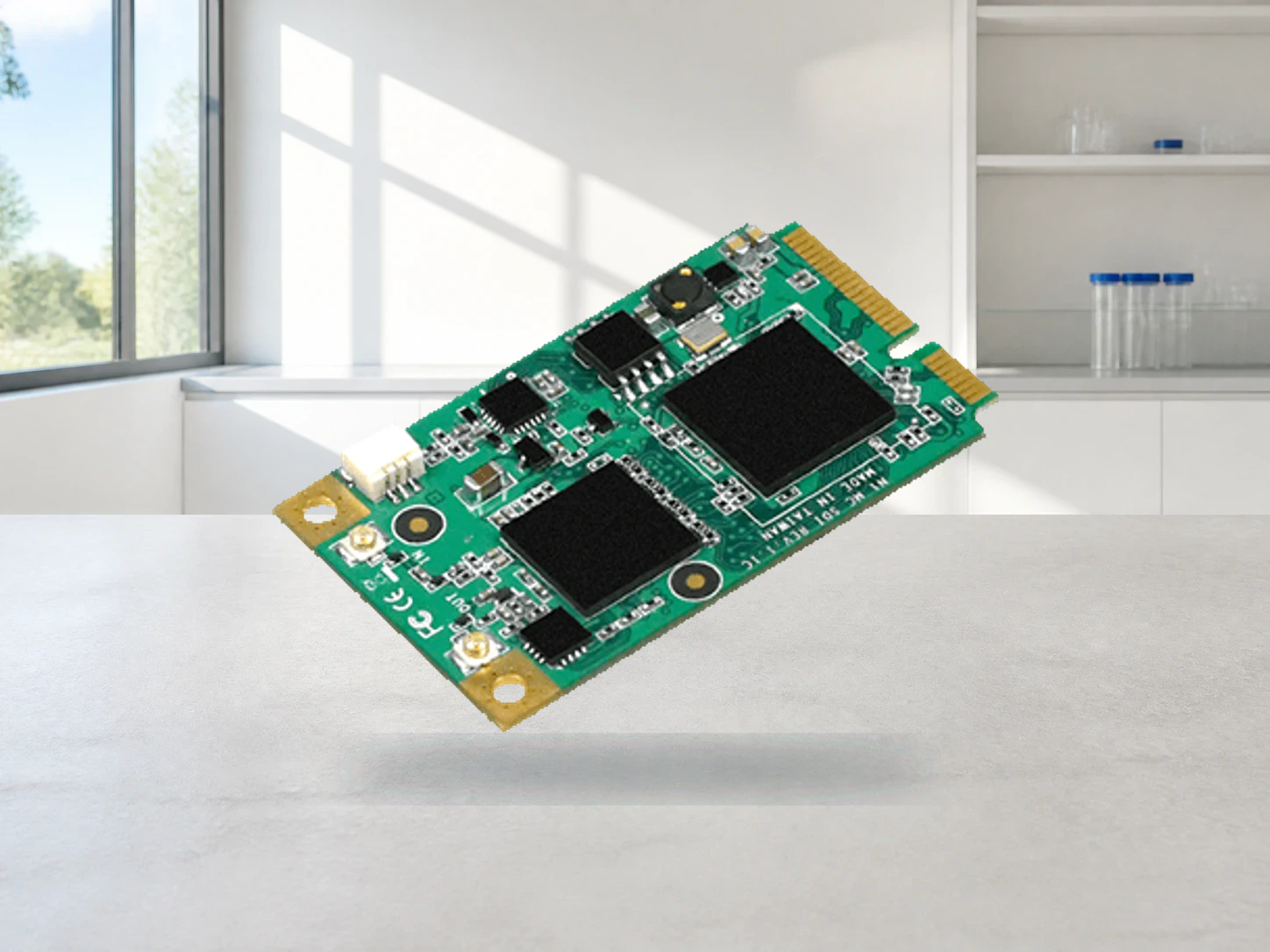

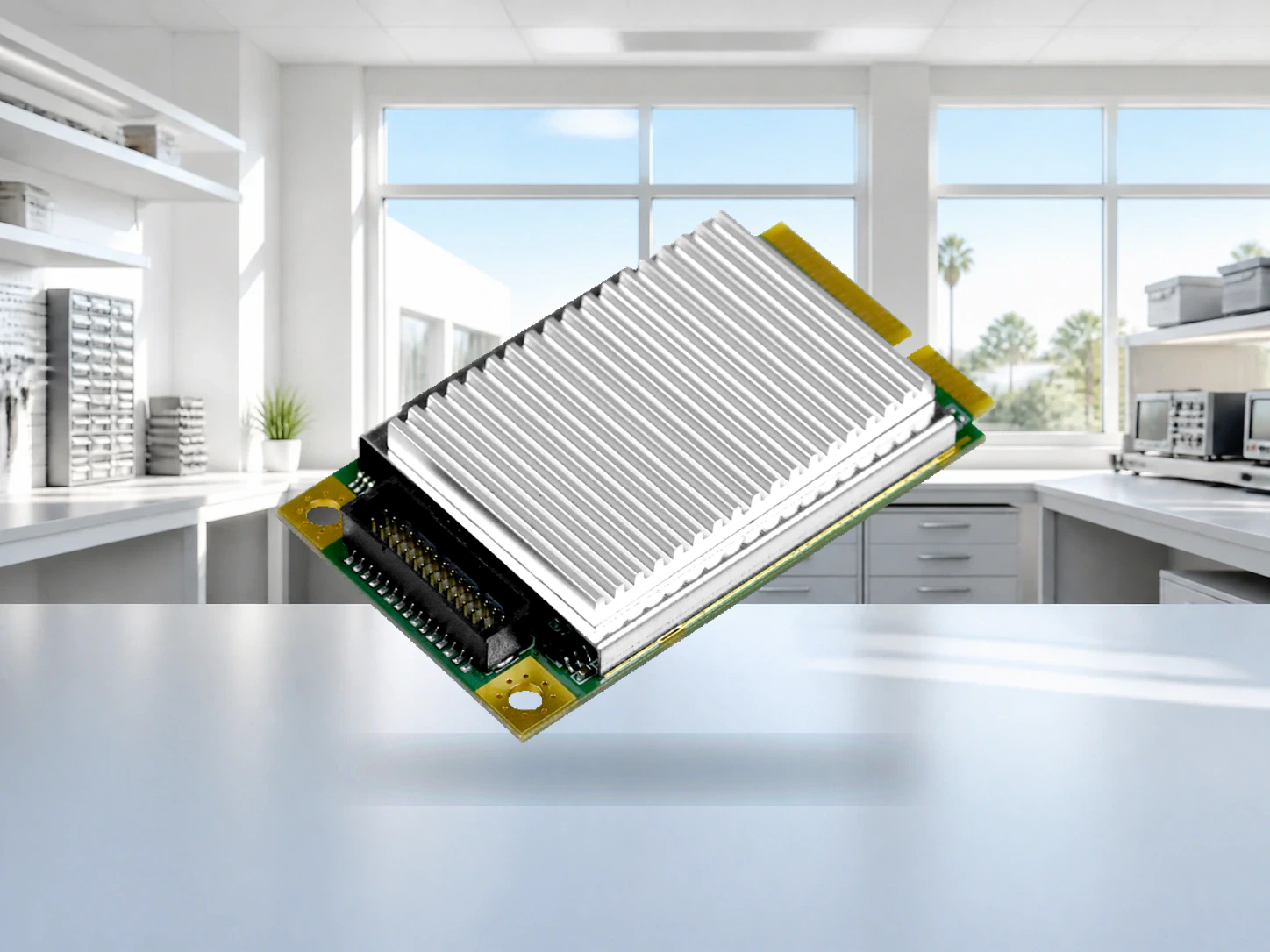

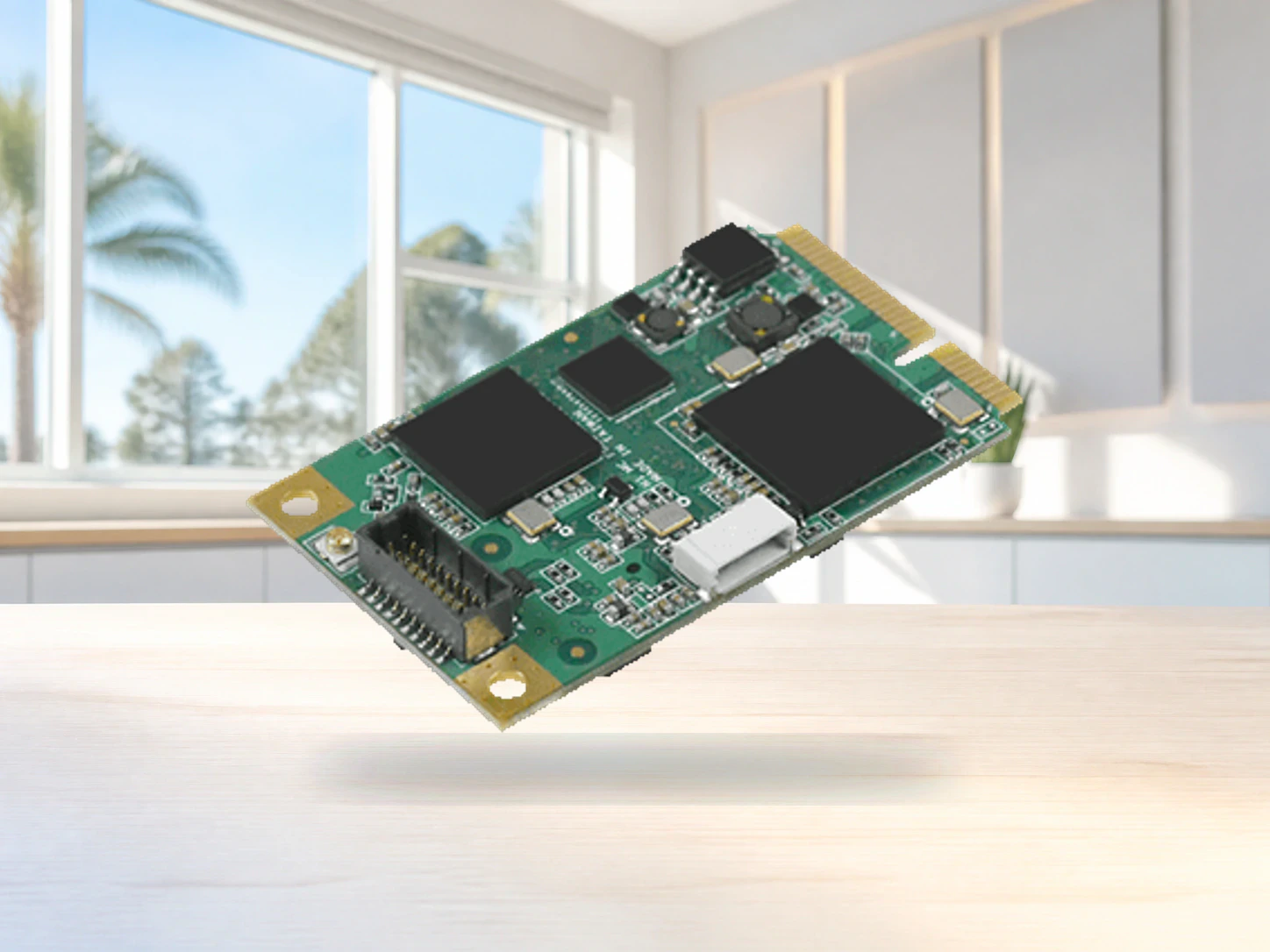

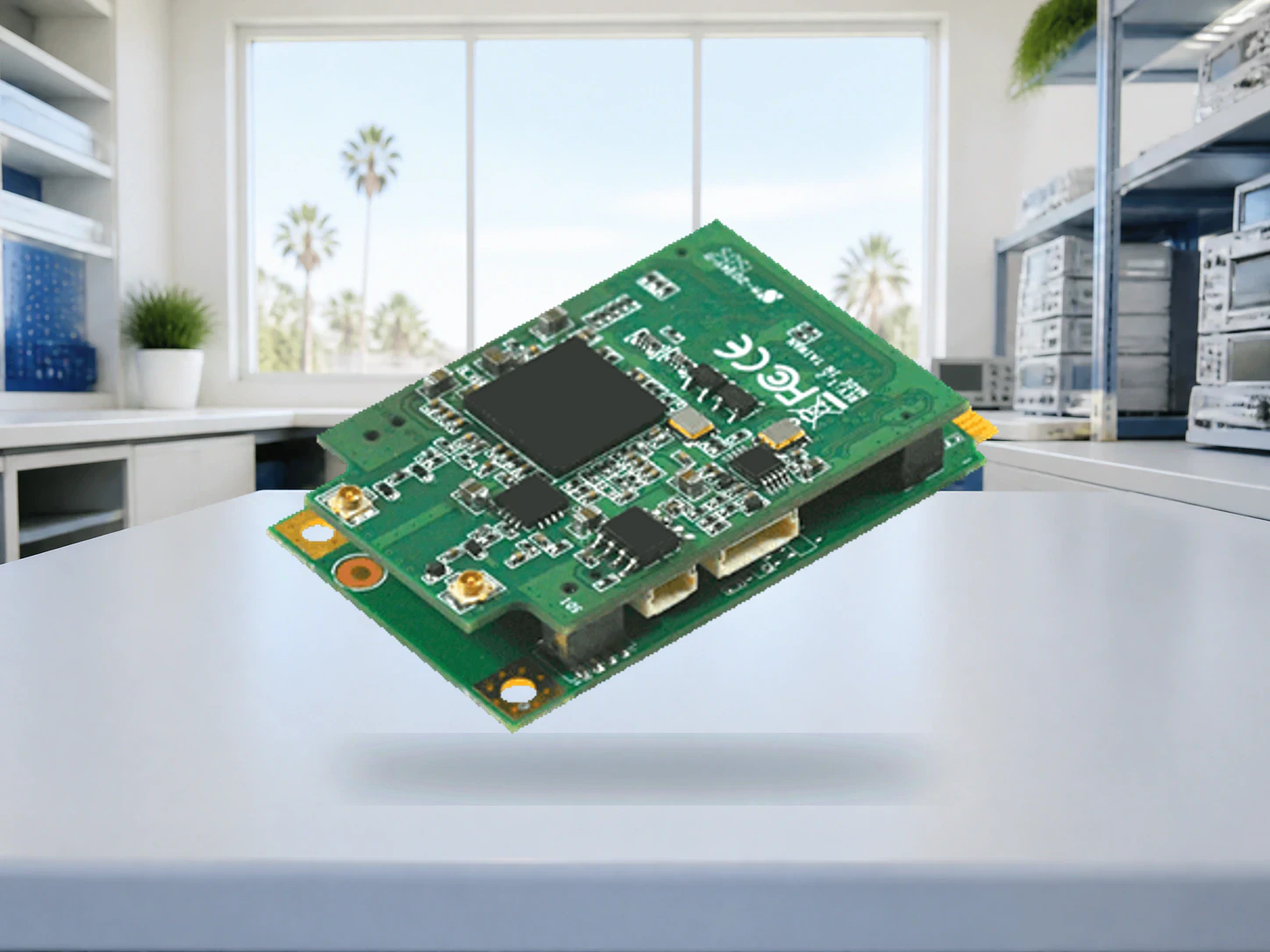

YUAN's MiniPCIe capture cards are tailored to industrial and embedded platforms: low power draw, full-HD capture, and robust environmental tolerance. They suit mobile systems, fanless devices, and transportation monitoring that demand reliable 1080p acquisition over long duty cycles.
- MiniCard ( PCIe×1 )
- 1×SDI
- 1920×1080p@60/50fps
- 1×HDMI, 1×SDI
- 1920×1080p@30/25fps
Capture I/O
Pro H.26X

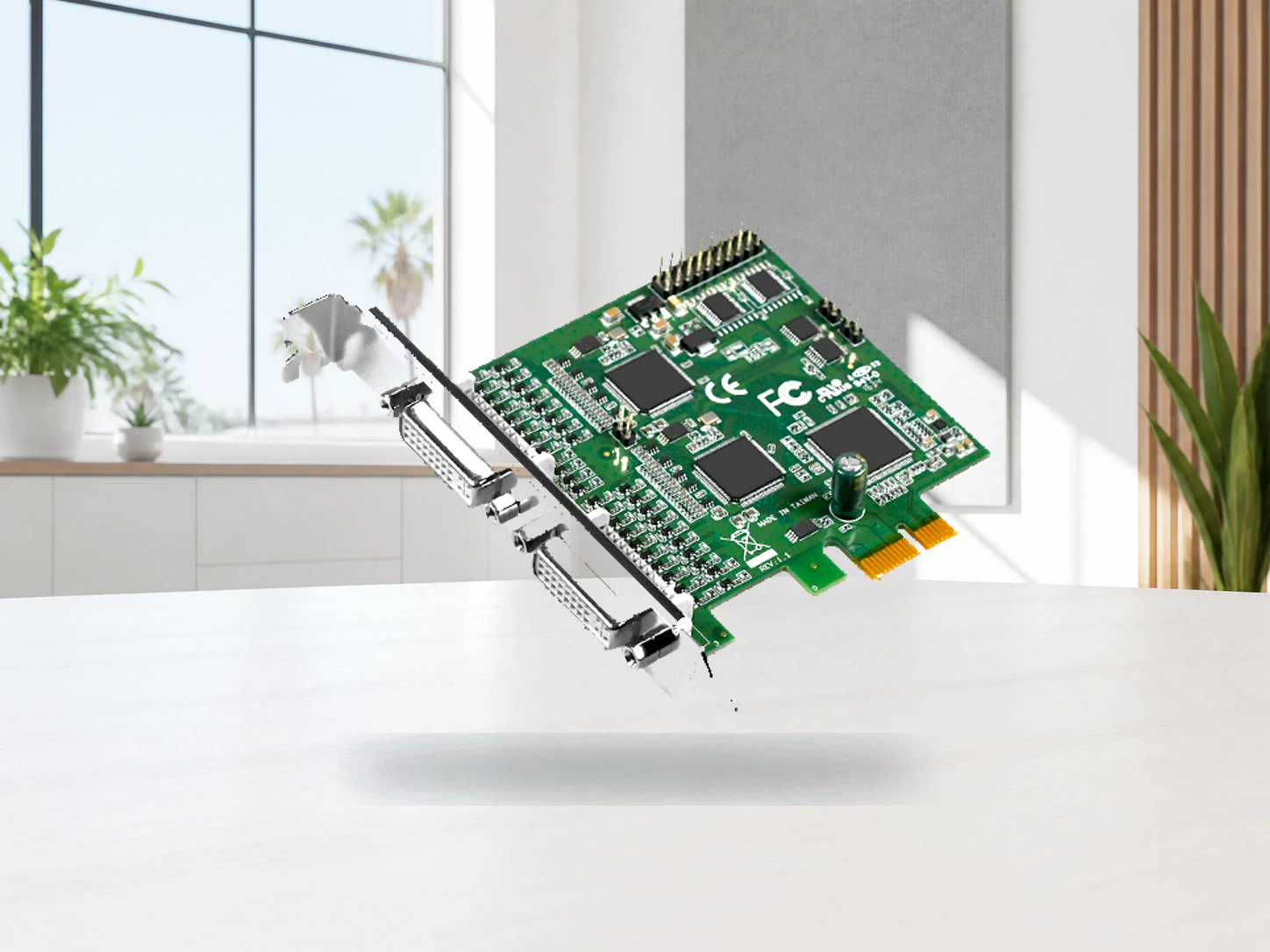

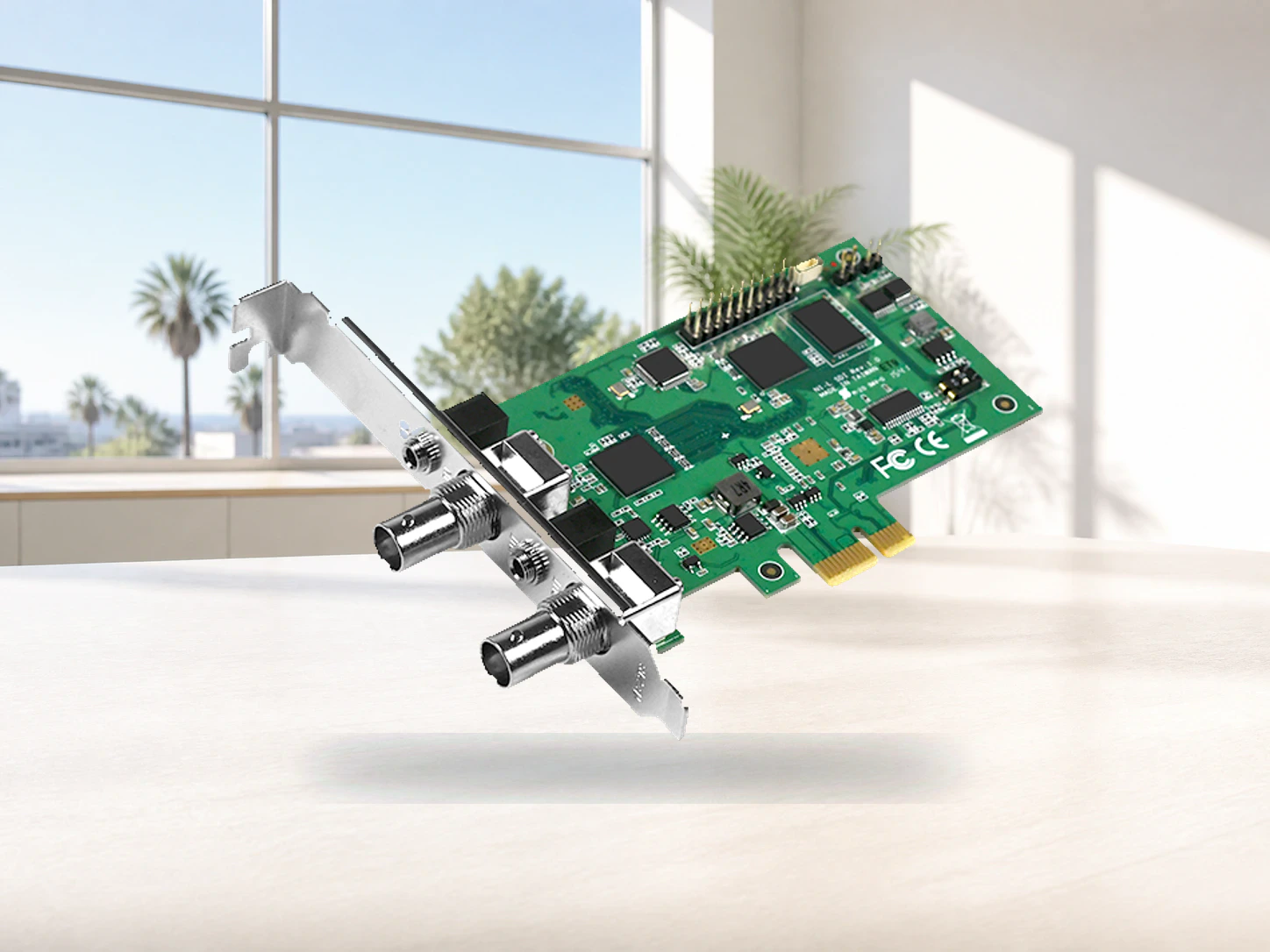

PCIe

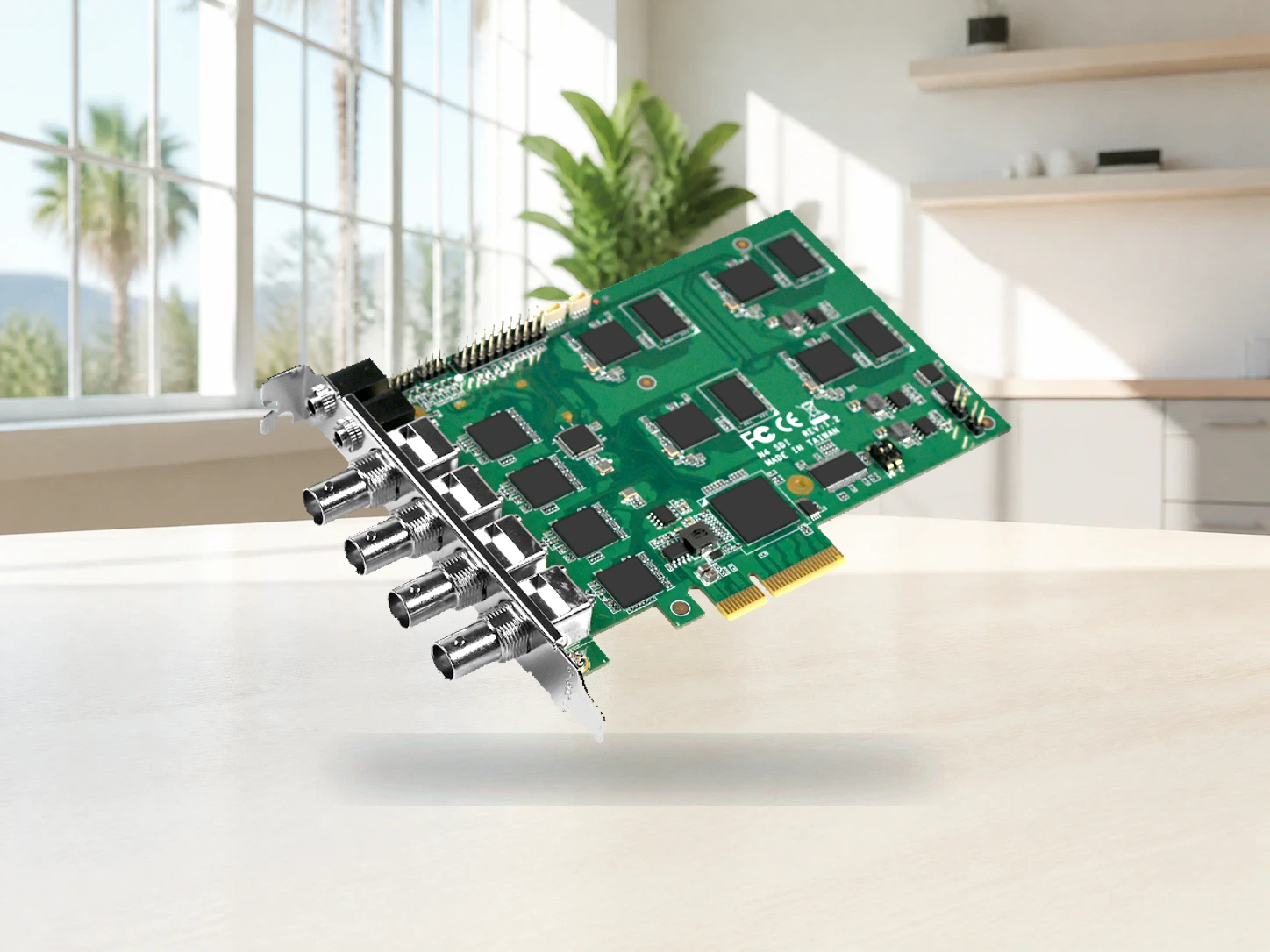

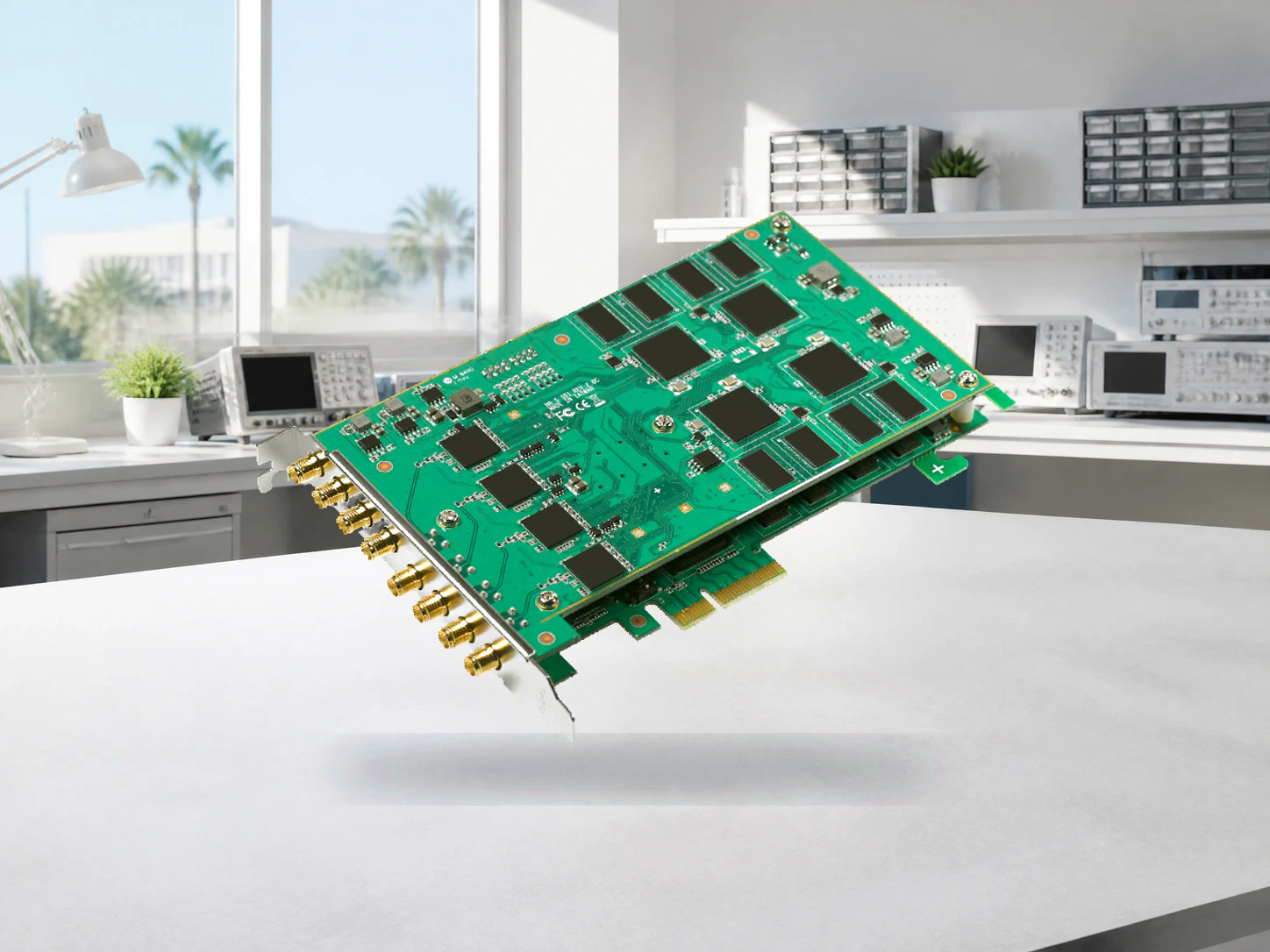

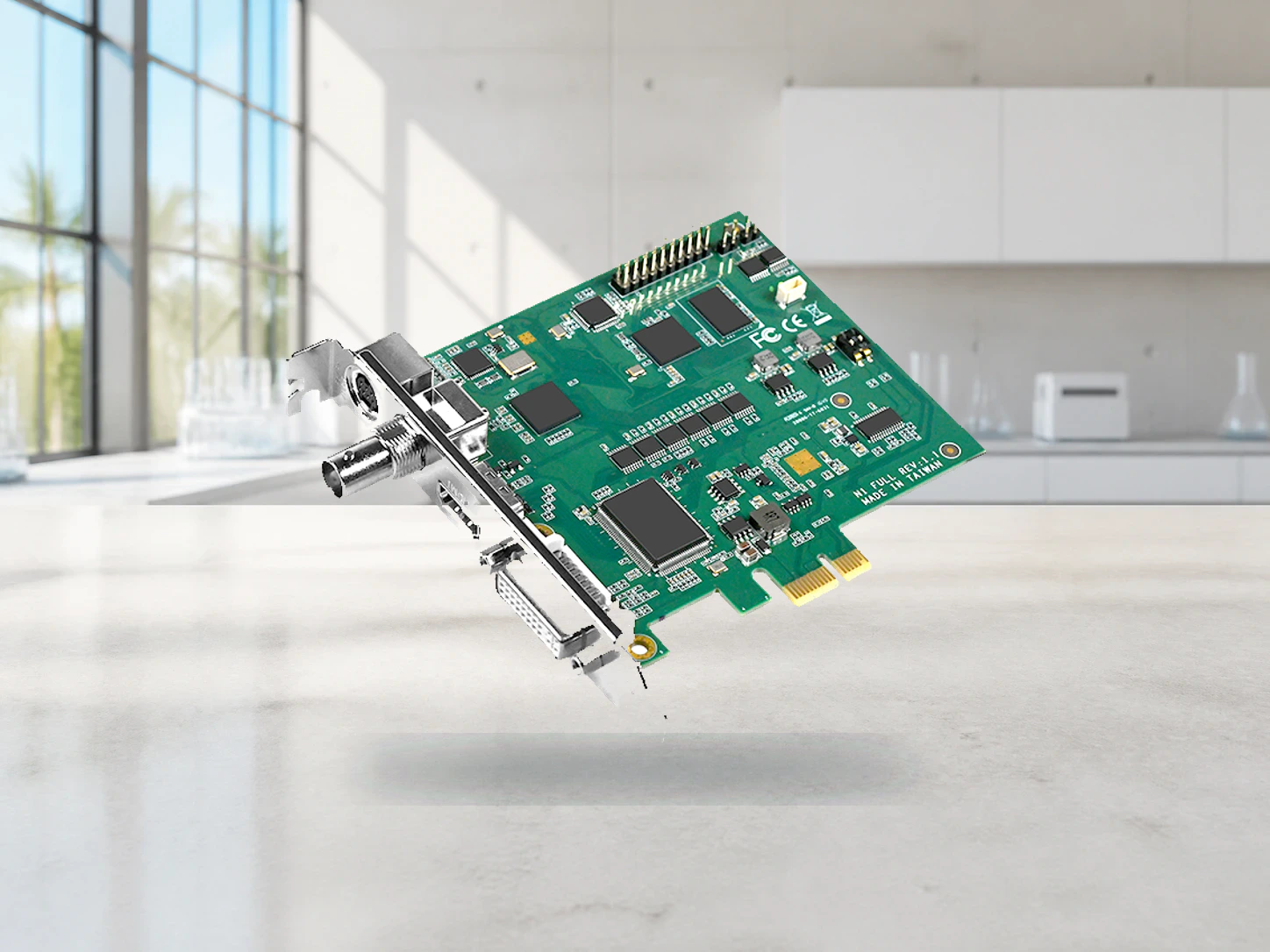

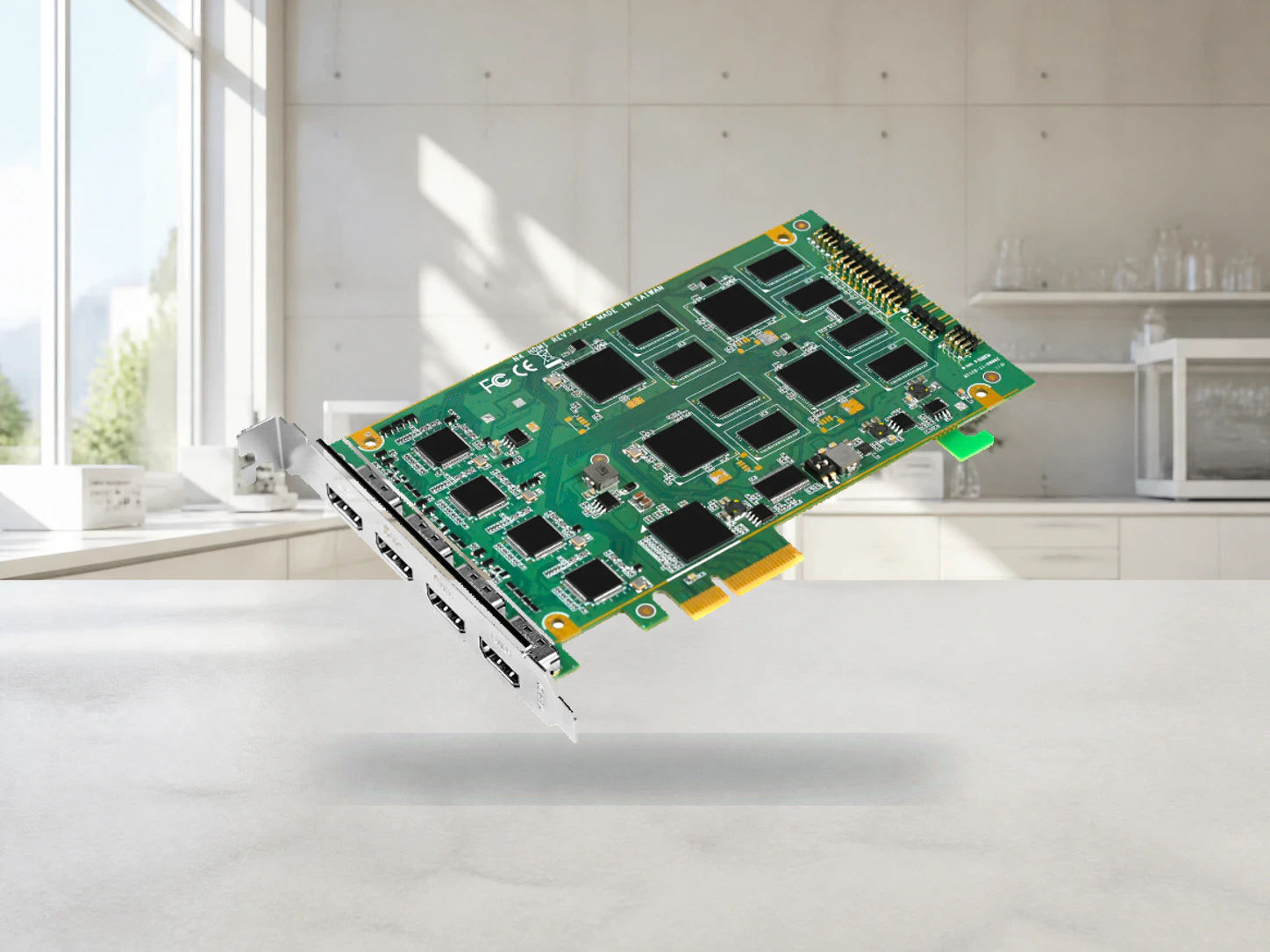

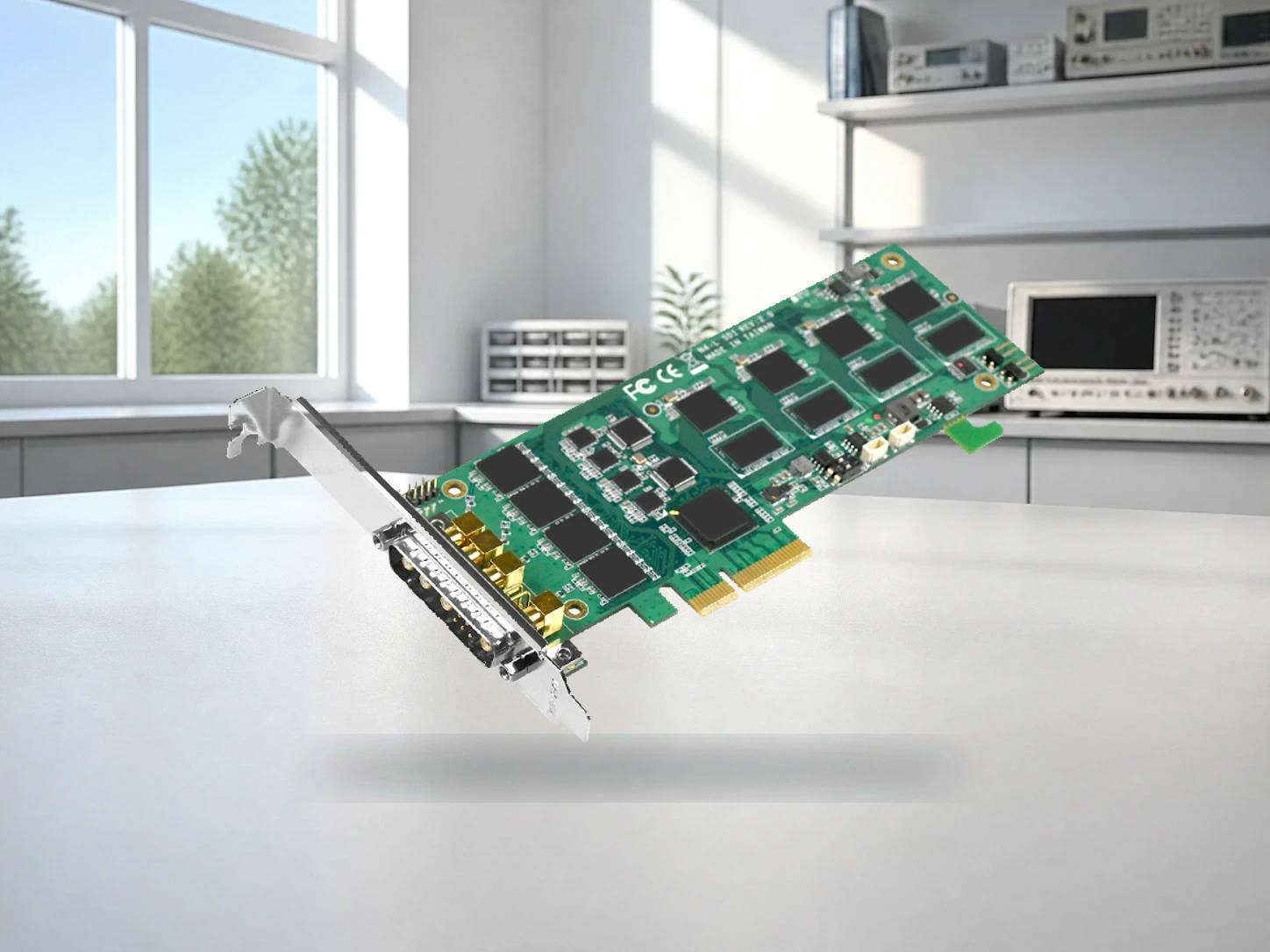

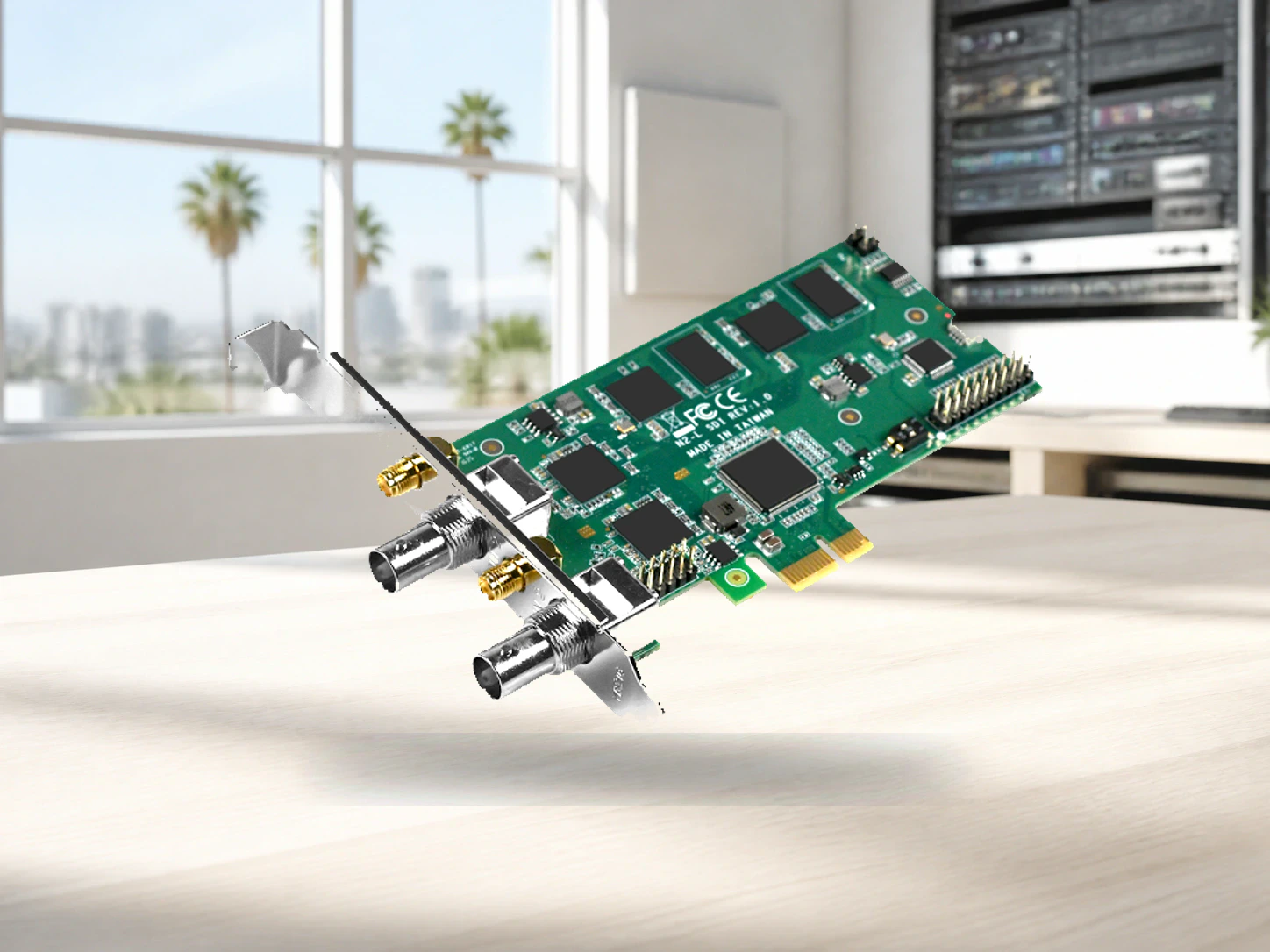

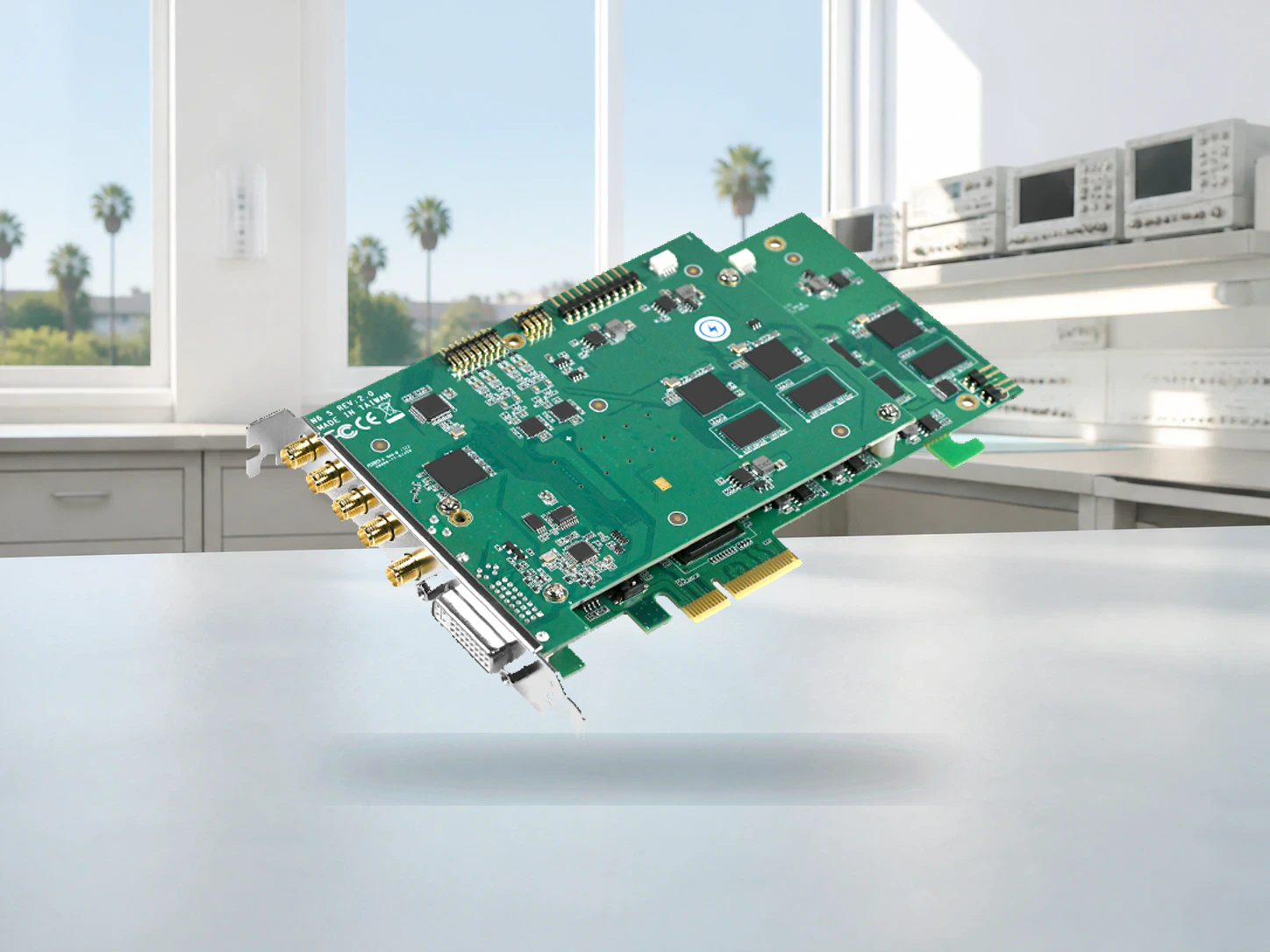

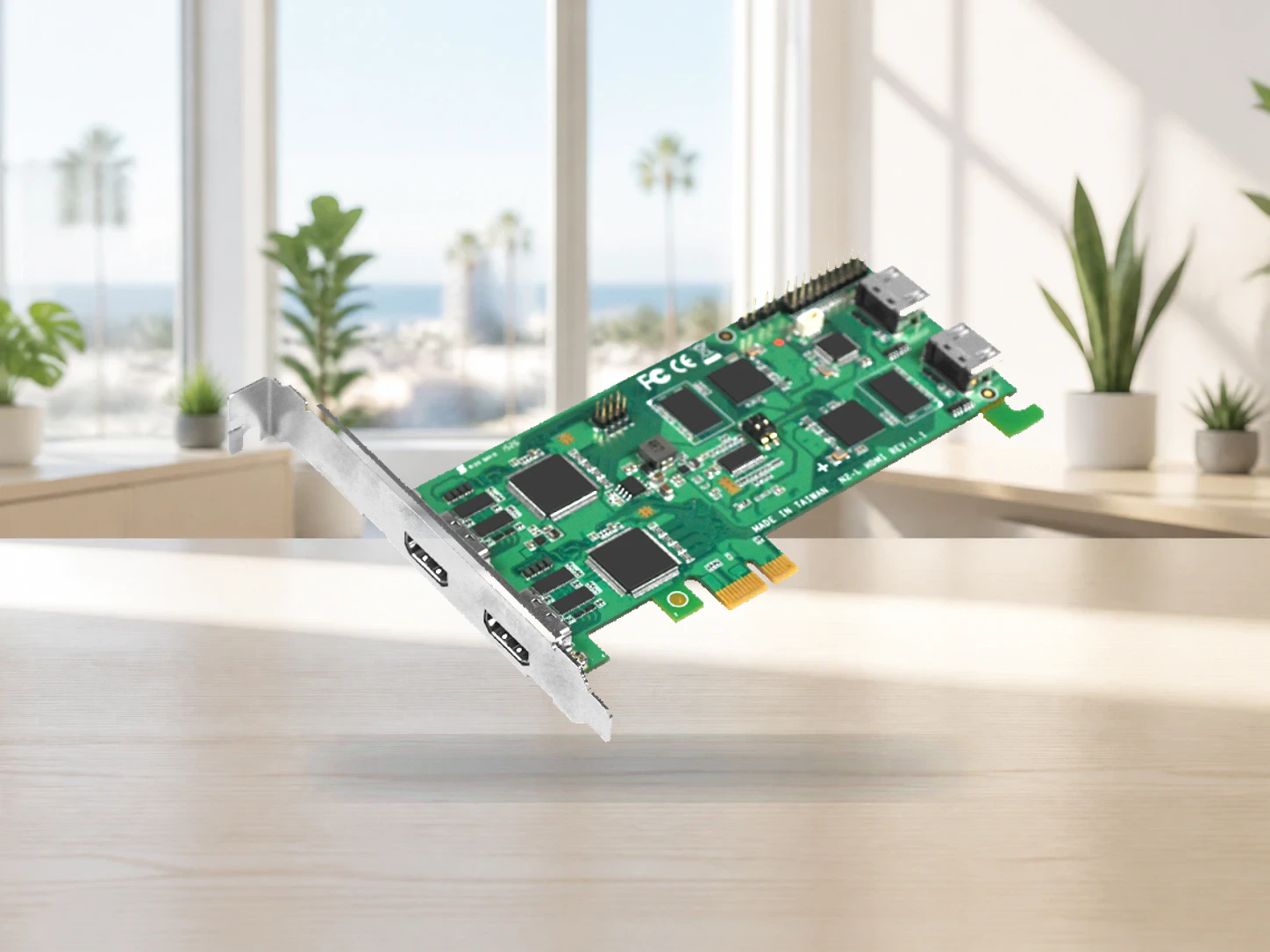

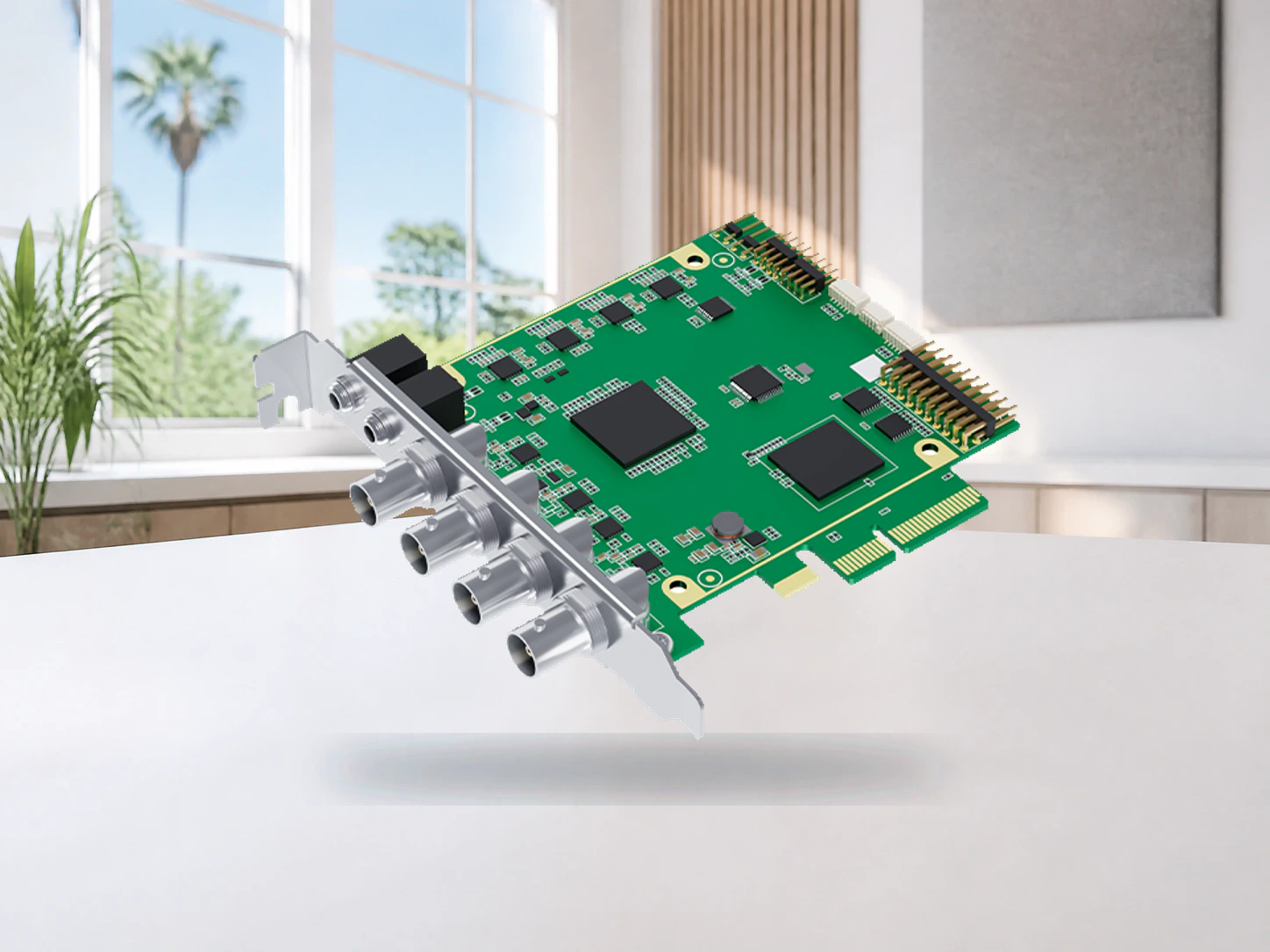

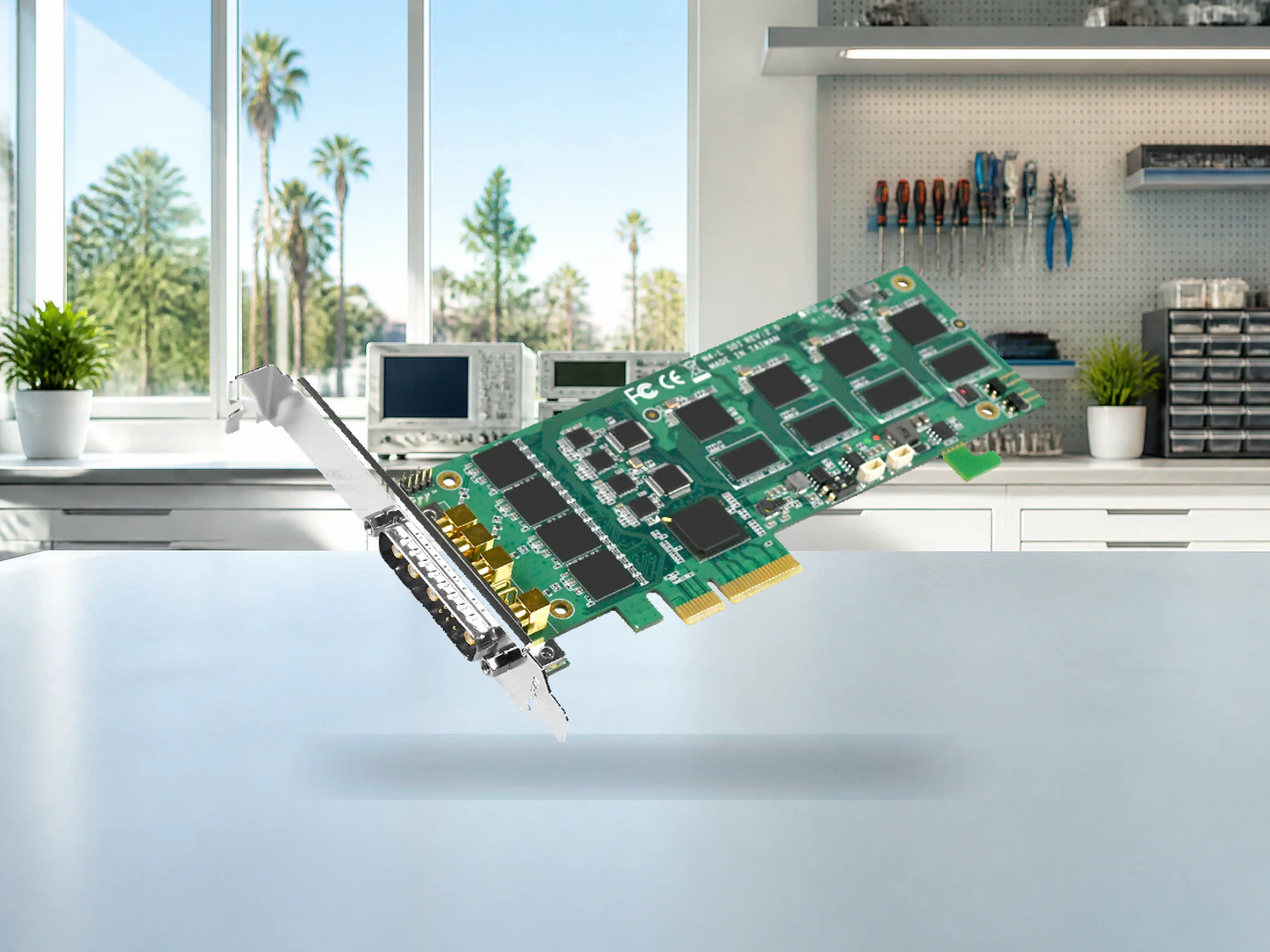

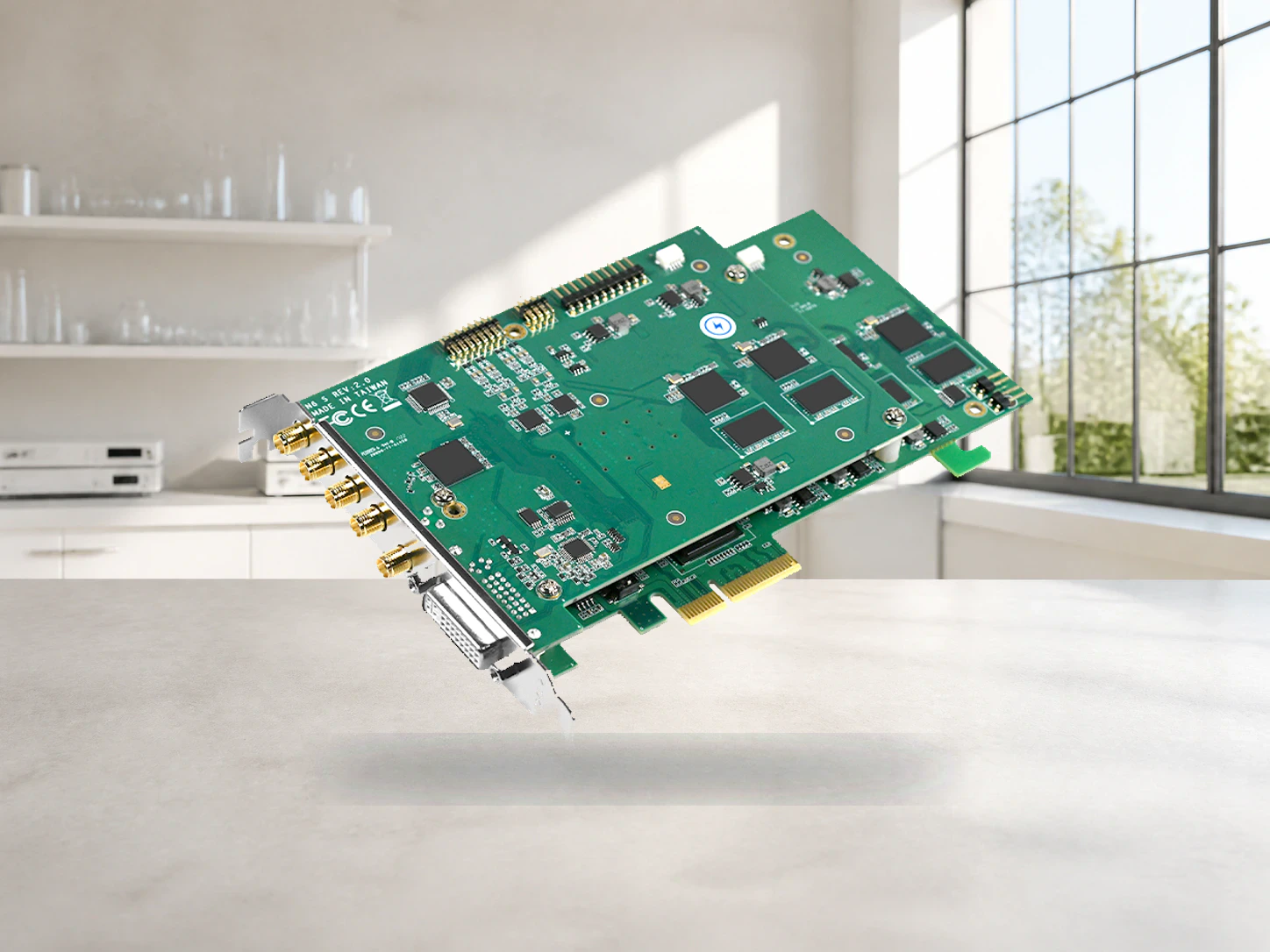

The Pro H.26X PCIe series combines multi-channel video acquisition with on-board hardware compression for real-time H.26X encoding. Designed for stability across long-duration operation, it serves broadcast switching systems, recording servers, and video-wall platforms.
- H.26X
- PCIe×4 ( Gen2 )
- PCIe×1 ( Gen2 )
- PCIe×1 ( Gen1 )

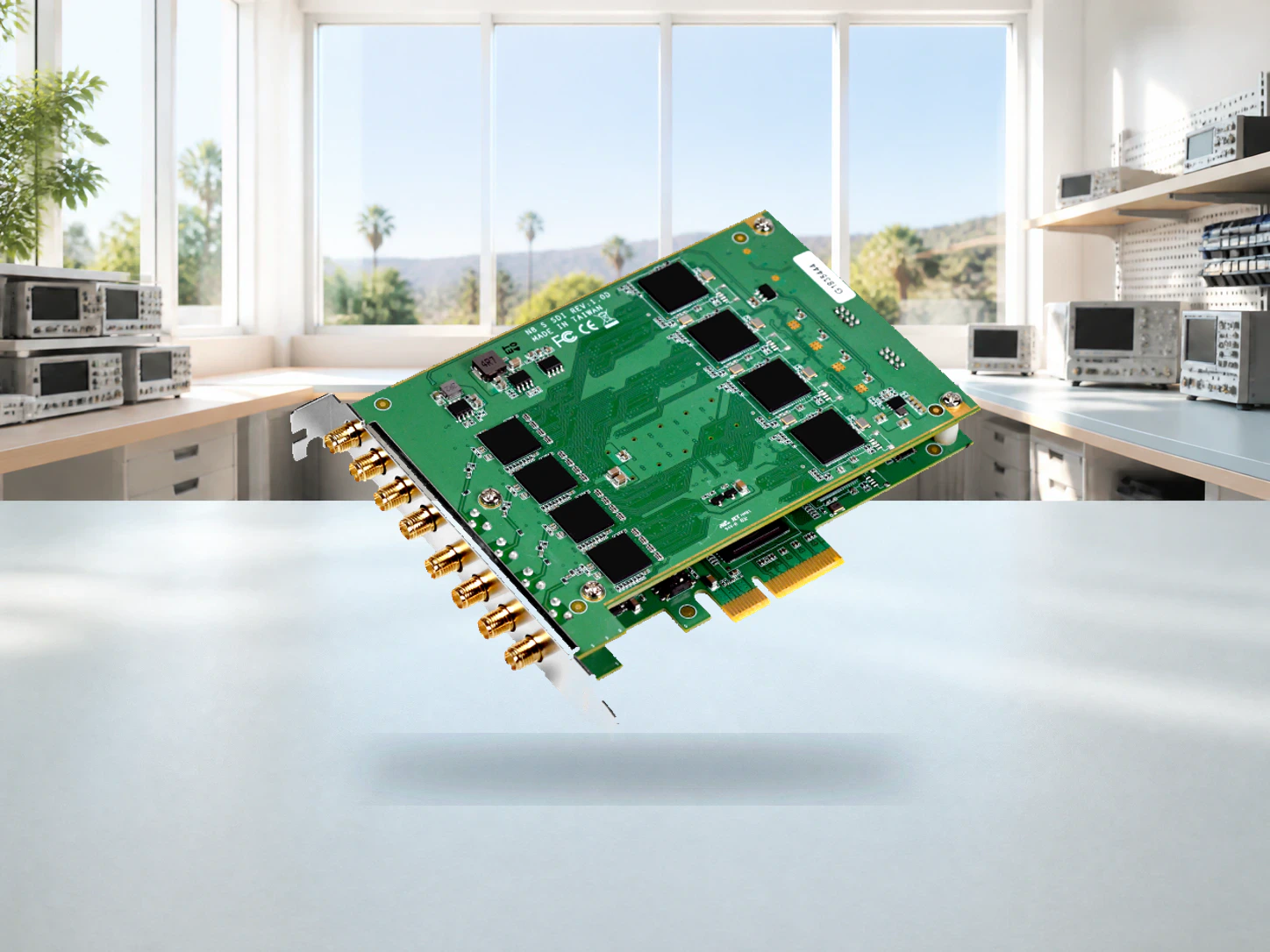

- 4×SDI
- 8×SDI

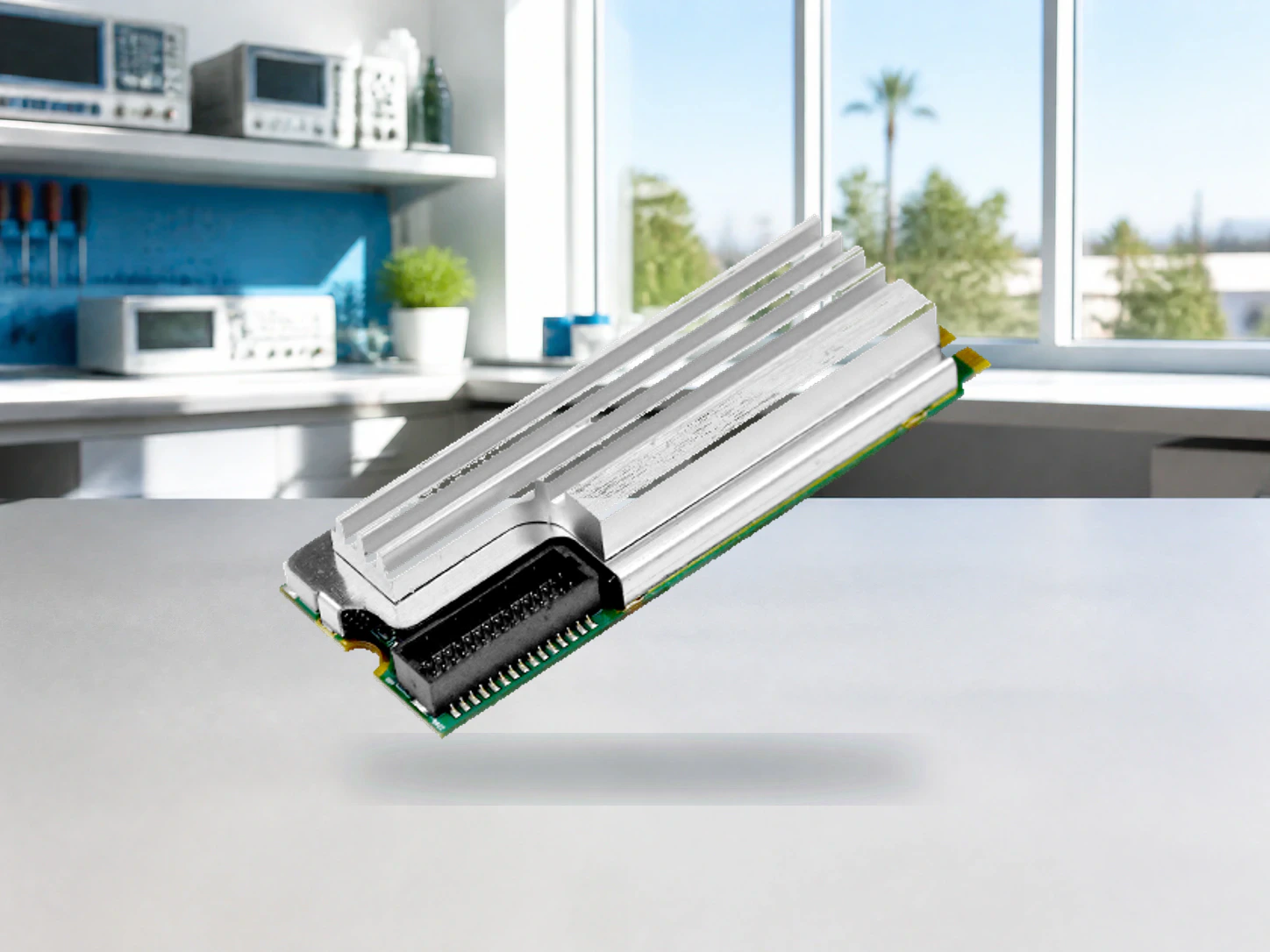

M.2

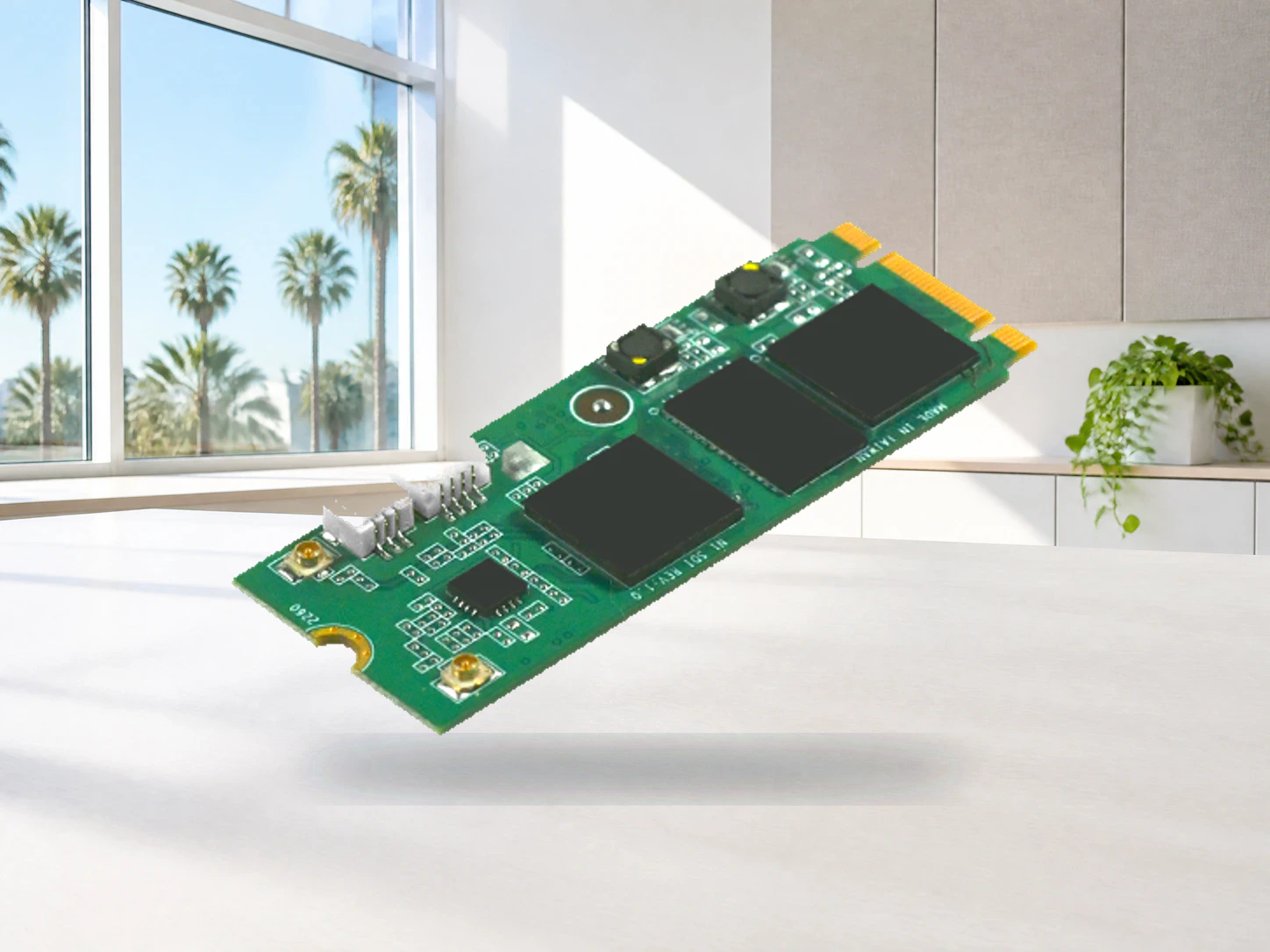

The Pro H.26X M.2 series pairs real-time H.26X hardware compression with single-channel 1080p30 capture in the smallest possible footprint — a natural fit for edge-AI devices, industrial control systems, and space-constrained embedded platforms.
- M.2 ( PCIe×1 )
- H.26X
- 1×HDMI
- 1×SDI
MiniPCIe

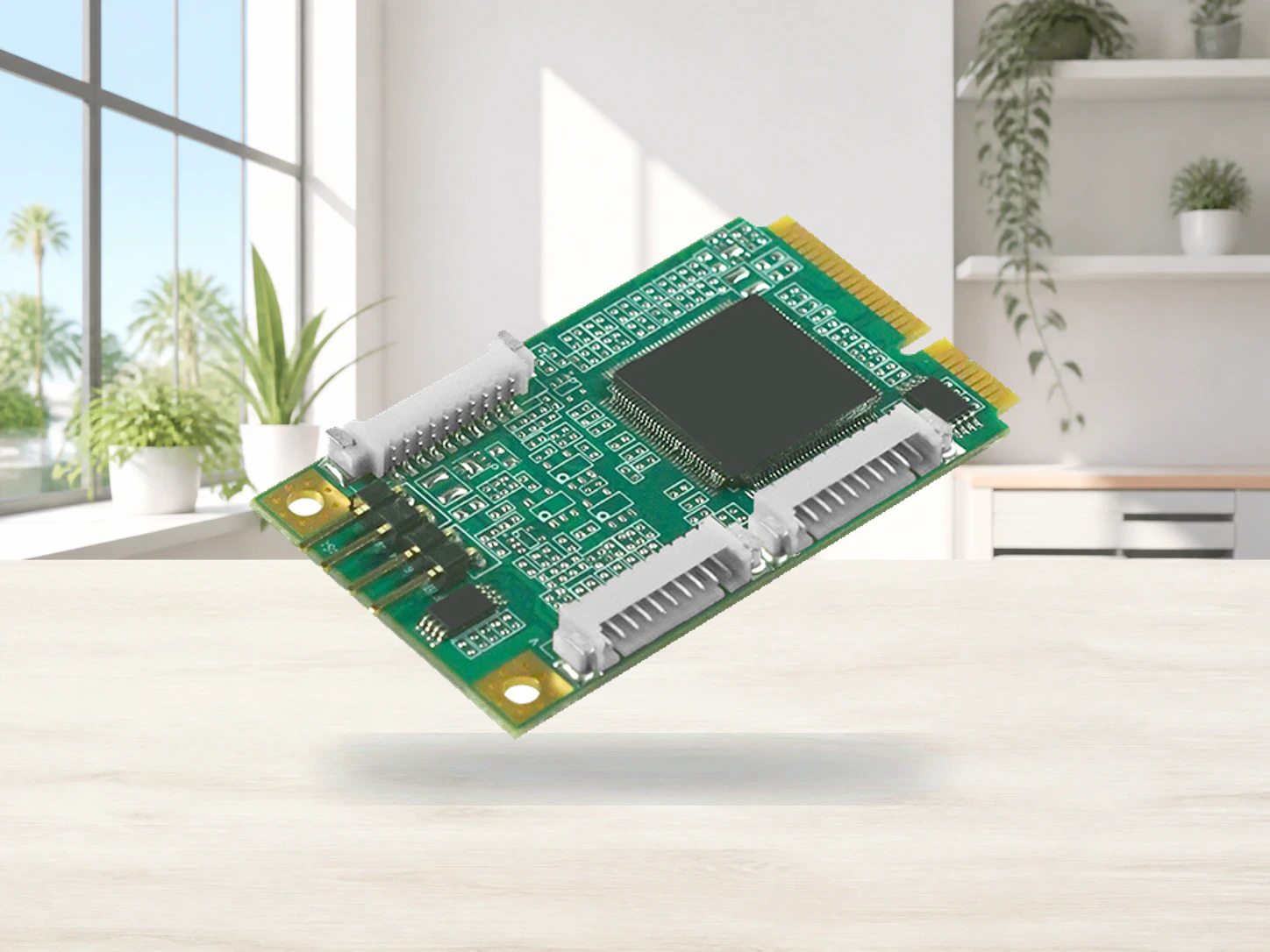

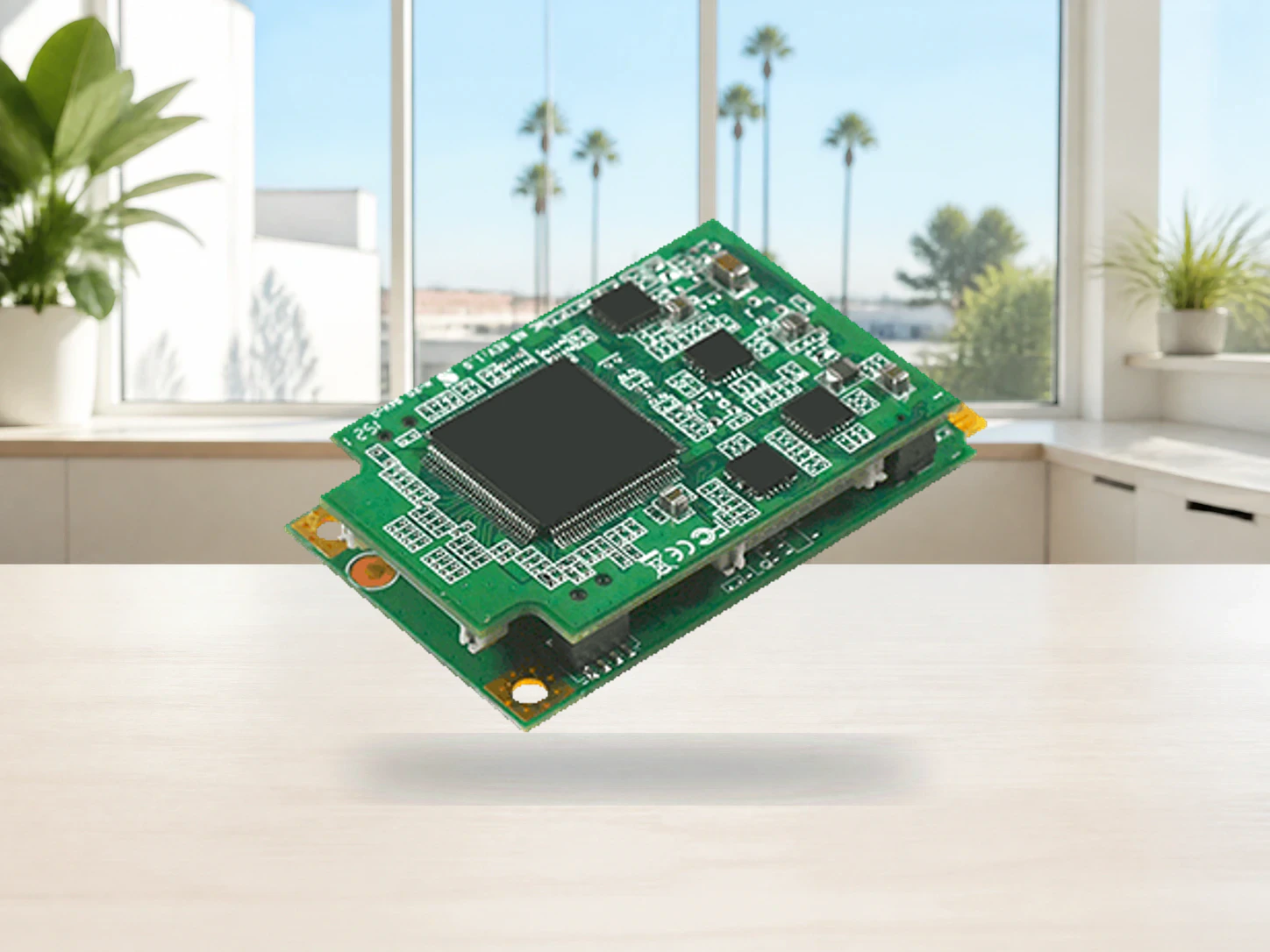

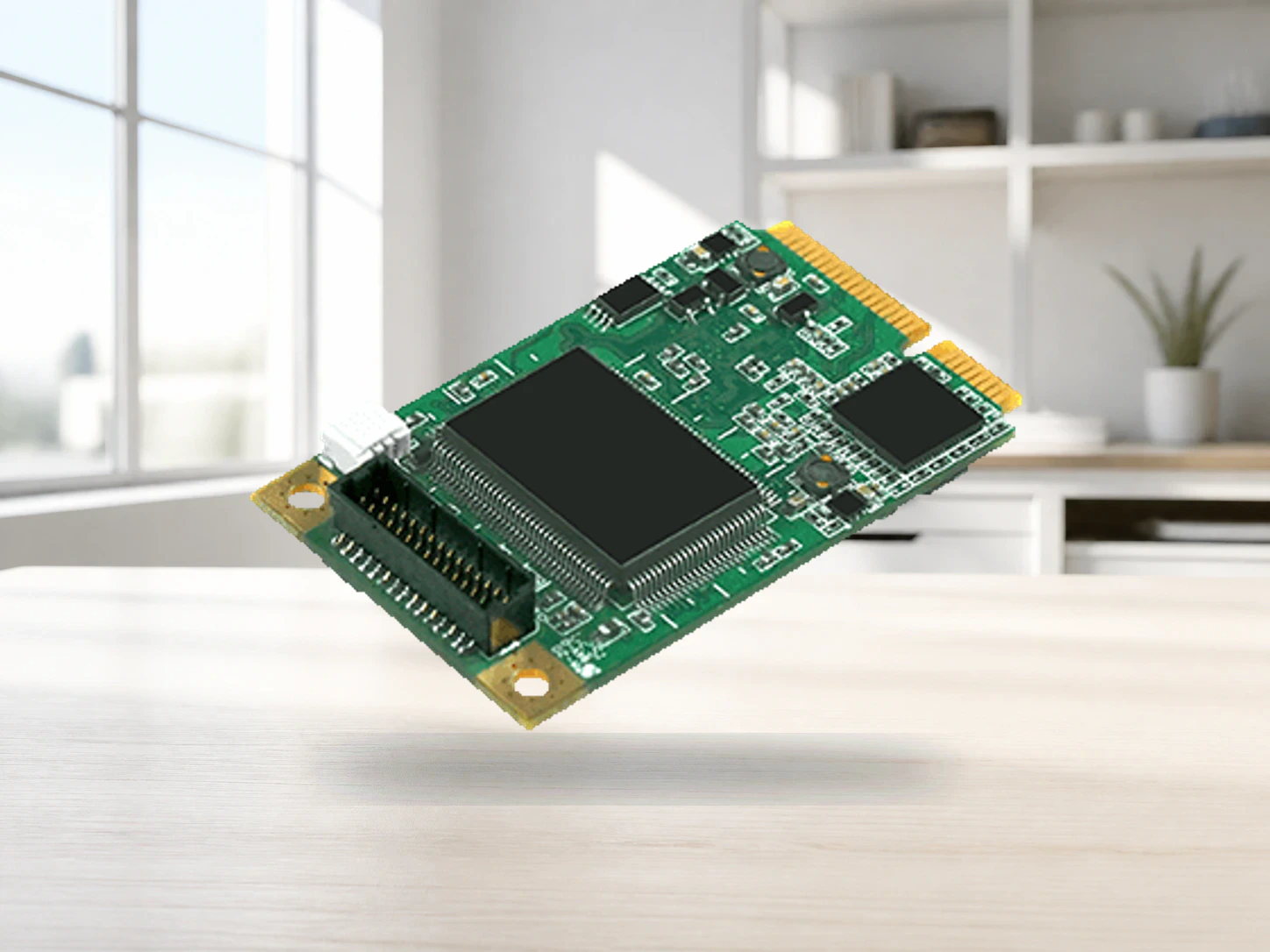

The Pro H.26X MiniPCIe series targets embedded and space-constrained applications, supporting video formats from SD to full HD. The standard MiniPCIe form factor drops straight into industrial PCs, edge platforms, and mobile systems.
- H.26X
- Minicard ( PCIe×1 )
- 1×SDI
- 8×CVBS
- 4×CVBS
- Minicard (PCIe x1)
Capture I/O
USB

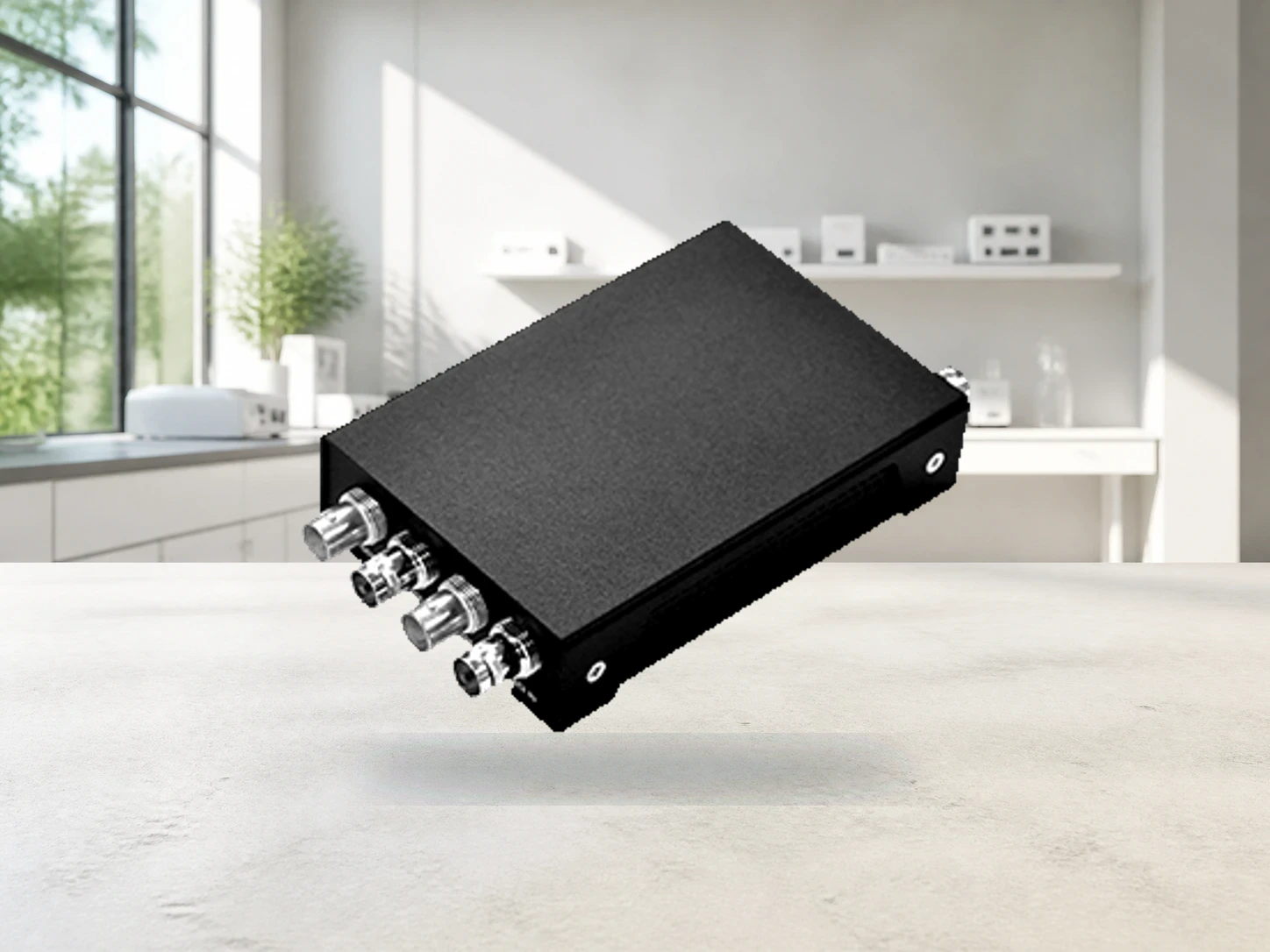

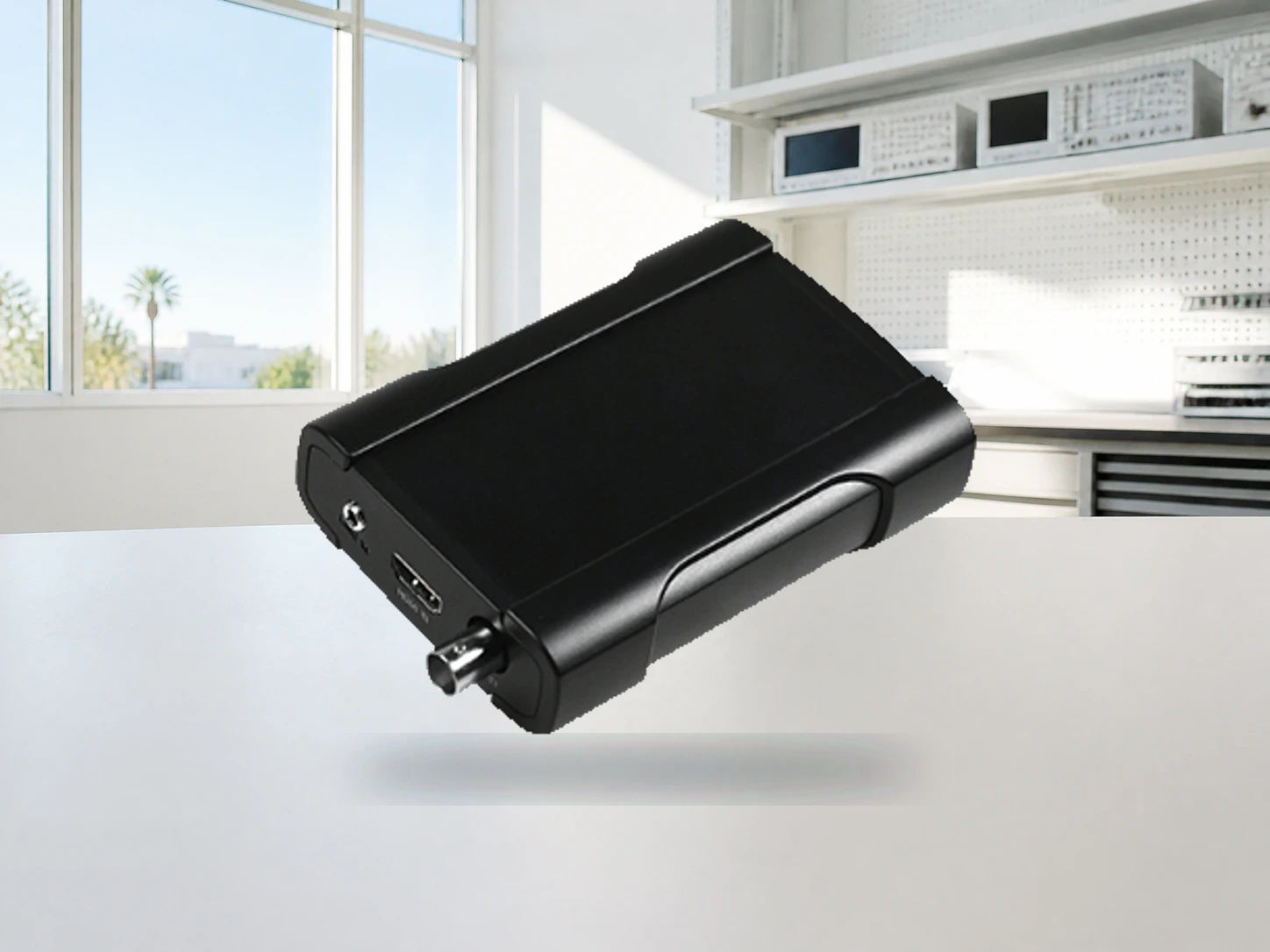

USB3.0

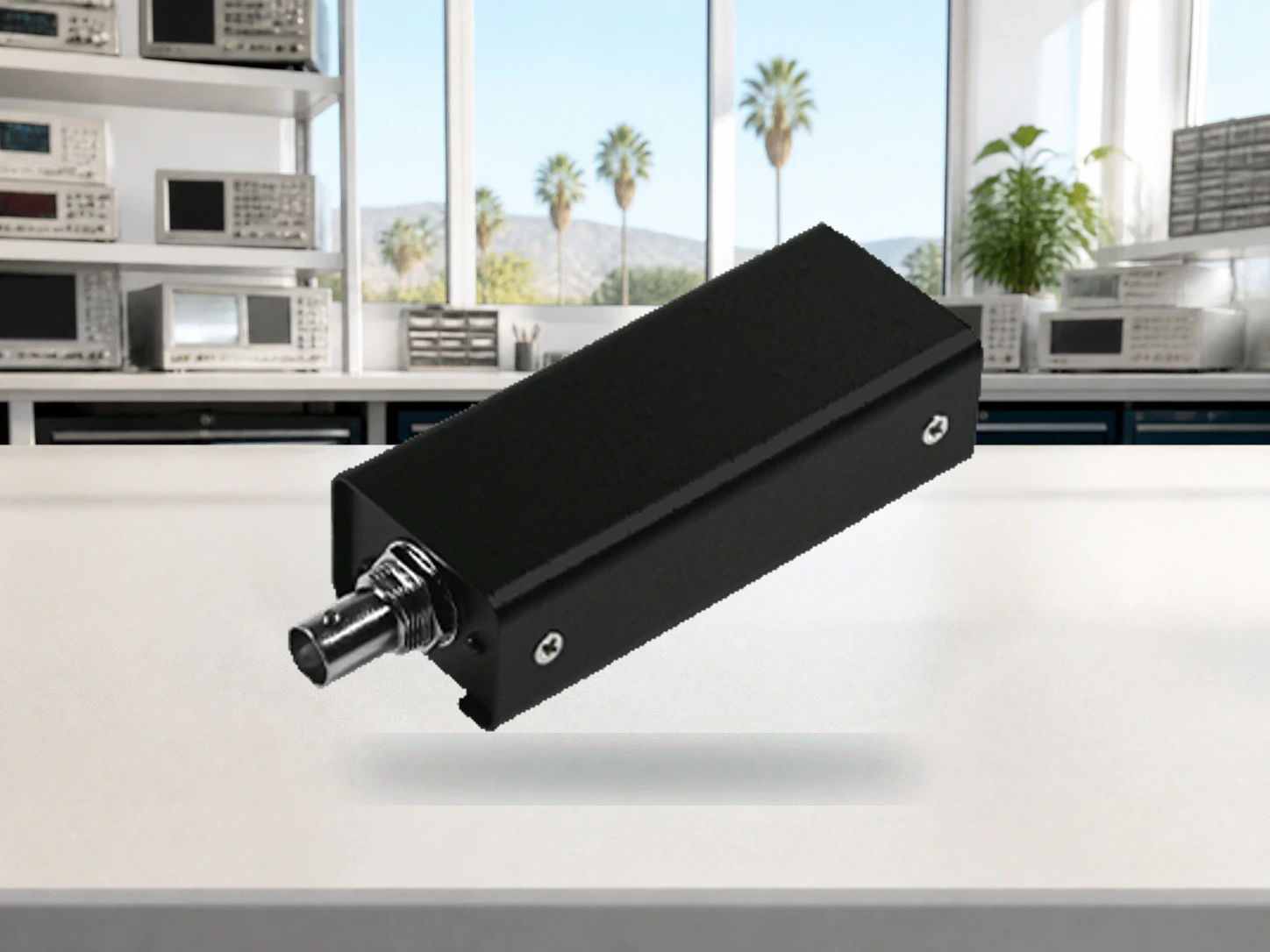

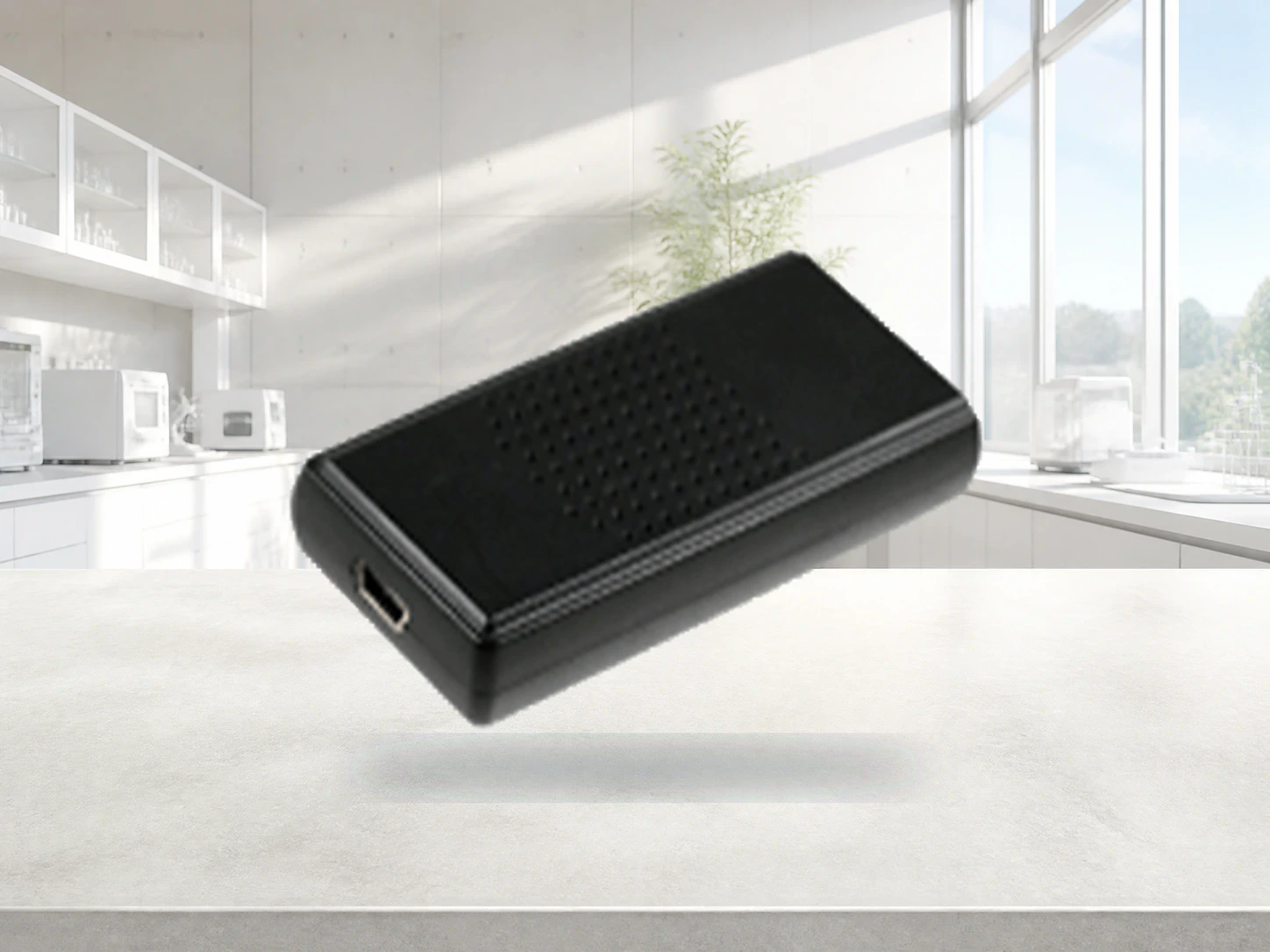

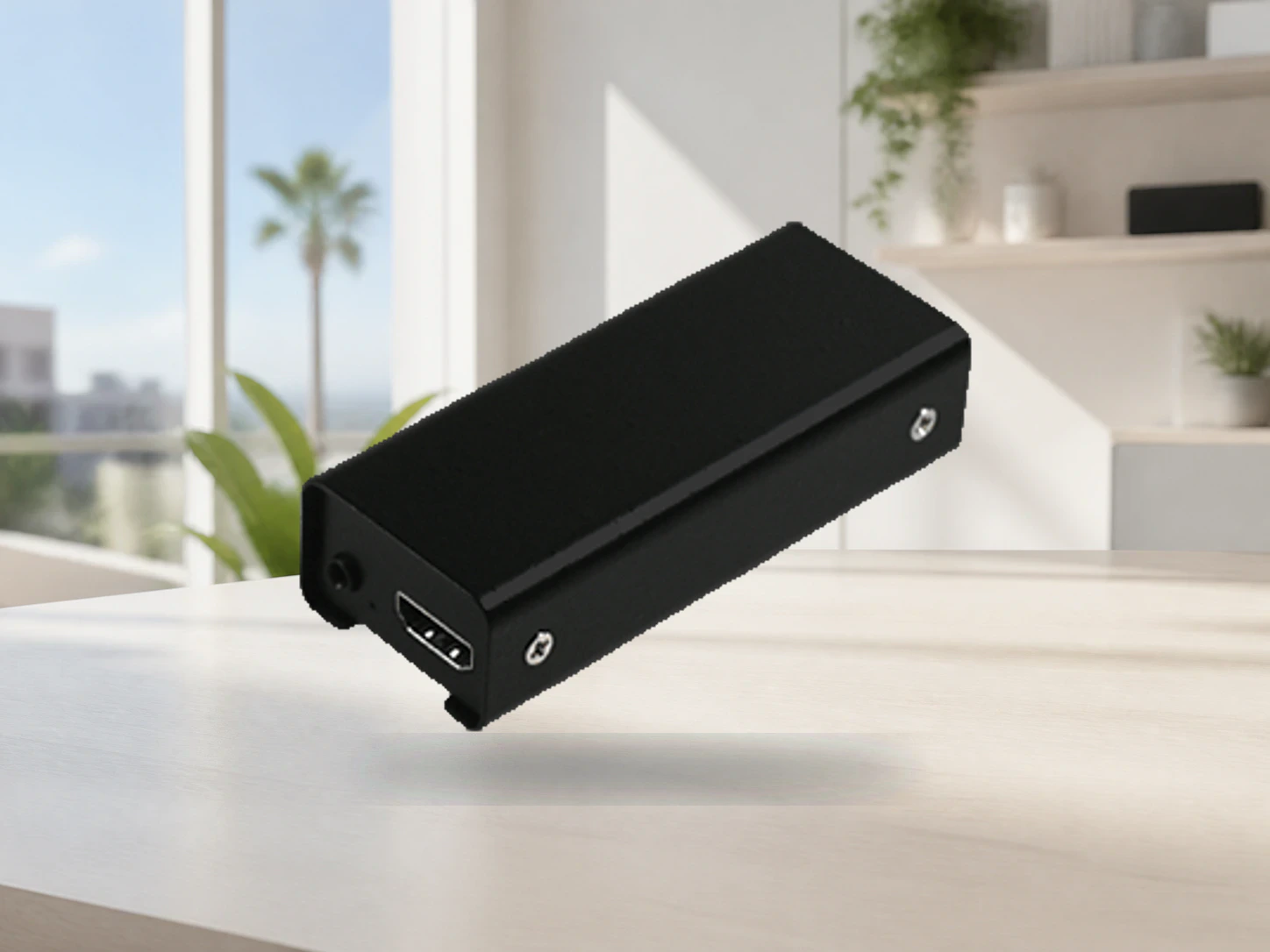

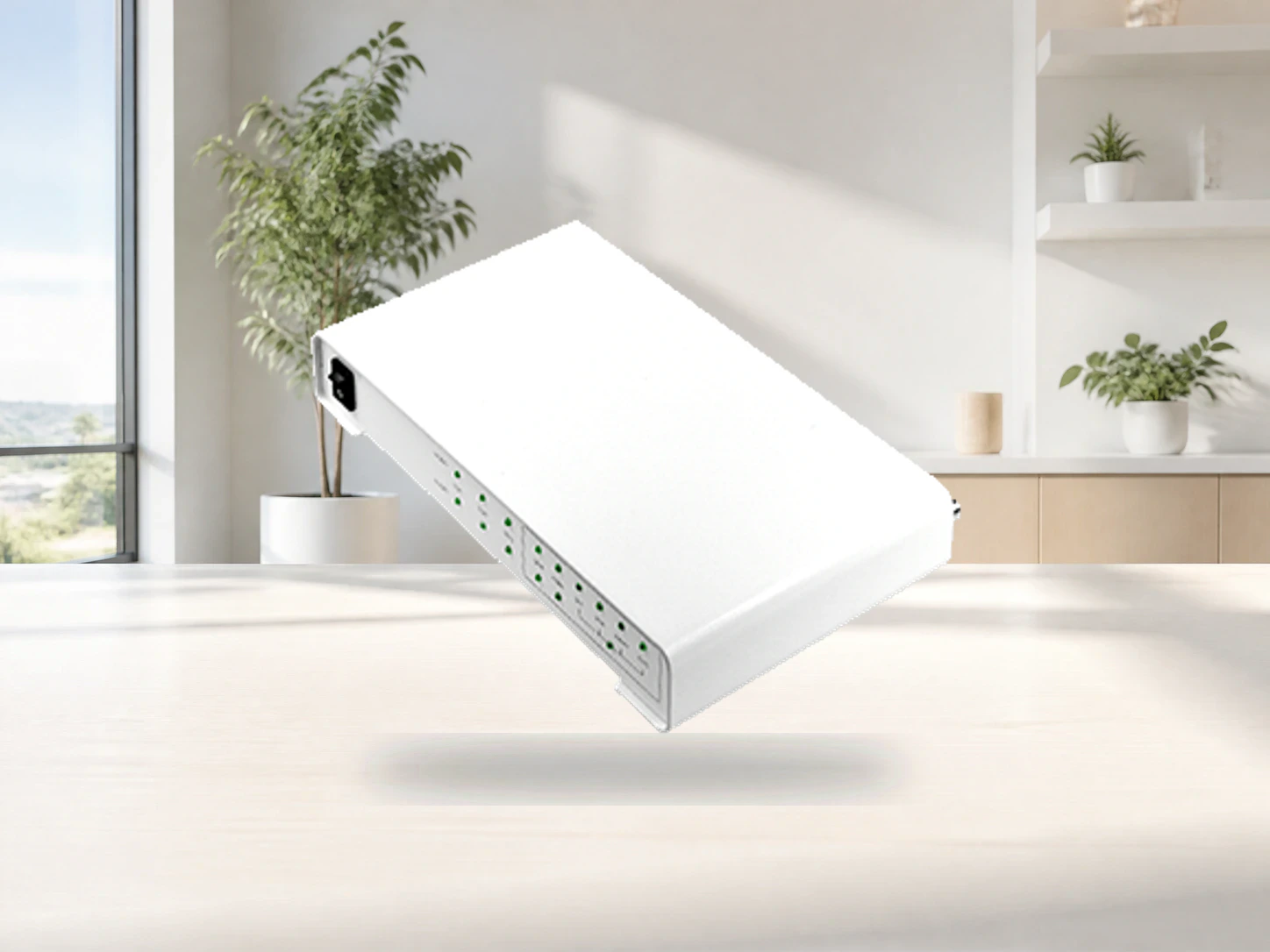

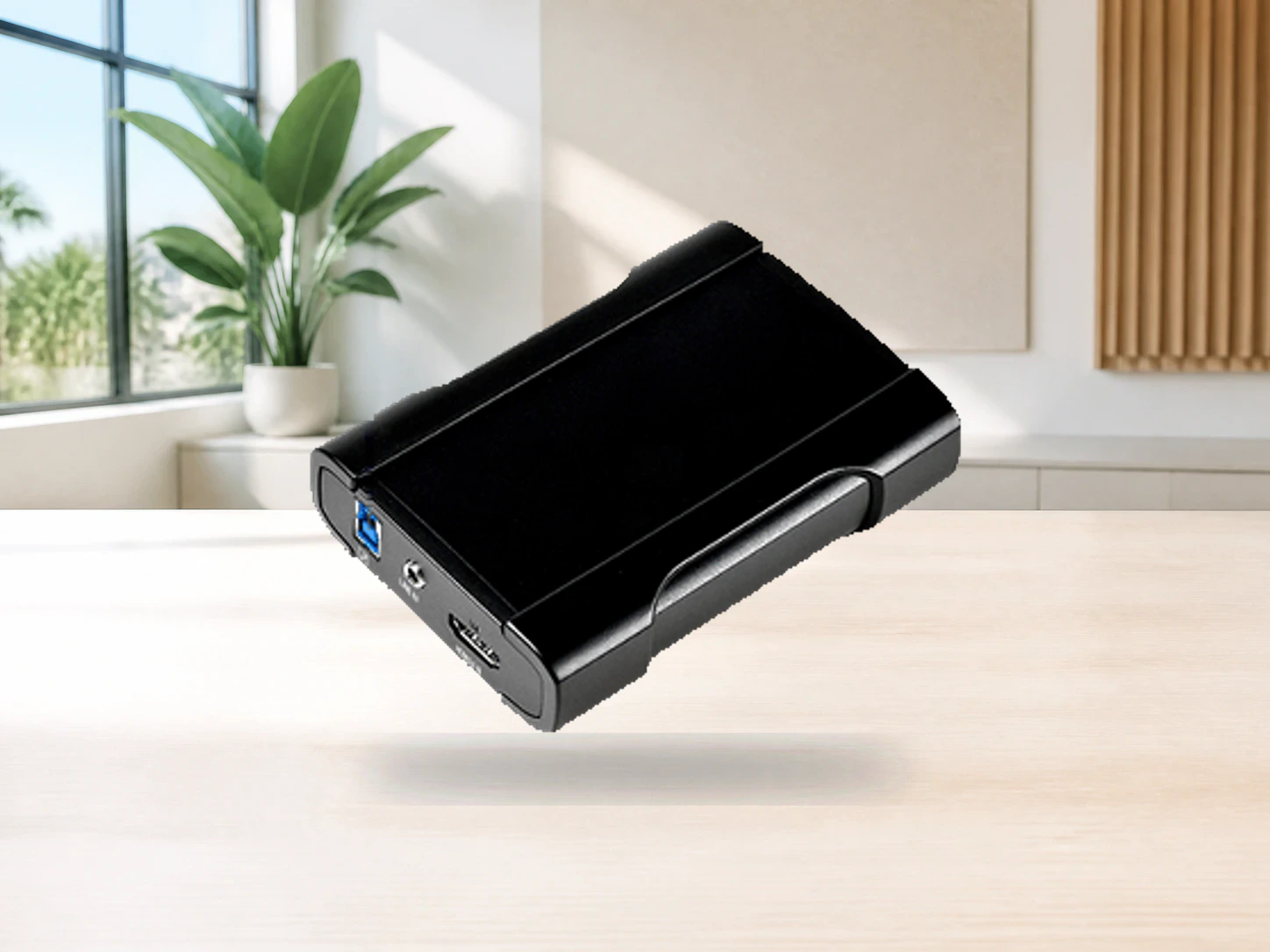

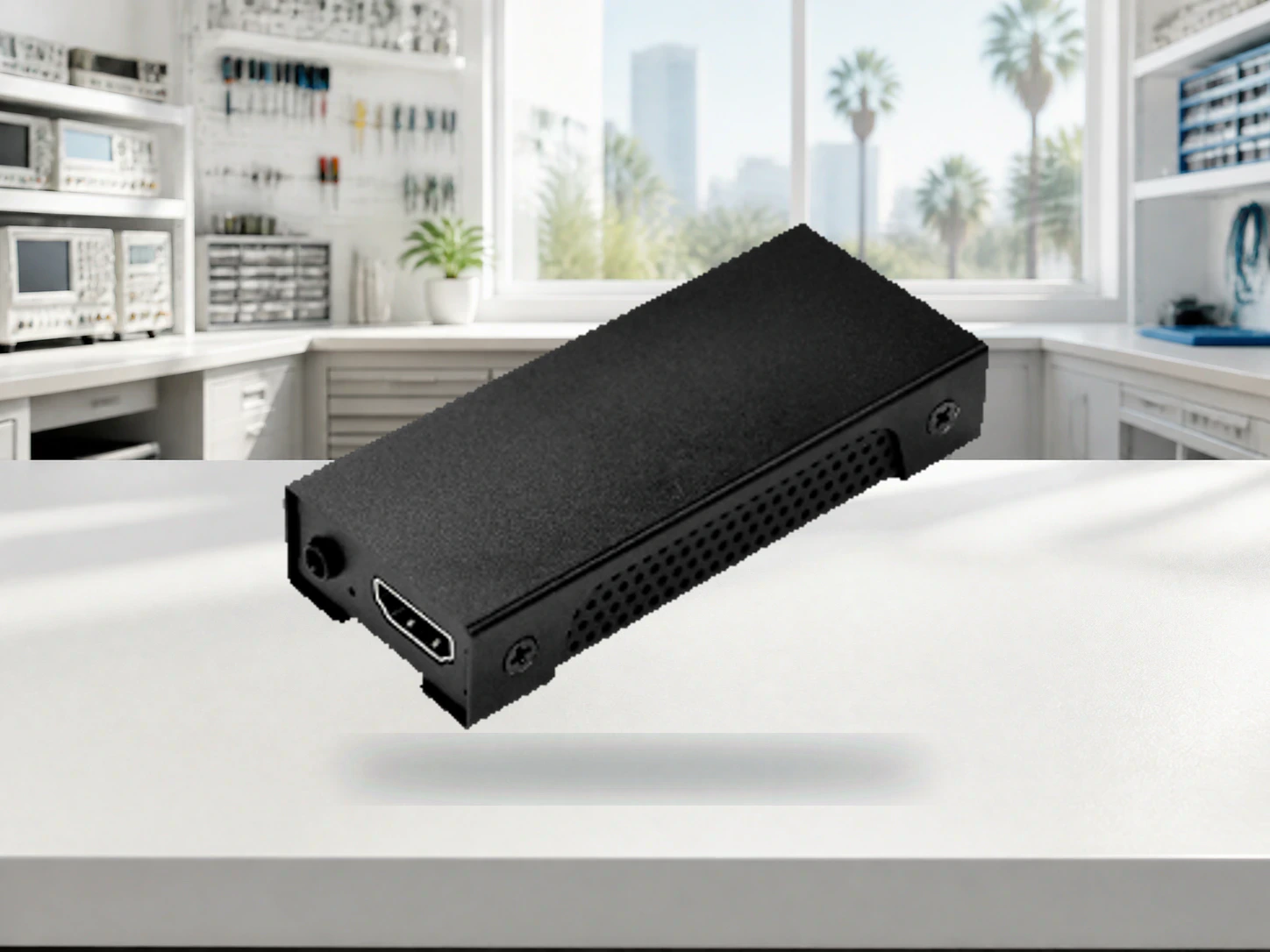

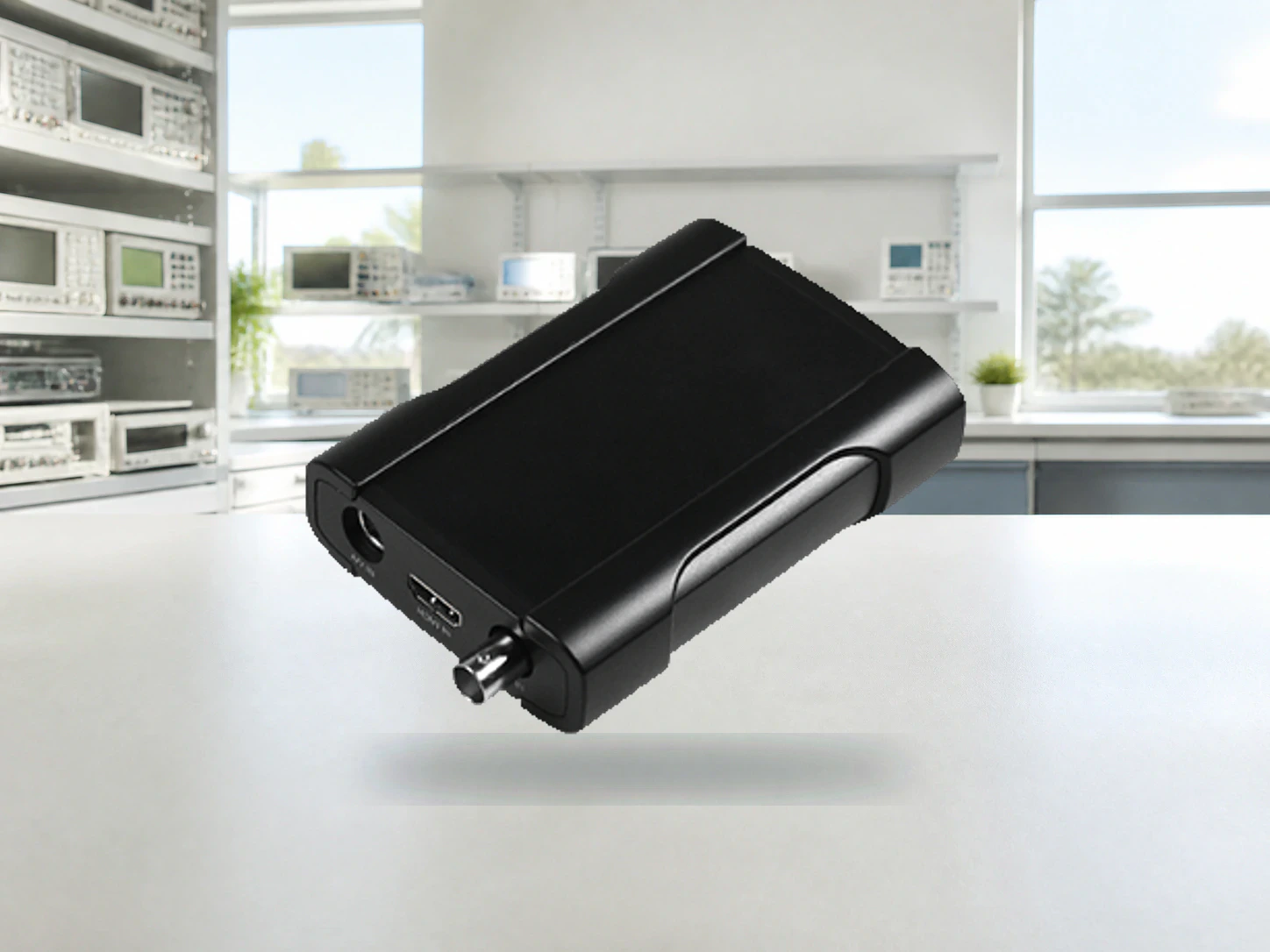

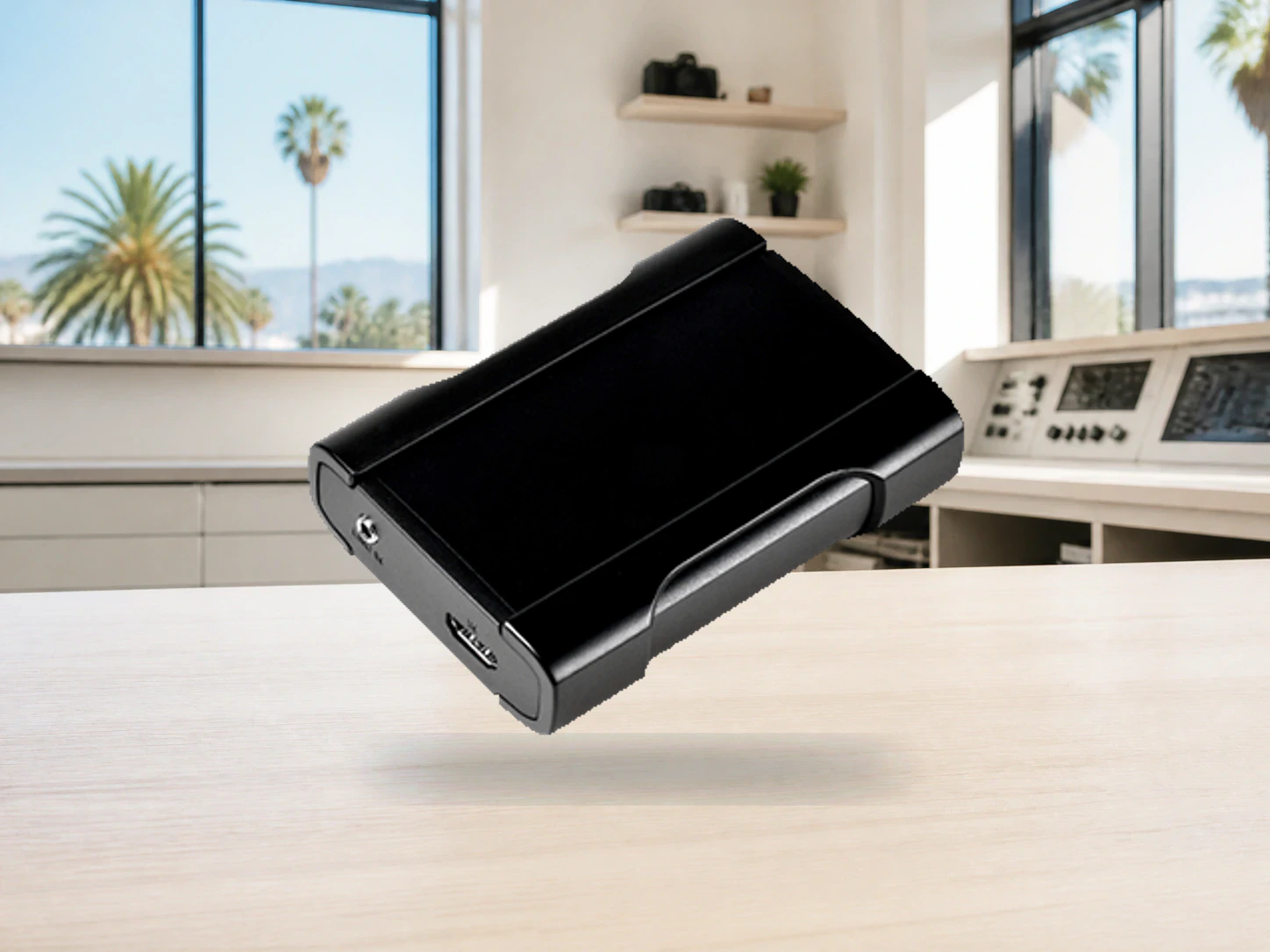

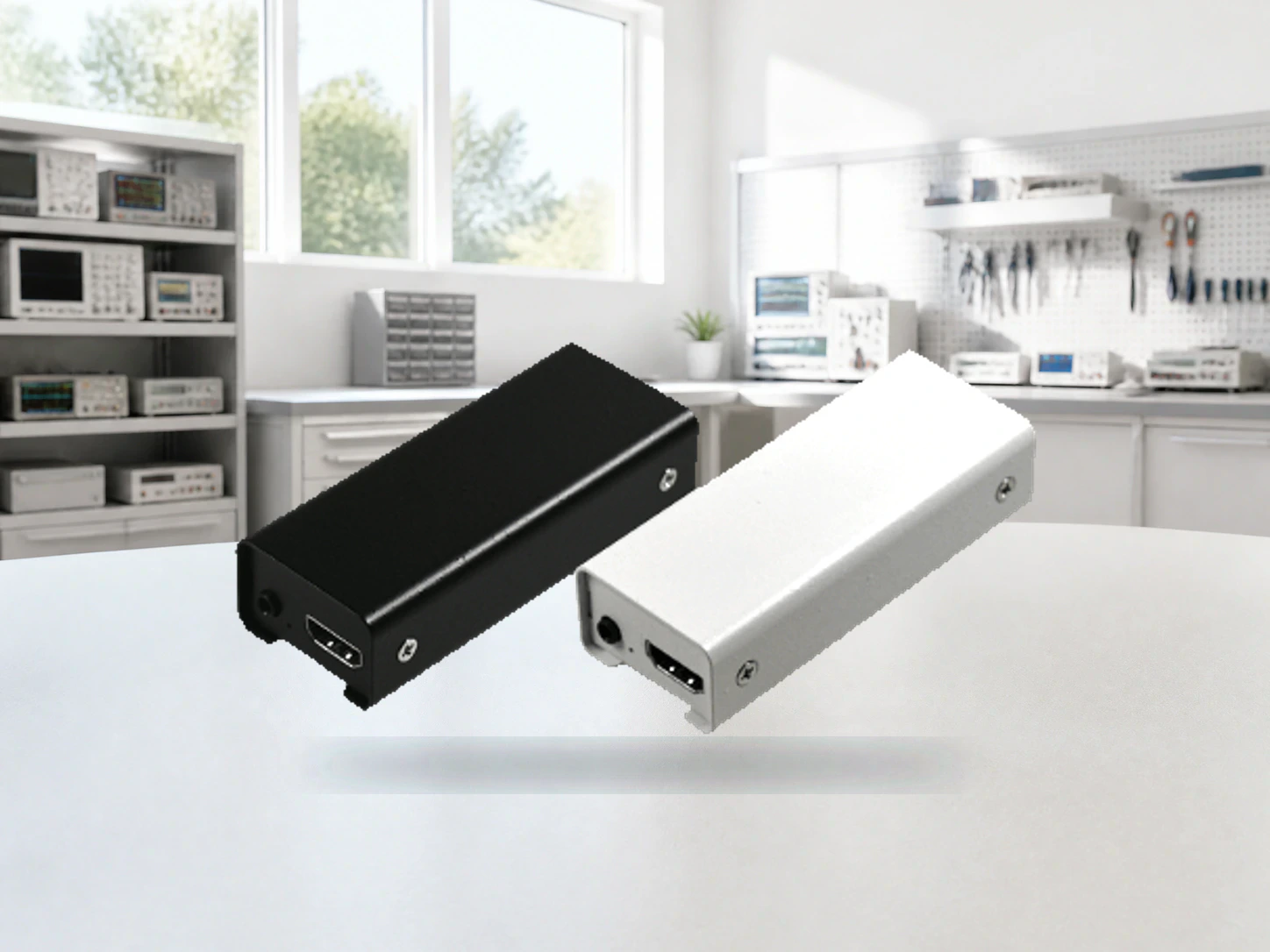

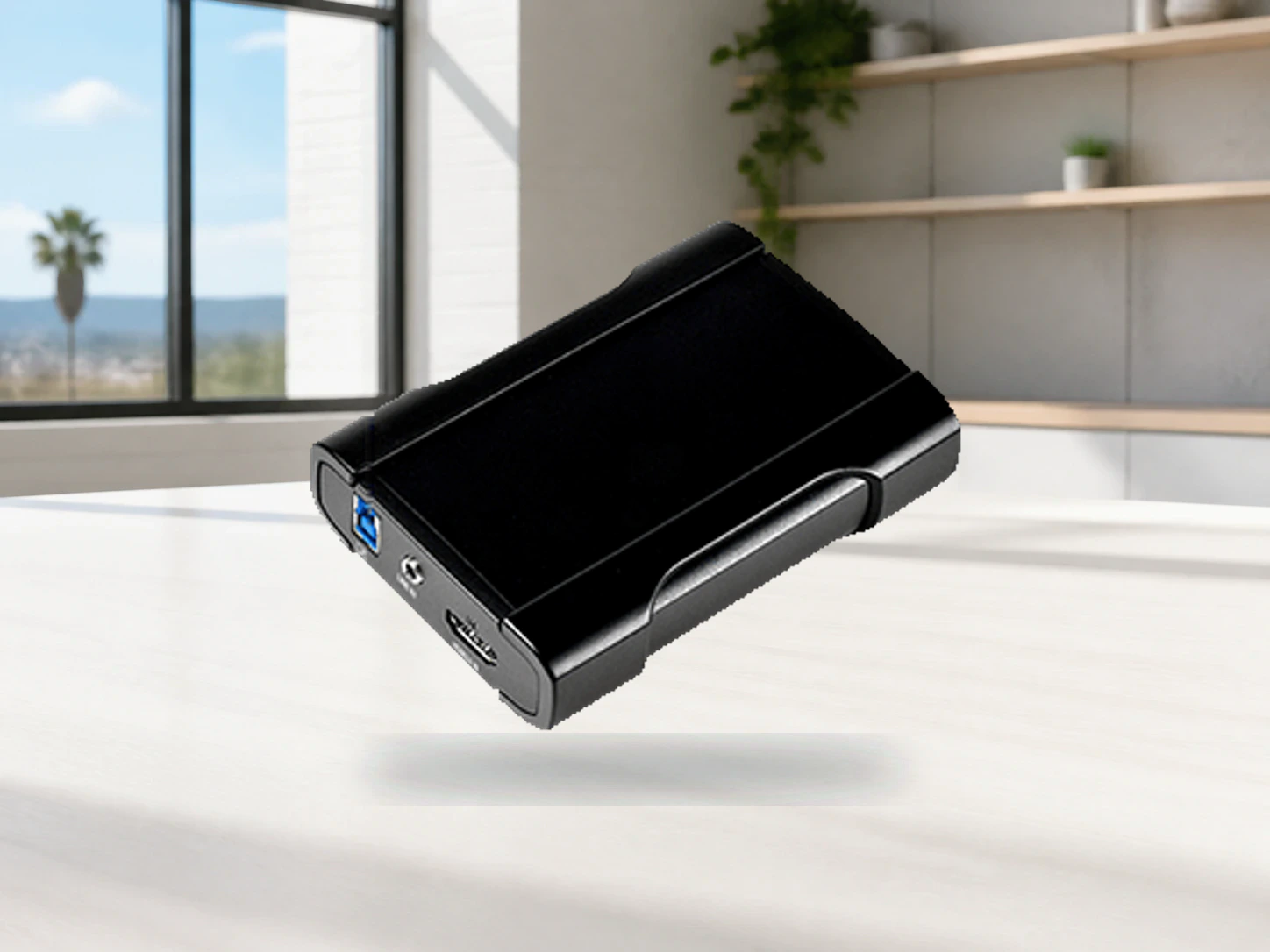

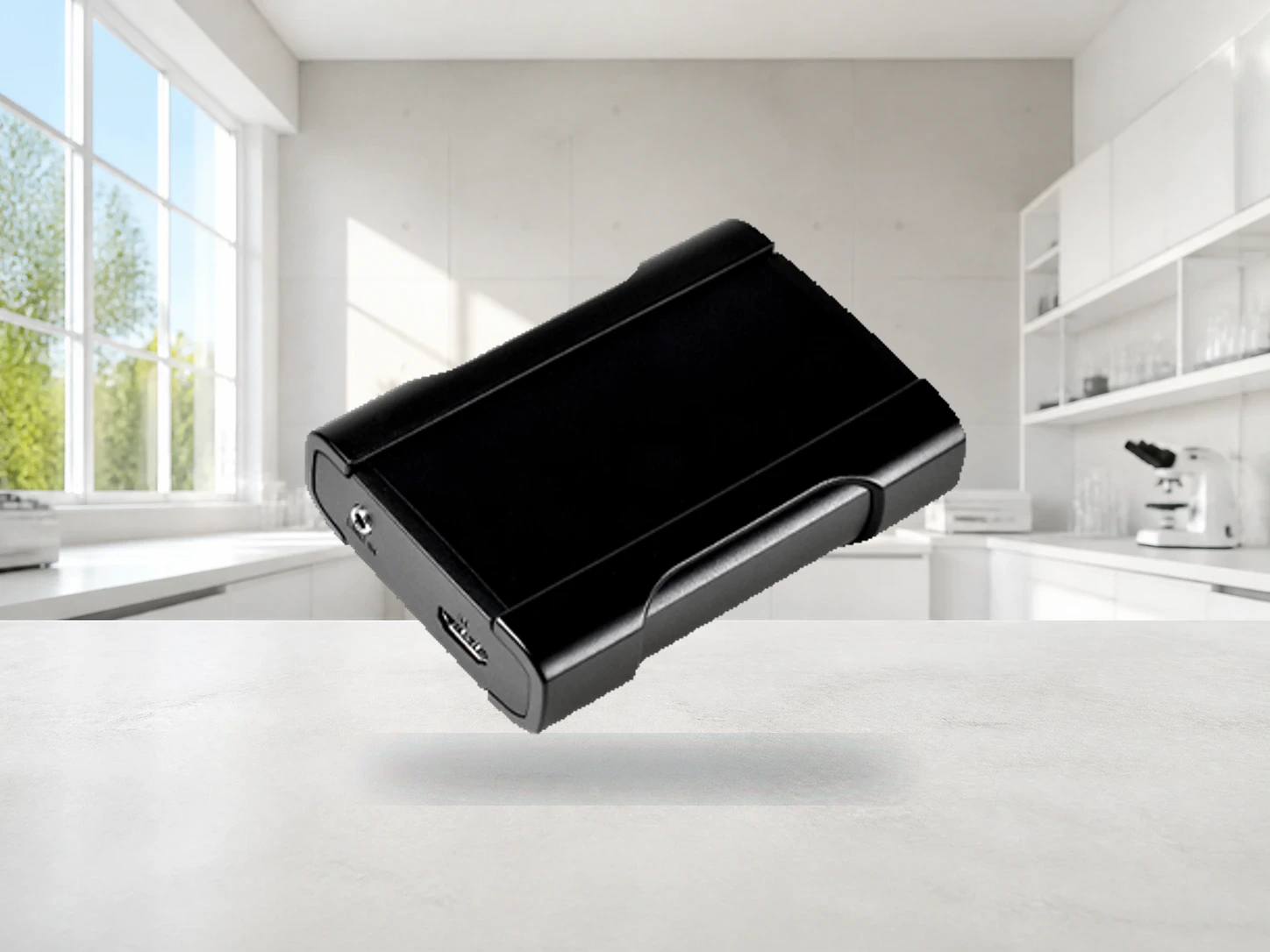

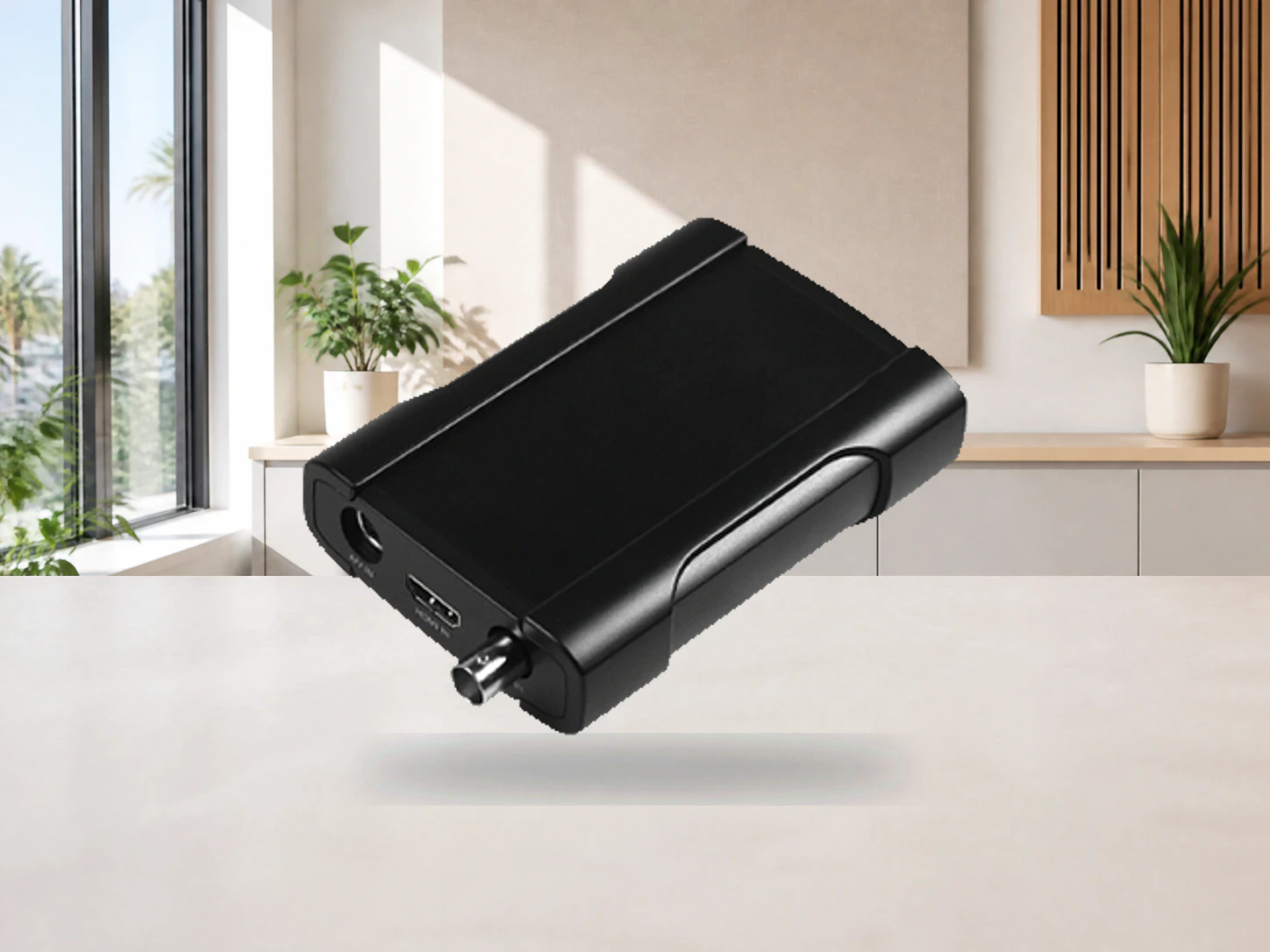

The USB3 capture series uses high-speed USB 3.0 and 3.2 interfaces to deliver the bandwidth for capture up to 8K60. Selected models add broadcast-grade processing engines for scaling, HDR-to-SDR tone mapping, and frame-rate conversion — built for professional broadcast, medical imaging, and live production.
- 1×HDMI2.0
- 1×HDMI
- 1920x1200p @ 60/50fps
- 1920×1080p@240/200fps

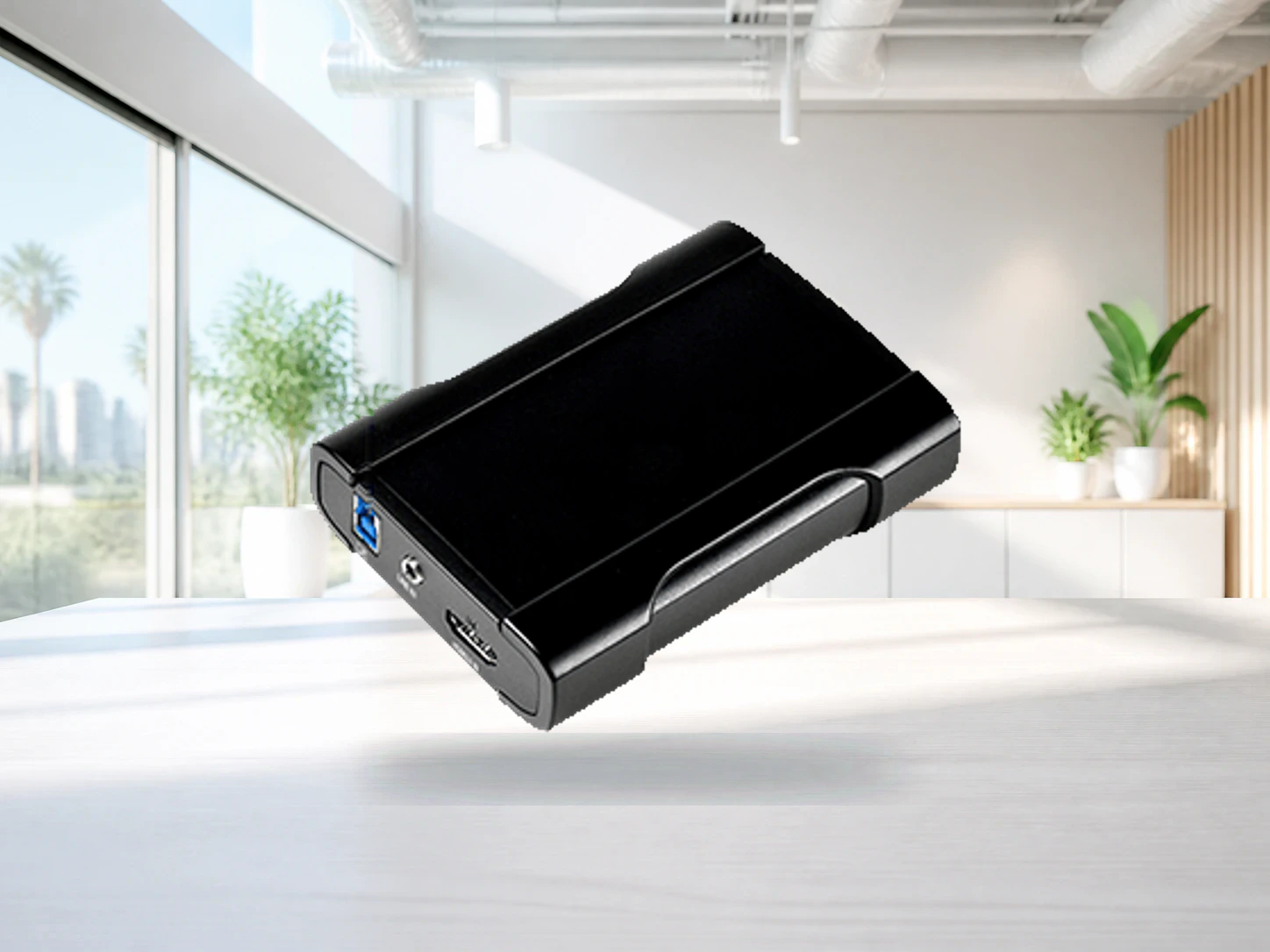

- 1×HDMI2.1
- 1×SDI
USB2.0

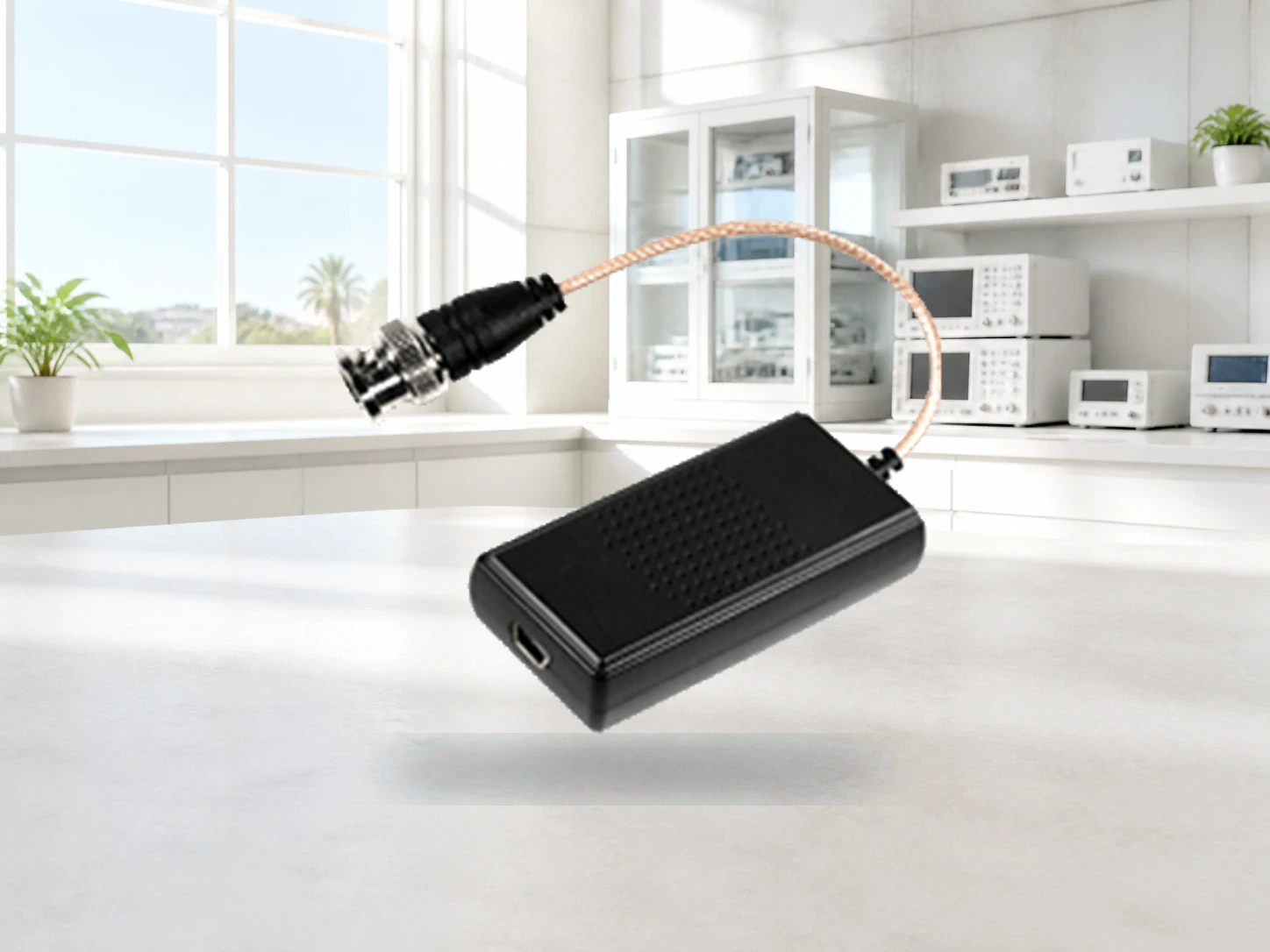

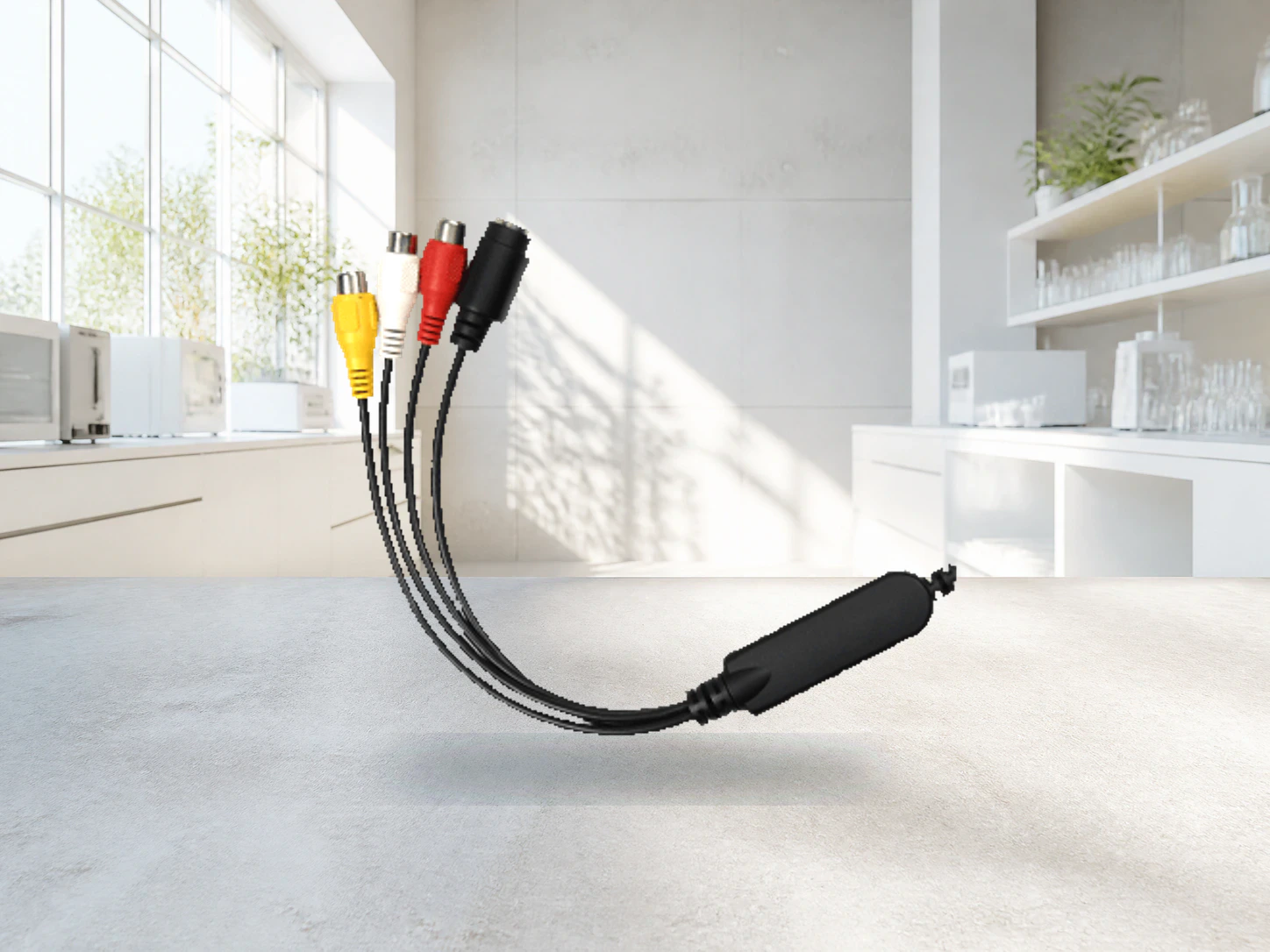

The USB 2.0 capture series is a simple, practical solution for standard-resolution work from SD to HD. Fully UVC-compliant, the devices need no driver installation and capture instantly. Compact, low-power, and highly compatible, they fit educational recording, presentation archiving, entry-level streaming, and large-scale deployments.
- USB 2.0
- H.264
- 1×SDI
- 1×Composite, 1×S-Video
- 30/25fps@D1
Capture I/O
HSB
ProAV

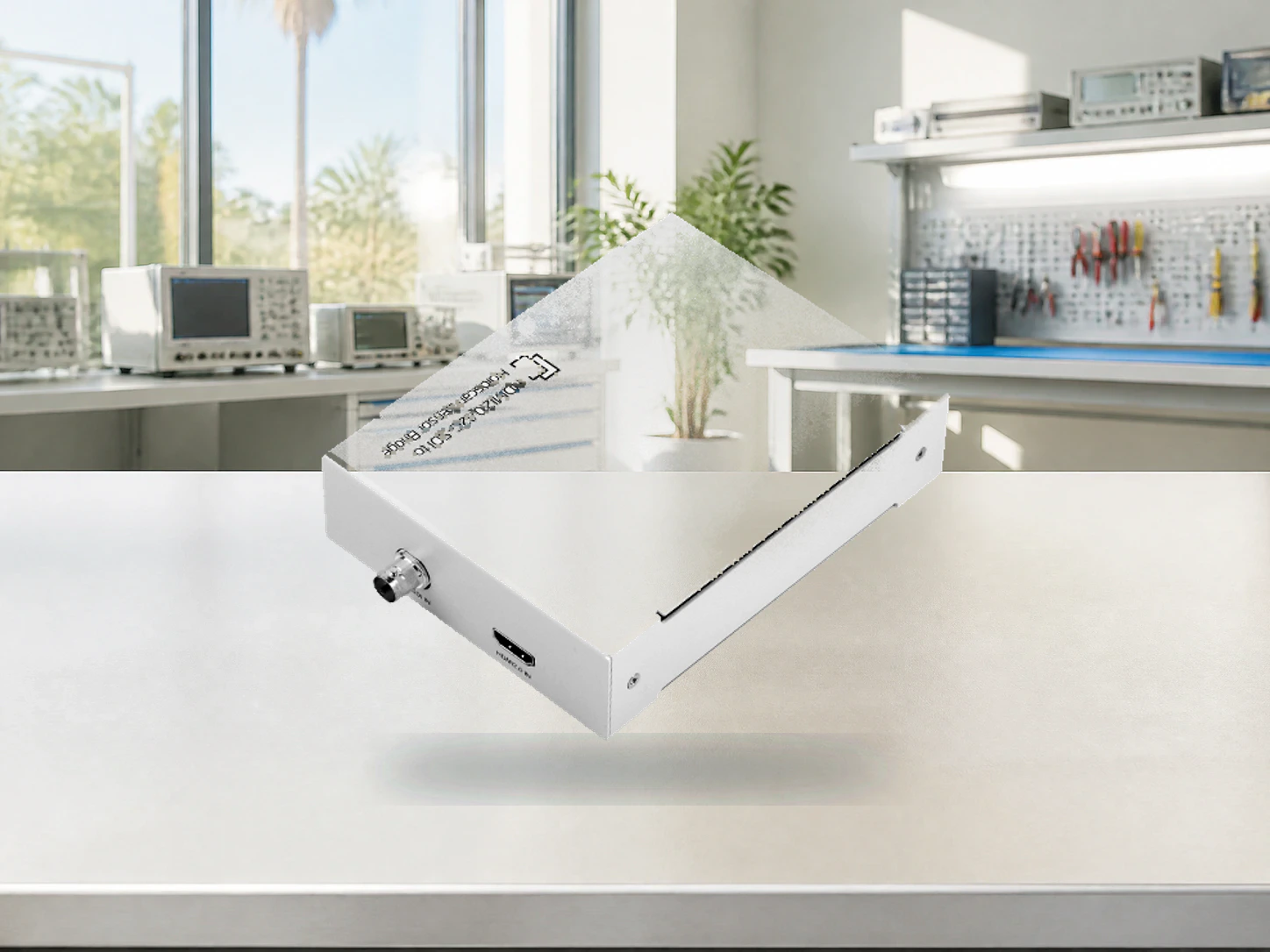

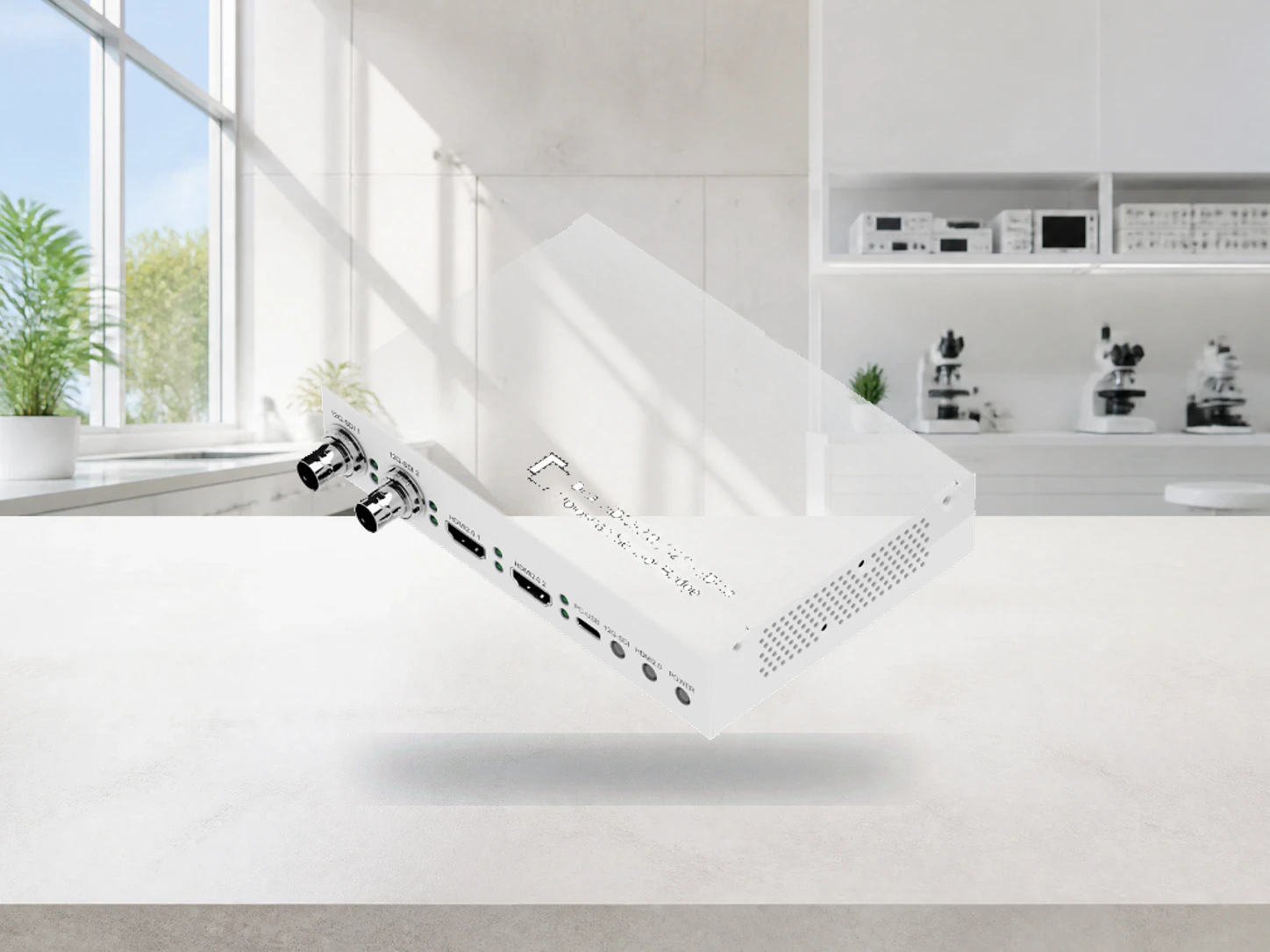

From surgical imaging to autonomous robotics, the Holoscan Sensor Bridge series is a flexible on-ramp for AI vision systems: diverse HDMI and SDI inputs, optical transmission, and direct GPU access for real-time analysis and decision-making in critical environments.
- 2×12G-SDI
- 2×HDMI2.0
- HDMI 2.0×1
- 12G-SDI×1
- 1×HDMI2.0
- 1×DVI-D Dual Link
GMSL2

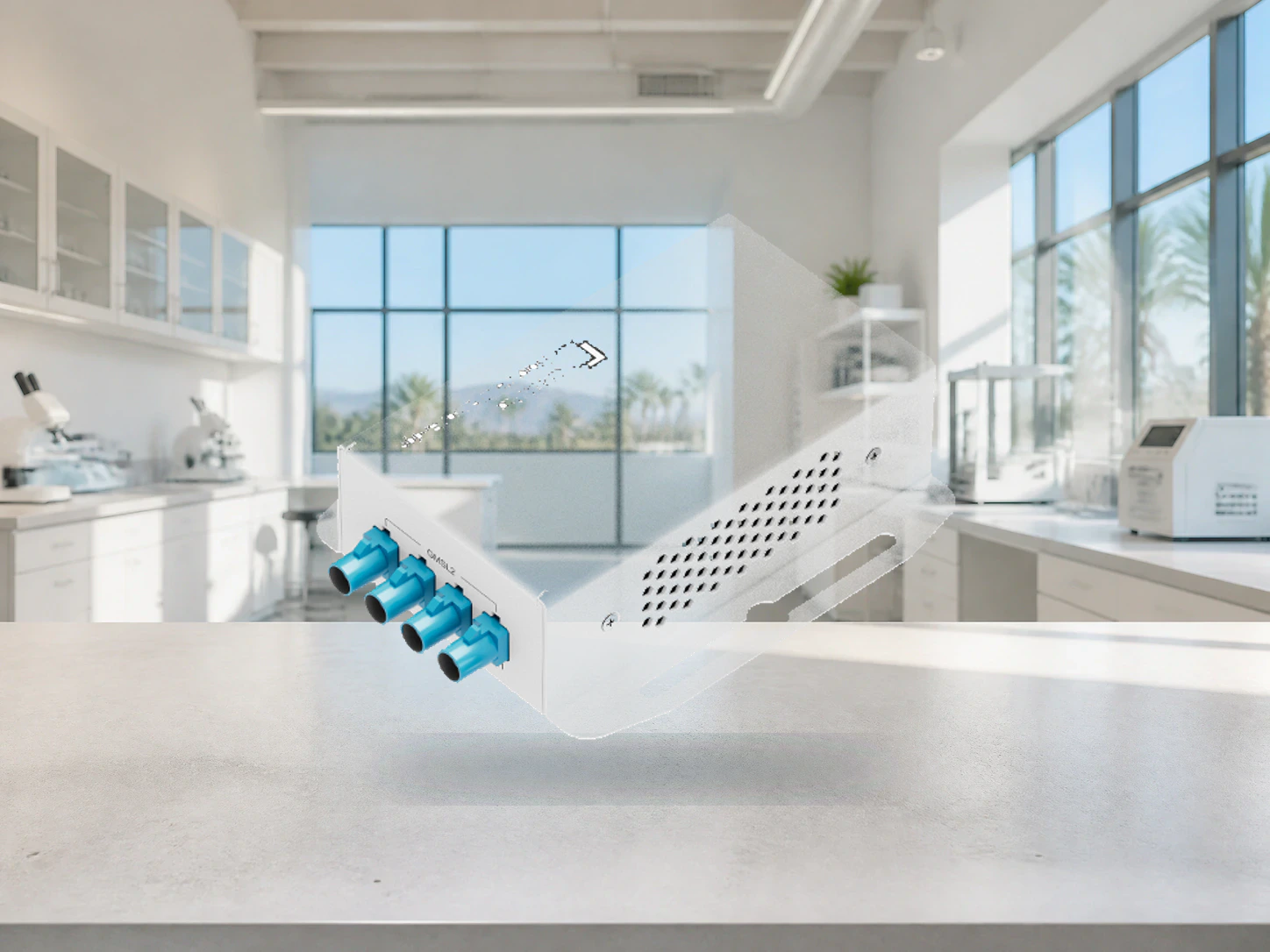

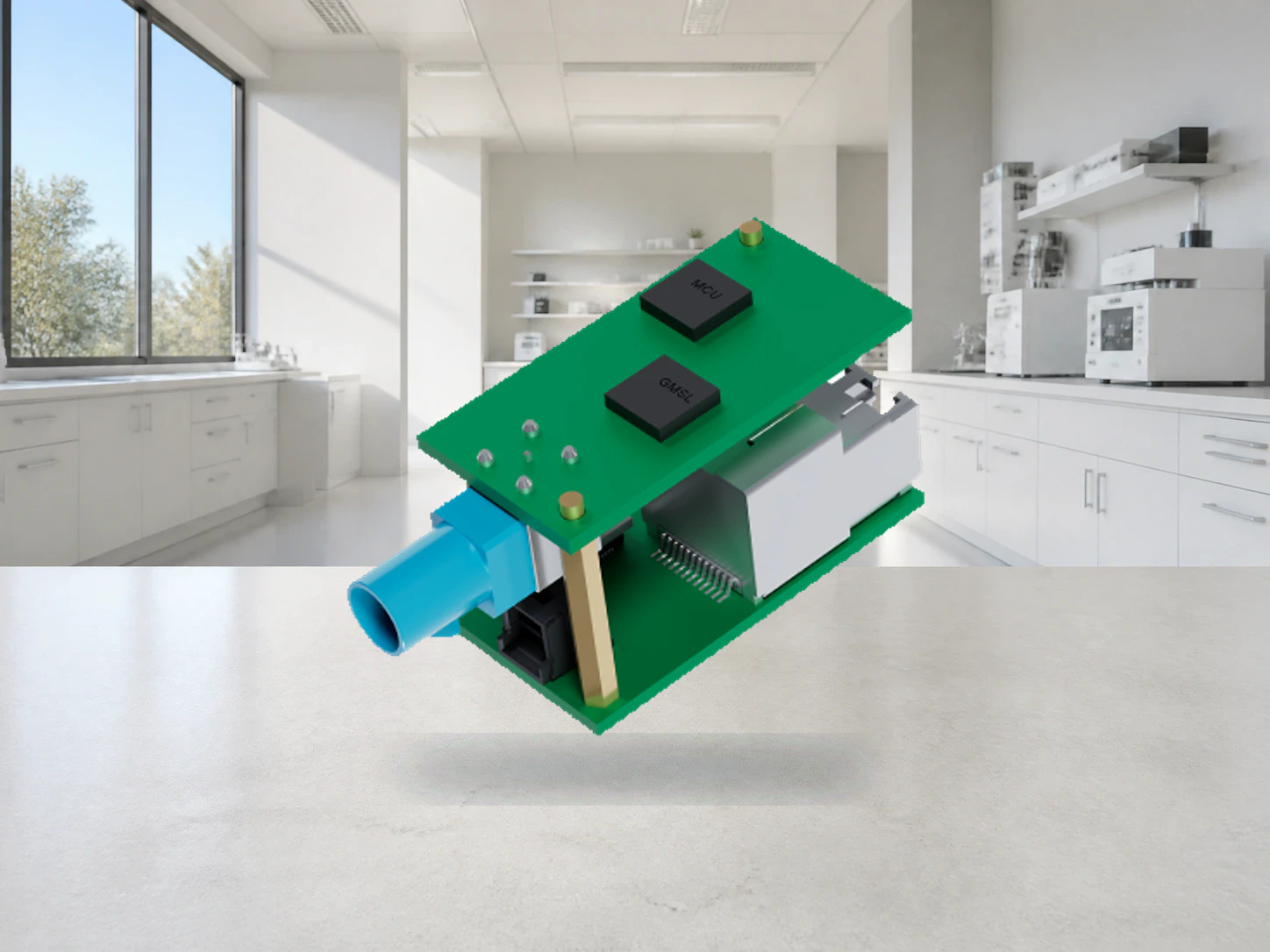

The GMSL2 bridge series carries automotive-grade camera feeds straight into the NVIDIA Holoscan platform: Fakra Z coax inputs, optical SFP+ transmission, and direct GPU access, in enclosures compact enough for robots and vehicles.
- 4×GMSL2
- 1×GMSL2
Capture I/O
I/O Card
SC750N1O1
The I/O Card series supports 4K60 4:4:4 video input and output on a single card, enabling real-time overlay, format-controlled output, and synchronized signal distribution — for production control, medical display, and industrial vision integration.
- 1920×1080i@60/50fps
- PCIe×4 ( Gen3 )
Capture I/O
Legacy
PCI

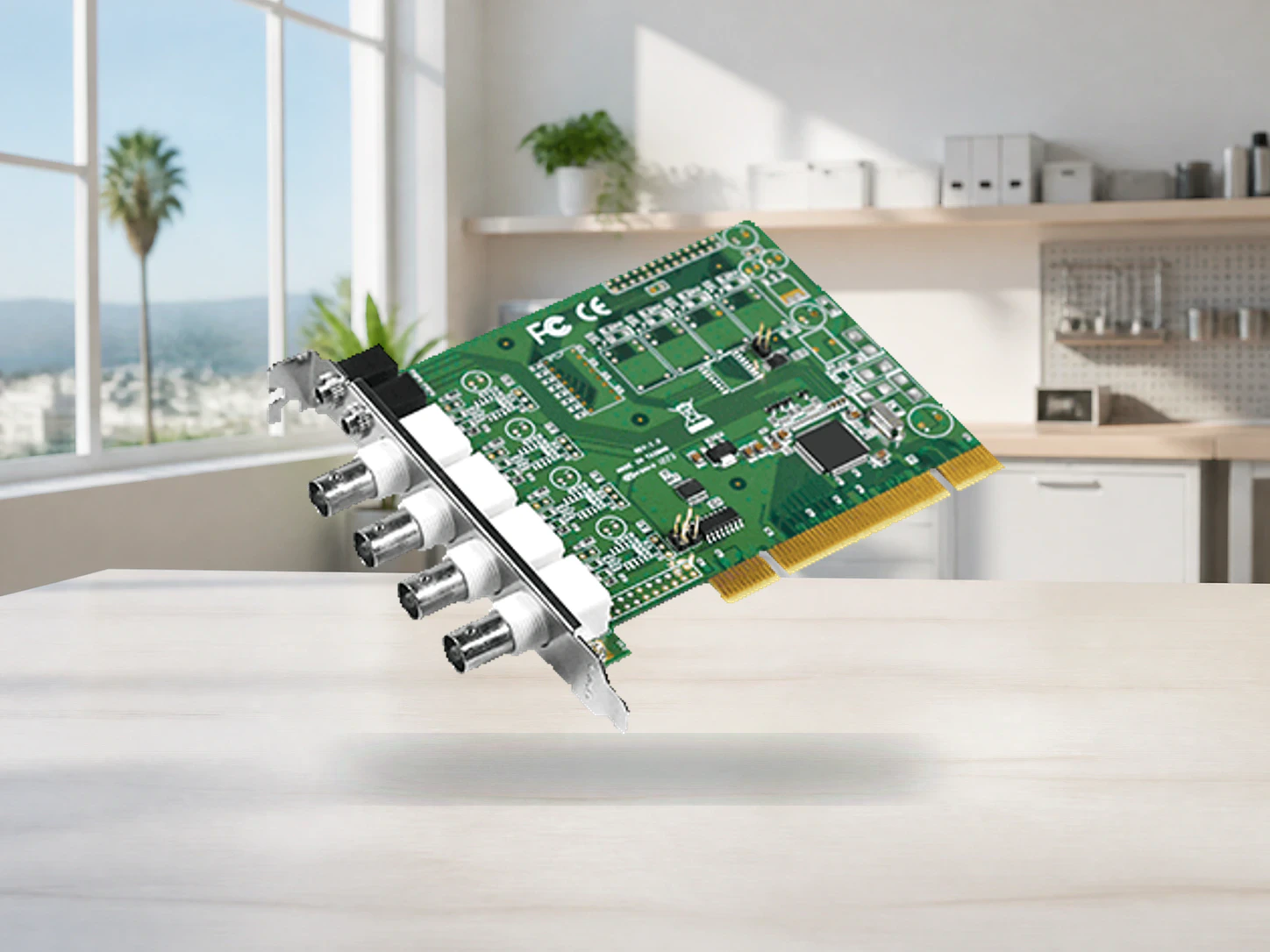

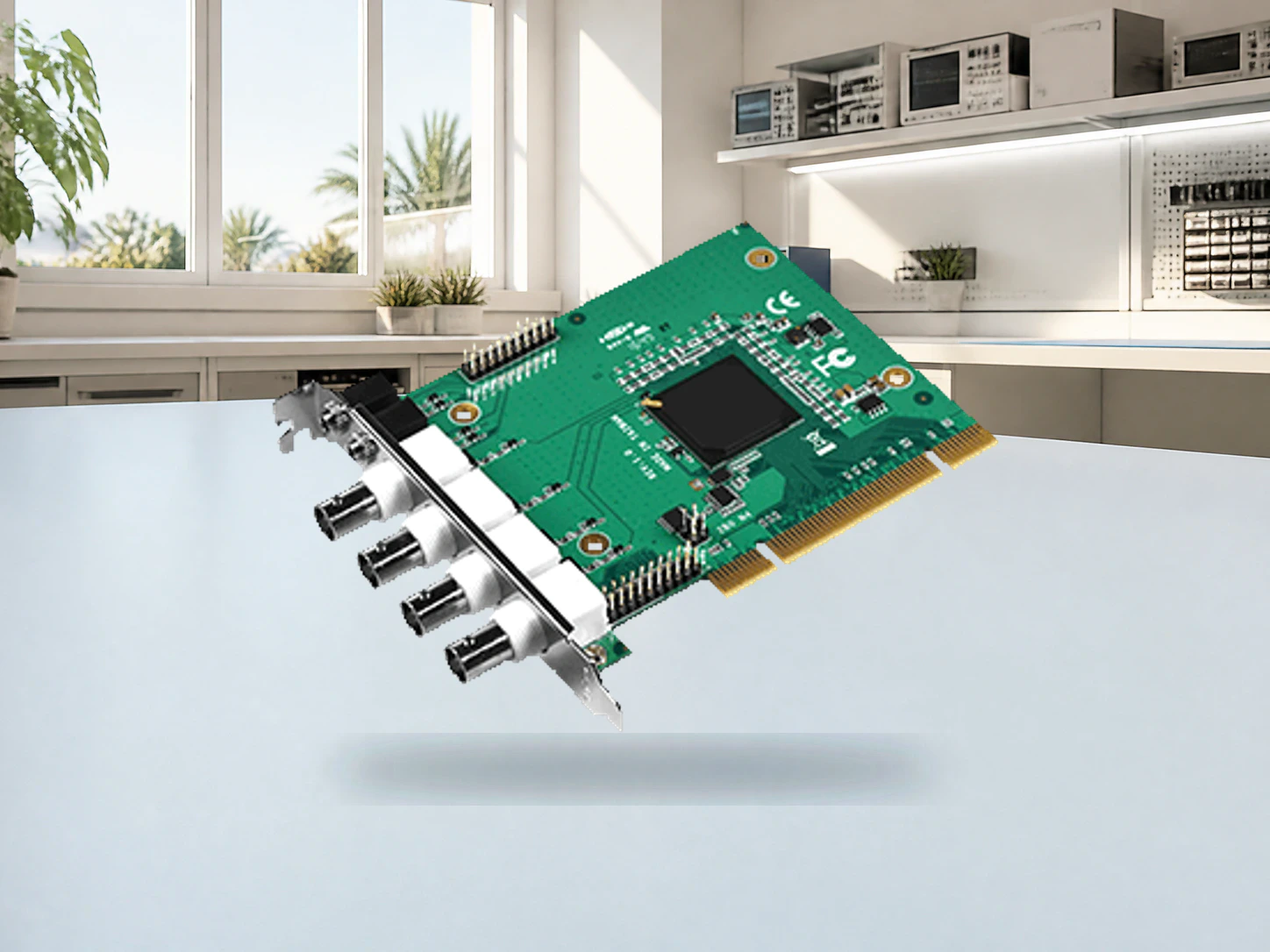

YUAN's PCI capture cards keep legacy industrial systems seeing: reliable video input on the classic PCI bus, with no host platform changes required.
- PCI
- 120/100fps@D1
- H.264 Baseline Profile

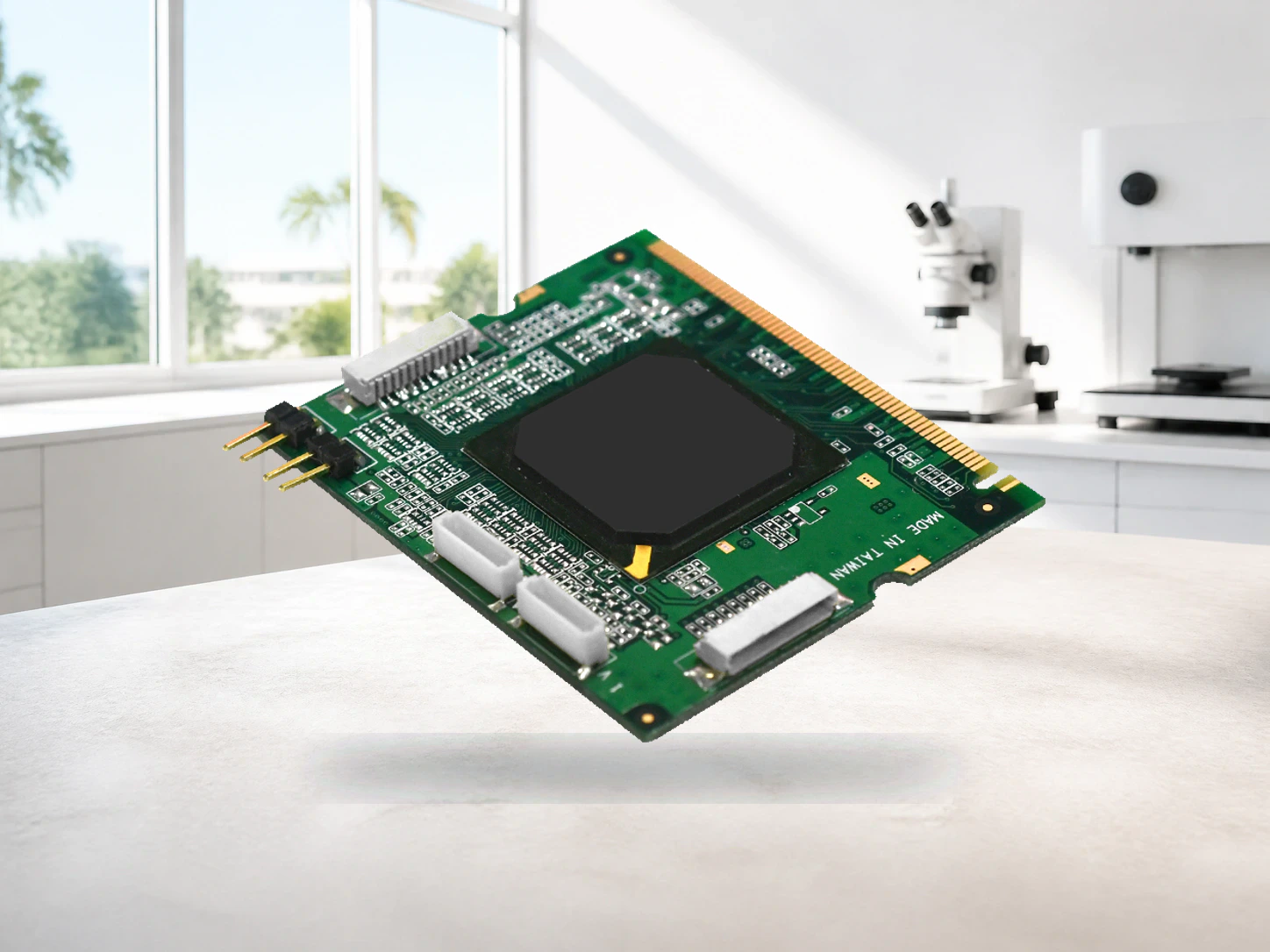

MiniPCI / PCI104

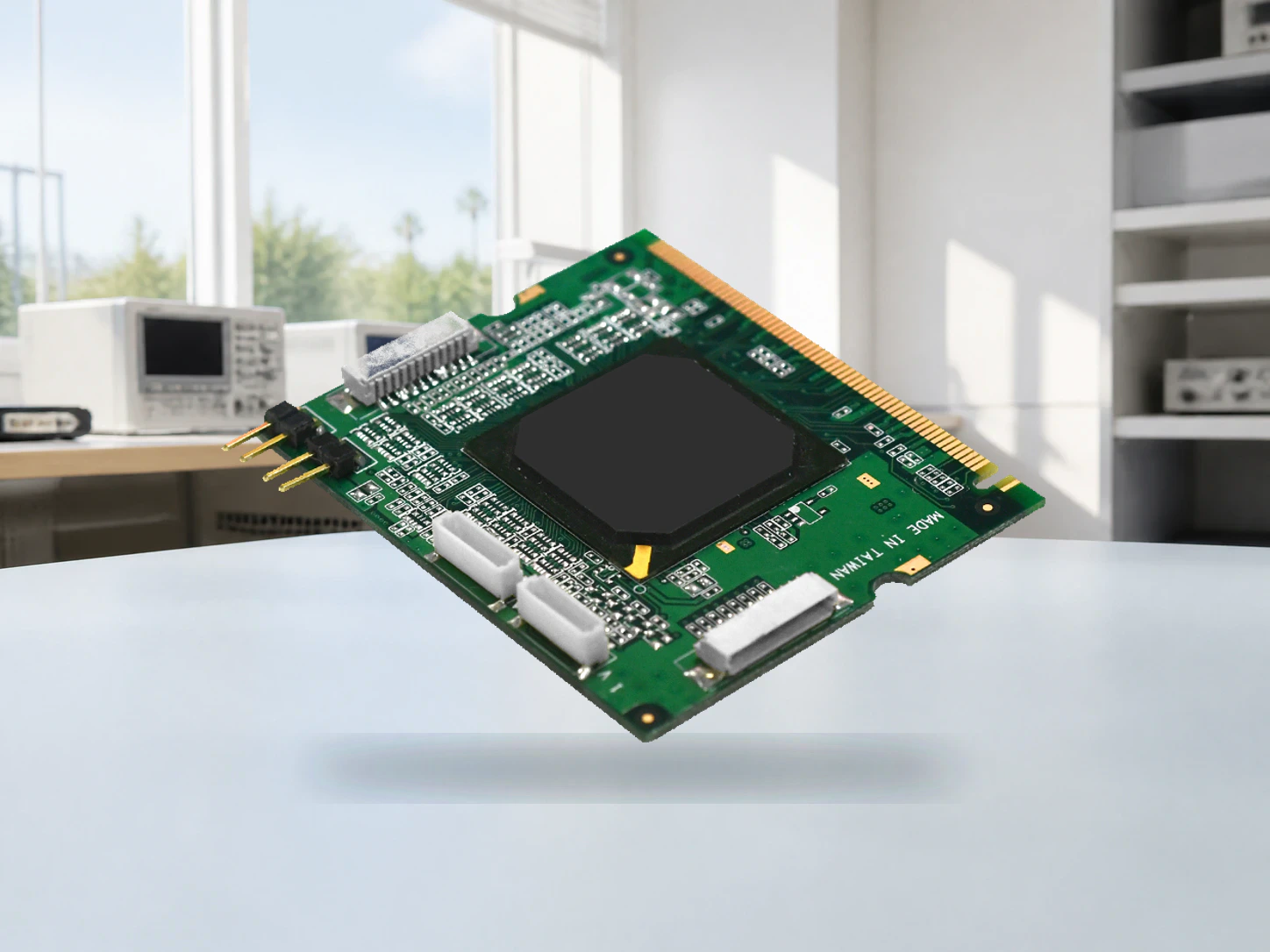

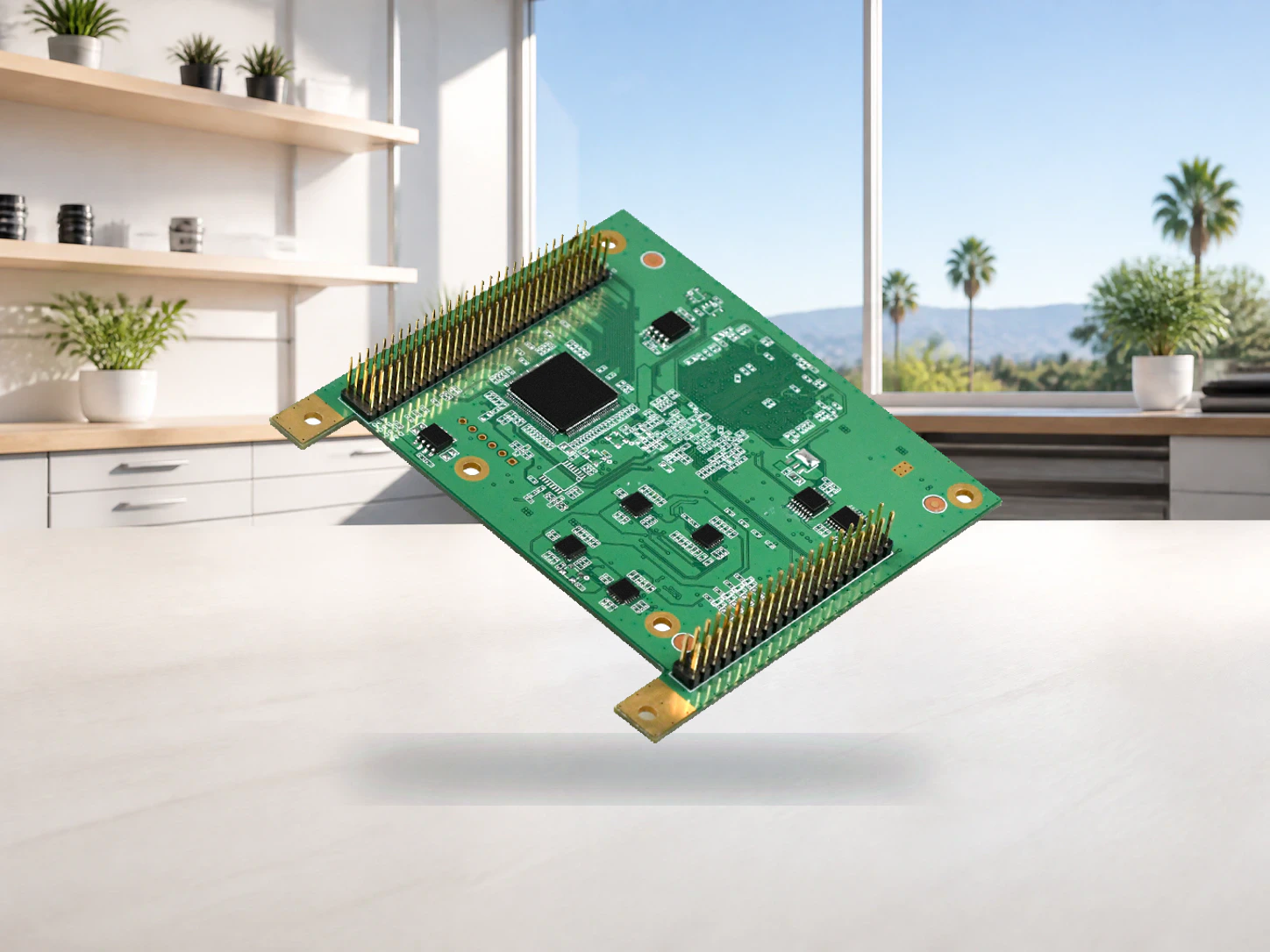

MiniPCI and PCI/PCIe-104 capture modules are optimized for compact embedded systems where space, power, and thermal headroom are all scarce — with stackable, modular designs for multi-channel capture.
- 4×CVBS
- 120/100fps@D1
- H.264
- MiniPCI
- 8×CVBS
- PCIe 104
Capture I/O
SDK
SDK
NexVDO SDK is YUAN's video software stack, offered across every YUAN platform — NVIDIA Jetson and Intel x86 alike. Its four modules — Capture, Record, Stream, and Analysis — cut development time and speed products to market, and YUAN's engineering team backs the SDK with hardware and software customization services for project-specific needs.
- Capture
- Record
- Stream
- Analysis
Put Capture I/O to work
Professional video capture — PCIe, M.2, MiniPCIe and USB, from SD to 8K60.
Talk to an engineer
