Best fit
- Embedded computers and compact edge-AI platforms
- Space-constrained medical, industrial, robotics, and portable systems
- Raw ProAV capture or selected hardware H.26X workflows
36 current catalog products
M.2 capture cards for space-constrained systems
Choose M.2 when capture has to fit inside an embedded computer or compact edge platform. The connector alone is not enough: key, board length, lane support, thermals, and mechanical clearance must match the host.
Verify before selection
- M.2 key, card dimensions, mounting position, and host PCIe lane support
- Airflow, thermal budget, and clearance around cables and connectors
- Signal, channel, resolution, operating-system, and SDK requirements
36 current catalog products
Browse M.2 capture-card series
Use the series summaries to choose a starting point, then search and shortlist individual models below.
32 PRODUCTS
ProAV M.2

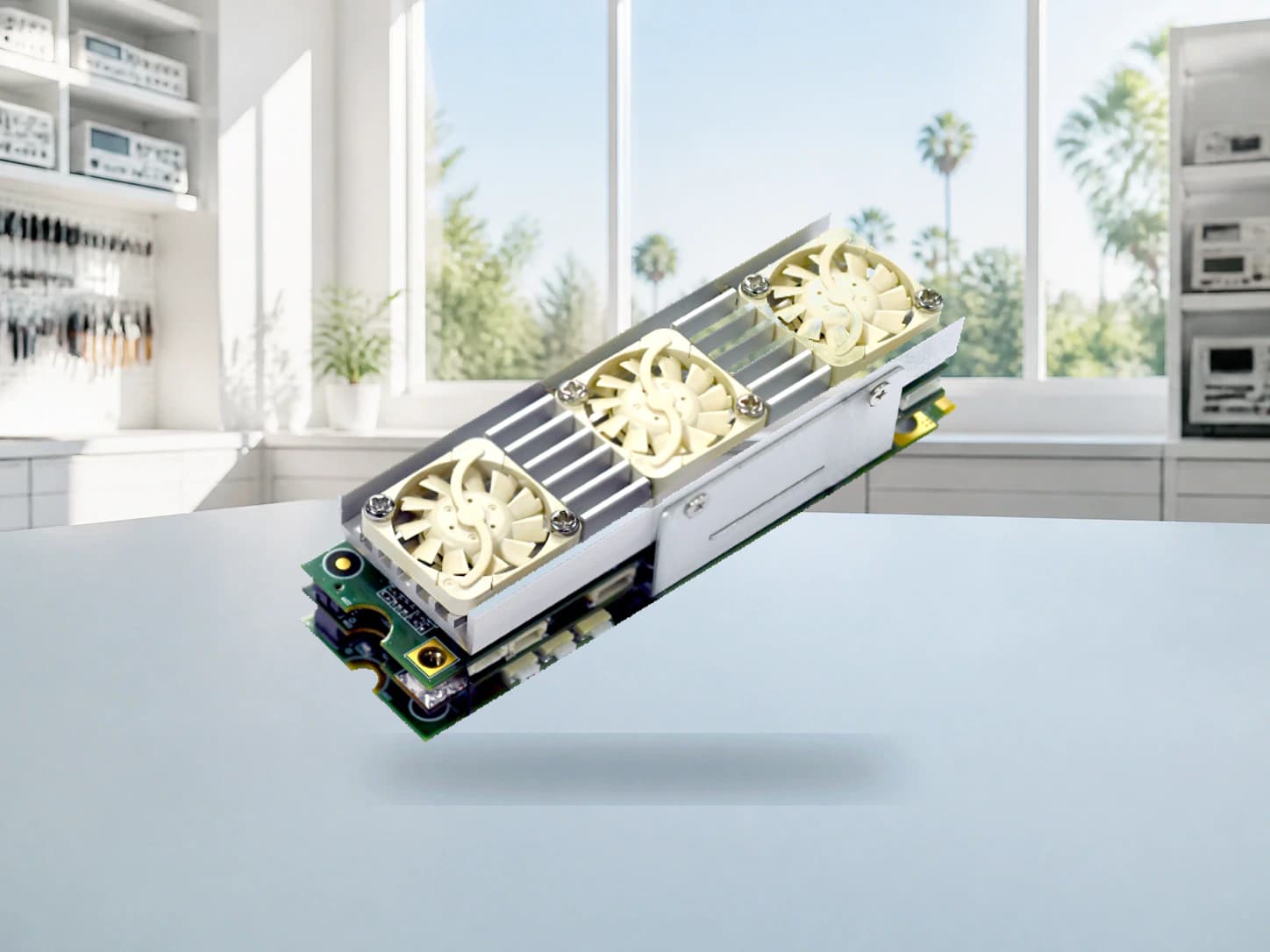

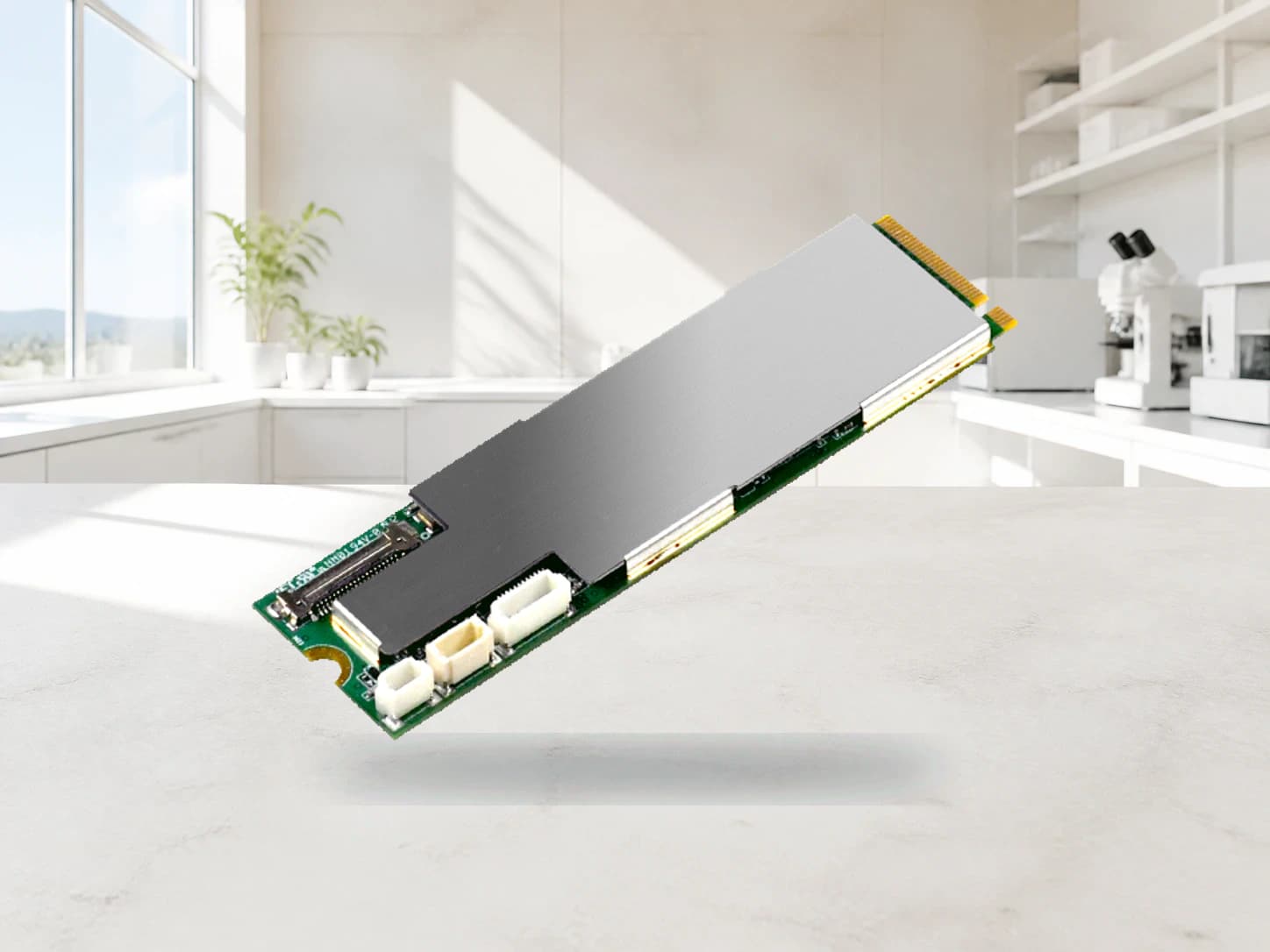

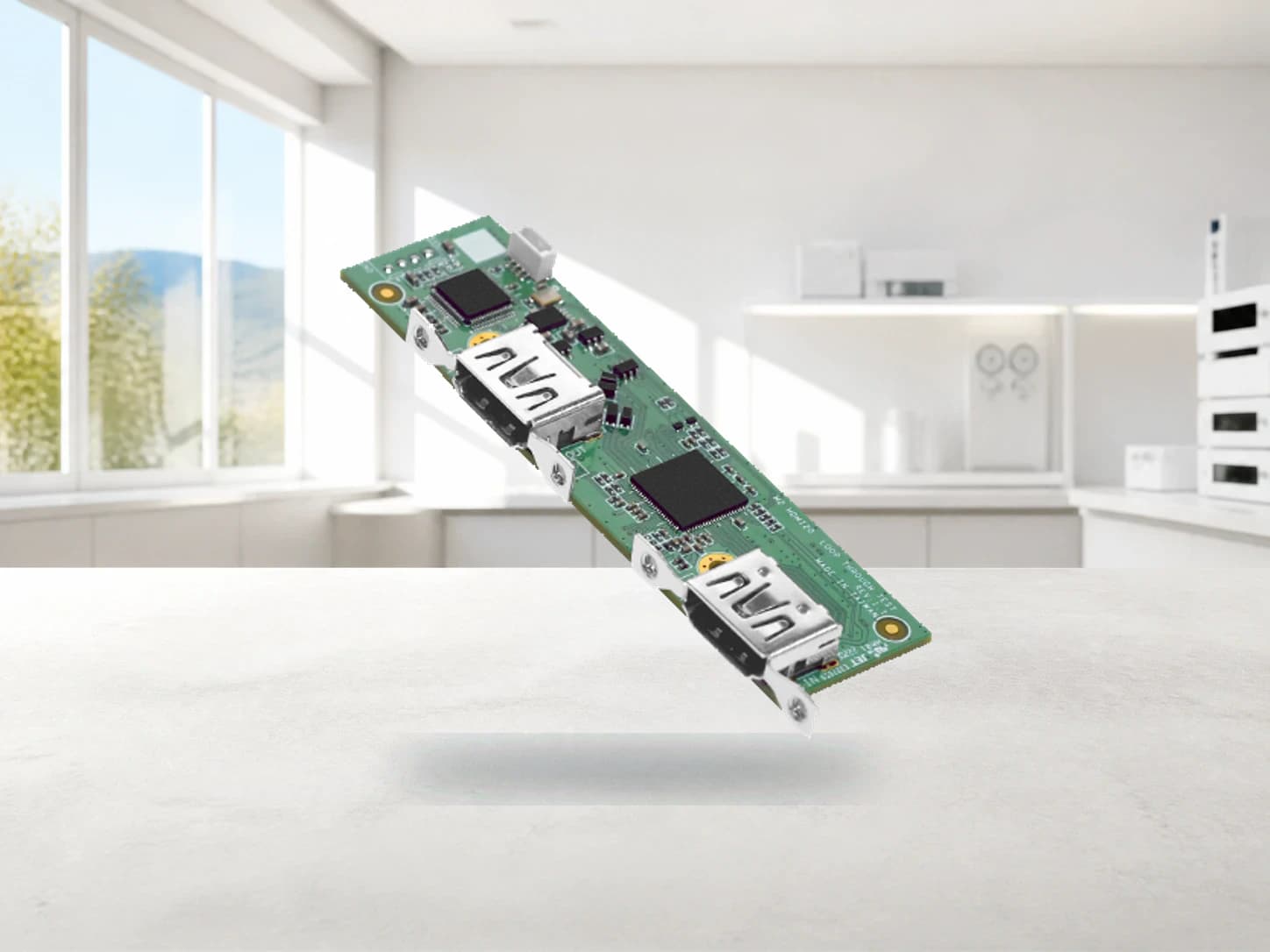

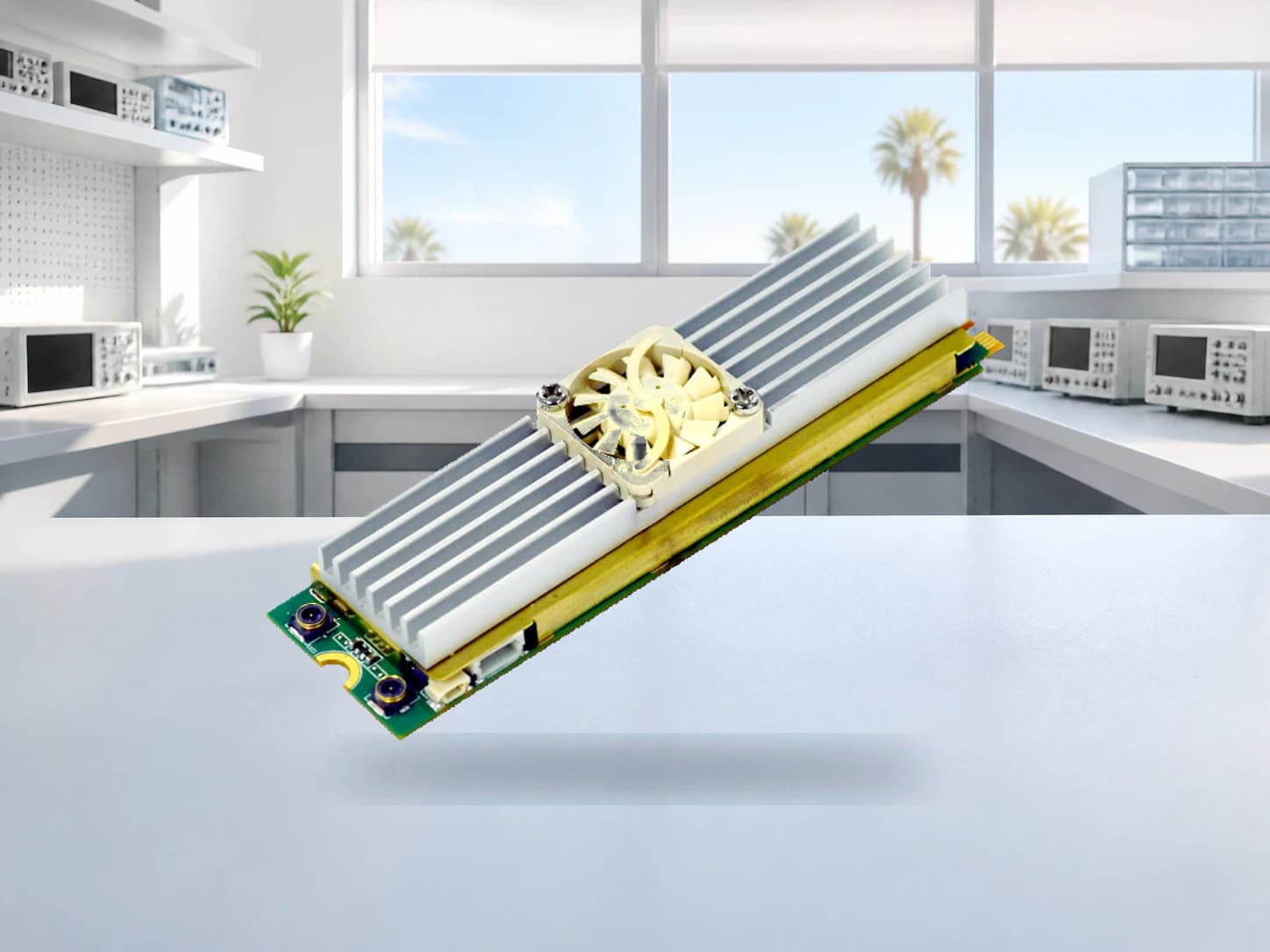

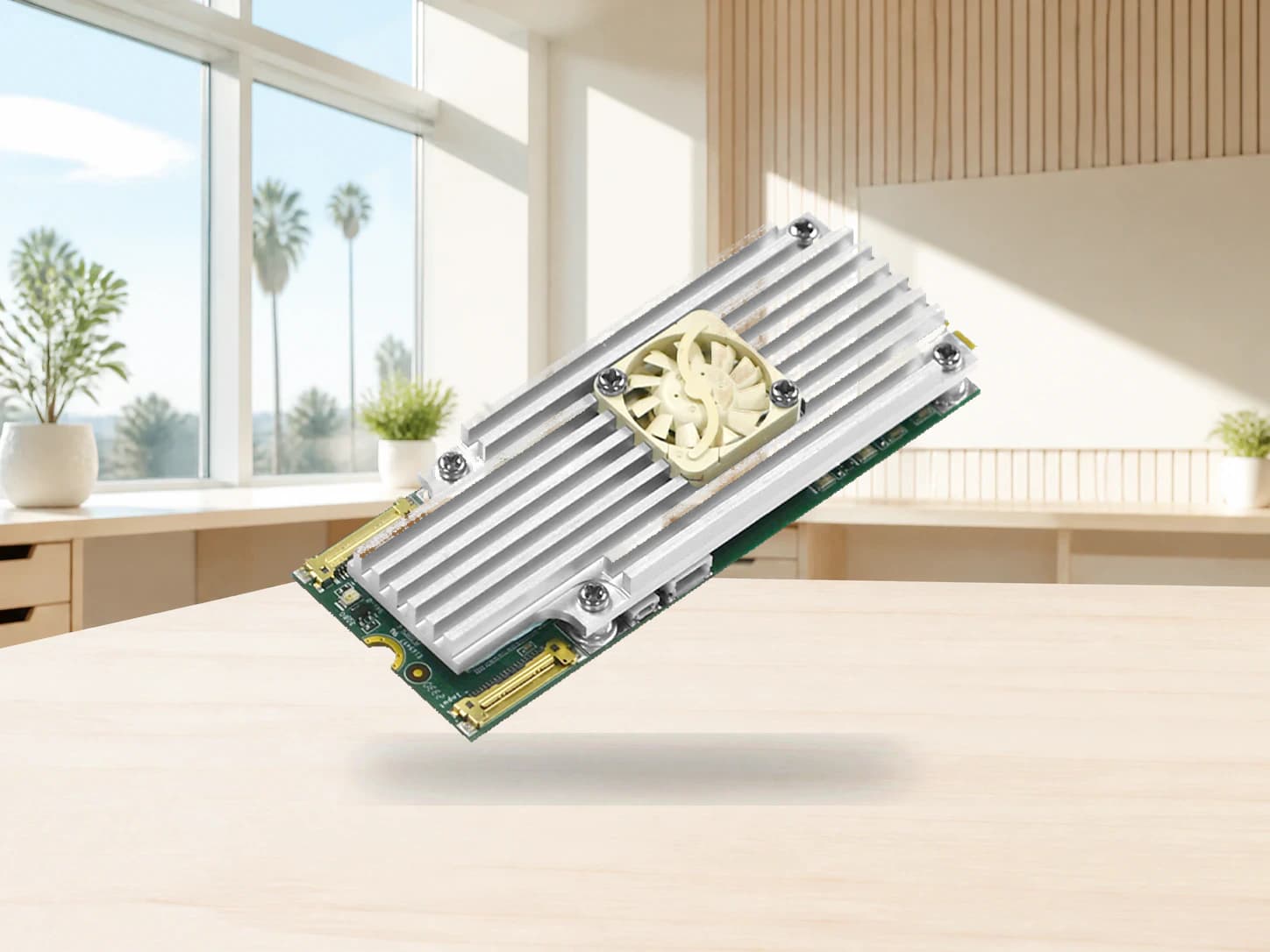

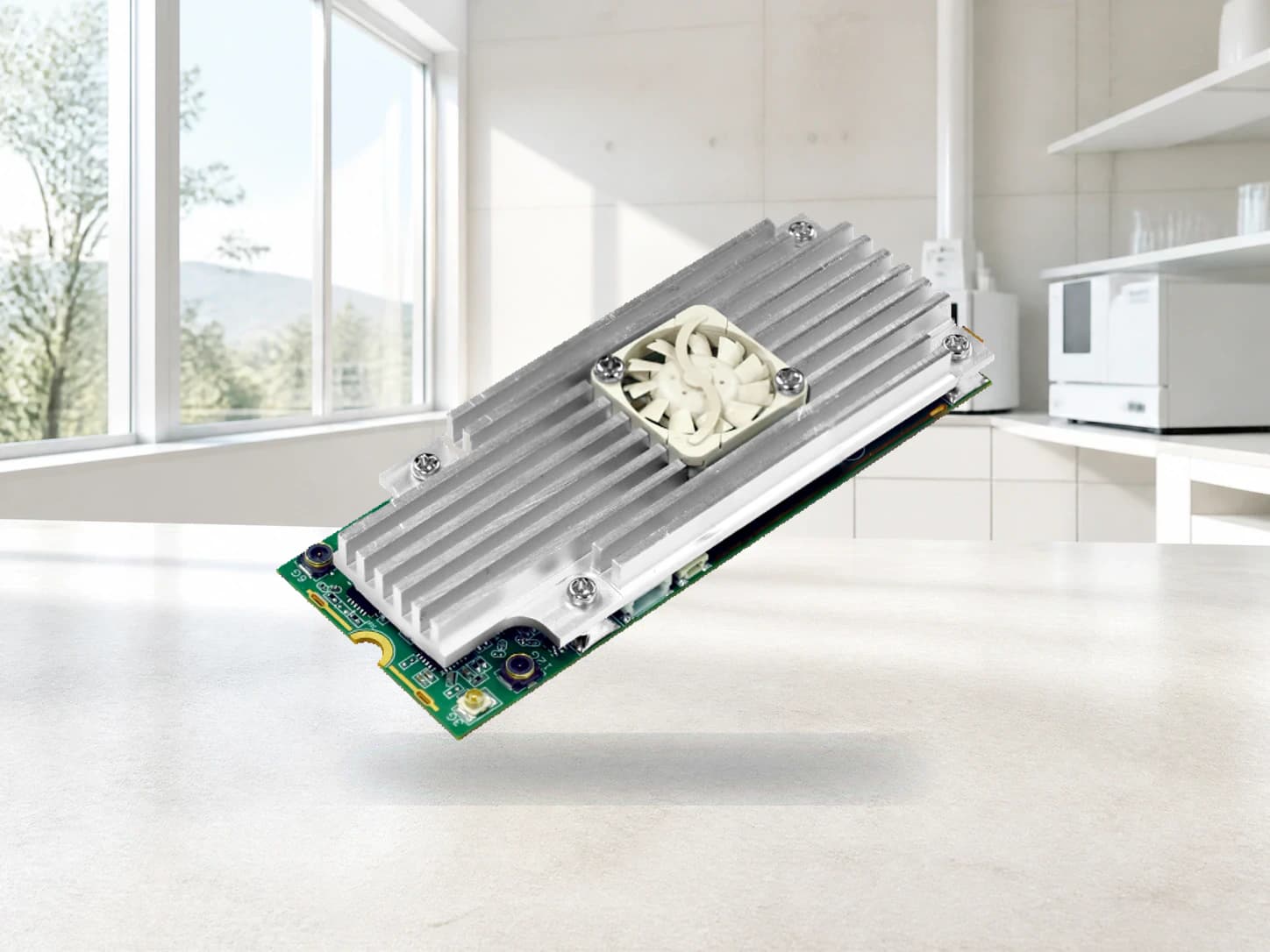

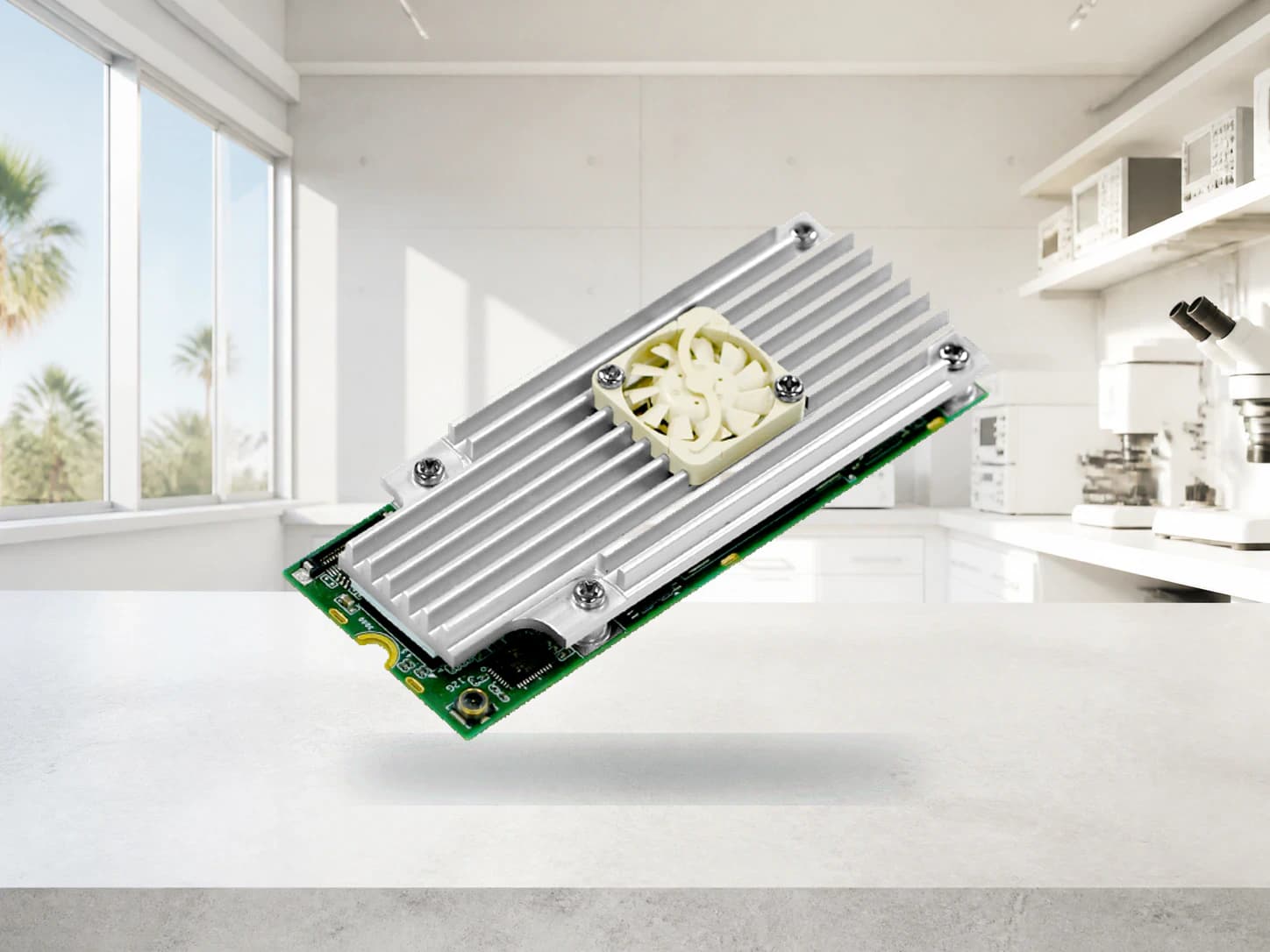

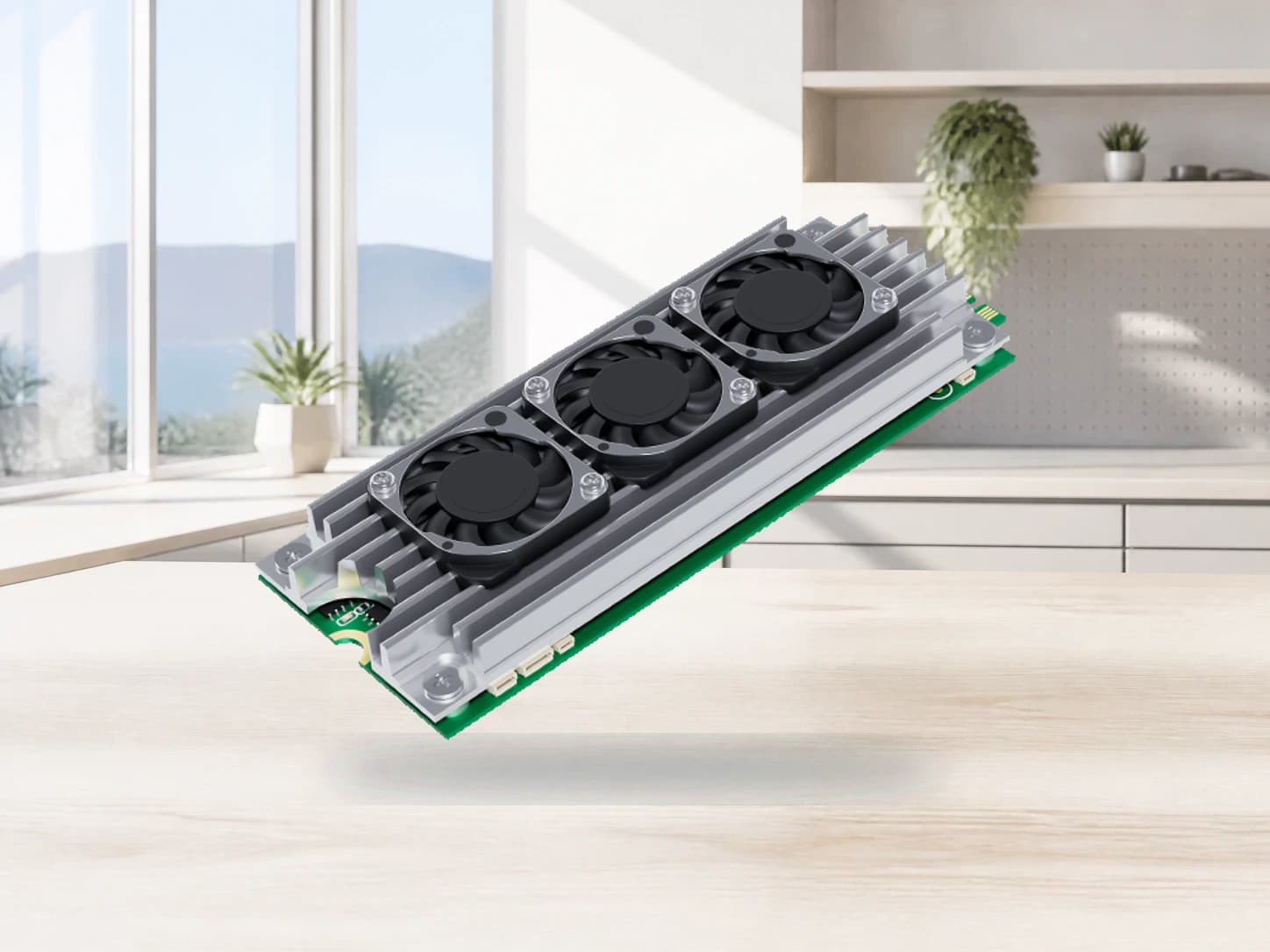

ProAV M.2 cards provide video capture in compact systems such as vehicles, drones, and embedded devices. The family includes A+E-key and B+M-key configurations plus standard- and wide-temperature options from -40 C to 85 C.
- M.2 ( PCIe×1 )
- M.2 ( PCIe×4 )
- 1920×1080p@60/50fps
- M.2 ( PCIe×2 )
- 4096×2160p@60/50fps
- 1×HDMI
4 PRODUCTS
Pro H.26X M.2
Pro H.26X M.2 cards combine single-channel 1080p30 capture with onboard H.26X compression in a compact form factor for embedded and industrial hosts.
- M.2 ( PCIe×1 )
- H.26X
- 1×HDMI
- 1×SDI
PRODUCT FINDER
Find a model without scanning the whole catalog
Search by model, signal, or capability. Narrow by series, then add likely fits to your shortlist for side-by-side review.
36 matching products
Compare form factors
M.2 is one host option
Return to the selection guide if the host or installation has not been decided.
PCIe
A strong fit for fixed hosts, higher channel counts, and systems where the capture card stays installed.
Review PCIeMiniPCIe
An internal embedded option for systems designed around MiniPCIe expansion rather than M.2.
Review MiniPCIeUSB
An external option for laptops, portable kits, and systems where opening the host is impractical.
Review USBReview a M.2 capture requirement
Send the host, input signals, channel count, resolution, operating system, and candidate models to the YUAN USA product team.
Send product requirements
